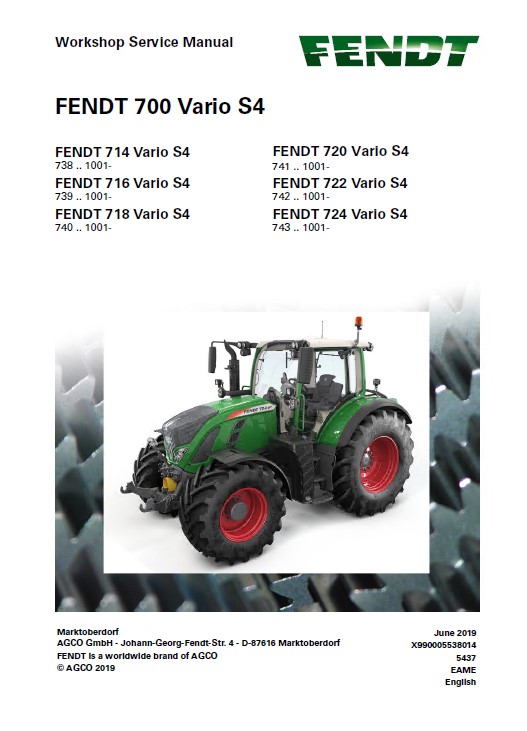

Fendt Tractor 700 Vario S4 Workshop Service Manual PDF

For complete service information also see:
Fendt Tractor 700 Vario S4 Operator’s Manual

Fendt Tractor 700 Vario S4 Maintenance Operator’s Manual

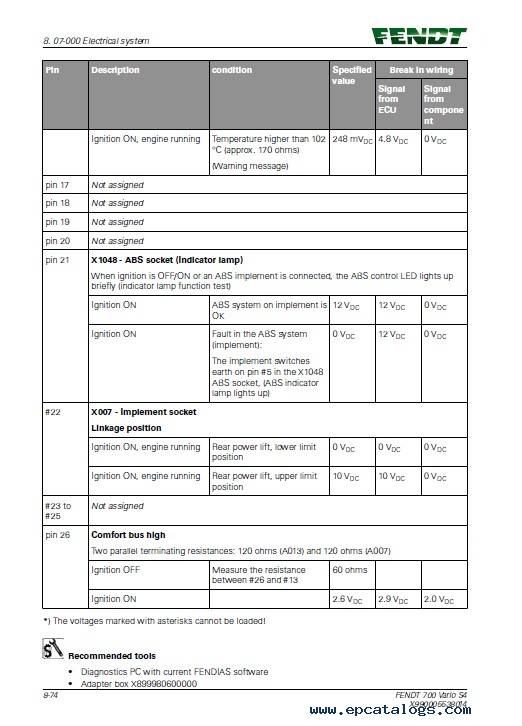

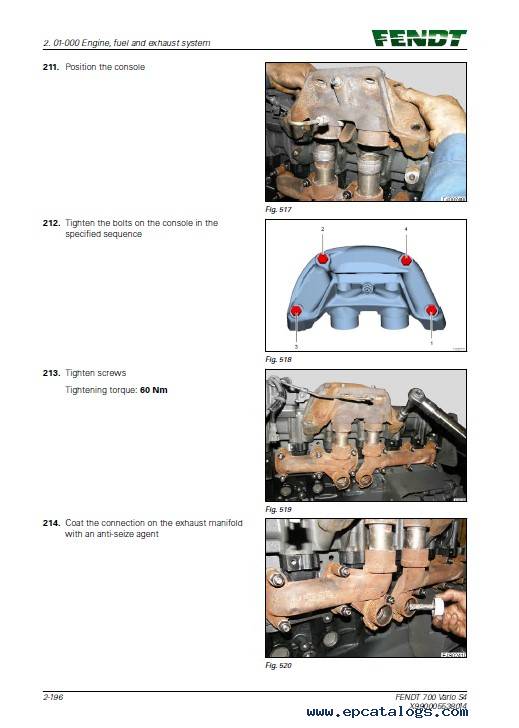

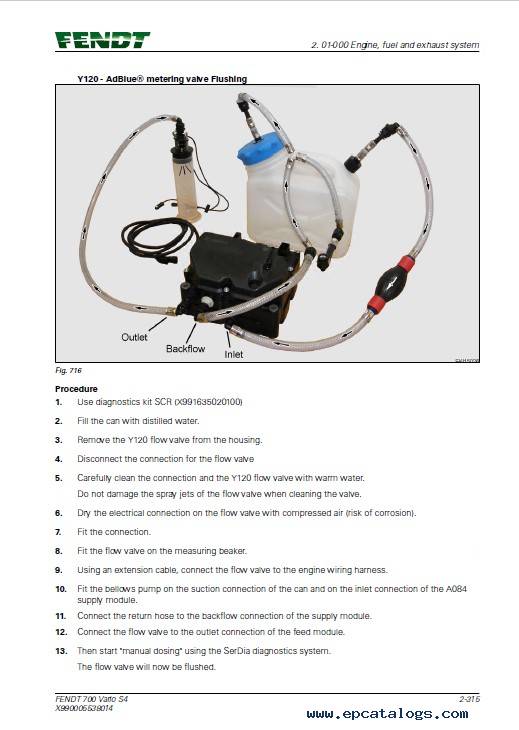

This PDF Workshop Service Manual contains complete technical information, repair and service instructions, schematics and diagrams, technical specifications for Fendt Tractors 700 Vario S4 Series. This factory tutorial is divided into several sections about technical data, removing and installing the engine, helpful illustrations, and diagrams, different schemes, and others.

Models covered:
Fendt 714 Vario S4 738 .. 1001-
Fendt 716 Vario S4 739 .. 1001-
Fendt 718 Vario S4 740 .. 1001-
Fendt 720 Vario S4 741 .. 1001-
Fendt 722 Vario S4 742 .. 1001-
Fendt 724 Vario S4 743 .. 1001-

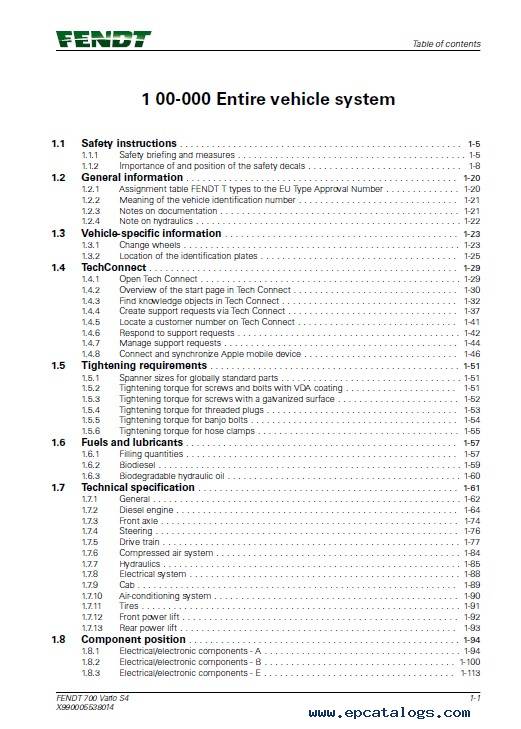

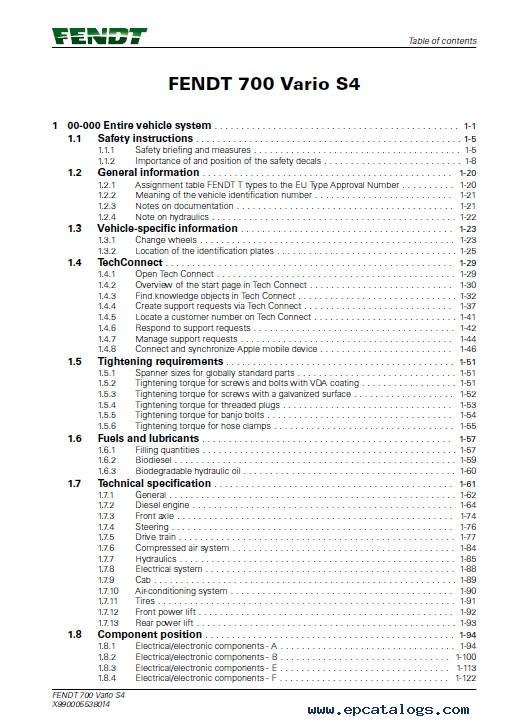

Contents:

• 1 00-000 Entire vehicle system
  • 1.1 Safety instructions
  • 1.2 General information
  • 1.3 Vehicle-specific information
  • 1.4 TechConnect
  • 1.5 Tightening requirements
  • 1.6 Fuels and lubricants
  • 1.7 Technical specification
  • 1.8 Component position
  • 1.9 Position of measuring points
  • 1.10 Calibration
  • 1.11 Calibration fault code
  • 1.12 Fault code tables
  • 1.13 Deutz KWP fault code table
• 2 01-000 Engine fuel and exhaust system
  • 2.1 General
  • 2.2 Engine
  • 2.3 Diagnostics
  • 2.4 Intake system
  • 2.5 Fuel system
  • 2.6 Cooling system
  • 2.7 Lubrication oil system
  • 2.8 Exhaust gas system
• 3 02-000 Front axle
  • 3.1 Cardan shaft
  • 3.2 Final drive
  • 3.3 Front axle suspension
• 4 03-000 Steering system
  • 4.1 General
  • 4.2 Steering unit
• 5 04-000 Drive train
  • 5.1 General
  • 5.2 Rear axle
  • 5.3 Vario insert
  • 5.4 Cardan brake
  • 5.5 Front PTO
  • 5.6 Rear PTO
  • 5.7 Front-wheel drive
  • 5.8 Brake system
  • 5.9 Hydrodamp
• 6 05-000 Compressed-air system
  • 6.1 General
  • 6.2 Diagram
• 7 06-000 Hydraulic system
  • 7.1 General
  • 7.2 General
  • 7.3 Hydraulic pump
  • 7.4 Pressure testing
  • 7.5 Valves
• 8 07-000 Electrical system
  • 8.1 General
  • 8.2 Electronics concept
  • 8.3 Fuse assignment
  • 8.4 Measure and test - Can-bus
  • 8.5 Measure and test - A components
  • 8.6 Measure and test - B components
  • 8.7 Measure and test - E components
  • 8.8 Measure and test - G components
  • 8.9 Measure and test - H components
  • 8.10 Measure and test - K components
  • 8.11 Measure and test - M components
  • 8.12 Measure and test - S components
  • 8.13 Measure and test - U components
  • 8.14 Measure and test - X components
  • 8.15 Measure and test - Y components
• 9 08-000 Cab
  • 9.1 General
  • 9.2 Cab
  • 9.3 Door
  • 9.4 Washers
  • 9.5 Windscreen wipers
  • 9.6 Multi-function armrest
• 10 09-000 Air-conditioning system and heating
  • 10.1 General
  • 10.2 Air-conditioning system
• 11 13-000 Rear power lift
  • 11.1 Power lift
  • 11.2 Valves
  • 11.3 Lower link stabilizer
  • 11.4 Emergency operation
• 12 20-000 Service
  • 12.1 Special tools
  • 12.2 Assembly instructions
  • 12.3 Amendments
• 13 Glossary

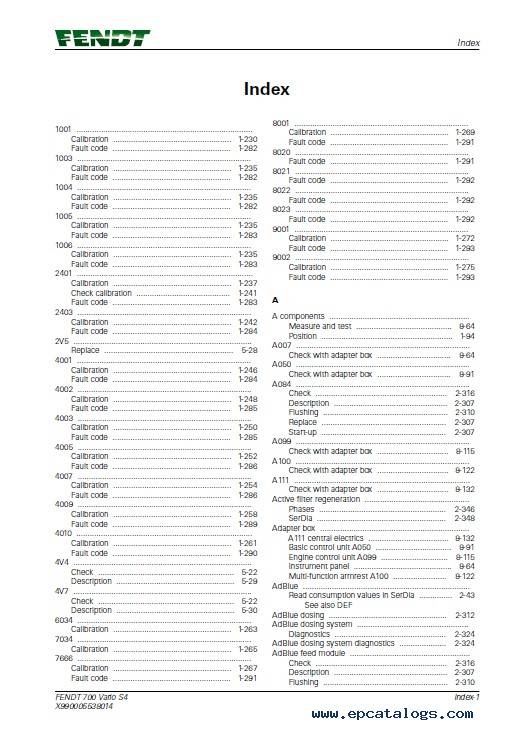

• 14 Index

This comprehensive manual is suitable for professional technicians and novice mechanics alike.

Features of the Manual
Format: PDF
Language: English
Pages: 1885
Compatible with all versions of Windows, Mac, Linux, iPhone, iPad, and Android
This pdf manual helps to troubleshoot and perform maintenance operations on their own, in a timely manner, and qualitatively. It includes the technical data, the hydraulic circuit layouts, descriptions of the operation, and the adjustments required for the main parts of the tractor Fendt.
