Fendt Tractor 1000 Vario S4 Workshop Service Manual PDF

This PDF Workshop Service Manual is designed for maintenance and repair of Fendt Tractors 1000 Vario S4. The workshop service manual is detailed in sections (which contain subsections). This workshop service manual covers repair information, technical specifications, and instructions that are subject to change as a result of technical changes or improvements without prior notice.

Models covered:
Fendt 1038 Vario S4 - 527 .. 1001-
Fendt 1042 Vario S4 - 528 .. 1001-
Fendt 1046 Vario S4 - 529 .. 1001-
Fendt 1050 Vario S4 - 530 .. 1001-

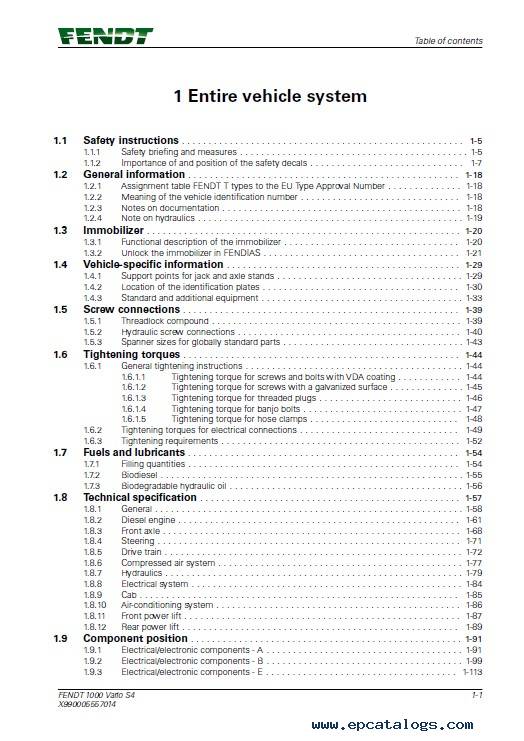

Contents:

• 1 Entire vehicle system
  • 1.1 Safety instructions
  • 1.2 General information
  • 1.3 Immobilizer
  • 1.4 Vehicle-specific information
  • 1.5 Screw connections
  • 1.6 Tightening torques
  • 1.7 Fuels and lubricants
  • 1.8 Technical specification
  • 1.9 Component position
  • 1.10 Position of measuring points
  • 1.11 Calibration
  • 1.12 Calibration fault code
  • 1.13 Fault code tables
  • 1.14 Man fault code table
• 2 Engine, fuel, and exhaust system
  • 2.1 General information about the existing engine

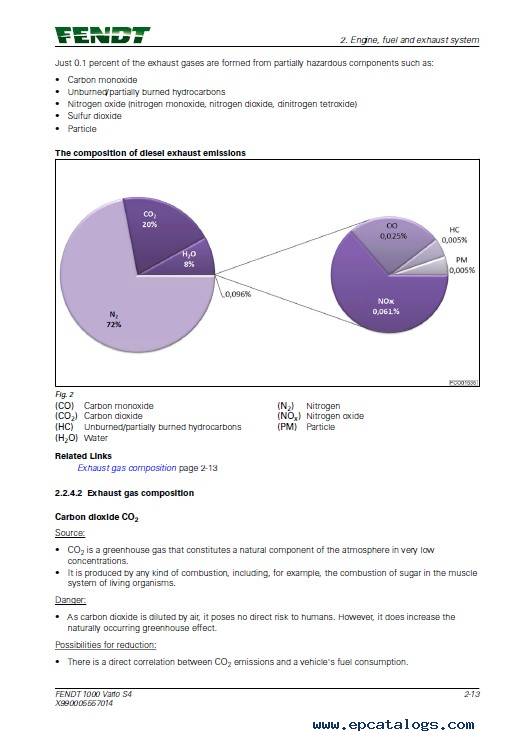

  • 2.2 The diesel engine and its exhaust gases
  • 2.3 Engine faults
  • 2.4 PTO power and fuel consumption
  • 2.5 Engine
  • 2.6 Intake system
  • 2.7 Fuel system
  • 2.8 Cooling system
  • 2.9 Lubrication oil system
  • 2.10 Exhaust gas system
• 3 Front Axle
  • 3.1 Lubrication
  • 3.2 Replace the front axle
  • 3.3 Front axle suspension
• 4 Steering system
  • 4.1 Steering unit
  • 4.2 Way line guidance

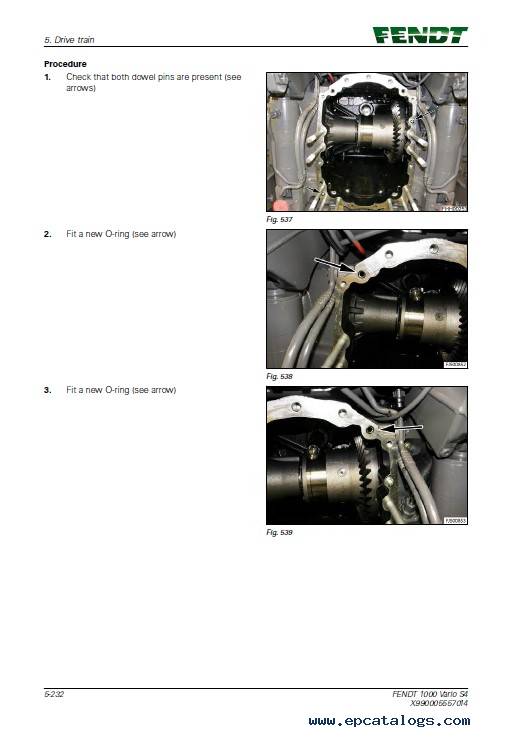

• 5 Drive train
  • 5.1 General
  • 5.2 Rear axle
  • 5.3 Vario insert
  • 5.4 Front PTO
  • 5.5 4WD
  • 5.6 Brake system
  • 5.7 Housing
• 6 Compressed air system
  • 6.1 General
  • 6.2 Schematics
  • 6.3 Check compressed air system
  • 6.4 Air dryer
  • 6.5 Tire pressure monitoring system
• 7 Hydraulic system
  • 7.1 General
  • 7.2 Hydraulic equipment
  • 7.3 Pressure testing
  • 7.4 Hydraulic pump service hatch
  • 7.5 Hydraulic pumps
  • 7.6 Emergency operation
  • 7.7 Valve block
  • 7.8 Program valves
  • 7.9 Procedure
  • 7.10 Repair shuttle valve SB33/EHR33
  • 7.11 Central control block
• 8 Electrical system
  • 8.1 General
  • 8.2 Reserve cables
  • 8.3 Fuse assignment
  • 8.4 Can Bus
  • 8.5 Measure and test - A components
  • 8.6 Measure and test - B components
  • 8.7 Measure and test - E components
  • 8.8 Measure and test - G components
  • 8.9 Measure and test - H components
  • 8.10 Measure and test - K components
  • 8.11 Measure and test - M components
  • 8.12 Measure and test - S components
  • 8.13 Measure and test - U components

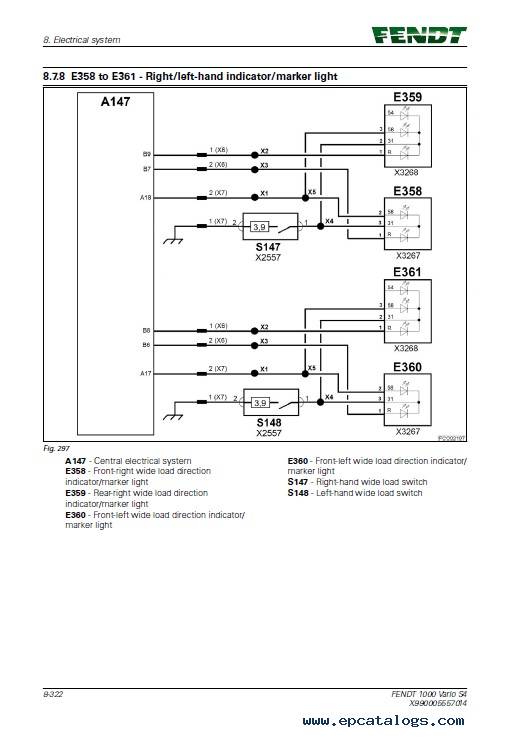

  • 8.14 Measure and test - X components
  • 8.15 Measure and test - Y components
• 9 Cab
  • 9.1 General
  • 9.2 Cab
  • 9.3 Paneling
  • 9.4 Roof
  • 9.5 Door
  • 9.6 Windscreen wipers
  • 9.7 Hands-free device
  • 9.8 Reverse drive control
• 10 Air-conditioning system and heating
  • 10.1 General
  • 10.2 Checking the air conditioning system
  • 10.3 Fan
• 11 Chassis and bodywork
  • 11.1 Tractor engine cover
• 12 Wheels
  • 12.1 General
• 13 Front power lift
  • 13.1 Front power lift
• 14 Rear power lift
  • 14.1 Function of the control
  • 14.2 Power lift
• 15 Service
  • 15.1 Special tools
  • 15.2 Amendments
  • 15.3 Assembly instructions
• 16 Glossary
• 17 Index

This is the best online file, both for experienced craftsmen and for beginners, as prepared by experts in this field.

Features of the Manual
Format: PDF
Language: English
Pages: 2236
Compatible with all versions of Windows, Mac, Linux, iPhone, iPad, and Android
They contain general service information, which includes torque settings and service tools. Instructions for care and safety are presented (they include warnings and cautions related to aspects of workshop procedures, etc.). With this pdf manual, you can perform regular maintenance of engines, troubleshooting, dismantling, overhaul, etc.
