Doosan S80W-3 Wheel Excavator Schemes Set of PDF

This Set of Schemes is designed for the safe use of the Doosan S80W-3 wheel excavator model. To achieve maximum performance, it is very important to properly adjust, adjust and maintain the excavator. To do this, and created this schematic guide, which will help in this. Electronic material includes circuits in the electronic and hydraulic systems, which is very important for the smooth operation of the excavator.

Particular attention should be paid to certain precautions that must be strictly observed in the standard working area to avoid unforeseen technical breakdowns or injuries. These schematics come in PDF format with 2 pages. You can work with these diagrams after installing Adobe PDF Reader. You can easily print the desired image that will help your work.

Set includes:

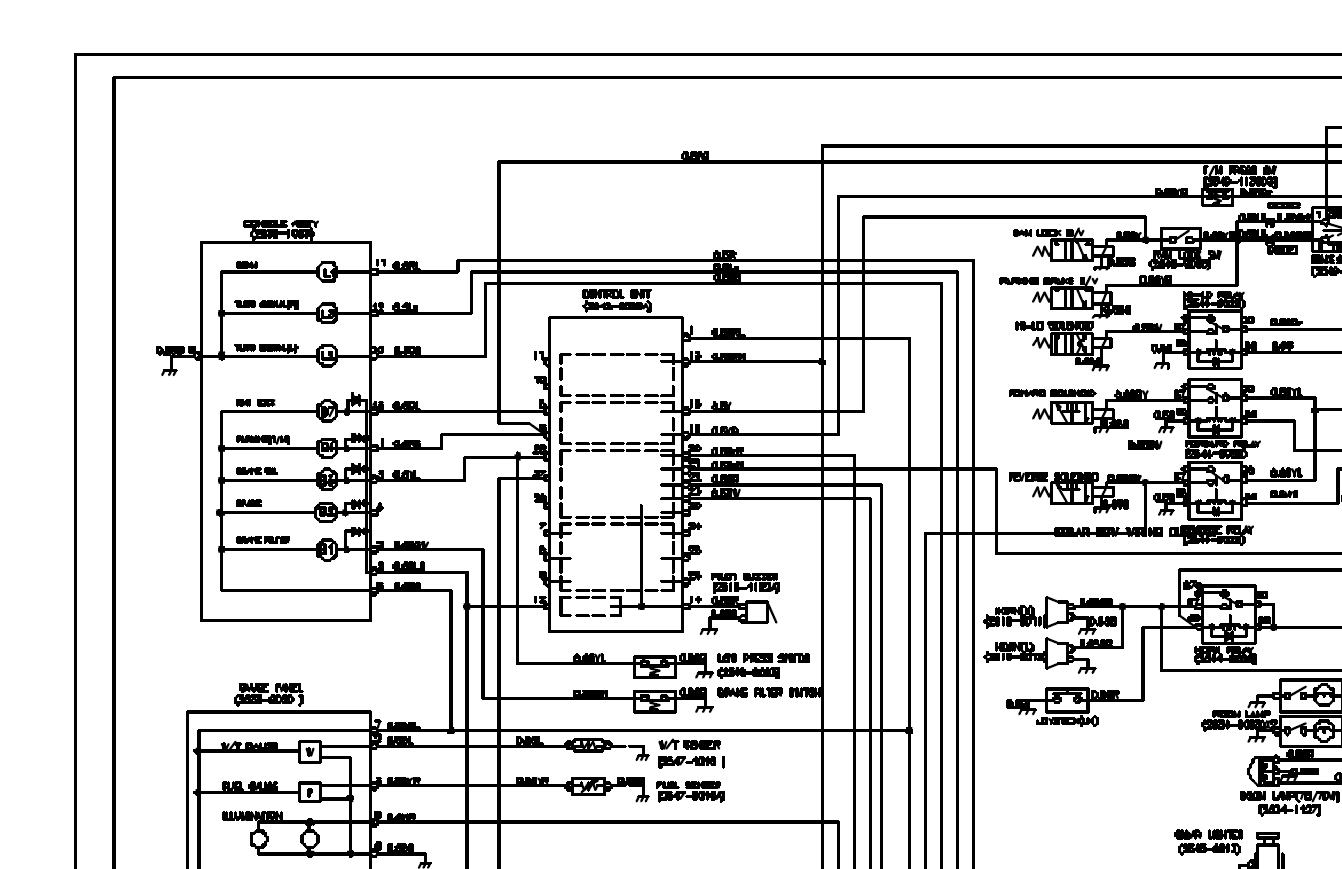

-Doosan S80W-3 Wheel Excavator - Electronic scheme

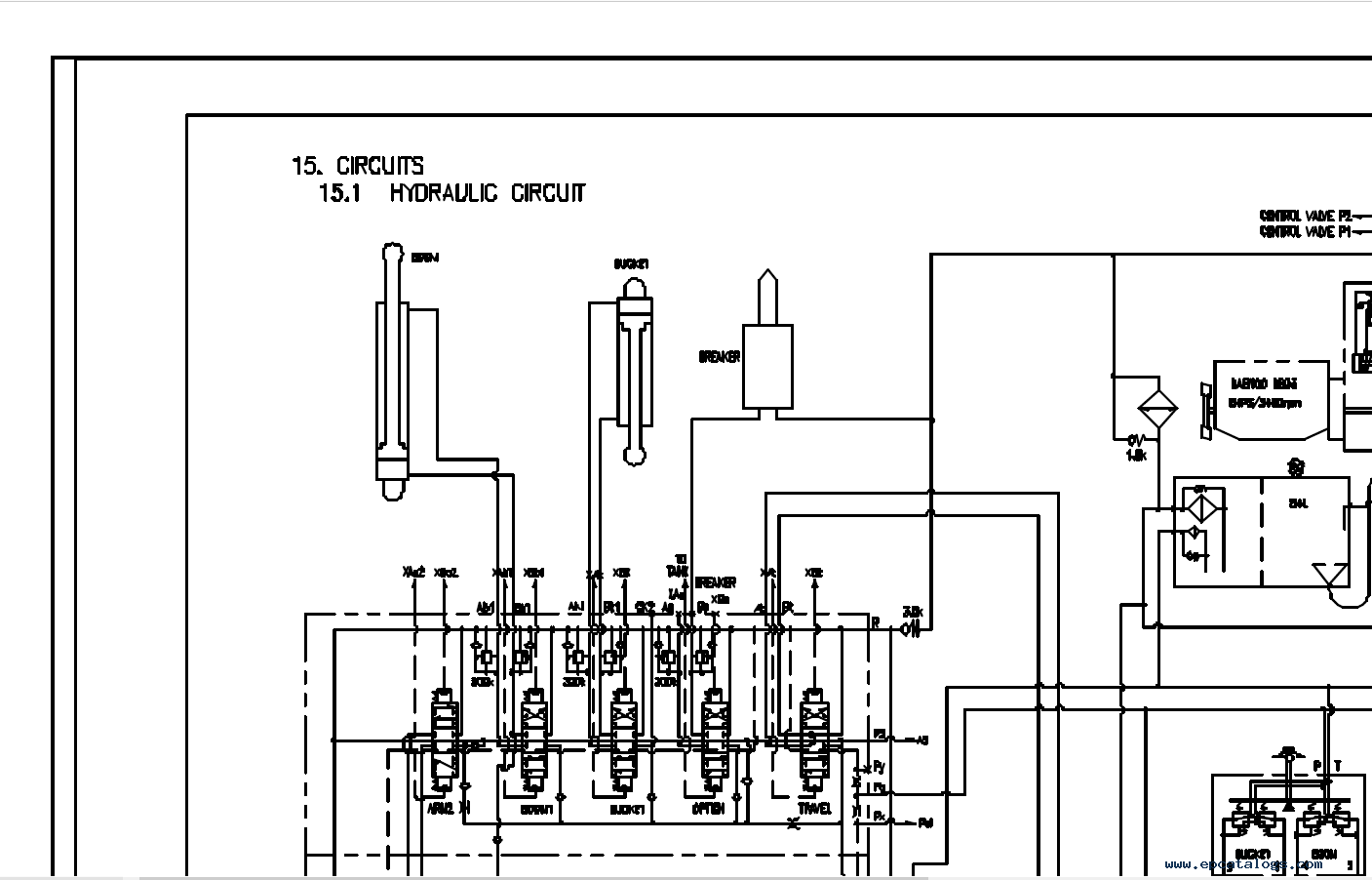

-Doosan S80W-3 Wheel Excavator - Hydraulic scheme
