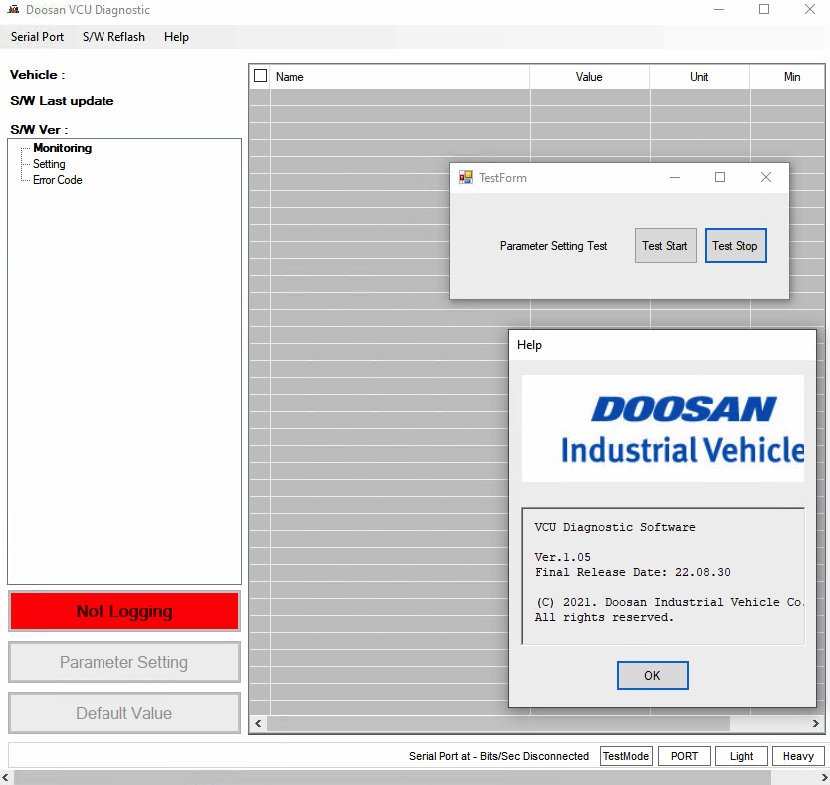

Doosan Industrial Vehicle VCU Diagnostic Software v1.05 [2021]

Software Description

The Doosan Industrial Vehicle VCU Diagnostic Software v1.05 is an advanced service tool created for engineers and maintenance specialists working with Doosan forklifts and other industrial vehicles. It gives direct access to the vehicle’s control unit, allowing users to monitor performance, diagnose faults, and fine-tune system parameters with accuracy and confidence.

This 2021 release builds on previous versions with a faster interface, improved data logging, and full support for the latest Doosan VCU systems, making it an essential part of any workshop or fleet maintenance setup.

High-Level Access (Login Level 10)

With Login Level 10, users gain complete administrative access — the highest authorization level available in Doosan’s diagnostic suite. This unlocks advanced service capabilities usually restricted to factory engineers, allowing full system calibration, firmware updates, and deep diagnostic functions.

• Modify and calibrate control parameters directly from the interface
• Reset all fault codes and learned values
• Run detailed tests of sensors, motors, and actuators
• Update or reflash ECU and VCU firmware
• Access protected functions for system adaptation and security

Connection Method (COM Port Device)

The software communicates with the vehicle’s control unit through a COM Port Device, such as a standard RS232-to-USB adapter. This connection method ensures a stable link even in workshop conditions where wireless solutions may be unreliable.

Before You Start

• Use a certified Doosan diagnostic cable (RS232/USB)
• Install the correct USB-to-COM port drivers on your PC
• Ensure a working COM port is available and configured in the program
• Switch the vehicle ignition to “ON” before establishing a connection

Connection Steps

1. Connect the diagnostic adapter to the vehicle and your PC.
2. Open the Doosan VCU Diagnostic Software.
3. Select the corresponding COM port in the settings menu.
4. Press “Connect” to initiate communication with the vehicle control unit.
5. Once connected, the system automatically identifies the ECU and displays live operational data.

Main Diagnostic Functions

• Fault Code Management: Read and clear active and stored diagnostic trouble codes (DTCs).
• Real-Time Monitoring: Track live parameters including voltage, temperature, current, and motor speed.
• Actuator Testing: Activate and test mechanical components to verify correct operation.
• Parameter Calibration: Adjust control logic, speed limits, and response thresholds.
• Firmware Update: Reprogram the ECU or VCU with official firmware releases.
• Maintenance Tools: Reset service reminders and adaptation settings after repairs.
• Data Logging: Record diagnostic sessions for later analysis or documentation.

System Requirements

• Operating System: Windows 7, 8, or 10 (32/64-bit)
• Processor: Intel Core i3 or better
• Memory: Minimum 4 GB RAM
• Storage: At least 2 GB of free space
• Display: 1366×768 resolution or higher
• Interface: RS232 or USB-to-COM adapter
• Internet: Optional — for software installation only

Compatibility

Version 1.05 supports a wide selection of Doosan electric and diesel forklifts and other industrial vehicles equipped with VCUs up to model year 2021. It also maintains backward compatibility with earlier control units, though some of the advanced functions may be limited on legacy models.

Item Details

• Product: Doosan Industrial Vehicle VCU Diagnostic Software v1.05
• Release Year: 2021
• Interface: COM Port (RS232/USB)
• Access Level: Login Level 10 (Full Access)
• Format: Digital Download (Installation Package)

Delivery (Instant Download)

The software is delivered instantly after purchase. You’ll receive a secure download link along with setup instructions and driver installation notes. No physical media is required — simply download, install, and connect your diagnostic adapter to begin using the tool immediately.

Summary

Doosan Industrial Vehicle VCU Diagnostic Software v1.05 gives professionals full control over the electronic systems in Doosan vehicles. With the highest access level, reliable COM connection, and a full suite of service tools, it simplifies troubleshooting and keeps industrial equipment performing at its best.

References

• Doosan Industrial Vehicle Service Documentation, 2021
• Doosan Technical Support Portal: https://www.doosan-iv.com
• RS232/USB Communication Standards Overview – Wikipedia
