Deutz-Fahr Agrofarm 85 & Agrofarm 100 Workshop Manual PDF

[06/2007]
repair manual Deutz-Fahr Agrofarm 85 & Agrofarm 100 Workshop Manual PDF
Type of catalogue: repair manual
Make: Deutz
Region: WorldWide
Inclusive
languages:		 English
Amount of
disks:		 1 CD, PDF file, 715 pages
Availibility Instant Download
OS: Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD: 50

Workshop manual contains detailed repair, service, maintenance information, operation manuals, installation instructions, troubleshoot information for agrofarm 85 and 100.
Service manual includes step by step repair instructions, maintenance manuals, special instructions for repair, repair manuals, detailed electrical and hydraulic diagrams.
Program is designed to workon a personal computeror laptop.The program comes in PDF. For work with manual you need to install the application Adobe PDF Reader.
Workshop repair manual is a system of care in the operation and repair, which allows you to identify and resolve any problems and inaccuracies.
The purpose of this workshop manual is to provide instruction for repair technicians and a practical guide to improving the quality of repairs.

CONTENTS:

  • 0 - INTRODUCTION
  • 0.1 - Introduction
    • 0.1.1 - Safety notes
    • 0.1.2 - General safety rules
    • 0.1.3 - Safety precautions for removal and refi tting operations
    • 0.1.4 - Lifting instructions
    • 0.1.5 - Tightening torques
    • 0.1.6 - Threadlockers, adhesives, sealants and lubricants
    • 0.1.7 - Conversion factors
  • 10 - TECHNICAL CHARACTERISTICS
  • 10.1 - Transmission
    • 10.1.1 - Transmission (Agrofarm 85)
    • 10.1.2 - Transmission (Agrofarm 100)
    • 10.1.3 - Rear. PTO
    • 10.1.4 - 2 and 4-speed PTO and groundspeed PTO
  • 10.2 - Front axle
    • 10.2.1 - Front axle
  • 10.3 - Hydraulic system
    • 10.3.1 - Hydraulic system (Agrofarm 85)
    • 10.3.2 - Hydraulic system (Agrofarm 100)
    • 10.3.3 - Steering circuit pump - directional control valve circuit
    • 10.3.4 - Power steering
    • 10.3.5 - Auxiliary services directional control valve
    • 10.3.6 - Hydraulic lift directional control valve (Agrofarm 85)
    • 10.3.7 - Hydraulic lift directional control valve (Agrofarm 100)
    • 10.3.8 - Braking system
    • 10.3.9 - “Separate-Brake” valve
    • 10.3.10 - Trailer braking valve
    • 10.3.11 - Services solenoid valve assembly
  • 20 - CALIBRATIONS AND ELECTRONIC DIAGNOSIS
  • 20.1 - Diagnostic instrument
    • 20.1.1 - All Round Tester
    • 20.1.2 - Connecting the tester to the lift and engine control units
  • 20.2 - Introduction to the tractor≈s electronic system
    • 20.2.1 - Introduction to the tractor’s electronic system
  • 20.3 - Putting the tractor into service
    • 20.3.1 - Putting the tractor into service
  • 20.4 - ECU alarms
    • 20.4.1 - Instrument panel alarms
  • 30 - METHOD
  • 30.1 - Engine
    • 30.1.1 - Engine - Separation from the transmission (B0.00.02)
    • 30.1.2 - Engine (B0.00.01)
    • 30.1.3 - Fan belt
    • 30.1.4 - Tensioning the fan drive belt
    • 30.1.5 - Alternator and fuel pump drive belt
    • 30.1.6 - Alternator and fuel pump belt tensioning
  • 30.2 - Engine accessories
    • 30.2.1 - RADIATOR - Tractor without front PTO (C0.01.01)
    • 30.2.2 - RADIATOR - Tractor with front PTO (C0.01.01)
    • 30.2.3 - Changing the coolant and fl ushing the circuit
    • 30.2.4 - Fuel tank (C0.03.01)
    • 30.2.5 - Starter motor
    • 30.2.6 - Exhaust pipe - Tractor with cab (C0.06.01)
  • 30.3 - Transmission
    • 30.3.1 - Parking brake
    • 30.3.2 - Clutch plate
    • 30.3.3 - Clutch thrust bearing
    • 30.3.4 - Clutch housing - assembly (D0.02.01) (Agrofarm 85)
    • 30.3.5 - Clutch housing - assembly (D0.02.01) (Agrofarm 100)
    • 30.3.6 - Gearbox and shuttle assy. - complete unit (D0.09.03)
    • 30.3.7 - Disassembly of gearbox and shuttle assy. - complete unit
    • 30.3.8 - Gearbox support and gear selector rods
    • 30.3.9 - Shuttle shaft
    • 30.3.10 - Primary shaft
    • 30.3.11 - Secondary shaft (Agrofarm 85)
    • 30.3.12 - Secondary shaft (Agrofarm 100)
    • 30.3.13 - PTO output shaft (4 speed version)
    • 30.3.14 - PTO output shaft disassembly (4 speed version)
    • 30.3.15 - PTO output shaft (2 speed version)
    • 30.3.16 - PTO output shaft disassembly (2 speed versions)
    • 30.3.17 - PTO clutch
    • 30.3.18 - PTO clutch disassembly
    • 30.3.19 - PTO fi nal shaft (2-speed version)
    • 30.3.20 - PTO fi nal shaft (4-speed version)
    • 30.3.21 - Groundspeed PTO fi nal shaft
    • 30.3.22 - Groundspeed PTO engagement device
    • 30.3.23 - Range and differential assembly - complete assembly
    • 30.3.24 - Rear pinion (Agrofarm 85)
    • 30.3.25 - Rear pinion (Agrofarm 100)
    • 30.3.26 - Four-wheel drive output shaft
    • 30.3.27 - Differential - Bevel gear pair
    • 30.3.28 - Range selector assembly
    • 30.3.29 - Changing transmission oil (D0.00.01)
    • 30.3.30 - Pump drive PTO - Outer gear
    • 30.3.31 - Pump drive PTO - Inner gear
    • 30.3.32 - 4WD engagement device
  • 30.4 - Rear axle
    • 30.4.1 - RH rear axle (E0.02.01) (Agrofarm 85)
    • 30.4.2 - LH rear axle (E0.02.02) (Agrofarm 85)
    • 30.4.3 - RH/LH rear axle (Agrofarm 85)
    • 30.4.4 - RH rear axle (Agrofarm 100)
    • 30.4.5 - Planet carrier assembly (Agrofarm 85)
    • 30.4.6 - LH rear axle (Agrofarm 100)
    • 30.4.7 - RH/LH rear axle (Agrofarm 100)
    • 30.4.8 - Planet carrier assembly (Agrofarm 100)
    • 30.4.9 - Rear differential
    • 30.4.10 - Rear differential disassembly (Agrofarm 85)
    • 30.4.11 - Rear differential disassembly (Agrofarm 100)
    • 30.4.12 - Rear axle brake discs
    • 30.4.13 - Rear axle brake piston (Agrofarm 85)
    • 30.4.14 - Rear axle brake piston (Agrofarm 100)
  • 30.5 - Front axle
    • 30.5.1 - Front carrier (F0.01.01)
    • 30.5.2 - 4WD front axle (F0.03.01)
    • 30.5.3 - Adjusting the front axle end fl oat
    • 30.5.4 - Steering cylinders
    • 30.5.5 - Steering cylinders disassembly
    • 30.5.6 - Final drive reduction unit
    • 30.5.7 - Final drive reduction unit disassembly
    • 30.5.8 - Steering knuckle housing and halfshaft
    • 30.5.9 - Steering knuckle housing and halfshaft
    • 30.5.10 - Differential unit
    • 30.5.11 - Differential disassembly
    • 30.5.12 - Differential unit adjustment
    • 30.5.13 - Bevel gear pair (Agrofarm 85)
    • 30.5.14 - Bevel gear pair disassembly (Agrofarm 85)
    • 30.5.15 - Differential disassembly (Agrofarm 85)
    • 30.5.16 - Bevel gear pair (Agrofarm 100)
    • 30.5.17 - Bevel gear pair disassembly (Agrofarm 100)
    • 30.5.18 - Differential disassembly (Agrofarm 100)
    • 30.5.19 - Front brake discs
    • 30.5.20 - Front axle brake piston
    • 30.5.21 - 4WD shaft
  • 30.6 - Bodywork - Cab - Platform
    • 30.6.1 - Cab (G0.03.01)
    • 30.6.2 - Front hoods (G0.01.01)
    • 30.6.3 - Fenders
    • 30.6.4 - Front instrument panel (G0.06.04)
    • 30.6.5 - Air conditioning
    • 30.6.6 - Compressor
    • 30.6.7 - Clutch master cylinder
    • 30.6.8 - Clutch piston
    • 30.6.9 - Clutch control circuit
    • 30.6.10 - Brake master cylinders
    • 30.6.11 - Control levers (Agrofarm 85)
    • 30.6.12 - Control levers (Agrofarm 100)
  • 30.7 - Hydraulic system
    • 30.7.1 - Pump for hydraulic lift and auxiliary services
    • 30.7.2 - Power steering (H0.02.01)
    • 30.7.3 - Pressure relief valve setting:
    • 30.7.4 - Power steering disassembly
    • 30.7.5 - Power steering pump
    • 30.7.6 - Rear 4-way auxiliary services control valve (Agrofarm 85)
    • 30.7.7 - Rear 6-way auxiliary services control valve (Agrofarm 100)
    • 30.7.8 - Braking circuit (Agrofarm 85)
    • 30.7.9 - Braking circuit (Agrofarm 100)
    • 30.7.10 - Services solenoid valve assembly
  • 30.8 - Front PTO
    • 30.8.1 - Front PTO
    • 30.8.2 - PTO assembly
    • 30.8.3 - Pump assy
    • 30.8.4 - Clutch-brake assembly
    • 30.8.5 - Solenoid valve assy
  • 30.9 - Front lift
    • 30.9.1 - Front lift
    • 30.9.2 - Lift cylinders
  • 30.10 - Rear lift
    • 30.10.1 - Lift - Complete assembly (R0.02.03) (Agrofarm 85)
    • 30.10.2 - Lift disassembly - complete assembly (Agrofarm 85)
    • 30.10.3 - Lift - Complete assembly (R0.02.03) (Agrofarm 100)
    • 30.10.4 - Lift disassembly - Complete assembly (Agrofarm 100)
    • 30.10.5 - Lift cylinder (Agrofarm 100)
    • 30.10.6 - Bushes (Agrofarm 100)
    • 30.10.7 - Hydraulic lift directional control valve (Agrofarm 85)
    • 30.10.8 - Lift control valve disassembly (Agrofarm 85)
    • 30.10.9 - Lift control valve disassembly (Agrofarm 100)
    • 30.10.10 - Mechanical draft sensor (Agrofarm 85)
    • 30.10.11 - Mechanical draft sensor disassembly (Agrofarm 85)
    • 30.10.12 - Mechanical draft sensor (Agrofarm 100)
    • 30.10.13 - Mechanical draft sensor disassembly (Agrofarm 100)
    • 30.10.14 - 3-point linkage
  • 30.11 - Wheels
    • 30.11.1 - Front wheels (S0.01.01)
    • 30.11.2 - Rear wheels (S0.02.01)
  • 30.12 - Ballast - Towing hitches 30-406
    • 30.12.1 - Towing hitch slide (Agrofarm 85)
    • 30.12.2 - Towing hitch slide (Agrofarm 100)

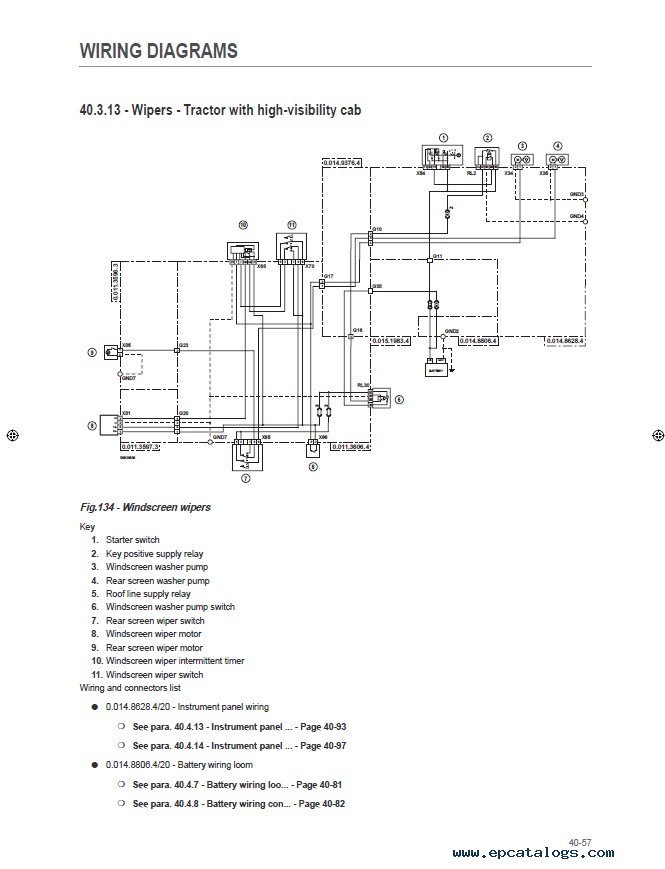

  • 40 - WIRING DIAGRAMS
  • 40.1 - Introduction
    • 40.1.1 - Structure of the unit
    • 40.1.2 - Wiring and components index
  • 40.2 - Components
    • 40.2.1 - Components
  • 40.3 - Systems
    • 40.3.1 - Earthing points
    • 40.3.2 - Starting and pre-heating
    • 40.3.3 - Lights selector - Tractor with cab
    • 40.3.4 - Lights selector - Tractor with platform
    • 40.3.5 - Diagnostic accessories - Tractor with standard cab
    • 40.3.6 - Diagnostic accessories - Tractor with high-visibility cab
    • 40.3.7 - Instrument panel
    • 40.3.8 - Worklights - Tractor with standard cab
    • 40.3.9 - Wipers - Tractor with standard cab
    • 40.3.10 - Heating system - Tractor with standard cab
    • 40.3.11 - Air conditioning system - Tractor with standard cab
    • 40.3.12 - Worklights - Tractor with high-visibility cab
    • 40.3.13 - Wipers - Tractor with high-visibility cab
    • 40.3.14 - Heating system - Tractor with high-visibility cab
    • 40.3.15 - Air conditioning system - Tractor with high-visibility cab
    • 40.3.16 - Transmission
    • 40.3.17 - PTO
    • 40.3.18 - Brakes
    • 40.3.19 - CAN BUS ELECTRONIC SYSTEM
  • 40.4 - Wiring looms
    • 40.4.1 - Hood lights wiring - 0.014.8107.4/20
    • 40.4.2 - Hood lights wiring connector positions
    • 40.4.3 - Engine wiring - version with front battery - 0.014.8629.4/20
    • 40.4.4 - Engine wiring connector positions - version with front battery
    • 40.4.5 - Engine wiring - version with lateral battery - 0.015.1597.4/10
    • 40.4.6 - Engine wiring connector positions - version with lateral battery
    • 40.4.7 - Battery wiring loom - 0.014.8806.4/20
    • 40.4.8 - Battery wiring connector positions
    • 40.4.9 - Preheating wiring loom - 0.014.9195.4/20
    • 40.4.10 - Pre-heating wiring connector positions
    • 40.4.11 - Power supply wiring - 0.015.1983.4/10
    • 40.4.12 - Power supply wiring connector positions
    • 40.4.13 - Instrument panel wiring - 0.014.8628.4/20
    • 40.4.14 - Instrument panel wiring connector positions
    • 40.4.15 - RH drivetrain wiring - 0.014.8630.4/20
    • 40.4.16 - RH drivetrain wiring connector positions
    • 40.4.17 - LH drivetrain wiring - 0.014.9193.4/20
    • 40.4.18 - LH drivetrain wiring connector positions
    • 40.4.19 - Power supply wiring - Tractor with standard cab - 0.014.9375.4/20
    • 40.4.20 - Power supply wiring connector positions - Tractor with standard cab
    • 40.4.21 - Roof line wiring - Tractor with standard cab - 0.009.7850.4/50
    • 40.4.22 - Roof line wiring connector positions - Tractor with standard cab
    • 40.4.23 - Heating wiring - Tractor with standard cab - 0.010.2147.2
    • 40.4.24 - Heating system wiring connector positions - Tractor with standard cab
    • 40.4.25 - Air conditioning wiring - Tractor with standard cab - 0.010.2153.2
    • 40.4.26 - Air conditioner wiring connector positions - Tractor with standard cab
    • 40.4.27 - Air conditioning cooler fan wiring - Tractor with standard cab - 0.009.7853.3/20
    • 40.4.28 - Air conditioner exchanger fan wiring connector positions - Tractor with standard cab
    • 40.4.29 - Front-rear worklights wiring - Tractor with standard cab - 0.009.7851.4/50
    • 40.4.30 - Supplementary worklights wiring connector positions - Tractor with standard cab
    • 40.4.31 - Supplementary worklights wiring - Tractor with standard cab - 0.015.1435.4/10
    • 40.4.32 - Supplementary worklights wiring connector positions - Tractor with standard cab
    • 40.4.33 - Windscreen wiper wiring - Tractor with standard cab - 0.010.4516.3
    • 40.4.34 - Windscreen wiper connector positions wiring - Tractor with standard cab
    • 40.4.35 - Loudspeaker wiring - Tractor with standard cab - 0.011.0729.4/10
    • 40.4.36 - Loudspeaker wiring connector positions - Tractor with standard cab
    • 40.4.37 - Cab power supply wiring - Tractor with high-visibility cab - 0.014.9376.4/10
    • 40.4.38 - Cab power supply wiring connector positions - Tractor with high-visibility cab
    • 40.4.39 - Roof line wiring - Tractor with high-visibility cab - 0.011.3606.4/50
    • 40.4.40 - Roof line wiring connector positions - Tractor with high-visibility cab
    • 40.4.41 - Heating system wiring - Tractor with high-visibility cab - 0.010.2554.2
    • 40.4.42 - Heating system wiring connector positions - Tractor with high-visibility cab
    • 40.4.43 - Air conditioning wiring - Tractor with high-visibility cab - 0.010.2560.0
    • 40.4.44 - Air conditioner wiring connector positions - Tractor with high-visibility cab
    • 40.4.45 - Air conditioning cooler fan wiring - Tractor with high-visibility cab - 0.011.3610.3/20
    • 40.4.46 - Air conditioning exchanger fan wiring connector positions - Tractor with high-visibility cab
    • 40.4.47 - Front-rear worklights wiring - Tractor with high-visibility cab - 0.011.3595.3/10
    • 40.4.48 - Worklights wiring connector positions - Tractor with high-visibility cab
    • 40.4.49 - Supplementary worklights wiring - Tractor with high-visibility cab - 0.015.1437.4/10
    • 40.4.50 - Supplementary worklights wiring connector positions - Tractor with high-visibility cab
    • 40.4.51 - Windscreen wiper wiring - Tractor with high-visibility cab - 0.011.3597.3
    • 40.4.52 - Windscreen wiper wiring connector positions - Tractor with high-visibility cab
    • 40.4.53 - Loudspeaker, radio, rear wiper, fl ashing light and clock wiring - Tractor with highvisibility cab - 0.011.3596.3/40
    • 40.4.54 - Loudspeaker, radio, rear wiper, fl ashing light and clock wiring connector positions - Tractor with high-visibility cab
    • 40.4.55 - Wiring for front lights - Tractor with cab - 0.010.8189.3/40
    • 40.4.56 - Front lights wiring connector positions - Tractor with cab
    • 40.4.57 - Wiring for lower front lights - Tractor with cab - 0441.1923.4
    • 40.4.58 - Lower front lights wiring connector positions - Tractor with cab
    • 40.4.59 - Wiring for front lights - Tractor with platform - 0.015.3094.4
    • 40.4.60 - Front lights wiring connector positions - Tractor with platform
    • 40.4.61 - Worklights wiring - Tractor with platform - 0.014.9281.4
    • 40.4.62 - Worklights wiring connector positions - Tractor with platform
    • 40.4.63 - Rotating beacon wiring - 0.012.9909.4
    • 40.4.64 - Position of rotary beacon wiring connectors
    • 40.4.65 - Trailer hydraulic braking wiring - 0.014.1645.4/10
    • 40.4.66 - Trailer hydraulic braking wiring connector positions

Screenshots for Deutz-Fahr Agrofarm 85 & Agrofarm 100 Workshop Manual PDF:

repair manual Deutz-Fahr Agrofarm 85 & Agrofarm 100 Workshop Manual PDF - 1
enlarge repair manual Deutz-Fahr Agrofarm 85 & Agrofarm 100 Workshop Manual PDF - 2
enlarge repair manual Deutz-Fahr Agrofarm 85 & Agrofarm 100 Workshop Manual PDF - 3
enlarge repair manual Deutz-Fahr Agrofarm 85 & Agrofarm 100 Workshop Manual PDF - 4
enlarge repair manual Deutz-Fahr Agrofarm 85 & Agrofarm 100 Workshop Manual PDF - 5
enlarge repair manual Deutz-Fahr Agrofarm 85 & Agrofarm 100 Workshop Manual PDF - 6
enlarge

Our company provides for sale original spare part catalogs, workshop manuals, diagnostic software for all models of engines, cars, trucks, buses, forklifts, tractors, harvesters, cranes, buldozers, generators, construction and agricultural machines, motorcycles. To purchase a catalog online, please add the product to your cart, fill in the contact form online. Our managers proceed your order the same day.

Related products for Deutz-Fahr Agrofarm 85 & Agrofarm 100 Workshop Manual PDF:

repair manual SDF e-Doc/e-Parts Explorer Deutz-Fahr, Hurlimann, Same, Lamborghinispare parts catalog SDF e-Doc/e-Parts Explorer Deutz-Fahr, Hurlimann, Same, Lamborghini

SDF e-Doc/e-Parts Explorer Deutz-Fahr, Hurlimann, Same, Lamborghini

repair manual SDF e-Doc/e-Parts Explorer Deutz-Fahr, Hurlimann, Same, Lamborghini
SDF e-Doc and e-Parts catalog include information from 05/2015 about next brands: Deutz Fahr, Hurlimann, Same, Lamborghini.
200$ [05/2015] 		repair manual Full Agriculture Parts Literature Set 2021spare parts catalog Full Agriculture Parts Literature Set 2021

Full Agriculture Parts Literature Set 2021

Full Agriculture Parts Literature Set 2021 no photo
Full Agriculture Parts and Service Literature Set 2022 is an electronic database catalog of spare parts of agricultural machinery, which combines outstanding performance and high reliability, such brands as Case, Deutz-Fahr, Fendt, John Deere, Massey Ferguson, New Holland, Same, Valtra.
1299$ [2015-2021] 		repair manual Deutz-Fahr SDF e-Parts 2014spare parts catalog Deutz-Fahr SDF e-Parts 2014

Deutz-Fahr SDF e-Parts 2014

repair manual Deutz-Fahr SDF e-Parts 2014
This electronic program includes detailed parts catalog and repair manual for equiopment Deutz-Fahr.
200$ [04/2014] 		spare parts catalog Deutz Serpic 2012

Deutz Serpic 2012

spare parts catalog Deutz Serpic 2012
The electronic spare parts catalog Deutz Serpic 2012 for all models of diesel and gas engines Deutz, produced prior to 2012, which combines outstanding performance and high reliability.
99$ [02/2012]
