Dana Spicer Off-Highway Products Axle 980 Series Service Manual PDF

This PDF Service Manual is intended for the serve and repair of the Dana Spicer Axles 980 Series. This manual provides a quick and sure guide which, with the use of photographs and diagrams illustrating the various phases of the operations, allows accurate work to be performed.

The efficiency and continued operation of mechanical units depend on constant, correct maintenance and also on efficient repair work, should there be a break-down or malfunction. The instructions contained in this manual have been based on a complete overhaul of the unit. However, it is up to the mechanic to decide whether or not it is necessary to assemble only individual components when partial repair work is needed.

This technical manual comes in PDF format. So, it doesn't require any installation (Instant Download). We recommend you to use the application Adobe Acrobat Reader for working with PDF instruction. Also, we recommend you print this manual and use it as a handbook when it will be necessary.

For your convenience, we present you with a link 'Dana pdf manual instant preview' on the top of this page. This link will help you to preview this PDF manual and understand that this manual contains needed for your service information or not.

Manual covers:
980/10124904
980/10124908
980/10124911
980/10141854
980/10141855
980/10141856

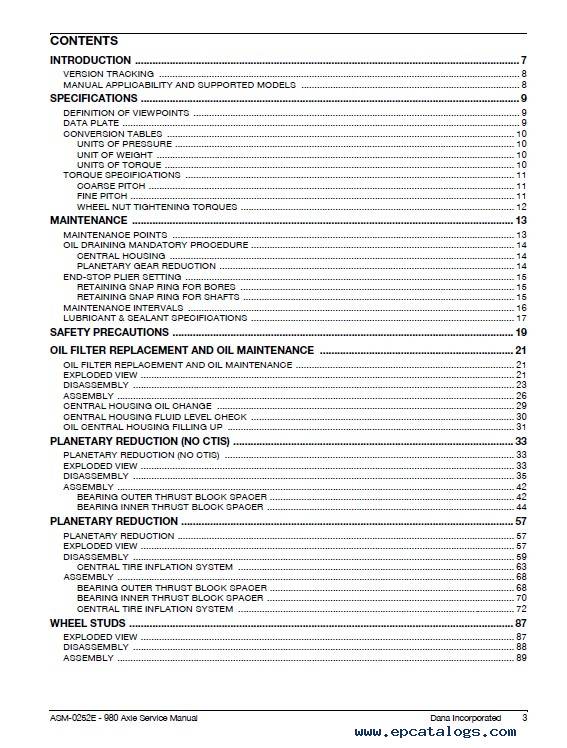

Contents:

• INTRODUCTION
  • VERSION TRACKING
  • MANUAL APPLICABILITY AND SUPPORTED MODELS
• SPECIFICATIONS
  • DEFINITION OF VIEWPOINTS
  • DATA PLATE
  • CONVERSION TABLES
  • TORQUE SPECIFICATIONS
• MAINTENANCE

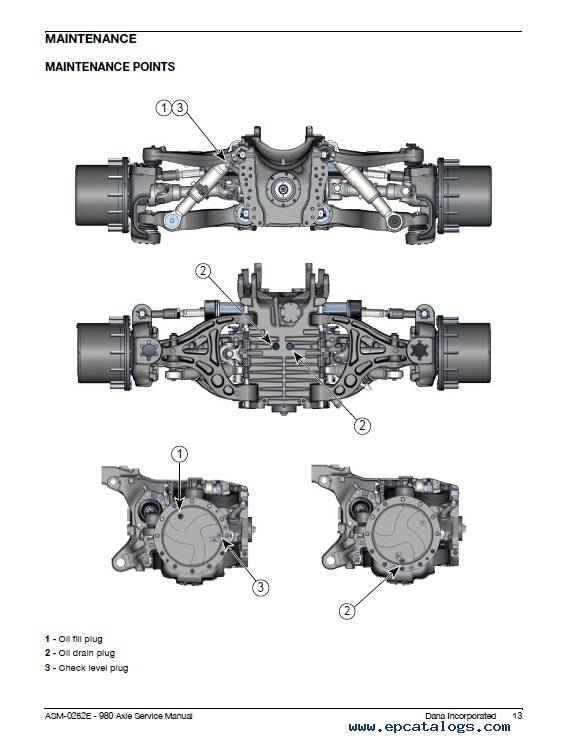

  • MAINTENANCE POINTS
  • OIL DRAINING MANDATORY PROCEDURE
  • END-STOP PLIER SETTING
  • MAINTENANCE INTERVALS
  • LUBRICANT & SEALANT SPECIFICATIONS
• SAFETY PRECAUTIONS
• OIL FILTER REPLACEMENT AND OIL MAINTENANCE
  • OIL FILTER REPLACEMENT AND OIL MAINTENANCE
  • EXPLODED VIEW

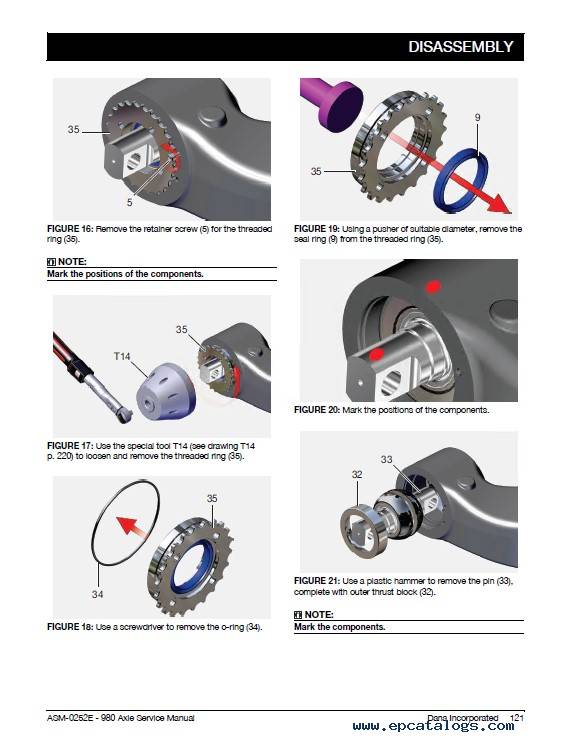

  • DISASSEMBLY
  • ASSEMBLY
  • CENTRAL HOUSING OIL CHANGE
  • CENTRAL HOUSING FLUID LEVEL CHECK
  • OIL CENTRAL HOUSING FILLING UP
• PLANETARY REDUCTION (NO CTIS)
  • PLANETARY REDUCTION (NO CTIS)
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• PLANETARY REDUCTION
  • PLANETARY REDUCTION
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• WHEEL STUDS
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• SUSPENSION CYLINDER
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• UPPER WISHBONE BUSHINGS
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• LOWER WISHBONE BUSHINGS AND JOINT CASE
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• STEERING CYLINDER
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• SUSPENSION SENSOR AND TOE-IN
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• STEERING SENSOR
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• BRAKING DISCS
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• BEVEL PINION AND BEVEL GEAR PAIR
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• DIFFERENTIAL UNIT
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY

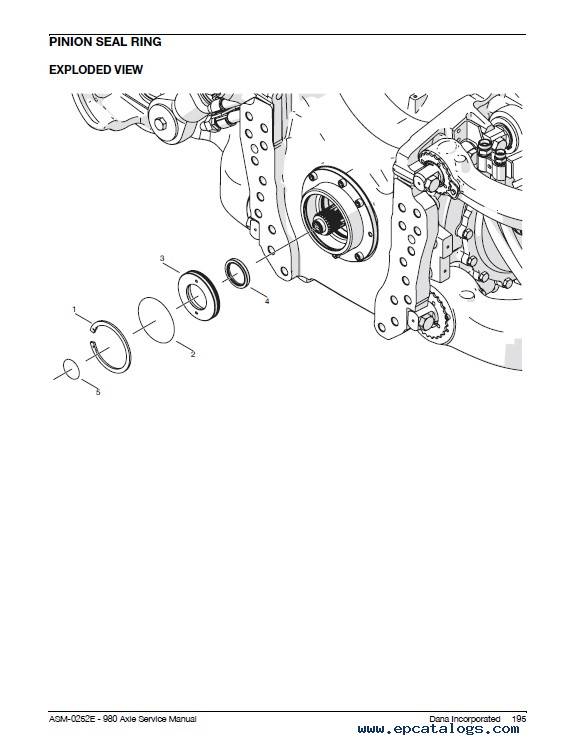

• PINION SEAL RING
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY
• PRESSURISED LUBRICATION CIRCUIT LINE
  • EXPLODED VIEW
  • DISASSEMBLY
  • ASSEMBLY

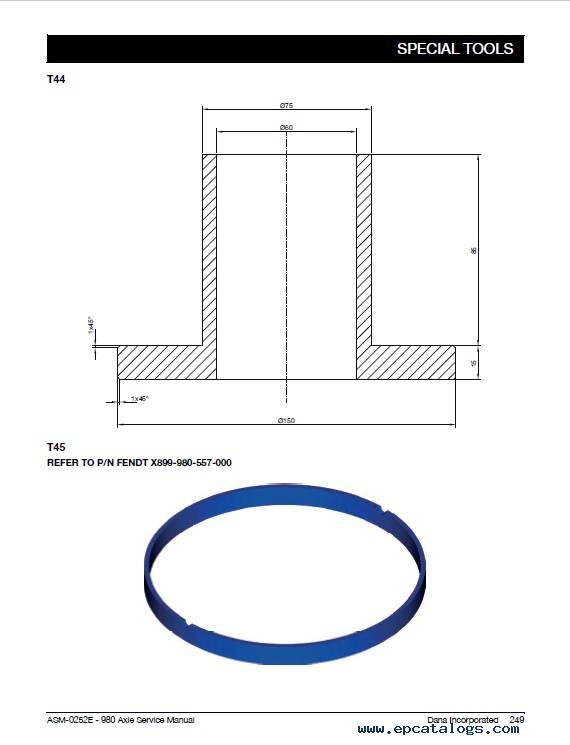

• SPECIAL TOOLS
