Daewoo S290LC-V Tracked Excavators Schemes Set of PDF

We invite you to familiarize yourself with this Schemes Set of PDF Manual especially for the Daewoo S290LC-V Tracked Excavators model. It is complete and important material divided into several files that complete each other instructions, recommendations, and advice with schemes and diagrams for your equipment. Electronic set contains technical specs, hydraulic and electrical diagrams, maintenance, operation for Daewoo excavator S290LC-V.

You should read each page in this guide to avoid any problems ( breakdowns, damage, malfunction, injuries, etc.). When using these schemes, always have the operation and maintenance manual at hand for references, and be familiar with both manuals. The online text has 4 pages for reading. All you need, that use this manual - to install the application Adobe PDF Reader. You can easily print the desired image that will help your work.

Set includes:

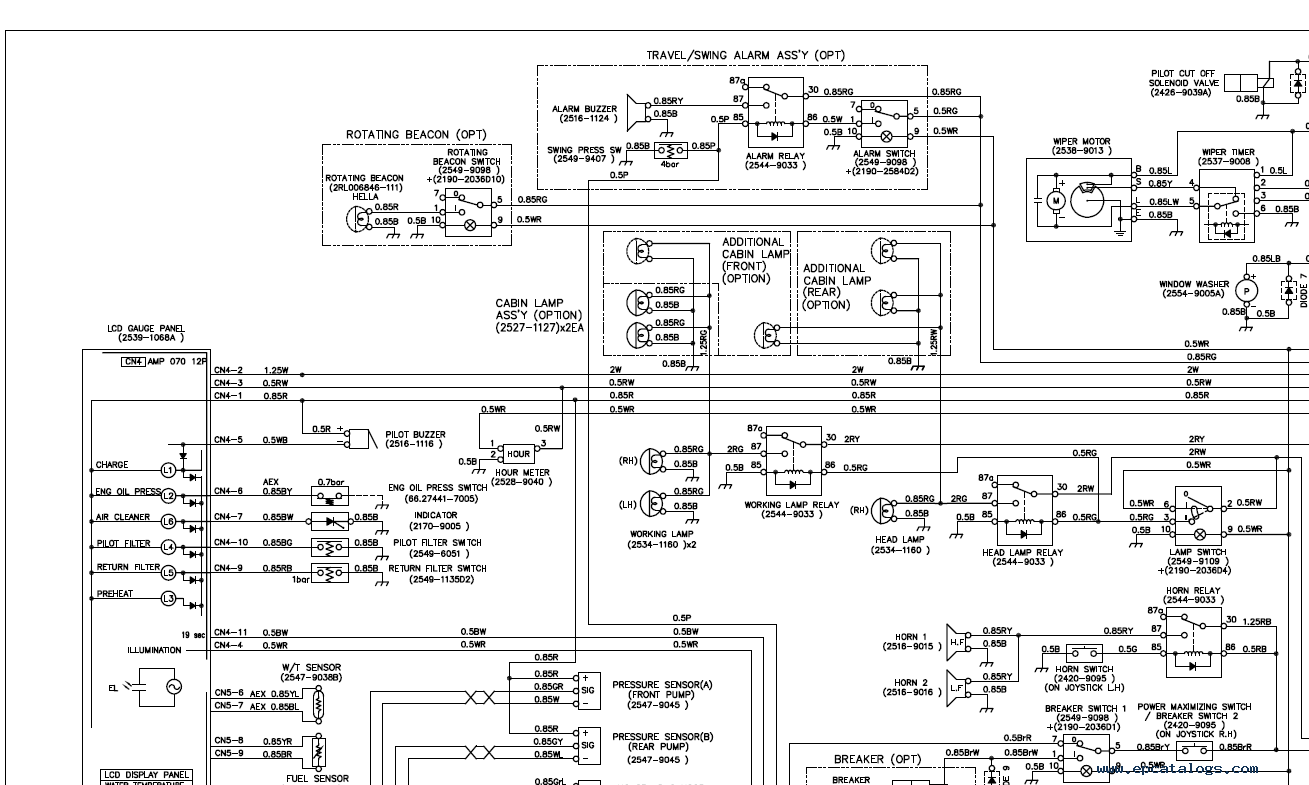

-Daewoo S290LC-V Tracked Excavators - Electrical scheme;

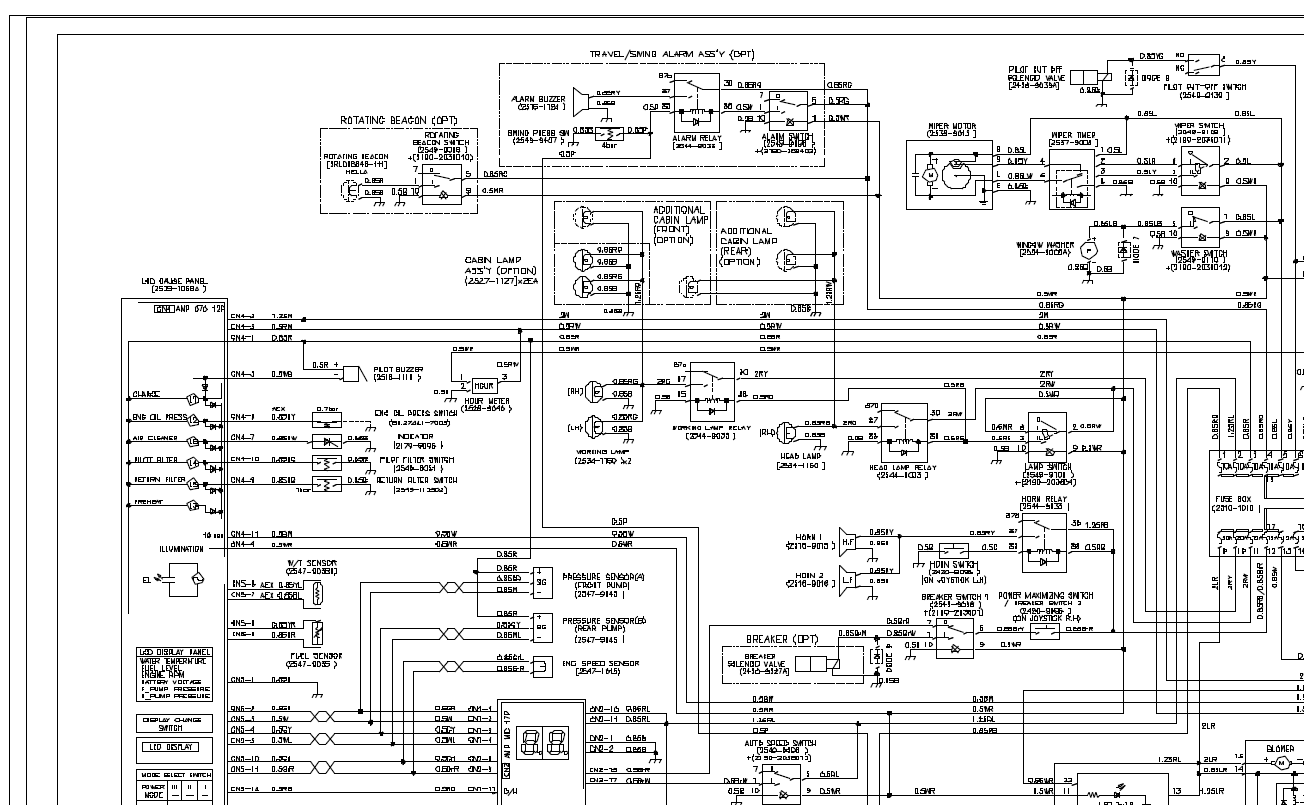

-Daewoo S290LC-V Tracked Excavators - Electrical scheme 2154 and up;

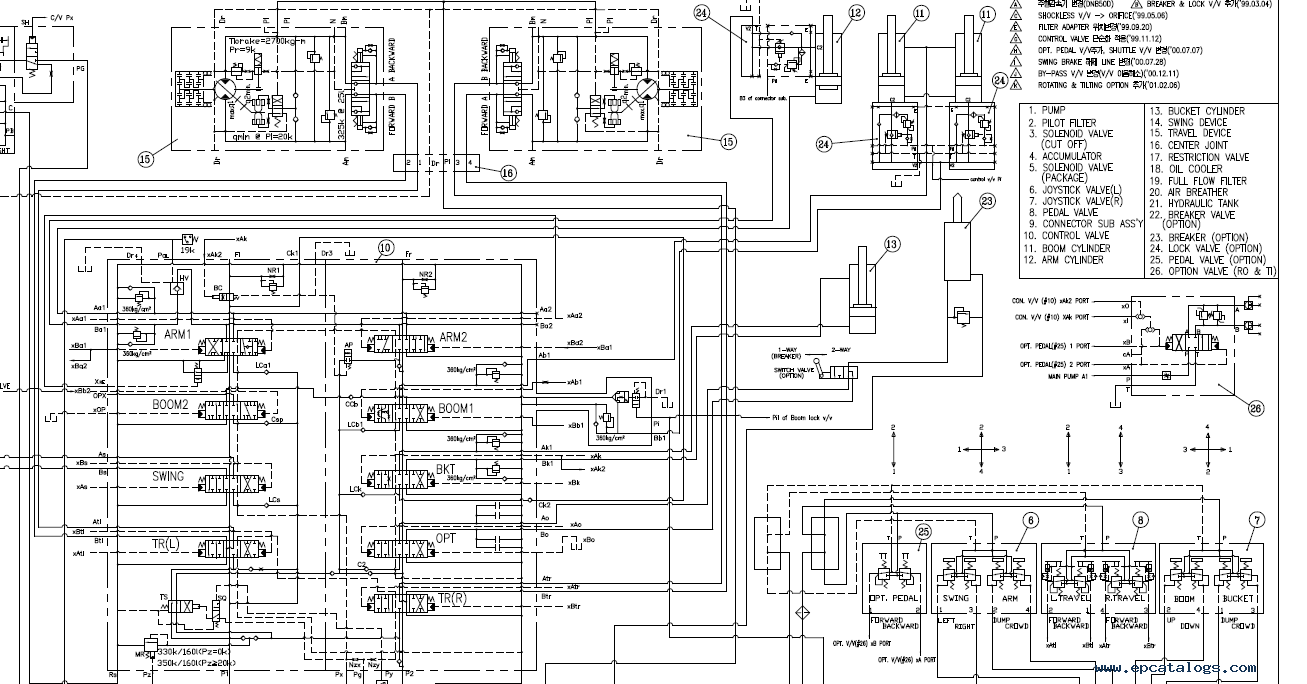

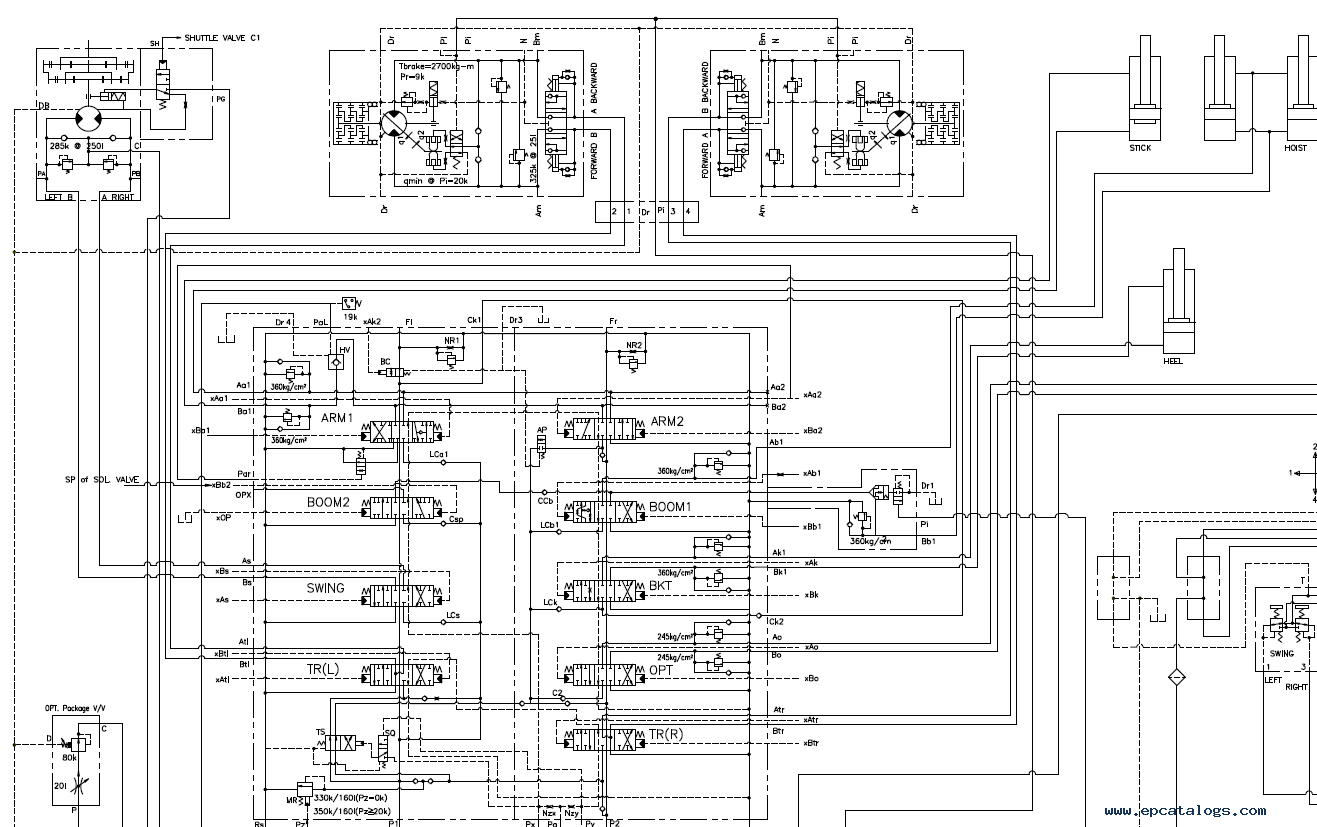

-Daewoo S290LC-V Tracked Excavators - Hydraulic diagram;
-Daewoo S290LL Tracked Excavators - Hydraulic diagram;
