Clark GPX/DPX 30/35/40/40S/50/55 SM593 Service Manual PDF

[01/1993]
repair manual Clark GPX/DPX 30/35/40/40S/50/55 SM593 Service Manual PDF
Type of catalogue: repair manual
Make: Clark
Region: WorldWide
Inclusive
languages:
English
Amount of
disks:
1 CD, PDF file, 602 pages
OS: Windows XP 32 bit, Windows 7 32 bit, Wnidows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit
Price, USD: 40

Service manual contains complete service and repair instructions, body repair manuals, special installation instructions, maintenance manuals, operating instructions, wiring diagrams and charts, service manuals, which are presented for lift trucks Clark GPX/DPX 30/35/40/40S/50/55.
Service manual has a friendly and easy to use interface. This manual comes in PDF format. To view the information you must have the program Adobe Reader. Working with this service manual, you can easily copy, save, and print the information you need. If necessary, you can print pages, pictures, charts, or the entire manual completely.
Service instruction helps to troubleshoot repair work and other procedures relating to the tinning equipment Clark.

Contents:

  • INTRODUCTION
    • Safety
    • Planned Maintenance
    • ENGINES
    • Engine Removal
    • Diesel Workshop Manual
    • Gas / LPG Workshop Manual
  • COOLING SYSTEM
    • Torubleshooting
    • Cooling System Testing and Maintenance
    • Fan Belt Replacement
    • Radiator Removal
  • FUEL SYSTEM
    • Fuel Pump Pressure Test
    • The IMPCO Fuel System
    • Carburetor Overhaul
    • Velocity Governor Overhaul
    • Removal of IMPCO Vaporising System
  • TRANSMISSION
    • Transmission Checks
    • Draining and Refill
    • Transmission Removal
    • Transmission Overhaul
  • ELECTRICAL SYSTEM
    • Wiring Color Code
    • Wiring Diagrams
    • Electrical Checks
  • DRIVE AXLE
    • Axle End Lubrication
    • Axle End Removal
    • Axle Ends Overhaul
    • Differential Overhaul
  • WHEELS AND TIRES
    • Lifting, Jacking and Blocking
    • Wheels and Tires Mounting
  • BRAKING / INCHING SYSTEM
    • System Description / Troubleshooting
    • Brake and Inching System Bleeding
    • Brake and Inching Pedals Adjustment
    • Master Cylinder Overhaul
    • Power Booster Overhaul
    • Parking Brake
  • STEERING COLUMN AND GEAR
    • Troubleshooting
    • Steering Column and Gear Removal
    • Char-Lynn Steering Control Unit (Steering Gear)
  • STEER AXLE
    • Steer Axle Removal
    • Steer Axle Overhaul
    • Steering System Adjustment
    • Steer Cylinder Removal
    • Steer Axle Wheel Bearings
    • Steer Cylinder Overhaul
  • HYDRAULIC SUMP, FILTERS, AND PUMP
    • Hydraulic Sump and Filters
    • Hydraulic Pump Troubleshooting & Overhaul (Vane Type)
  • HYDRAULIC VALVE / LIFT CIRCUIT
    • Hydraulic System Pressure Check
    • Hydraulic Valve Overhaul
    • Hydraulic Valves
    • Hydraulic Schematic
  • TILT CYLINDERS
    • Tilt Cylinder Removal
    • Tilt Cylinder Overhaul
    • Tilt Lock Valve
  • UPRIGHTS
    • Troubleshooting and Visual Inspection
    • Operational Checks
    • Carriage Check and Adjustment
    • Upright Check and Adjustment
    • Cylinder Repair
    • Lift Chain Maintenance
    • Upright Removal and Replacement
  • COUNTERWEIGHTS
    • Counterweight Removal and Installation
  • SPECIFICATIONS
    • Namplates / Decals
    • General Specifications
    • PM Inspection and Drivers Daily Inspection Forms
    • Recommended Lubricants & Lubricant Specifications
    • Lubrication Intervals

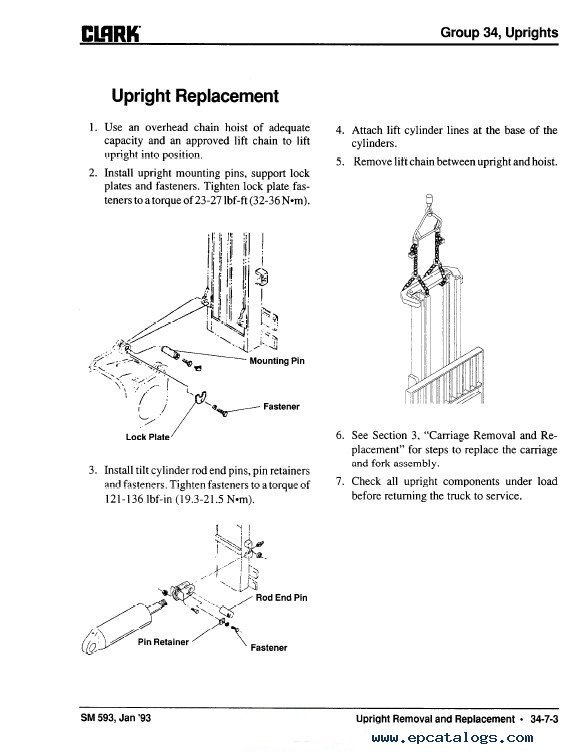

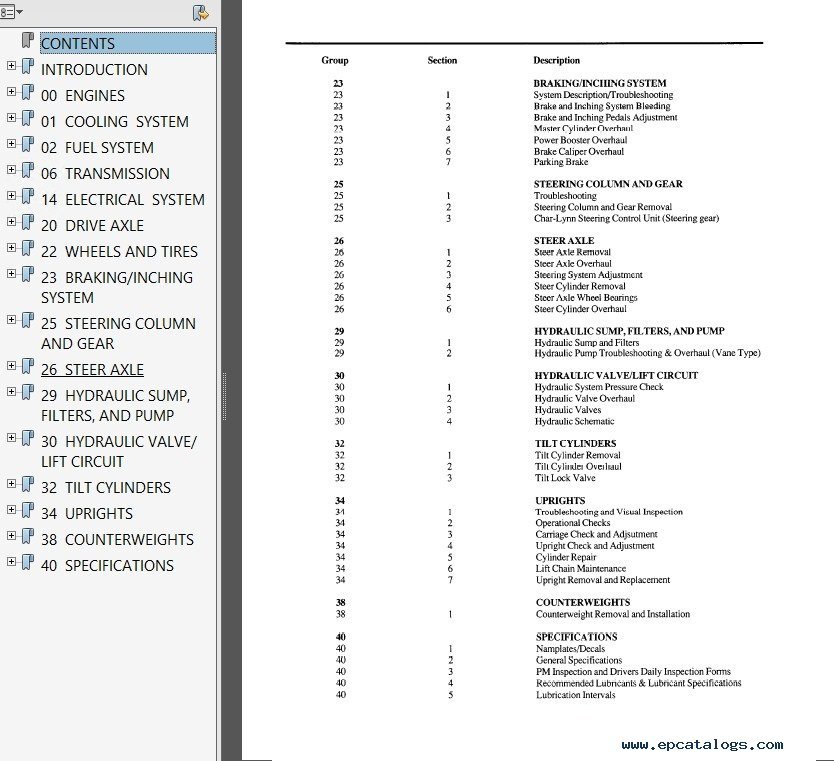

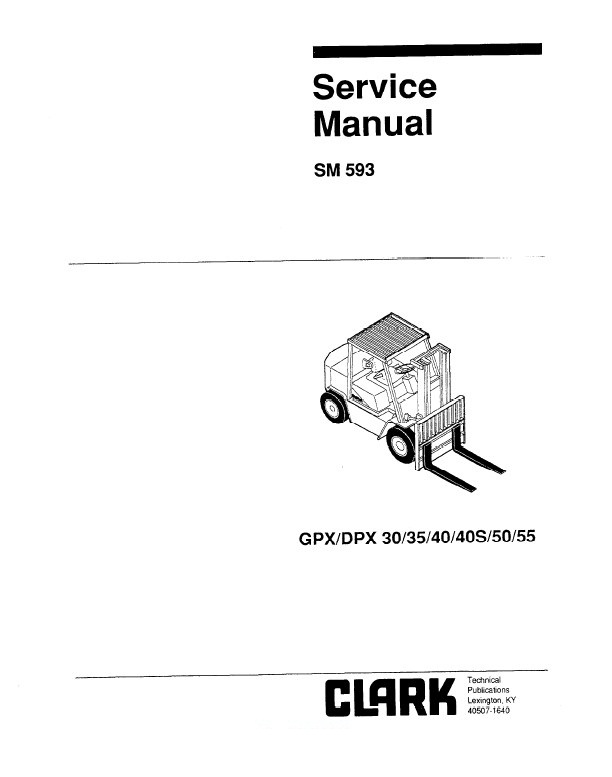

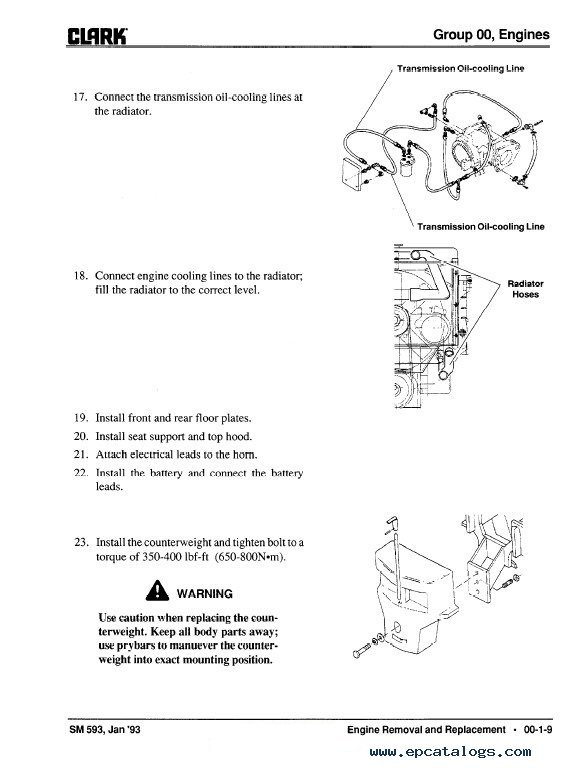

Screenshots for Clark GPX/DPX 30/35/40/40S/50/55 SM593 Service Manual PDF:
