Clark Forklift TM 10-16, EM 10-15S Troubleshooting Electrical Equipment PDF

The service manual designed for troubleshooting in the electrical/electronic system of the Clark forklift truck models TM 10-16, lot 7000, and EM 10-15S, Lot 7005.
The content of the guide is built in such a way that it could help you in finding information about eliminating faults and preventing new ones.

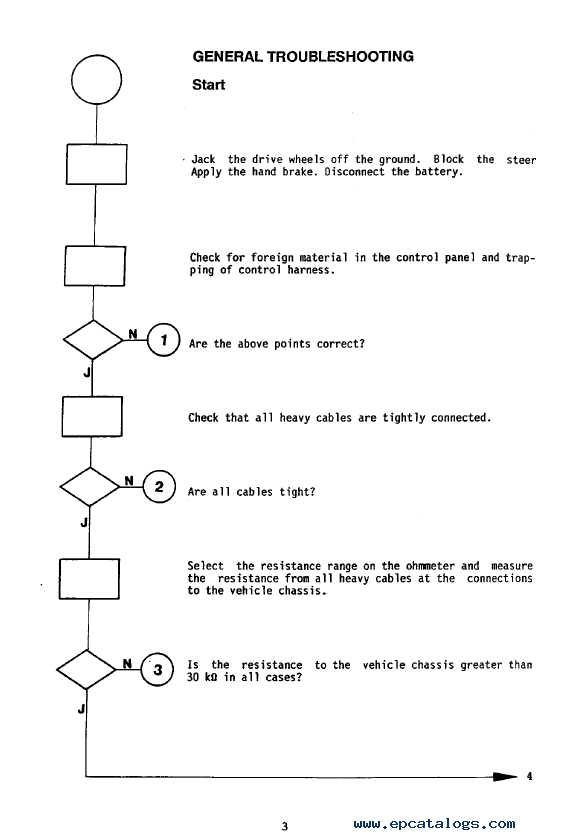

The manual contains a diagram-systems. The design of the troubleshooting systems is based on three different geometrical forms, each which stands for a different repair step.

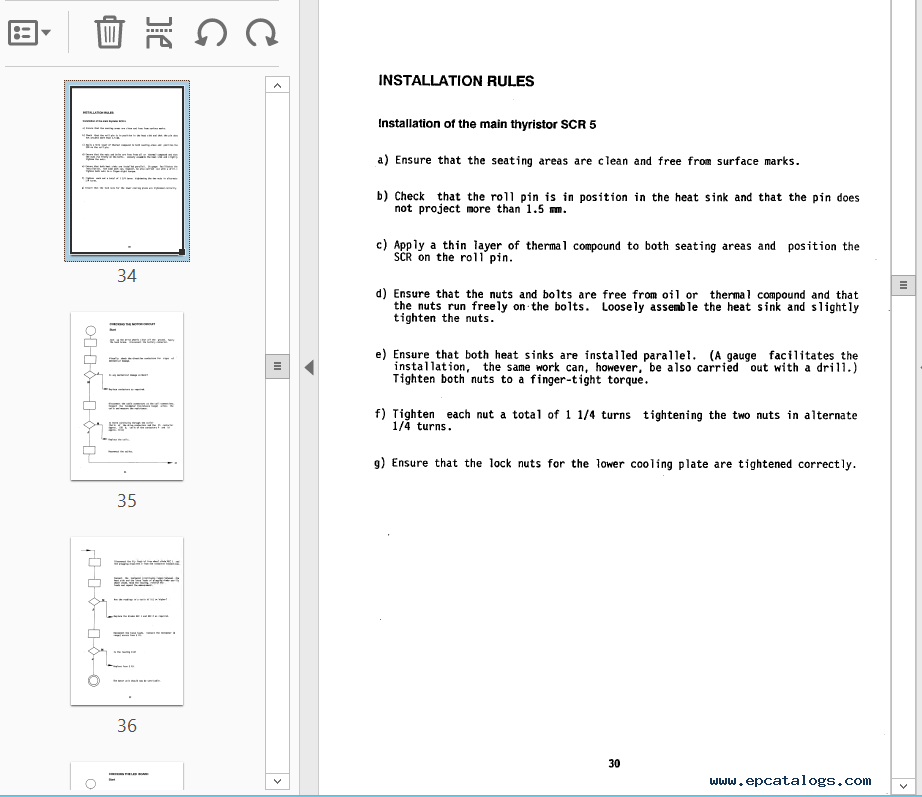

The first sections "General troubleshooting" can be used for direct troubleshooting and is also will be suited for checking the electrical system in the frame of a scheduled maintenance program. Always thoroughly carry out all checks and follow the given scheme. Also in a manual, you will see information about testing the components, service tips, wiring diagrams, checking different systems and parts, rules and other.
Follow the recommendations step by step and you will be able to extend the period of high-quality service of your equipment and get the maximum performance from it.
This manual is a PDF format, which contains 86 pages, any one of which we can be printed easily. To work with the program you should use Adobe PDF Reader.

INDEX:
Introduction
Basis for successful troubleshooting
General troubleshooting
Checking the accelerator unit
Checking the power unit
Checking the motor circuit
Checking the LED board
Checking the field weakening
Checking the electronically controlled steering
Checking the pump control
Testing the components
Explosion drawings of components
Control unit/service tips
Supplement of wiring diagrams
