Claas Xerion 3300 3800 Saddle Trac Operator’s Manual PDF

Operator's manual is primarily intended for the vehicle operator and contains information about using, setting, operating and maintaining the Xerion.
This operator's manual includes full information of repair, maintenance and troubleshooting Claas Xerion 3300 3800 Saddle Trac.
Electronic repair manual contains guidance on repair, maintenance instructions, information on product identification, information technology, operating instructions, wiring diagrams, that help you to eliminate all existing and potential problems.
Electronic manual includes complete description of the management and maintenance, troubleshooting information, assembly and disassembly, inspection and control, precautions, special instructions, technical specifications.
Repair manual is designed to work on a personal computer with Windows & Mac. This manual is a file PDF, which contains 358 pages, any one of which we can be printed easily. To work with program you should use Adobe PDF Reader.

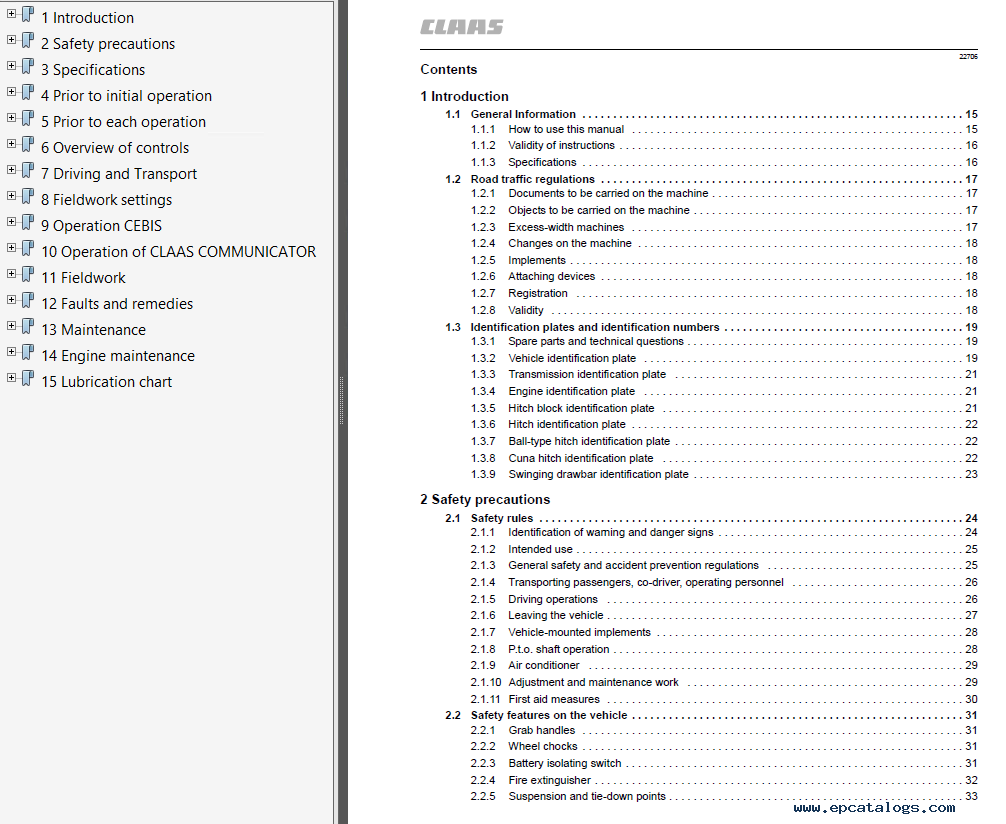

Contents:

• 1. Introduction
  • 1.1 General Information
  • 1.2 Road traffic regulations
  • 1.3 Identification plates and identification numbers
• 2. Safety precautions
  • 2.1 Safety rules
  • 2.2 Safety features on the vehicle
  • 2.3 Safety decals
• 3. Specifications
  • 3.1 Country-specific specifications
  • 3.2 Dimensions and weights
  • 3.3 Engine
  • 3.4 Angle of inclination
  • 3.5 Drive
  • 3.6 Brakes / Compressed-air system
  • 3.7 Steering
  • 3.8 Power lifts
  • 3.9 Hitches
  • 3.10 Power take-off
  • 3.11 Hydraulic system
  • 3.12 Electric system
  • 3.13 Tightening torques
• 4. Prior to initial operation
  • 4.1 Use and responsibilities
  • 4.2 Set-up work upon delivery
  • 4.3 Set-up work prior to handing-over
  • 4.4 Engine
  • 4.5 Chassis / wheels
  • 4.6 Transmission / Brakes
  • 4.7 Power lift / hitches
  • 4.8 Cab / hydraulic system / electric system
  • 4.9 Coverings / protective guards
  • 4.10 Decals
  • 4.11 Functional check
• 5. Prior to each operation
  • 5.1 Mirrors
  • 5.2 Steering stops
  • 5.3 Mud guards

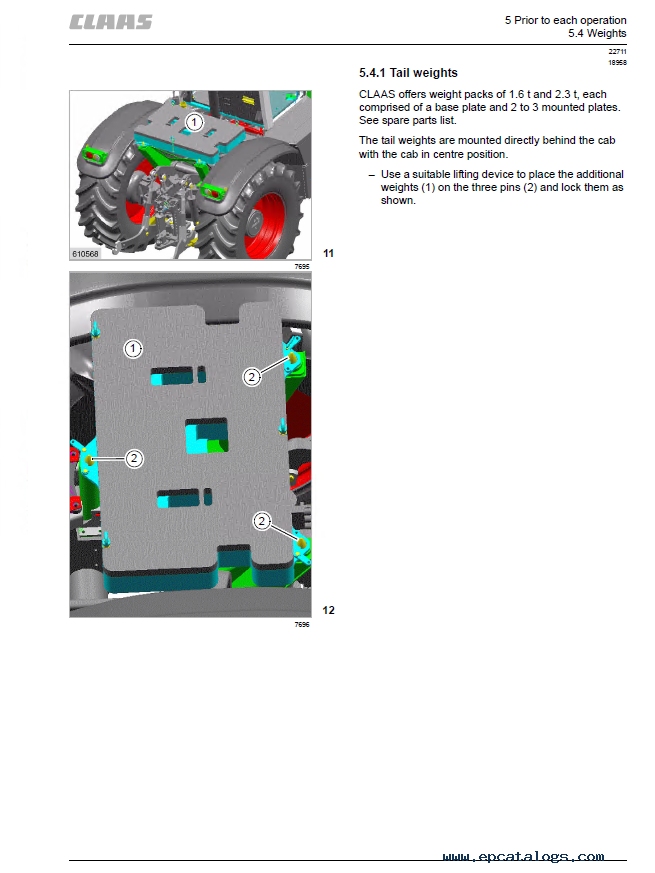

  • 5.4 Weights
• 6. Overview of controls
  • 6.1 Cab
  • 6.2 Automatic air conditioner
  • 6.3 Steering column
  • 6.4 Adjusting the operator’s seat
  • 6.5 Power lifts
  • 6.6 Socket outlets
• 7. Driving and Transport
  • 7.1 Starting the engine
  • 7.2 Lighting and warning signs
  • 7.3 Selecting the transmission mode
  • 7.4 Driving off
  • 7.5 Driving
  • 7.6 Cruise control
  • 7.7 Sets the engine speed
  • 7.8 Differential locks
  • 7.9 Brakes
  • 7.10 Parking the vehicle
• 8. Fieldwork settings
  • 8.1 Cab positions
  • 8.2 Front power lift
  • 8.3 Tail power lift

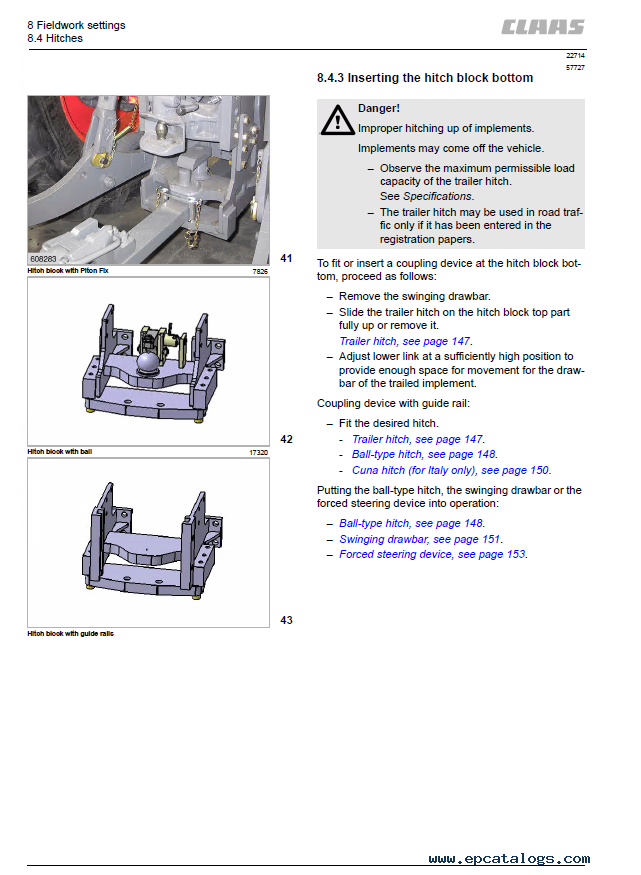

  • 8.4 Hitches
  • 8.5 Vehicle-mounted implements
  • 8.6 P.t.o.shafts and universal drive shaft
  • 8.7 Hydraulic connections
  • 8.8 TRAILER BRAKE CONNECTIONS
  • 8.9 Installation of electric and electronic devices
• 9. Operation CEBIS
  • 9.1 Function and structure
  • 9.2 Controls and displays
  • 9.3 CEBIS operation
  • 9.4 Menu structure
• 10. Operation of CLAAS COMMUNICATOR

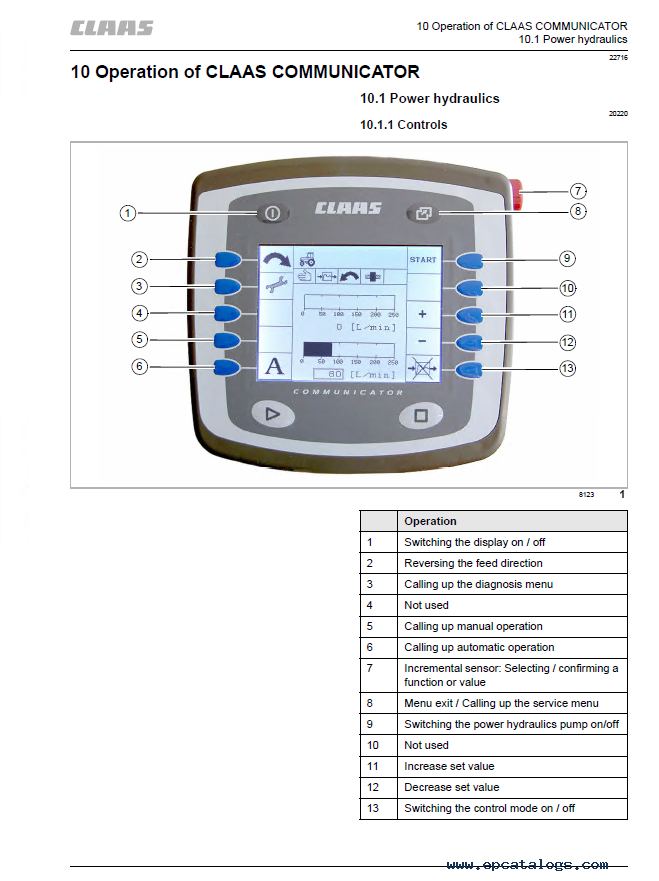

  • 10.1 Power hydraulics
  • 10.2 Service menu
• 11. Fieldwork
  • 11.1 Headlights
  • 11.2 Steering
  • 11.3 Trailer brake
  • 11.4 P.t.o.shaft / auxiliary power take-off
  • 11.5 Power lifts
  • 11.6 Hydraulic vehicle-mounted implements
  • 11.7 CLAAS SEQUENCE MANAGEMENT
  • 11.8 Reversing blower
  • 11.9 Central lubrication system
  • 11.10Tyre pressure control system
• 12. Faults and remedies
  • 12.1 Electric system
  • 12.2 Air conditioner
  • 12.3 Central lubrication system
• 13. Maintenance
  • 13.1 Important maintenance instructions
  • 13.2 Maintenance schedules
  • 13.3 Lubricants charts
  • 13.4 Hydraulic system
  • 13.5 Transmission
  • 13.6 Compressed-air system / Brakes
  • 13.7 Axles
  • 13.8 Air conditioner
  • 13.9 Cab
  • 13.10Hitches
  • 13.11Central lubrication system
• 14. Engine maintenance
  • 14.1 Important maintenance instructions
  • 14.2 Maintenance schedule
  • 14.3 Lubricants chart
  • 14.4 Opening the engine facings
  • 14.5 Engine overview
  • 14.6 Fuel system
  • 14.7 Engine oil
  • 14.8 Cooling system
  • 14.9 Air-intake system
  • 14.10V-belts / valves

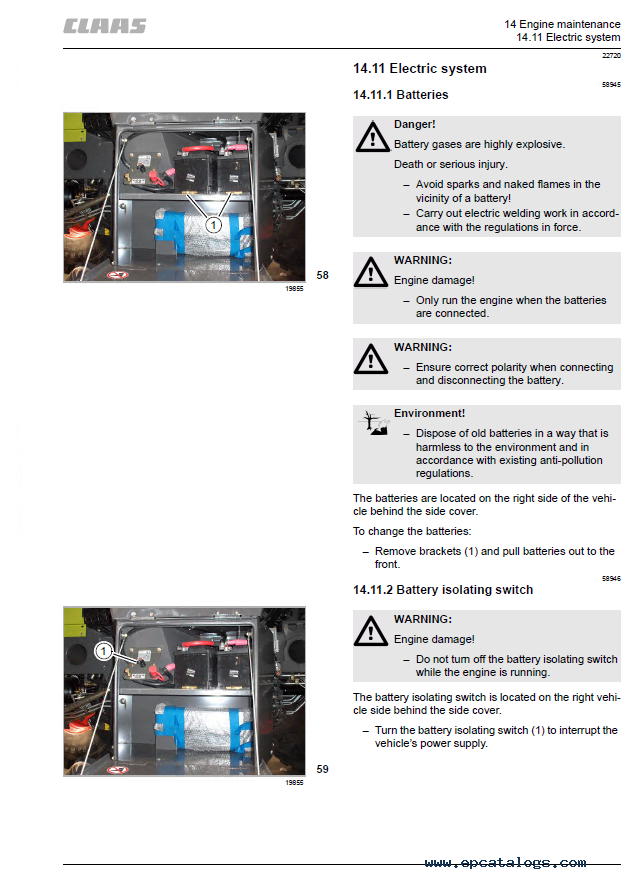

  • 14.11Electric system
• 15. Lubrication chart
  • 15.1 Lubricants and lubrication instructions
  • 15.2 Greasing cycles

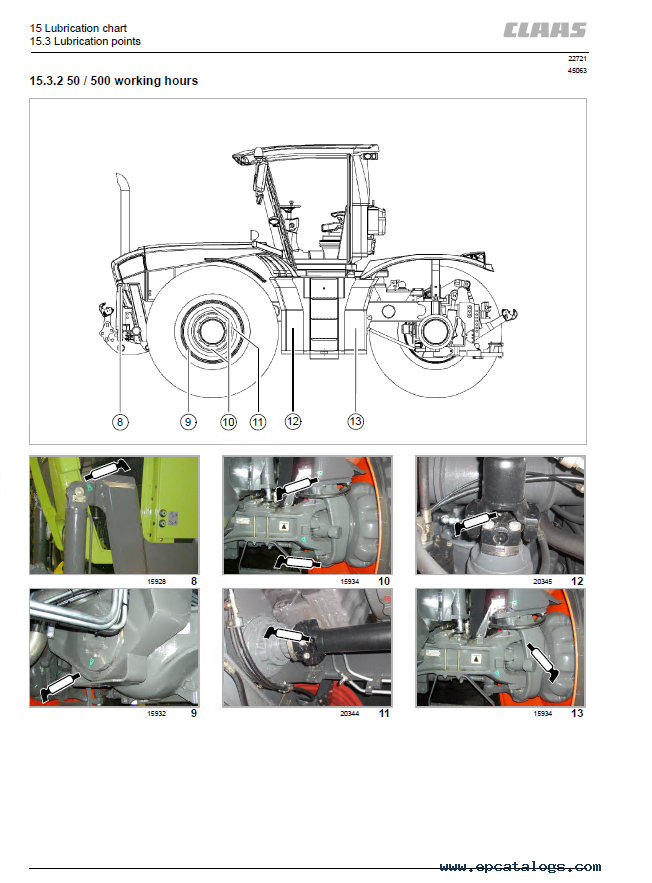

  • 15.3 Lubrication points
