Cesab Forklifts IC Range SID-KL 25.1, 30.1 Spare Parts Catalog PDF

This PDF Spare Parts Catalog contains technical information on the required spare parts, details, and accessories for Cesab Forklifts IC Range SID-KL 25.1, 30.1 Models.

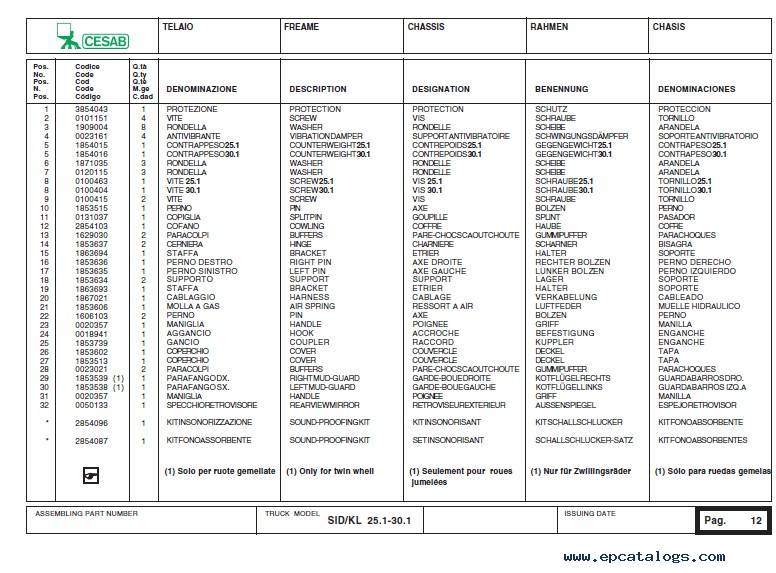

This catalog includes a lot of schematics, pictures, and charts, that help to get a detailed description with pictures of all the systems of Cesab forklifts, using which you can determine the installation and location any details.

This parts catalog is a scanned PDF file. We recommend using Adobe Acrobat Reader, to be sure all images/graphics will display correctly. The Acrobat Reader allows anyone to view, navigate, and print documents in the Adobe Portable Document Format (PDF) with the click of your mouse.

This is an indexed pdf-files that will help you with one click to go to the desired section and find the necessary information.

Buying this pdf parts manual is very simple and fast: you need to click on the 'Buy Now' button and follow the further instructions. After payment of the pdf instruction, you will receive a download link. You are downloading a PDF document. PDF documents can be read on all devices. That includes iPhones, Android smartphones, tablets, and desktop and laptop computers that run Windows software as well as the macOS operating system.

Models covered:
SID-KL 25.1, 30.1

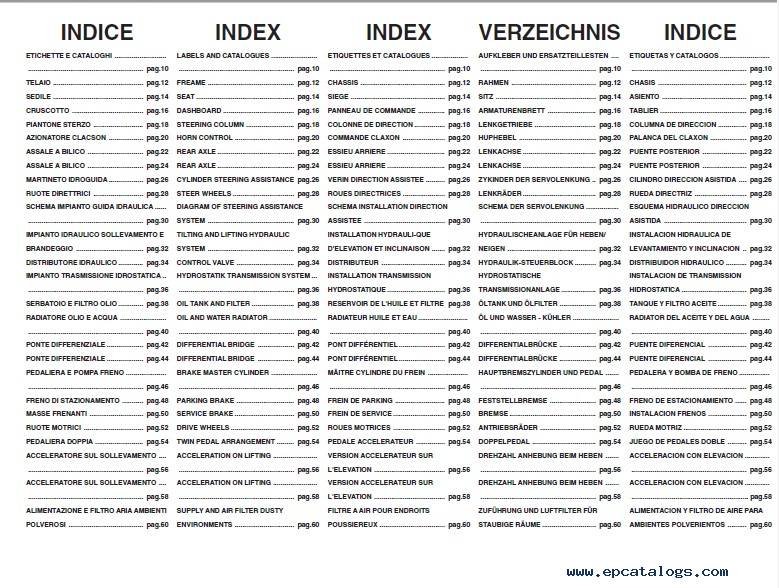

INDEX:
LABELS AND CATALOGUES
FRAME
SEAT
DASHBOARD
STEERING COLUMN
HORN CONTROL
REAR AXLE
CYLINDER STEERING ASSISTANCE
STEER WHEELS
DIAGRAM OF STEERING ASSISTANCE SYSTEM
TILTING AND LIFTING HYDRAULIC SYSTEM
CONTROL VALVE
HYDROSTATIC TRANSMISSION SYSTEM
OIL TANK AND FILTER
OIL AND WATER RADIATOR
DIFFERENTIAL BRIDGE
BRAKE MASTER CYLINDER
PARKING BRAKE
SERVICE BRAKE
DRIVE WHEELS
TWIN PEDAL ARRANGEMENT
ACCELERATION ON LIFTING
SUPPLY AND AIR FILTER DUSTY
ENVIRONMENTS
UPPER EXHAUST UNIT
SPARK PROTECTION EXHAUST SYSTEM
WIRING DIAGRAM
MISCELLANEOUS ELECTRICAL
TILT JACK
ENGINE - BRACKETS - HYDROSTATIC PUMP ENGINE GROUP KUBOTA F 2803
CYLINDER BLOCK
TIMING AND LUBRICATION
INTERNAL SHAFTS AND CROWN GEARS
FLYWHEEL
FUEL SYSTEM
ELECTRICAL EQUIPMENT
ENGINE COOLING SYSTEM
INTAKE AND EXHAUST MANIFOLD
ENGINE GROUP YANMAR 4TNE94-PD
CYLINDER BLOCK
TIMING AND OIL SUMP
INTAKE, EXHAUST MANIFOLD AND CAMSHAFT
CRANK SHAFT AND LUBRIFICATION
ENGINE COOLING SYSTEM AND INJECTION PUMP
DIESEL FILTER AND STARTER
ALTERNATOR AND GASKETS SET
HYDROSTATIK TRANSMISSION
VARIABLE DISPLACEMENT PUMP
ROTARY UNIT
HYDRAULIC POSITIONER
CONNECTION PLATE
H.P. VALVE
L.P. VALVE
ADJUSTING VALVE
GEAR PUMP
SOLENOID VALVE AND INCHING GROUP
INCHING GROUP
MAGNET GROUP
MAGNET
ADJUSTING VALVE
DEVICES AND ACCESSORIES
ACCESSORIES
SWAYING PEDAL SYSTEM
LIFTING HYDRAULIC ACCELERATOR KIT
LIGHTING EQUIPMENT AND ATTACHMENTS
STREET LIGHTING SYSTEM
CABIN
DIRECTION INVERSOR LEVER
DIRECTION INVERSOR LEVER
SPEED PEDAL
MASTS GROUP 250-300
OUTER MAST (DUPLEX)
INNER MAST (DUPLEX)
LIFT JACK (DUPLEX)
HYDRAULIC INSTALLATION ON MASTS (DUPLEX)
FORK CARRIAGE (DUPLEX)
SIDESHIFTING DEVICE (DUPLEX)
SIDESHIFTING DEVICE HYDRAULIC INSTALLATION (DUPLEX)
FORKS (DUPLEX)
OUTER MAST (TRIPLEX)
INNER MAST (TRIPLEX)
MIDDLE MAST (TRIPLEX)
LIFT JACK (TRIPLEX)
LIFT JACK DRAINAGE SYSTEM (TRIPLEX)
HYDRAULIC INSTALLATION ON MASTS (TRIPLEX)
FORK CARRIAGE (TRIPLEX)
SIDESHIFTING DEVICE (TRIPLEX)
SIDESHIFTING DEVICE HYDRAULIC INSTALLATION (TRIPLEX)
FORKS (TRIPLEX)
OUTER MAST (DUPLEX) F.F.L.
INNER MAST (DUPLEX) F.F.L.
SIDE LIFT JACK (DUPLEX) F.F.L.
CENTRAL LIFT JACK F.F.L.
HYDRAULIC INSTALLATION ON MASTS (DUPLEX) F.F.L.
FORK CARRIAGE (DUPLEX) F.F.L.
SIDESHIFTING DEVICE F.F.L.
SIDESHIFTING DEVICE HYDRAULIC INSTALLATION (DUPLEX) F.F.L.
FORKS (DUPLEX) F.F.L.
OUTER MAST (TRIPLEX) F.F.L.
INNER MAST (TRIPLEX) F.F.L.
MIDDLE MAST (TRIPLEX) F.F.L.
SIDE LIFT JACK (TRIPLEX) F.F.L.
CENTRAL LIFT JACK F.F.L.
HYDRAULIC INSTALLATION ON MASTS (TRIPLEX) F.F.L.
FORK CARRIAGE (TRIPLEX) F.F.L.
SIDESHIFTING DEVICE F.F.L.
SIDESHIFTING DEVICE HYDRAULIC INSTALLATION (TRIPLEX) F.F.L.
FORKS (TRIPLEX) F.F.L.
