Cesab Forklifts Blitz 315 Spare Parts Catalog PDF

For complete service information also see:
Cesab Blitz 312 315 316 318 320 316L 318L 412 415 416 418 420 416L 418L Service Manual
Cesab Forklifts Blitz 3-4 Ruote, Wheels, Roues, Rad, Ruedas Spare Parts Catalog

This PDF Spare Parts Catalog is intended to help you care for maintaining and repair your Cesab Forklifts Blitz 315 Model. With this list of products you will be able to see how your forklift truck is put together, identify the different parts, and other spare parts with the help of the spare parts lists accompanying each illustration.

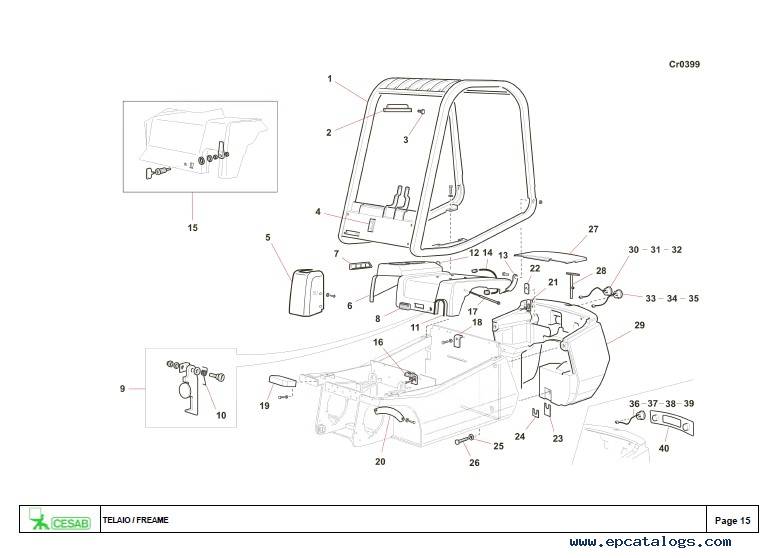

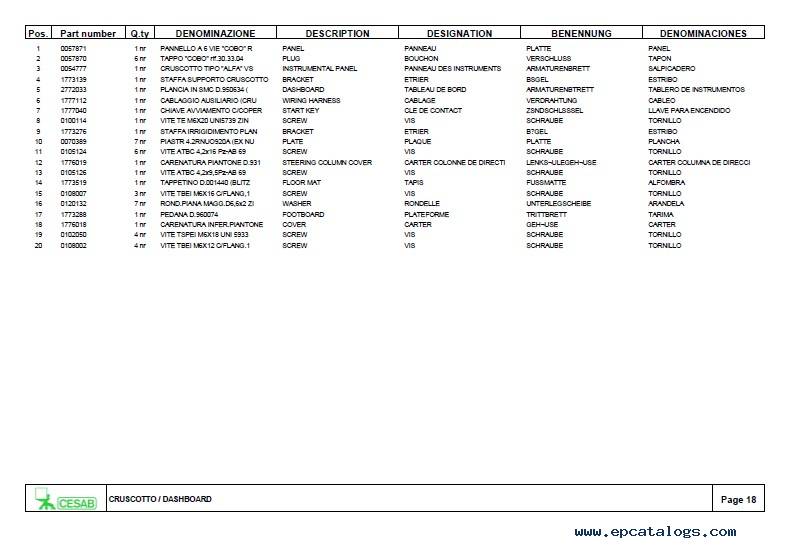

This pdf Cesab catalog contains illustrations with accompanying lists of spare parts.

For your convenience, we present you with a link 'Cesab pdf manual instant preview' on the top of this page. This link will help you to preview this PDF manual and understand that this manual contains needed for your parts information or not.

Buying this parts manual is very simple and fast: you need to click on the 'Buy Now' button and follow the further instructions. After payment of the pdf instruction, you will receive a download link. You are downloading a PDF document that works with applications such as Adobe Acrobat Reader, Foxit Reader, etc. For your convenience, you can print the manual, use it as a service handbook, and store it directly near the equipment.

Models covered:
315

Serial Number:
183448

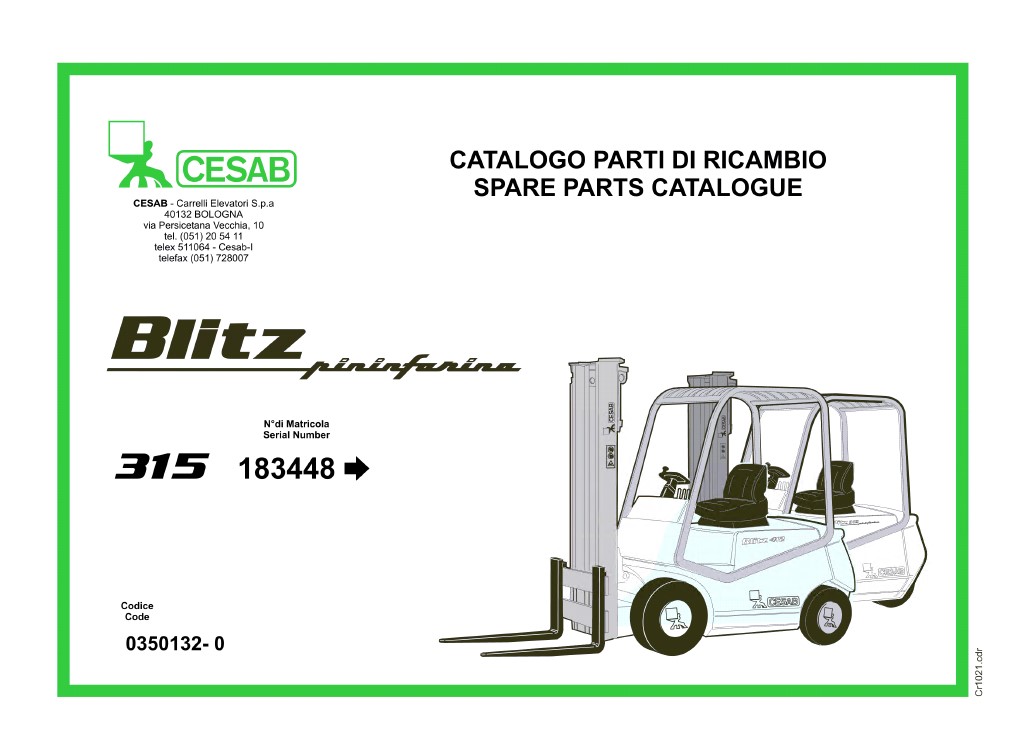

Code 0350132-0

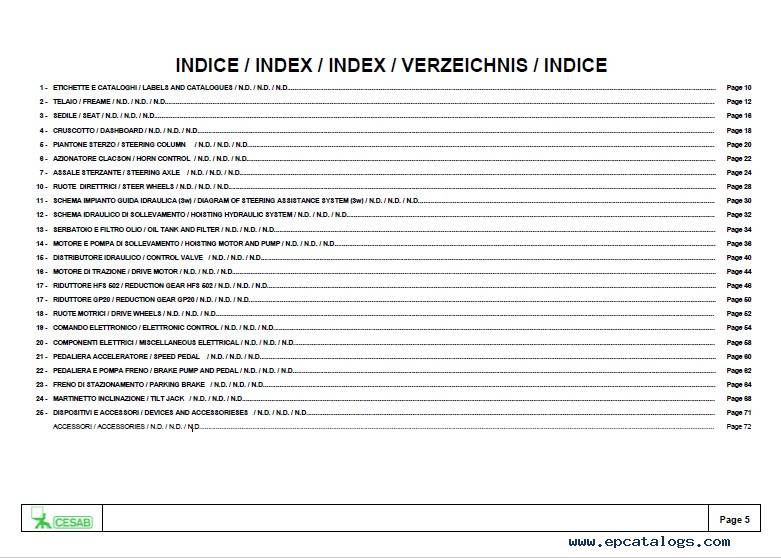

INDEX:
1 - LABELS AND CATALOGUES
2 - FRAME
3 - SEAT
4 - DASHBOARD
5 - STEERING COLUMN
6 - HORN CONTROL
7 - STEERING AXLE
10 - STEER WHEELS
11 - DIAGRAM OF STEERING ASSISTANCE SYSTEM (3w)
12 - HOISTING HYDRAULIC SYSTEM
13 - OIL TANK AND FILTER
14 - HOISTING MOTOR AND PUMP
15 - CONTROL VALVE
16 - DRIVE MOTOR
17 - REDUCTION GEAR HFS 502
17 - REDUCTION GEAR GP20
18 - DRIVE WHEELS
19 - ELECTRONIC CONTROL
20 - MISCELLANEOUS ELECTRICAL
21 - SPEED PEDAL
22 - BRAKE PUMP AND PEDAL
23 - PARKING BRAKE
24 - TILT JACK
25 - DEVICES AND ACCESSORIES
26 - DIRECTION INVERSOR LEVER
27 - MASTS GROUP (new masts with rolled steel section)
27 - MASTS GROUP
