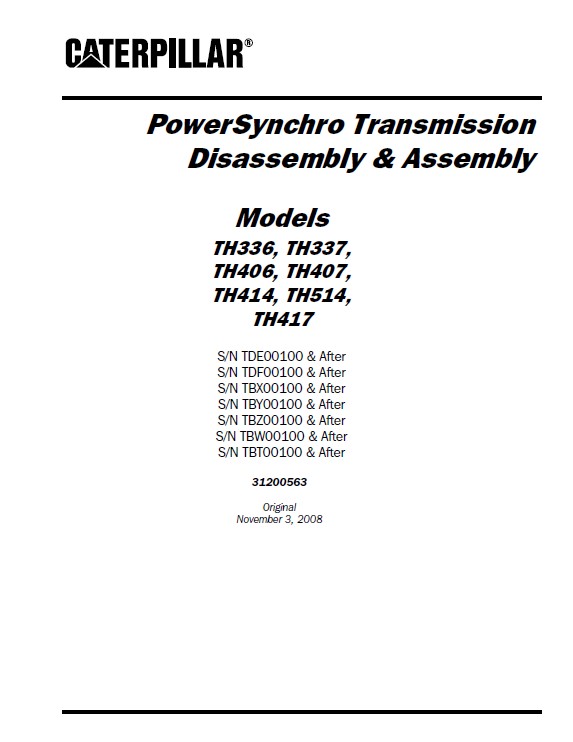

Caterpillar PowerSynchro Transmission TH336, TH337, TH406, TH407, TH414, TH514, TH417 PDF Manual

For complete service information also see:
Caterpillar Telehandler TH336, TH337, TH406, TH407, TH414, TH514, TH417 Operation & Maintenance Manual
Caterpillar TH336, TH337, TH406, TH407, TH414, TH514, TH417 Telehandler Service Manual

This PDF Disassembly Assembly Manual allows fixing problems and faults of Caterpillar PowerSynchro Transmission TH336, TH337, TH406, TH407, TH414, TH514, TH417 Models.

The disassembly and assembly guide includes detailed schematics and parts diagrams, which help you to determine the installation location spare parts, etc. It is a detailed source of important information for the maintenance and repair of Caterpillar axles.

At the top of this page, you can find the link 'Caterpillar pdf manual instant preview'. It will help you to preview this PDF workshop manual before purchasing it. You can also read the list of content that is presented below. If you have any questions or problems with downloading the file, you can write to us and we will help you.

Models covered:
TH336,
TH337,
TH406,
TH407,
TH414,
TH514,
TH417.

Serial numbers:
S/N TDE00100 & After
S/N TDF00100 & After
S/N TBX00100 & After
S/N TBY00100 & After
S/N TBZ00100 & After
S/N TBW00100 & After
S/N TBT00100 & After

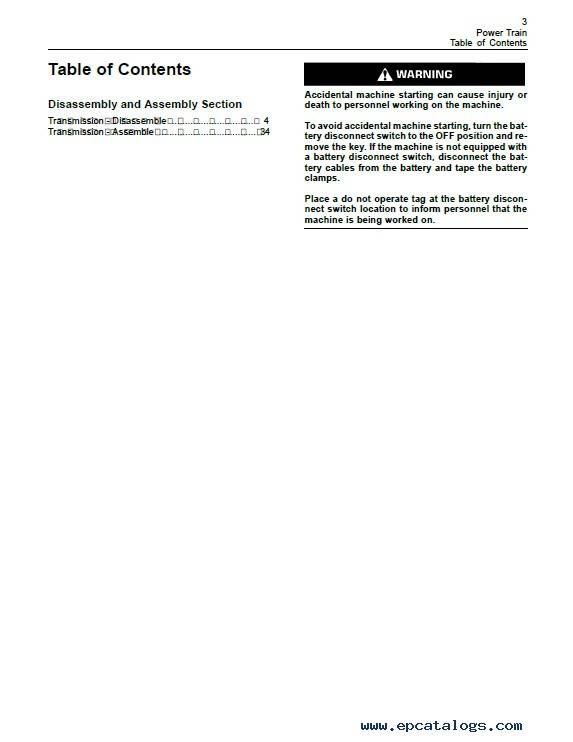

Contents:
Disassembly and Assembly Section

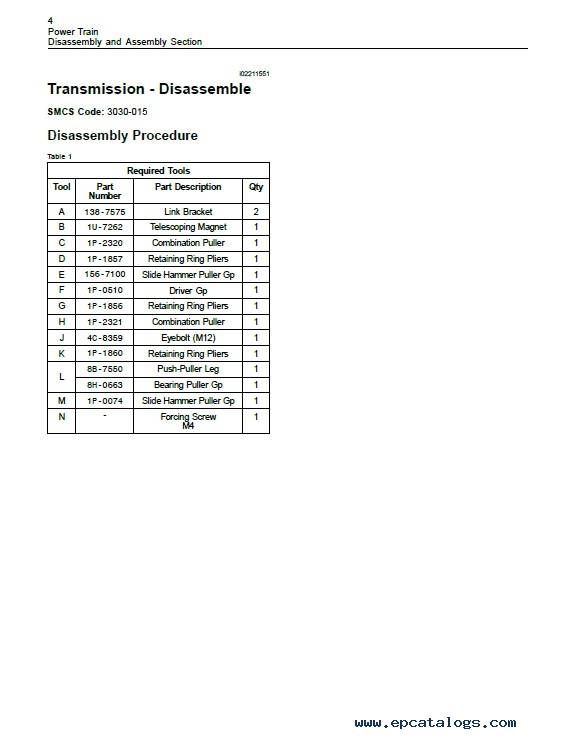

Transmission - Disassemble
