Caterpillar TH220B, TH330B Telehandles Machine Systems Disassembly and Assembly Manual

This PDF Disassembly and Assembly Manual contains many practical tips on the operation, care, and safety instruction, technical data, maintenance procedures, screenshots, many diagrams, and different schemes for Caterpillar TH220B, TH330B Telehandles Machine Systems. Electronic guide includes sections about installation information, removal procedures, disassembly procedures, hydraulic system, etc.

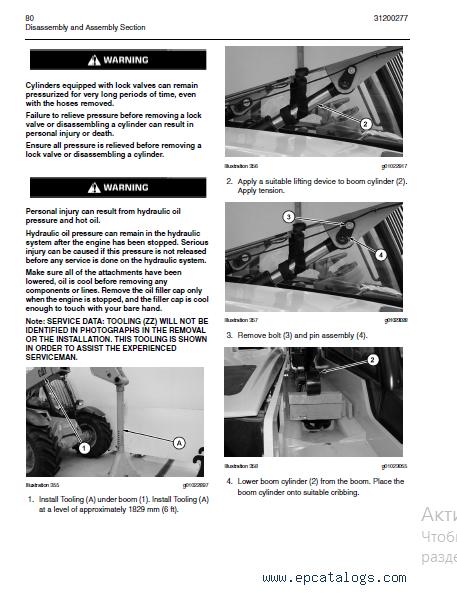

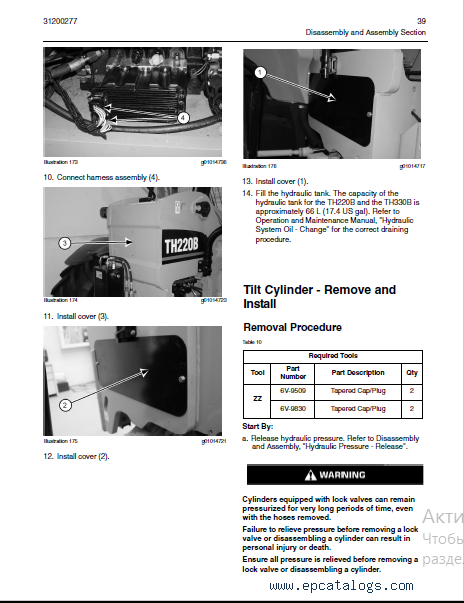

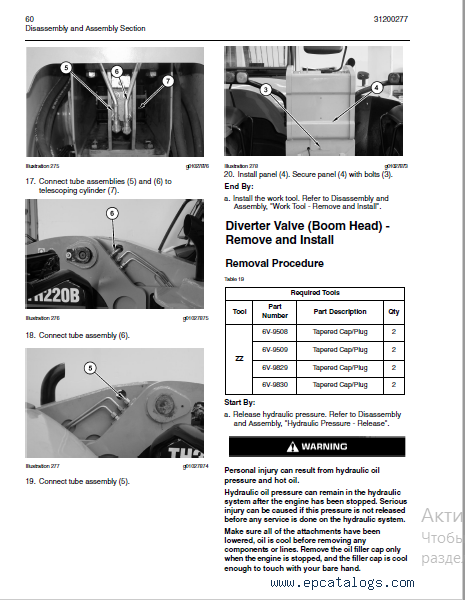

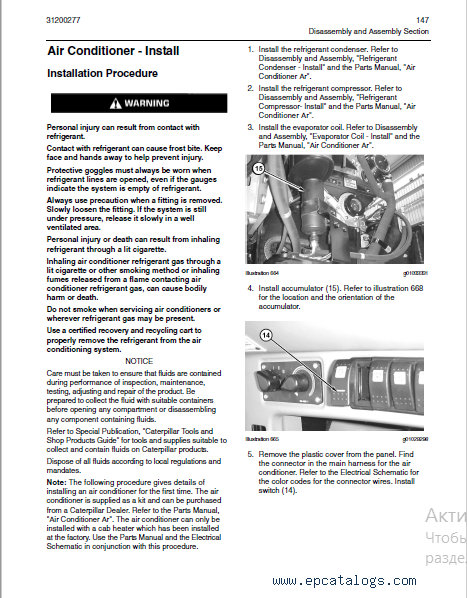

All screenshots, diagrams and schemes will help specialists to visually examine your equipment in parts, to understand correctly the location of each part of the Caterpillar TH220B, TH330B Telehandles and how to use it. Special attention should be paid to all safety aspects of the operation and maintenance of the machine. In this manual, there is detailed information about the safety of operation, which should be studied in detail before working with equipment. For quality work with this manual, we recommend using the application Adobe Acrobat Reader. In any case, if you have any questions - write to us, do not hesitate. Total: 178 pages.
