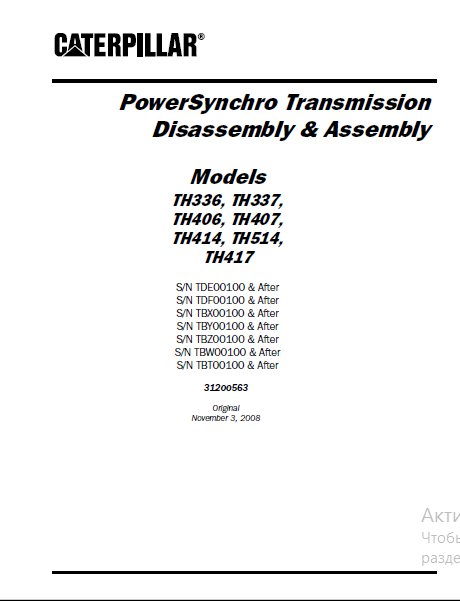

Caterpillar PowerSynchro Transmission TH336 - TH514 Disassembly and Assembly Manual PDF

This Disassembly Assembly Manual is intended for service, assembly, and disassembly of Caterpillar PowerSynchro Transmission TH336, TH337,TH406, TH407, TH414, TH514, TH417 models. Factory material contains detailed disassembly and assembly information, technical data, transmission, special instructions, and many illustrations, different schemes and diagrams.

Before starting the equipment read this tutorial, this will help to avoid damage and prolong the life of your Caterpillar PowerSynchro Transmission TH336, TH337,TH406, TH407, TH414, TH514, TH417. The online text comes in PDF format, includes 68 pages, all pages are printable and readable. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.

Models:

TH336, TH337,
TH406, TH407,
TH414, TH514,
TH417

Serial number:

S/N TDE00100 & After
S/N TDF00100 & After
S/N TBX00100 & After
S/N TBY00100 & After
S/N TBZ00100 & After
S/N TBW00100 & After
S/N TBT00100 & After
