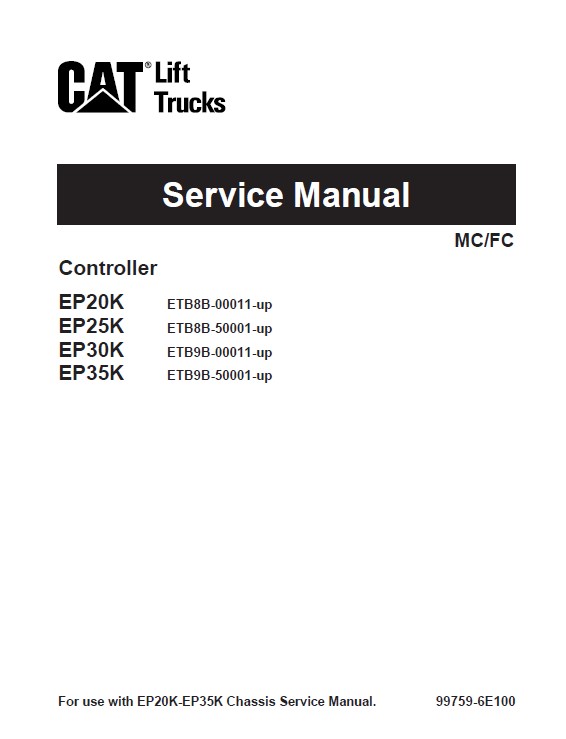

Cat Lift Trucks EP20K, EP25K, EP30K, EP35K Controller Service Manual PDF

This PDF Service Manual is a guide for servicing Caterpillar Lift Trucks of 2.0 ton, 2.5 ton, 3.0 ton, and 3.5-ton models. The instructions are grouped by systems to conveniently provide a ready reference.

Use this useful service information, read the technical data, analyze the diagrams and pictures review the step-by-step recommendations and you will immediately understand how to properly maintain and repair the forklifts, in order to avoid unforeseen breakdowns and failures. Before starting the equipment read this manual, this will help to avoid damage and prolong the life of your equipment.

The service manual for forklifts is contained in PDF format. Thanks to this format it is possible to print the entire instruction or the individual diagrams and schemes. You can work with this manual after installing Adobe Acrobat Reader.

To purchase this pdf book, click the 'Buy Now' button. Fill out the proposed form and within a few minutes, a letter with all the recommendations and installation instructions will be sent to your e-mail. If you have any questions or suggestions - write to us.

Serial numbers:
MC/FC
Controller
EP20K ETB8B-00011-up
EP25K ETB8B-50001-up
EP30K ETB9B-00011-up
EP35K ETB9B-50001-up

Pub. No. 99759-6E100

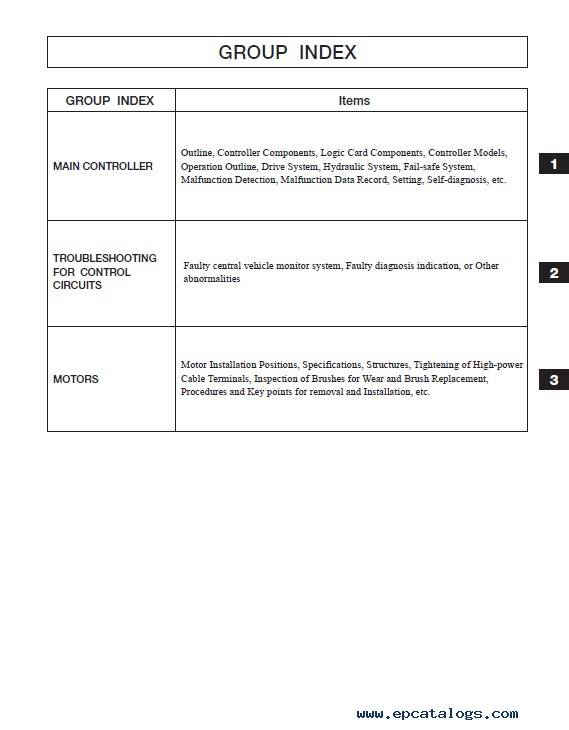

GROUP INDEX:
MAIN CONTROLLER
Outline
Controller Components
Logic Card Components
Controller Models
Operation Outline
Drive System
Hydraulic System
Fail-safe System
Malfunction Detection
Malfunction Data Record
Setting
Self-diagnosis

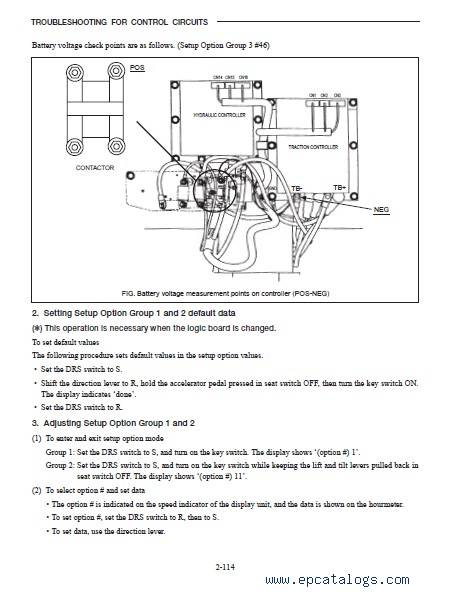

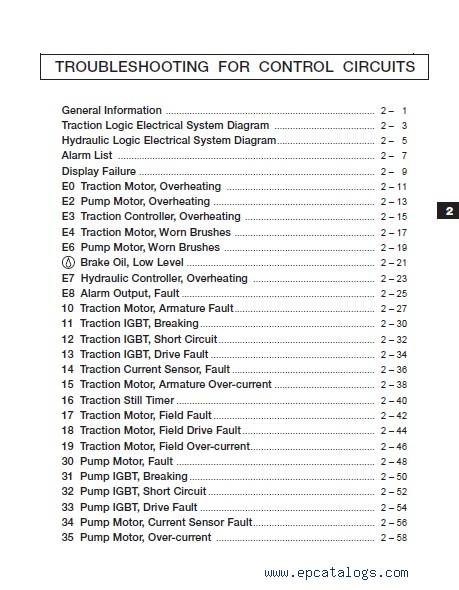

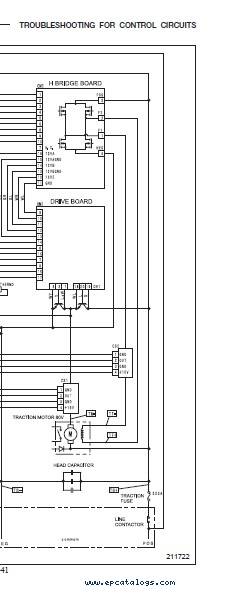

TROUBLESHOOTING FOR CONTROL CIRCUITS
Faulty central vehicle monitor system
Faulty diagnosis indication
Other abnormalities
MOTORS
Motor Installation Positions
Specifications
Structures
Tightening of High-power
Cable Terminals

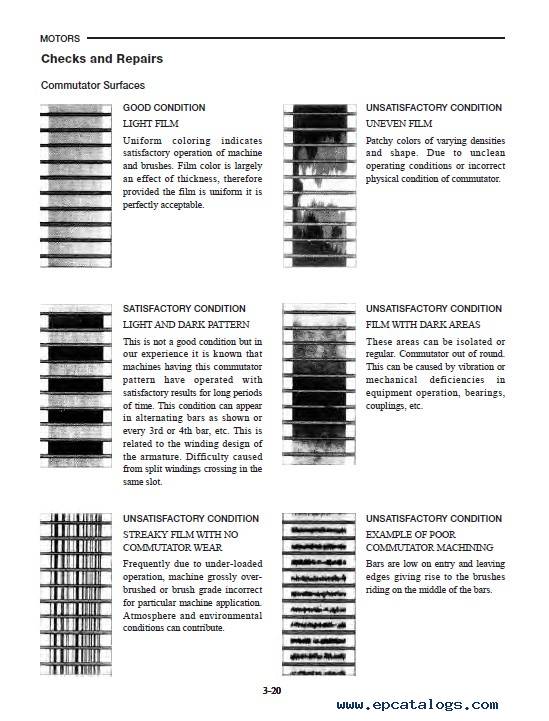

Inspection of Brushes for Wear and Brush Replacement

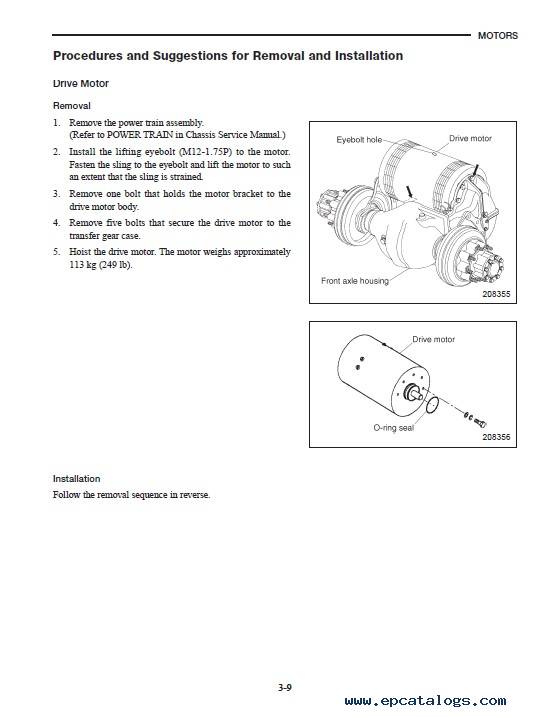

Procedures and Key points for removal and Installation
