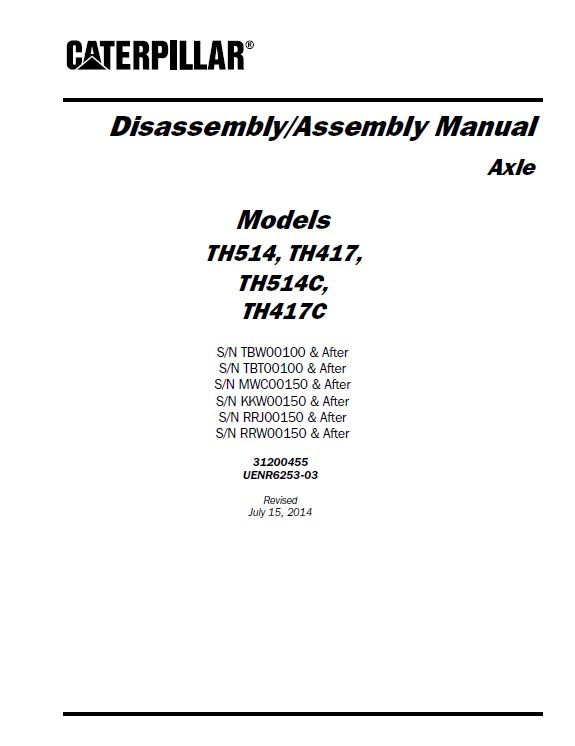

Caterpillar Axle TH514, TH417, TH514C, TH417C Disassembly & Assembly Manual PDF

This PDF Disassembly & Assembly Manual provides general directions for accomplishing service and repair procedures of axles of the Caterpillar Telehandlers TH514, TH417, TH514C, TH417C Models.

This guide contains clear technical information about specifications, safety rules instruction, assembling procedures, tool list for field assembly, troubleshooting, etc. The factory file has a lot of illustrations with descriptions, different diagrams, and schemes, etc.

Also, in this tutorial, you can see many pictures, and diagrams, tables, and schemes, which give you complete step-by-step procedures for your machine. If you have familiarized this material correctly and thoroughly and will follow all rules, your Cat telehandlers will serve you with quality work for many years. An online text comes in PDF format which was written in English with 104 pages. All pages are printable and readable. To work with the product you should use Adobe PDF Reader.

Models covered:
TH514, TH417,
TH514C,
TH417C.

Serial numbers:
S/N TBW00100 & After
S/N TBT00100 & After
S/N MWC00150 & After
S/N KKW00150 & After
S/N RRJ00150 & After
S/N RRW00150 & After

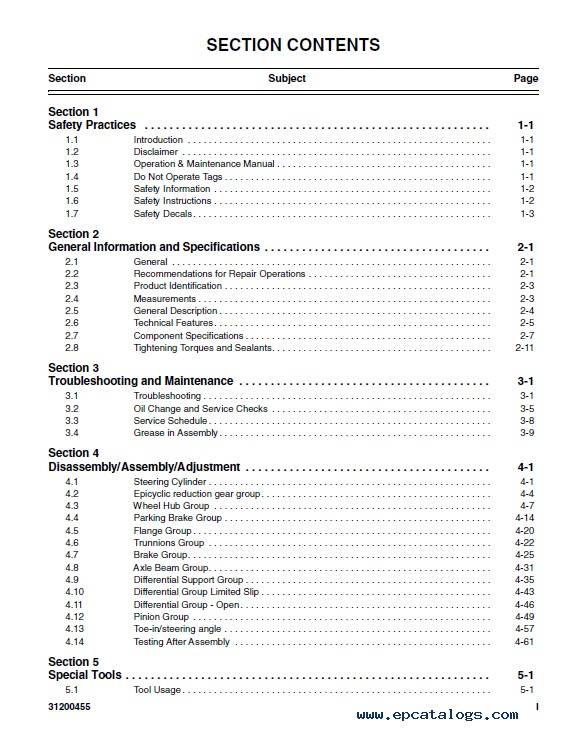

Contents:

• Section 1 - Safety Practices
  • 1.1 Introduction
  • 1.2 Disclaimer
  • 1.3 Operation & Maintenance Manual
  • 1.4 Do Not Operate Tags
  • 1.5 Safety Information
  • 1.6 Safety Instructions
  • 1.7 Safety Decals
• Section 2 - General Information and Specifications
  • 2.1 General
  • 2.2 Recommendations for Repair Operations
  • 2.3 Product Identification
  • 2.4 Measurements
  • 2.5 General Description
  • 2.6 Technical Features
  • 2.7 Component Specifications
  • 2.8 Tightening Torques and Sealants
• Section 3 - Troubleshooting and Maintenance
  • 3.1 Troubleshooting
  • 3.2 Oil Change and Service Checks
  • 3.3 Service Schedule
  • 3.4 Grease in Assembly
• Section 4 - Disassembly/Assembly/Adjustment
  • 4.1 Steering Cylinder
  • 4.2 Epicyclic reduction gear group
  • 4.3 Wheel Hub Group

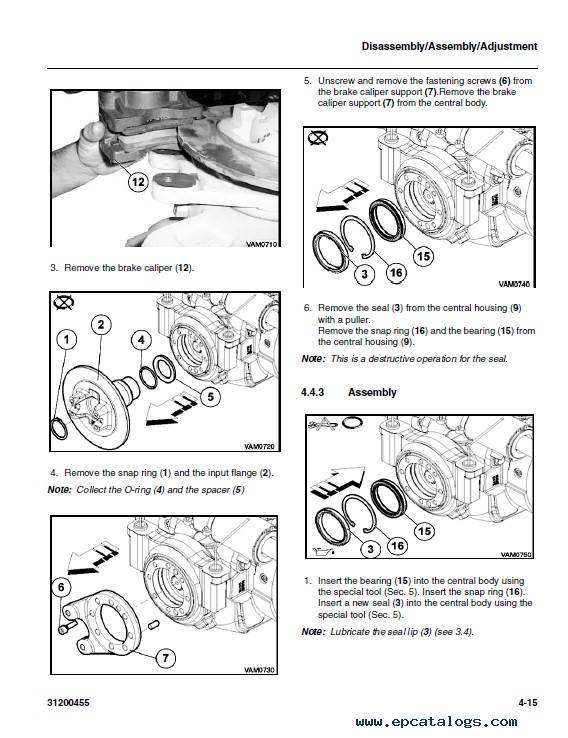

  • 4.4 Parking Brake Group
  • 4.5 Flange Group
  • 4.6 Trunnions Group
  • 4.7 Brake Group
  • 4.8 Axle Beam Group
  • 4.9 Differential Support Group
  • 4.10 Differential Group Limited Slip
  • 4.11 Differential Group - Open
  • 4.12 Pinion Group
  • 4.13 Toe-in/steering angle
  • 4.14 Testing After Assembly

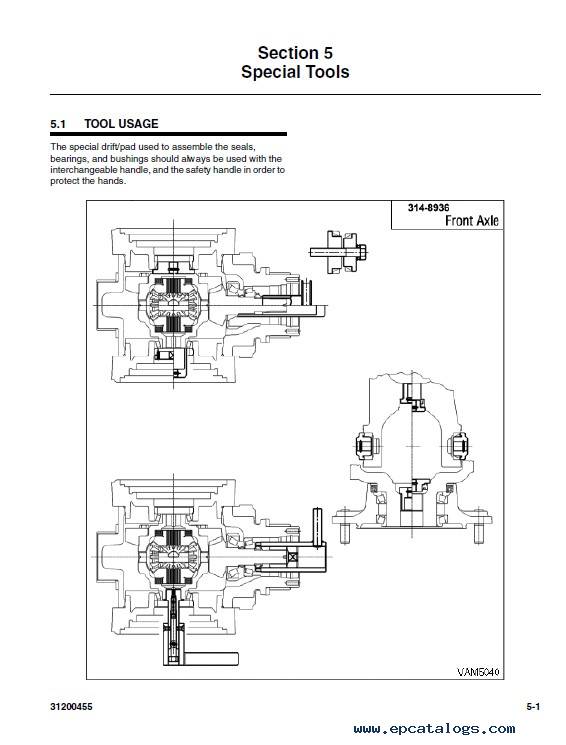

• Section 5 - Special Tools
  • 5.1 Tool Usage
