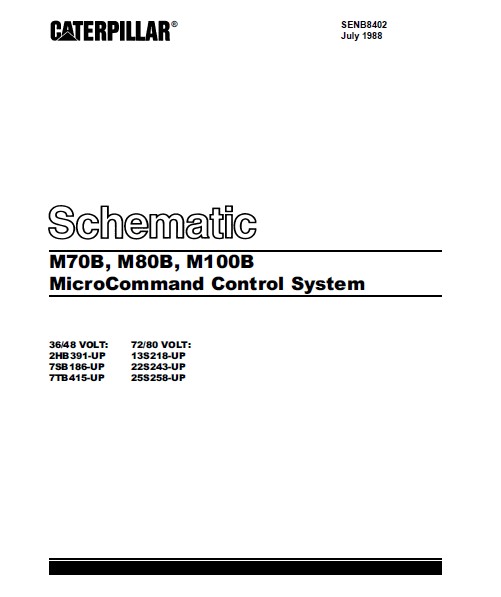

Cat Lift Trucks M70B, M80B, M100B MicroCommand Control System Schematic Manual PDF

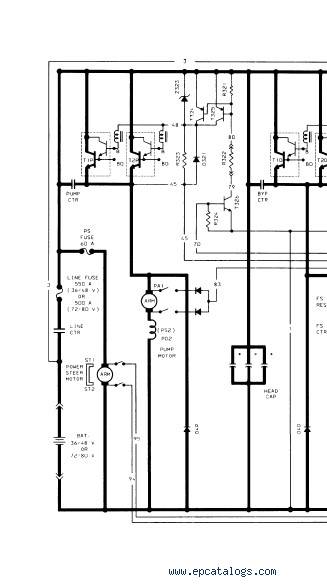

This PDF Schematic Manual contains information about circuits schematics, and hydraulic schematics for Cat Lift Trucks M70B, M80B, and M100B Models.

We recommend you read this material and pay attention to the safety, notes and follow their detailed recommendations and instructions. This guide comes in PDF, all pages are printable and printable. To view the information you want the program installed Adobe Reader.

To purchase this pdf book, click the 'Buy Now' button. Fill out the proposed form and within a few minutes, a letter with all the recommendations and installation instructions will be sent to your e-mail. If you have any questions or suggestions - write to us.

Before buying, you can study this schematic guide with a preview. To do this, just go to those from the link above 'Caterpillar pdf manual instant preview'. You can also preview information about the contents of the manual in the list of content, which is presented below.

Models covered:
M70B, M80B, M100B
MicroCommand Control System

Pub. No. SENB8402

Serial Numbers:
36/48 VOLT: 72/80 VOLT:
2HB391-UP   13S218-UP
7SB186-UP   22S243-UP
7TB415-UP   25S258-UP

INDEX:
SYSTEMS OPERATION
TESTING AND ADJUSTING
SPECIFICATIONS
