Cat Lift Trucks GP15ZN, DP15N, GP18ZN, DP18N, GP/DP20CN, GP/DP20N, GP25ZN, DP25N, GP/DP30N, GP/DP35N

This PDF Service Manual is intended to be used as an aid in the detailed service, repair, and troubleshooting of Cat Lift Trucks GP15ZN, DP15N, GP18ZN, DP18N, GP/DP20CN, GP/DP20N, GP25ZN, DP25N, GP/DP30N, GP/DP35N Models. We recommend doing service consistent with what you will learn from this service manual. Read the respective sections of this manual carefully and familiarize yourself with all the components before attempting to start a test, repair, or rebuild the job.

You can study this pdf manual using screenshots and a list of content, which is presented in the manual description. You can also follow the link 'Caterpillar pdf manual instant preview', and preview the pages of this manual.

Buying this service manual is very simple and fast: you need to click on the 'Buy Now' button and follow the further instructions. After payment of the pdf instruction, you will receive a download link. You are downloading a PDF document that works with applications such as Adobe Acrobat Reader, Foxit Reader, etc. For your convenience, you can print the manual, use it as a service handbook and store it directly near the equipment.

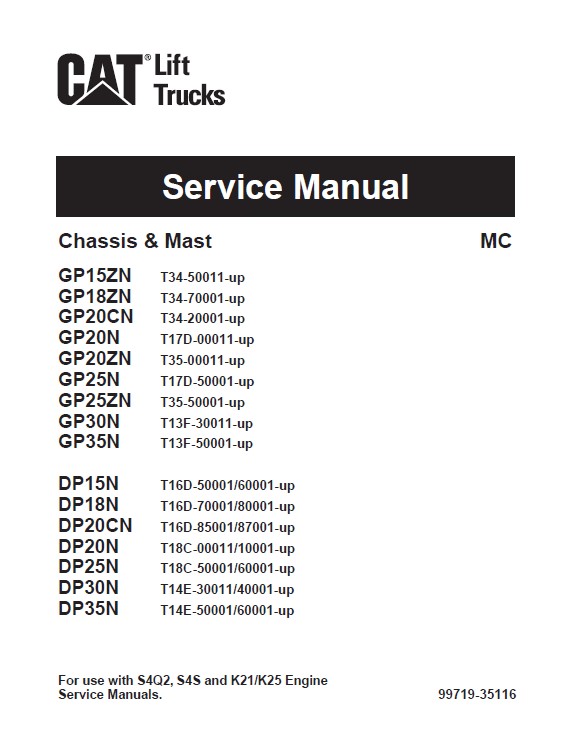

Pub. No. 99719-35116

Models covered:
Chassis & Mast MC
GP15ZN T34-50011-up
GP18ZN T34-70001-up
GP20CN T34-20001-up
GP20N T17D-00011-up
GP20ZN T35-00011-up
GP25N T17D-50001-up
GP25ZN T35-50001-up
GP30N T13F-30011-up
GP35N T13F-50001-up

DP15N T16D-50001/60001-up
DP18N T16D-70001/80001-up
DP20CN T16D-85001/87001-up
DP20N T18C-00011/10001-up
DP25N T18C-50001/60001-up
DP30N T14E-30011/40001-up
DP35N T14E-50001/60001-up

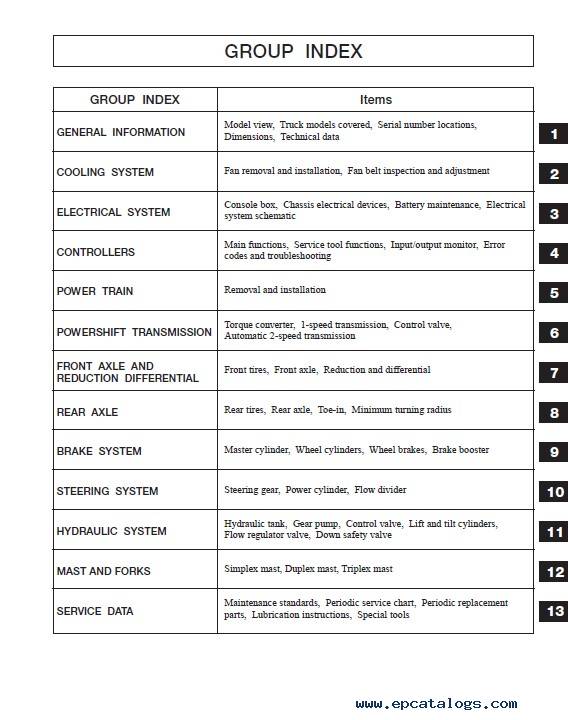

GROUP INDEX:
GENERAL INFORMATION
COOLING SYSTEM

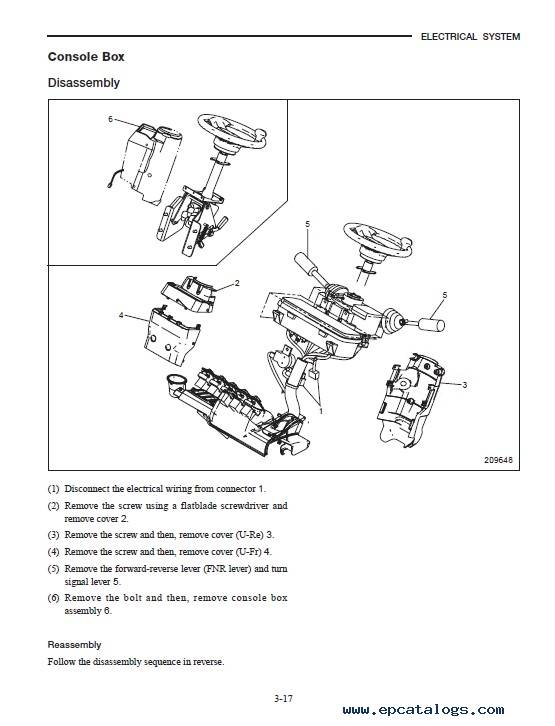

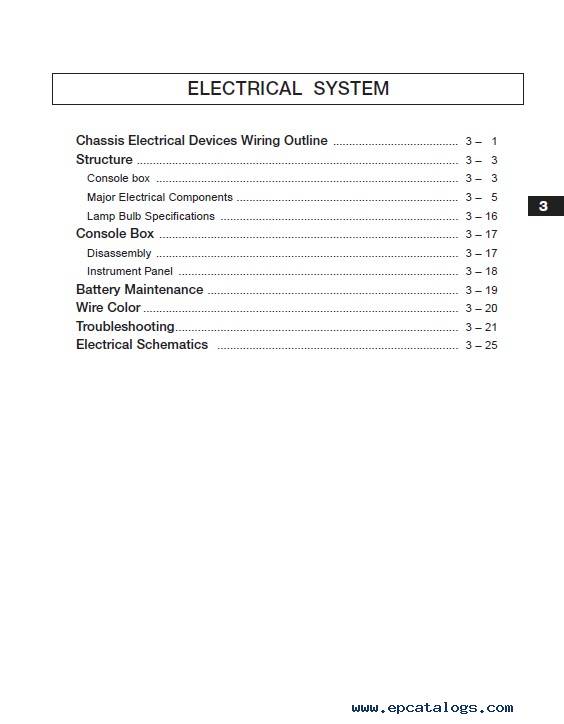

ELECTRICAL SYSTEM

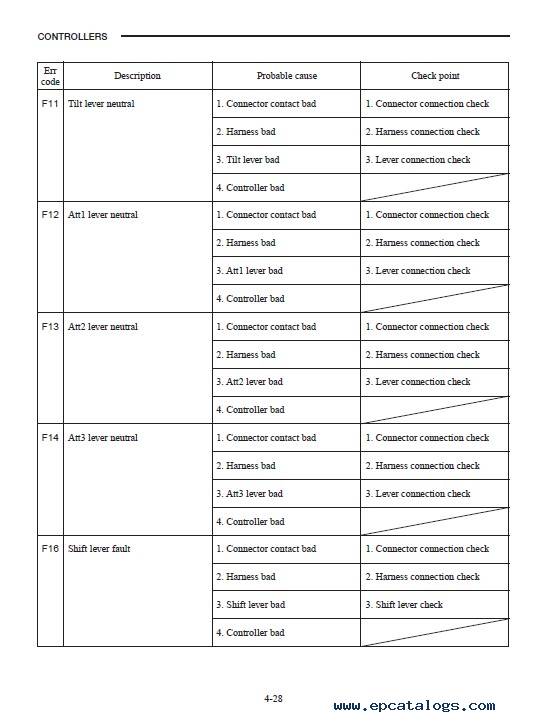

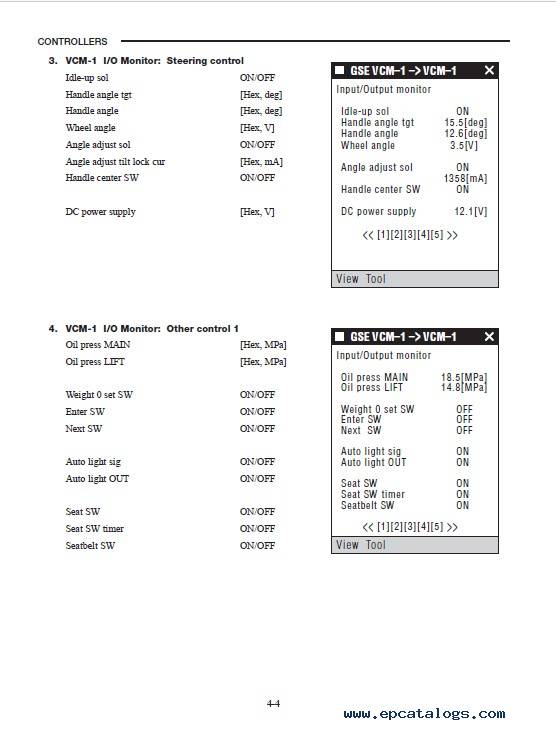

CONTROLLERS
POWER TRAIN
POWERSHIFT TRANSMISSION
FRONT AXLE AND
REDUCTION DIFFERENTIAL
REAR AXLE
BRAKE SYSTEM
STEERING SYSTEM

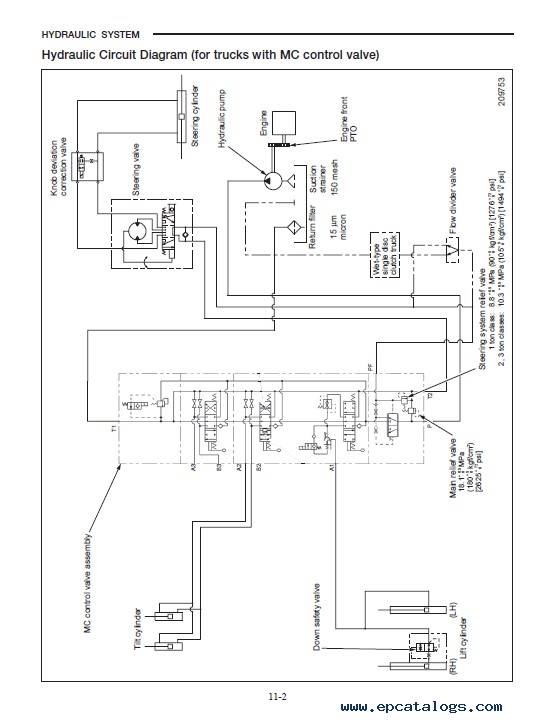

HYDRAULIC SYSTEM
MAST AND FORKS
SERVICE DATA
