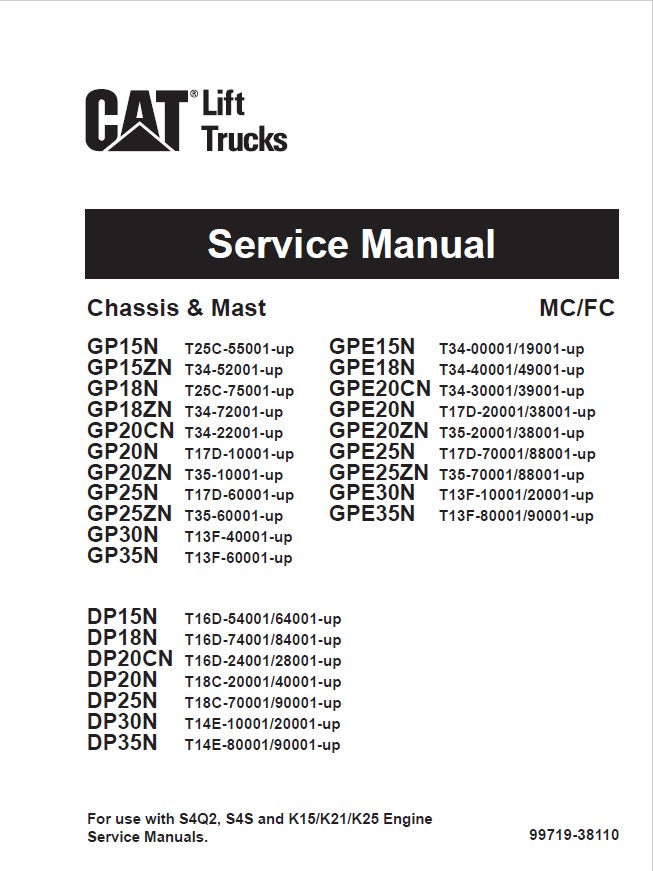

Cat Lift Trucks GP15N to GP35N, GPE15N to GPE35N, DP15N to DP35N, FC/MC Service Manual

For the prolonged and quality work with the Cat Lift Trucks Chassis and Mast GP15N to GP35N, GPE15N to GPE35N, DP15N to DP35N, FC/MC models, the manufacturer has prepared the service manual, which will help you maintain the high-quality operation of this excavator for many years. The Electronic guide includes sections about service instrutions, technical maintenance, safety rules, different diagrams, engine information, service data, system section, settings. In addiotion, in this factory file you can see many schematics, different diagrams, and screenshots with descriptions.

You schould read this factory file specially the rules and notes to avoid any breakdowns, injuries, or damage. Online text is presented in clear English in PDF format for reading. To read and print the information you must install the Adobe PDF Reader program. If you have questions about this Caterpillar product, write to us and we will answer all your questions. Pay Today and Download IMMEDIATELY!

99719-38110

Models and Serial Numbers:

FC/MC

GP15N T25C-55001-up
GP15ZN T34-52001-up
GP18N T25C-75001-up
GP18ZN T34-72001-up
GP20CN T34-22001-up
GP20N T17D-10001-up
GP20ZN T35-10001-up
GP25N T17D-60001-up
GP25ZN T35-60001-up
GP30N T13F-40001-up
GP35N T13F-60001-up
DP15N T16D-54001/64001-up
DP18N T16D-74001/84001-up
DP20CN T16D-24001/28001-up
DP20N T18C-20001/40001-up
DP25N T18C-70001/90001-up
DP30N T14E-10001/20001-up
DP35N T14E-80001/90001-up
GPE15N T34-00001/19001-up
GPE18N T34-40001/49001-up
GPE20CN T34-30001/39001-up
GPE20N T17D-20001/38001-up
GPE20ZN T35-20001/38001-up
GPE25N T17D-70001/88001-up
GPE25ZN T35-70001/88001-up
GPE30N T13F-10001/20001-up
GPE35N T13F-80001/90001-up

Table of Contents:

General Information

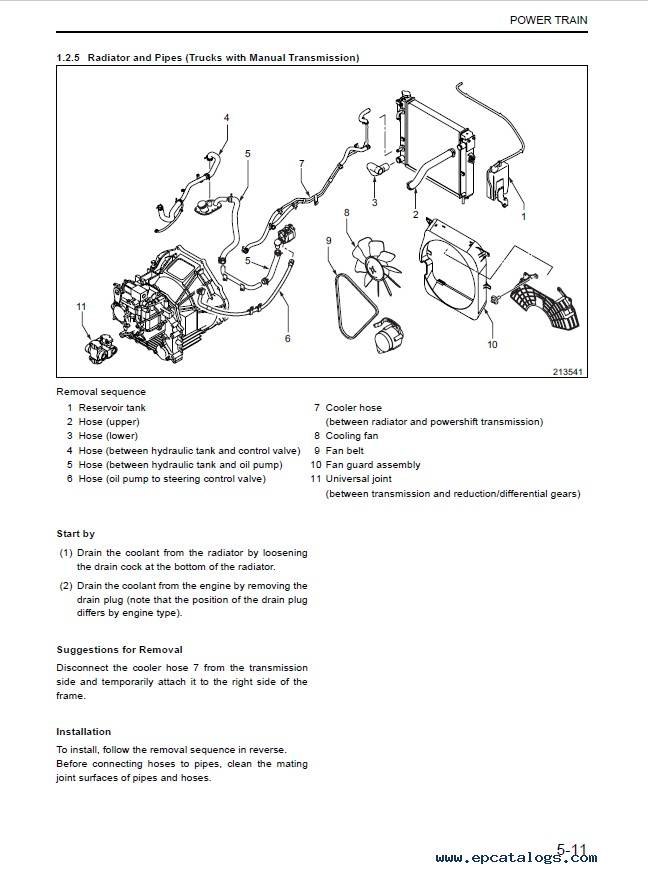

Cooling System
Electrical System
Controller

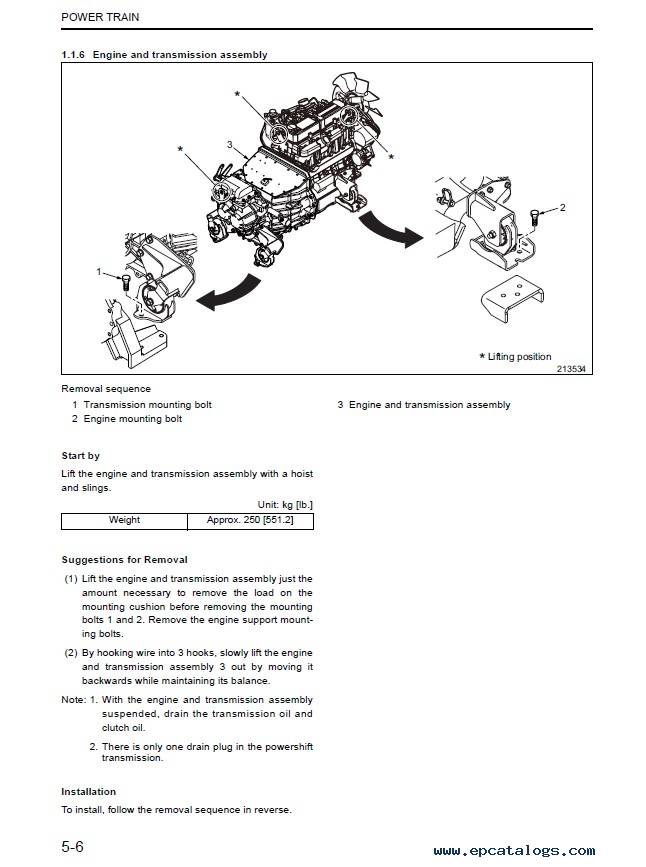

Power Train
Power shift Transmission
Front Axle and Reduction Differential
Rear Axle
Brake System
Steering System
Hydraulic System
Mast and Fork

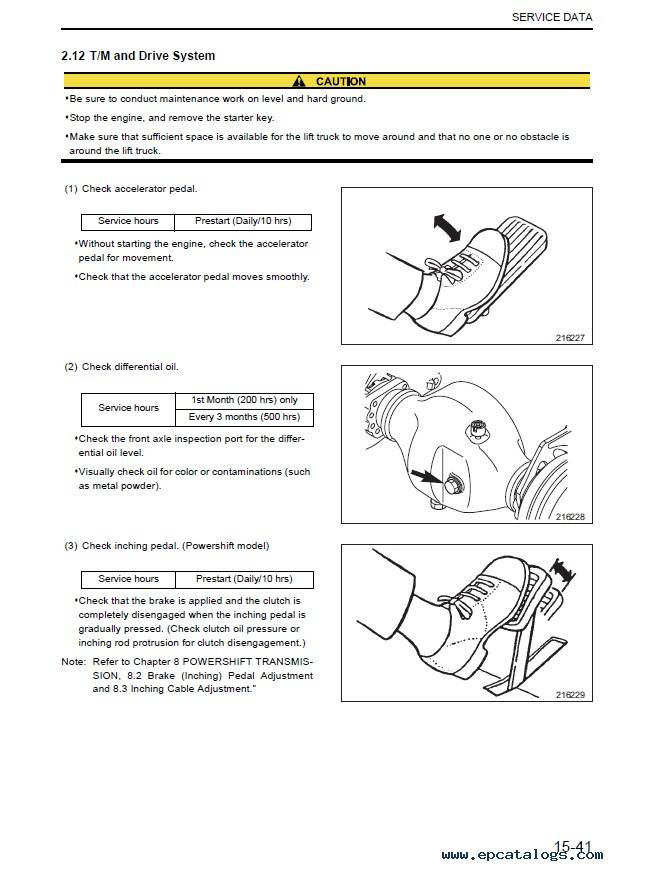

Service Data
