Cat Lift Trucks GP15/18/20/25/30/35NM, GP20CNM, GP25NM-HP MC Service Manual PDF

This PDF Service Manual is a guide for servicing Cat Lift Trucks GP15NM, GP18NM, GP20CNM, GP20NM, GP25NM, GP25NM-HP, GP30NM, and GP35NM Models.

This service manual covers detailed maintenance and repair information for Cat Lift Trucks. For your convenience, the information is grouped by sections as a ready reference. The descriptions, illustrations, and specifications contained in this manual are for Cat Forklifts the above model.

Whenever a question arises regarding the engine, systems, or other parts, consult this manual for detailed available information. Trust the experts, as this manual is a scanned copy of the manufacturer’s factory manual and is an official document. Use this valuable information and be calm about your equipment.

You can study this pdf manual using screenshots and a list of content, which is presented in the manual description. You can also follow the link 'Caterpillar pdf manual instant preview', and preview the pages of this manual.

To purchase this pdf guide, click the 'Buy Now' button. Fill out the proposed form and within a few minutes, a letter with all the recommendations and installation instructions will be sent to your e-mail. If you have any questions or suggestions - write to us.

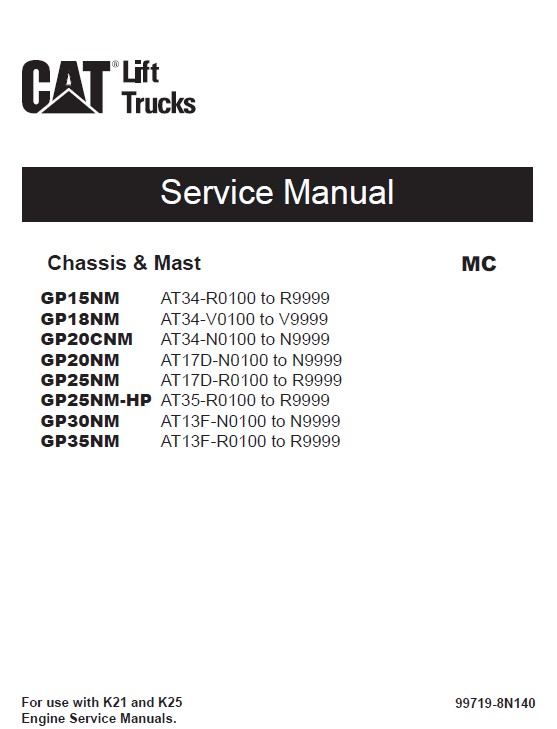

Models and Serial Numbers:
Chassis & Mast
MC
GP15NM AT34-R0100 to R9999
GP18NM AT34-V0100 to V9999
GP20CNM AT34-N0100 to N9999
GP20NM AT17D-N0100 to N9999
GP25NM AT17D-R0100 to R9999
GP25NM-HP AT35-R0100 to R9999
GP30NM AT13F-N0100 to N9999
GP35NM AT13F-R0100 to R9999

Pub. No. 99719-8N140

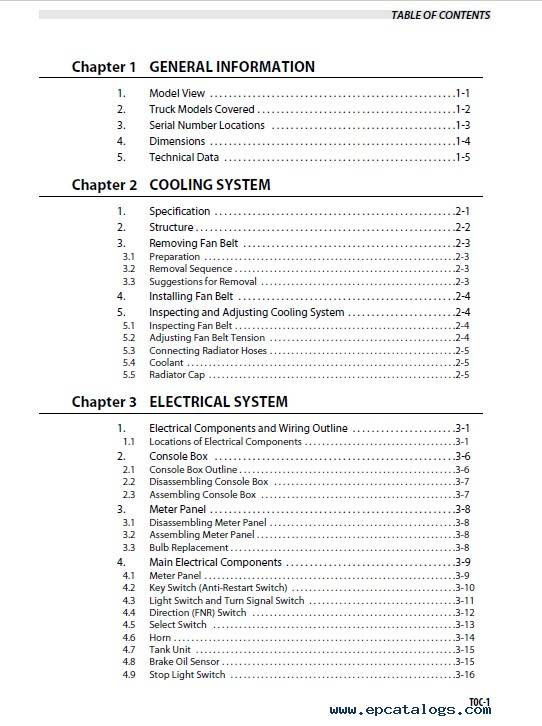

CONTENTS:
Chapter 1 GENERAL INFORMATION
Chapter 2 COOLING SYSTEM
Chapter 3 ELECTRICAL SYSTEM
Chapter 4 CONTROLLER
Chapter 5 POWER TRAIN
Chapter 6 POWERSHIFT TRANSMISSION
Chapter 7 FRONT AXLE AND REDUCTION DIFFERENTIAL
Chapter 8 REAR AXLE
Chapter 9 BRAKE SYSTEM
Chapter 10 STEERING SYSTEM
Chapter 11 HYDRAULIC SYSTEM
Chapter 12 MAST AND FORKS

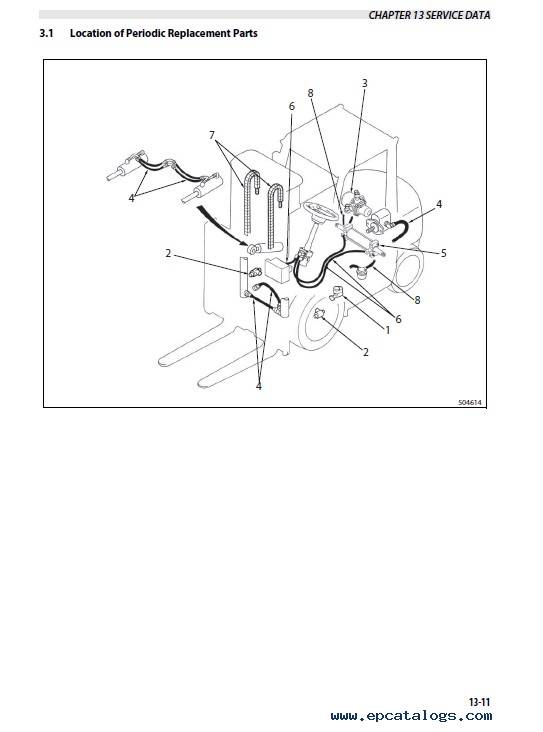

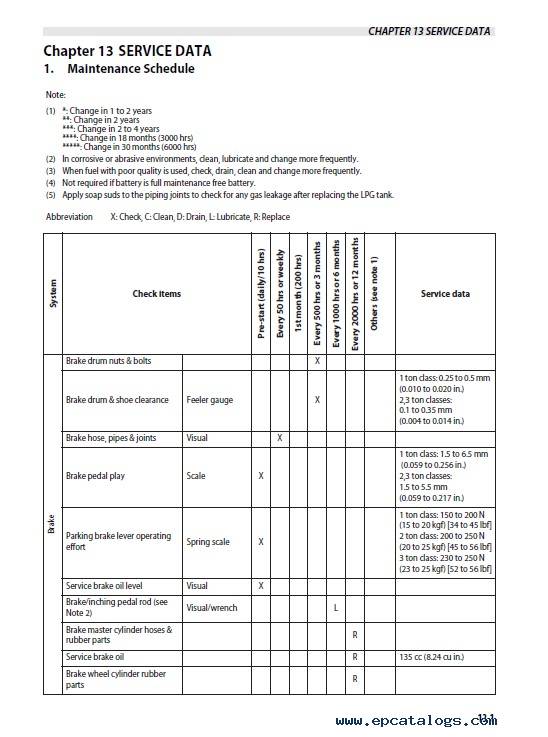

Chapter 13 SERVICE DATA
Chapter 14 APPENDIX
