Cat Lift Trucks EC15/18K, EC18KL, EC20K, EC25K/KE/KL, EC30K/KL GE SX Controls Service Manual PDF

This PDF Service Manual provides care and safety recommendations, general specifications, maintenance information, repair recommendations, and troubleshooting instructions for Cat Lift Trucks EC15K, EC18K, EC18KL, EC20K, EC25K, EC25KE, EC25KL, EC30K, EC30KL Models. Many pages with diagrams, schemes, and illustrations will help you to recognize all problems and fix them yourself.

We advise you to familiarize yourself with all the sections in this tutorial, especially pay attention to the section on the safety rule to protect your device from failures and breakdowns and avoid injuries. We have simplified your search for a service manual in PDF format and provided you with information without any obstacles and injuries.

All customers who want to buy this PDF tutorial can buy it right now on our website. The factory file includes pages with helpful instructions for your forklifts. To work with this guide, you need to use Adobe Acrobat Reader. In case of questions, refer to us and we will help you to answer any questions.

Before buying, you can study this tutorial with a preview. To do this, just go to those from the link above 'Caterpillar pdf manual instant preview'. You can also preview information about the contents of the manual in the list of content, which is presented below.

Models and Serial Numbers covered:
GE SX Controls
EC15K, EC18K, EC18KL
A3EC1-10200-up
A3EC1-20200-up
A3EC1-30200-up
A3EC1-40200-up
EC20K, EC25K
A3EC2-10200-up
A3EC2-20200-up
A3EC2-30200-up
A3EC2-40200-up
A3EC2-80200-up
EC25KE, EC25KL, EC30K
A3EC3-10200-up
A3EC3-20200-up
A3EC3-30200-up
A3EC2-40200-up
A3EC3-80200-up
EC30KL
A3EC4-40200-up

Pub. No. 99759-84120

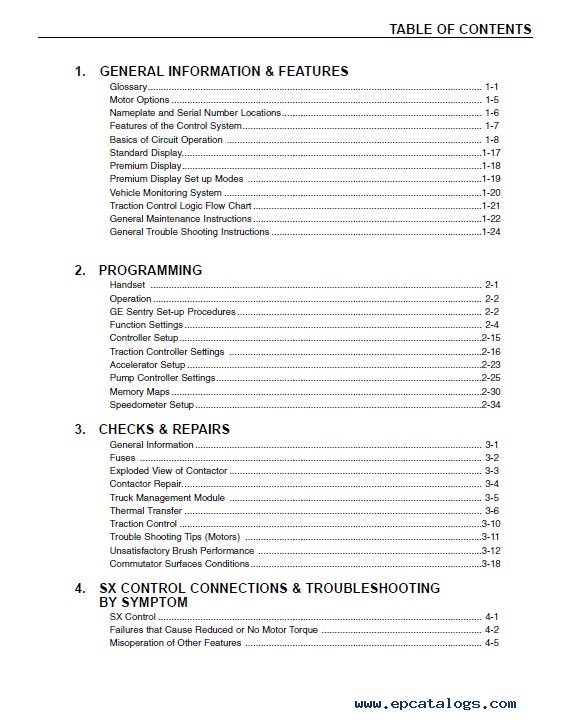

CONTENTS:
1. GENERAL INFORMATION & FEATURES
2. PROGRAMMING

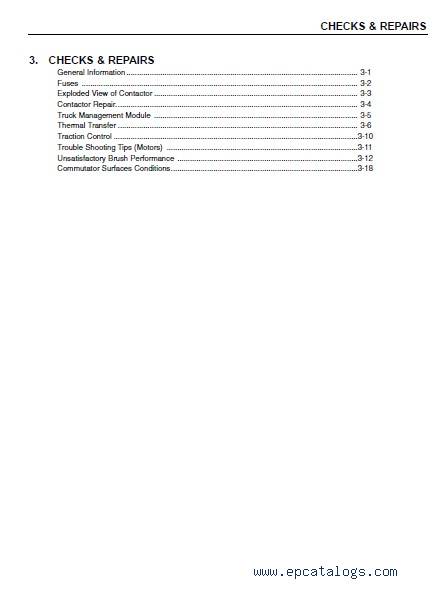

3. CHECKS & REPAIRS
4. SX CONTROL CONNECTIONS & TROUBLESHOOTING BY SYMPTOM

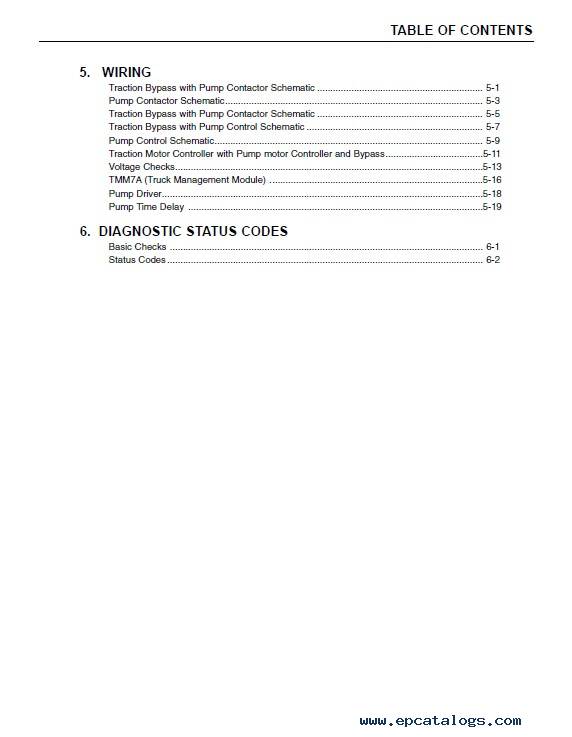

5. WIRING
6. DIAGNOSTIC STATUS CODES
