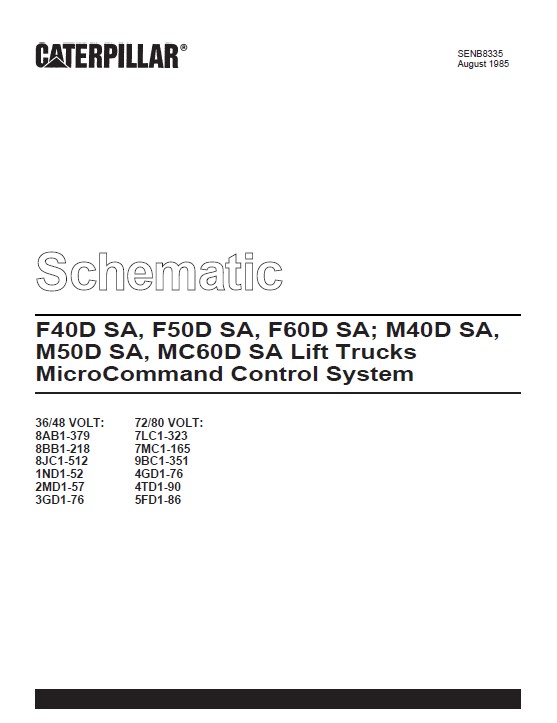

Cat Lift Trucks F40D, F50D, F60D, M40D, M50D, MC60D SA MicroCommand Control System Schematic PDF

This PDF Schematic Manual was presented especially for Cat Lift Trucks F40D SA, F50D SA, F60D SA, M40D SA, M50D SA, MC60D SA MicroCommand Control System.

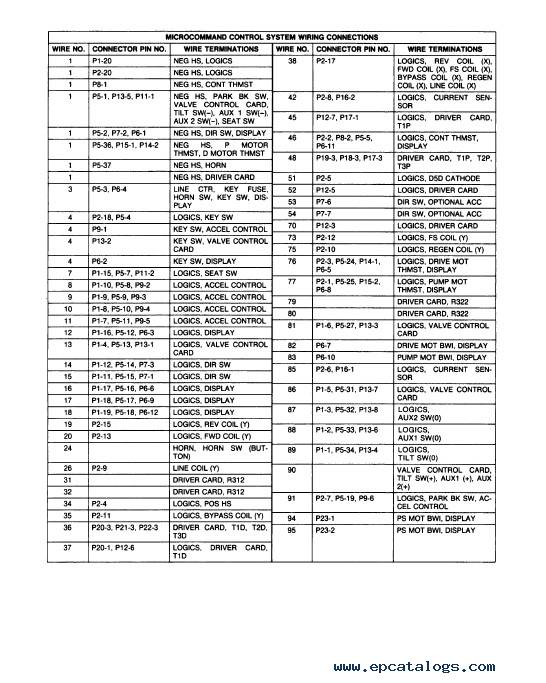

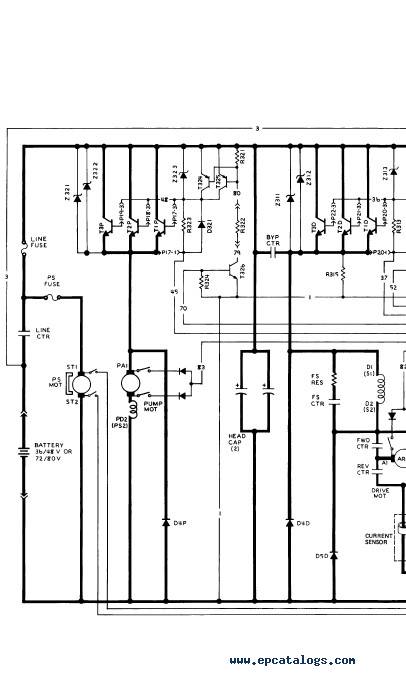

This factory file includes the electrical system, descriptions, wiring diagrams, schemes with descriptions, tables, settings, etc. You should read through these instructions and familiarize yourself with them before actually using this schematic manual.

At the top of the page, you can see the link 'Caterpillar pdf manual instant preview'. By clicking on it, you can see what this manual is all about, and what quality of pictures and drawings are in it. You can also read the list of content that is presented below.

If you have any questions or problems with downloading the file, you can write to us and we will help you.

Models covered:
MicroCommand Control System
F40D SA, F50D SA, F60D SA,
M40D SA, M50D SA, MC60D SA.

Serial Numbers:
36/48 VOLT:
8AB1-379
8BB1-218
8JC1-512
1ND1-52
2MD1-57
3GD1-76

72/80 VOLT:
7LC1-323
7MC1-165
9BC1-351
4GD1-76
4TD1-90
5FD1-86

Pub. No. SENB8335
