Case Windrower WDX1002, WDX1202 Set of Manuals PDF

We present a digital PDF-version of the set of manuals with seven files that complete each other important information for Case Windrower WDX1002, 1202 models. Thanks to all the recommendations and descriptions, you will be fully aware of all the warnings and cautions in this guide. Electronic guide includes full recommendations for correct use and repair, maintenance, setting, the engine section, troubleshooting, specifications information, safety rules, and more.

In addition, you can see many pictures, different tables, schemes and diagrams for Case Windrower WDX1002, 1202 models. Correct maintenance and repair will help protect you from serious injuries, unforeseen technical failures and extend the life of your device for many years. Therefore, it is important to familiarize yourself with the multitude and read all sections, especially safety rules.

The last step is to click on the button and wait for a text message from us with the link to download via email to the specified email address within 1-10 minutes after the purchase. It is possible to print the entire instruction or individual diagrams and schemes. You can work with these files after installing Adobe PDF Reader. This manual supports English in PDF format.

Models:
WDX1002
WDX1202

Table of Contents:

SECTION 00 - GENERAL INFORMATION

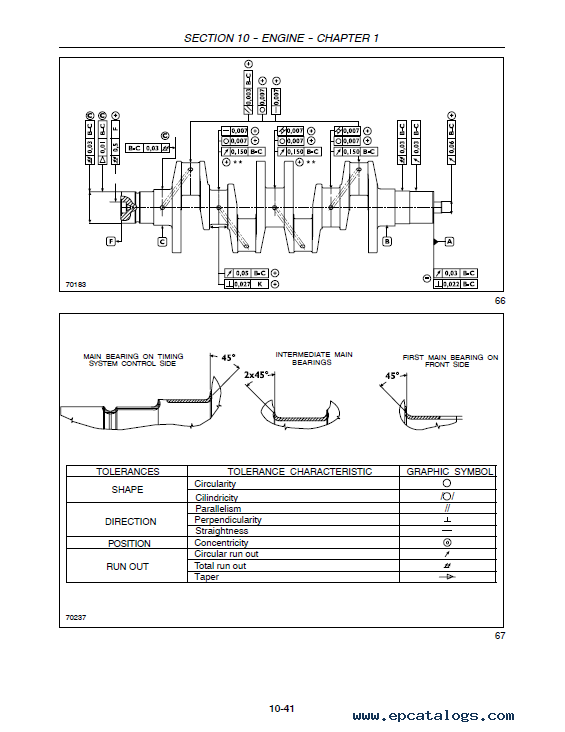

SECTION 10 - ENGINE
Chapter 1 - Engine
Chapter 2 - Fuel System
Chapter 3 - Air Intake
Chapter 4 - Cooling System
Chapter 5 - Lubrication System

SECTION 25 - FRONT MECHANICAL DRIVE
Chapter 1 - Front Mechanical Drive

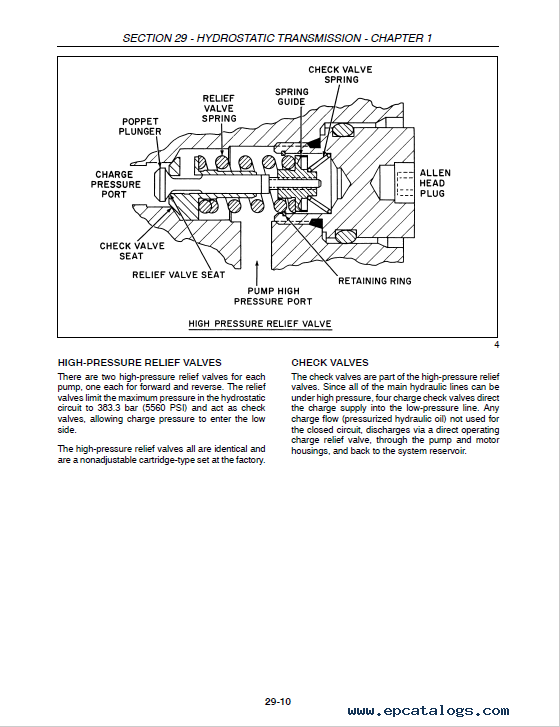

SECTION 29 -- HYDROSTATIC TRANSMISSION
Chapter 1 -- Ground Drive
Chapter 2 - Propulsion System
Chapter 3 - Active Calibrations (WDX1202 only)
Chapter 4 - MFH Calibration (WDX1202 Only)
SECTION 33 - BRAKES AND CONTROLS
Chapter 1 - Brakes and Controls

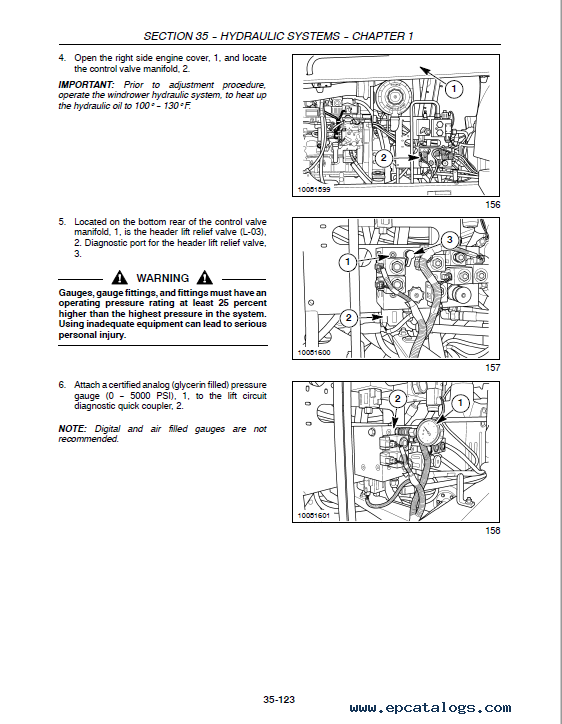

SECTION 35 - HYDRAULIC SYSTEMS
Chapter 1 - Hydraulic Systems
SECTION 44 - REAR AXLE
Chapter 1 - Non-Suspended Rear Axle
Chapter 2 - Suspended Rear Axle
SECTION 50 - CLIMATE CONTROL
Chapter 1 - Climate Control -- WDX1002S and WDX1202S
Chapter 2 - Climate Control -- WDX1202

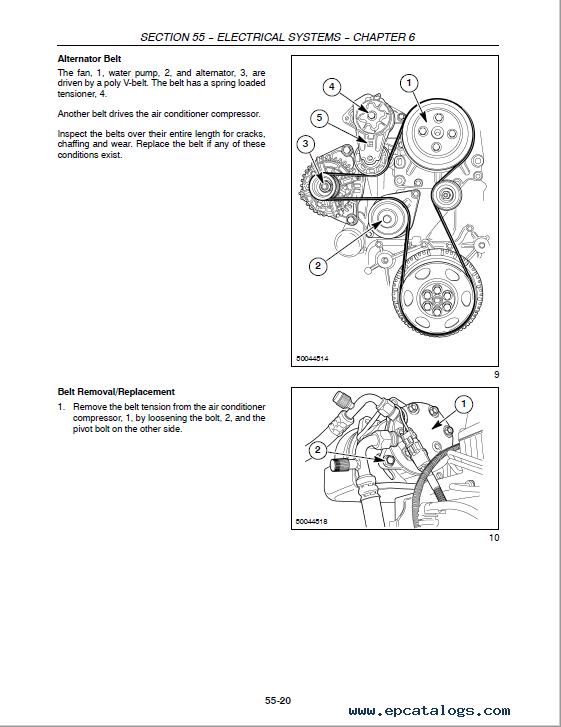

SECTION 55 - ELECTRICAL SYSTEMS
Chapter 1 - General Information
Chapter 2 - Power Distribution
Chapter 3 - Air Conditioning Systems
Chapter 4 - Lighting SystemsTable of Contents:
Chapter 5 - Engine Electrical Systems
Chapter 6 - Charging Electrical Systems
Chapter 8 - Diagnostic Test Mode
Chapter 9 - Audible Alarm
Chapter 10 - Controller Area Network (CAN)
SECTION 55 - ELECTRICAL SYSTEMS
Chapter 11 - Fault Codes
Chapter 12 - Standard Wiring Harness Diagrams
Chapter 13 - Wire Harness Connector Information
Chapter 14 - Troubleshooting Optional Equipment - WDX1002S/1202S
Chapter 15 - Troubleshooting Optional Equipment - WDX1202
Chapter 16 - Electrical Schematics
SECTION 58 - HEADER ATTACHMENTS
Chapter 1 - Draper Header WDX1002S/WDX1202SSECTION 58 - HEADER ATTACHMENTS
Chapter 2 - Draper Setup WDX1002S/WDX1202S
Chapter 3 - Draper Header -- WDX1202
Chapter 4 - Draper Setup -- WDX1202
SECTION 88 - OPTIONAL EQUIPMENT
Chapter 1 - Optional Equipment -- WDX1002S/WDX1202S
Chapter 2 - Optional Equipment -- WDX1202
SECTION 90 - PLATFORM, CAB AND DECALS
Chapter 1 - WDX1002S and WDX1202S
Chapter 2 - WDX1202
