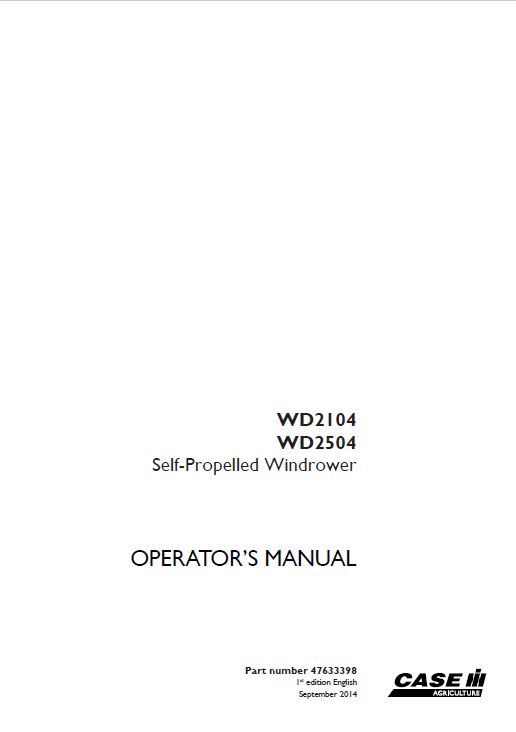

Case WD2104, WD2504 Windrower Operators Manual PDF

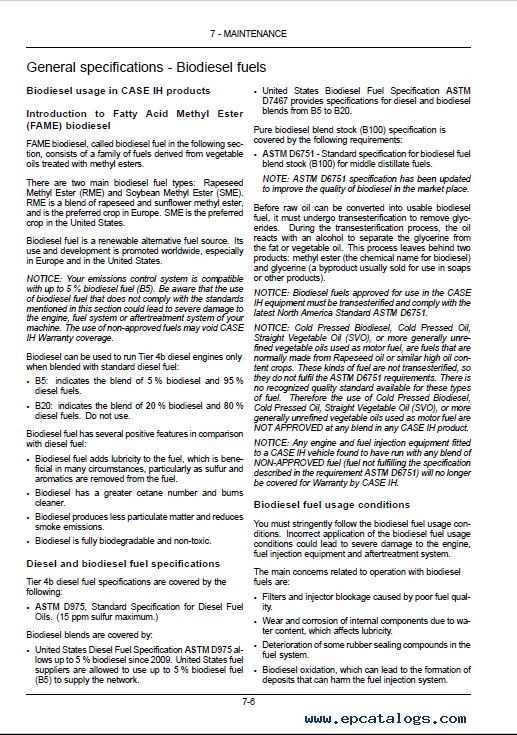

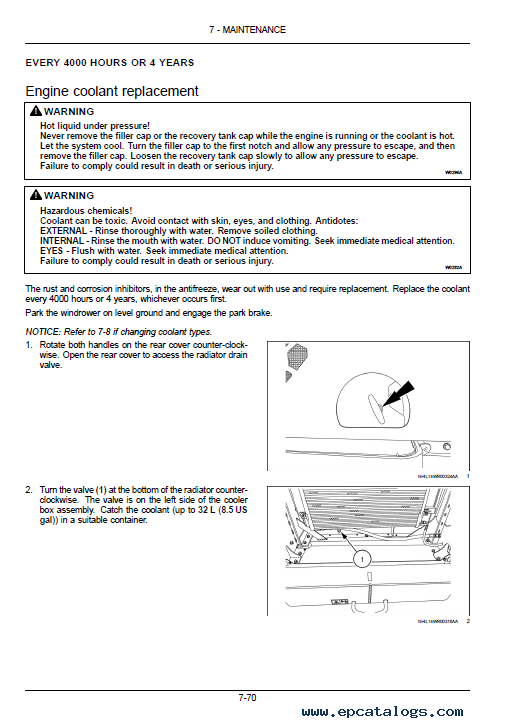

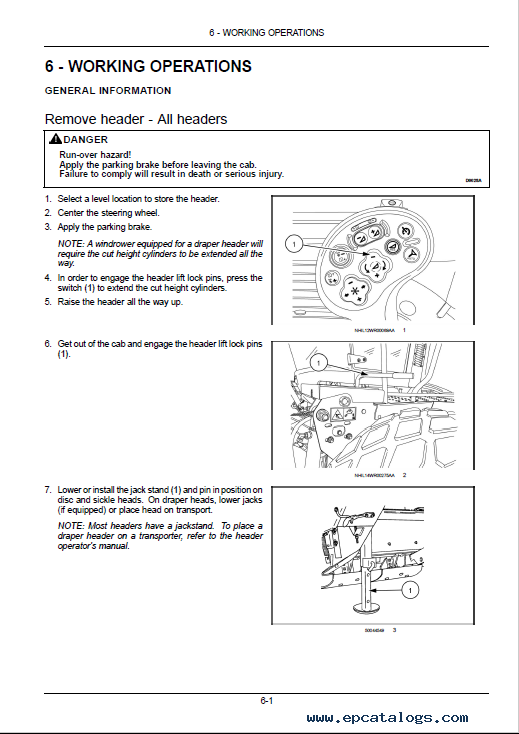

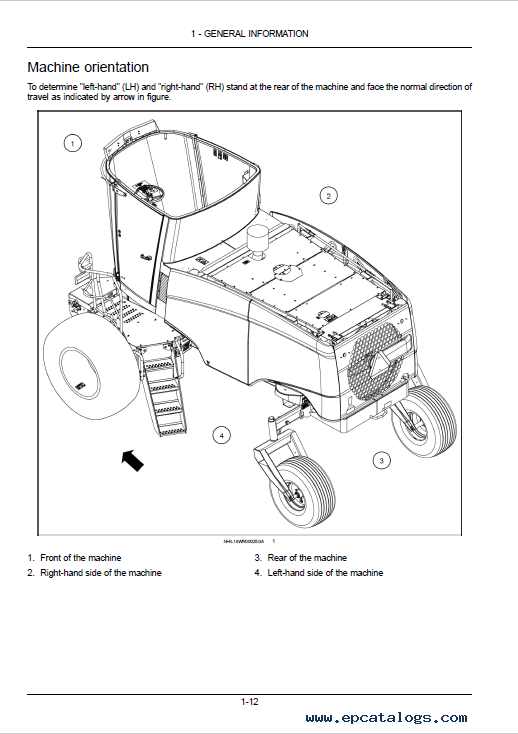

The purpose of this Operators Manual is to help in the efficient use, technical maintenance and troubleshooting of the Case WD2104, WD2504 Self-Propelled Windrower models. This professional-quality electronic guide includes safety rules, operating instructions, information about controls and instruments, specifications, many illustrations, different diagrams, hydraulic systems, schemes for Case WD2104, WD2504 Self-Propelled Windrower models.

All screenshots will help you better and quickly understand the text and visually examine parts of your equipment. It is important to note that we recommend paying special attention to the “Safety Rules” section to avoid personal injury and technical malfunctions. This is an indexed pdf file, you can click on the section you are interested in and the factory file will take you to the desired page.

If you decide to purchase this tutorial from us, all you need to do is press the purchase button, and within 5-10 minutes you will receive an e-mail with all the recommendations for installation and use. A program is designed to work on a personal computer or laptop. We recommend using Adobe PDF Reader. Any questions you have not understood, feel free to contact us. Our managers will be happy to answer all your questions.

Table of Contents:

1 GENERAL INFORMATION
2 SAFETY INFORMATION
3 CONTROLS AND INSTRUMENTS
ACCESS TO OPERATOR'S PLATFORM
OPERATOR'S SEAT
INSTRUCTOR'S SEAT
FORWARD CONTROLS
RIGHT-HAND SIDE CONTROLS
OVERHEAD CONTROLS
EXTERIOR CONTROLS
4 OPERATING INSTRUCTIONS
COMMISSIONING THE UNIT
STARTING THE UNIT
STOPPING THE UNIT
5 TRANSPORT OPERATIONS
ROAD TRANSPORT
RECOVERY TRANSPORT
6 WORKING OPERATIONS
GENERAL INFORMATION
HYDRAULIC SYSTEM
7 MAINTENANCE
GENERAL INFORMATION
MAINTENANCE CHART
FIRST 5 HOURS
FIRST 50 HOURS
EVERY 10 HOURS OR DAILY
EVERY 50 HOURS OR WEEKLY
EVERY 100 HOURS
EVERY 600 HOURS
EVERY 1200 HOURS OR ANNUALLY
EVERY 3600 HOURS OR EVERY 2 YEARS
EVERY 4000 HOURS OR 4 YEARS
AS REQUIRED
8 TROUBLESHOOTING
FAULT CODE RESOLUTION
ALARM(S)
SYMPTOM(S)
9 SPECIFICATIONS
10 ACCESSORIES
11 FORMS AND DECLARATIONS
