CASE Tractors 3200 and 4200 PDF Service Manual

In this manual (Don 7-69114), details describe the maintenance procedures, quality use, and repair for the Case tractors 3200 and 4200 models. This information was prepared by high-class and experienced Case specialists for the average user and service wizard. So use and be calm fo your tractor.

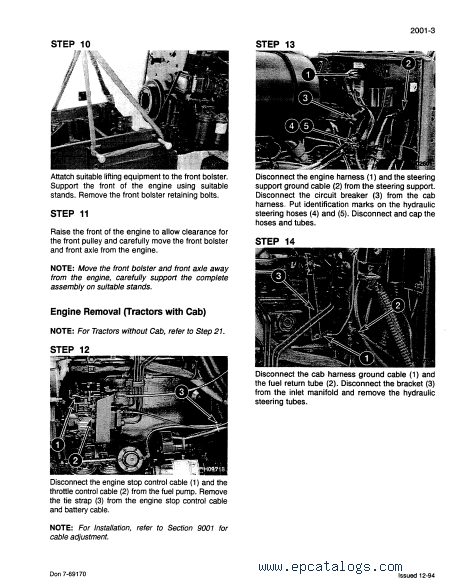

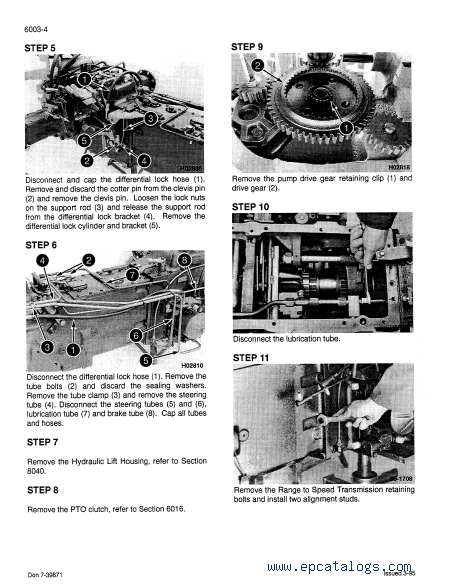

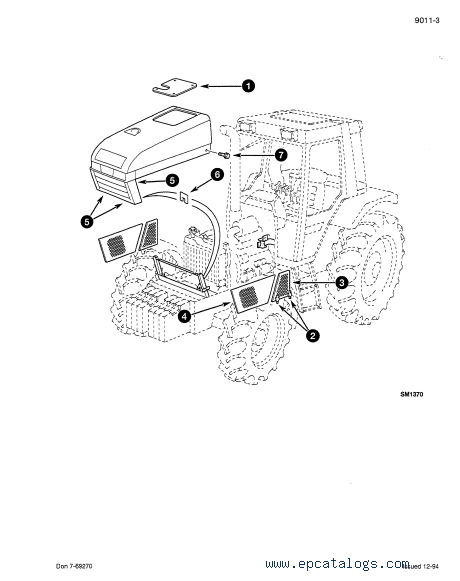

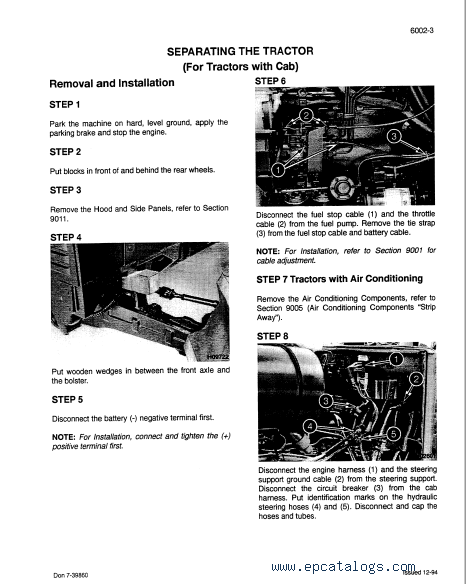

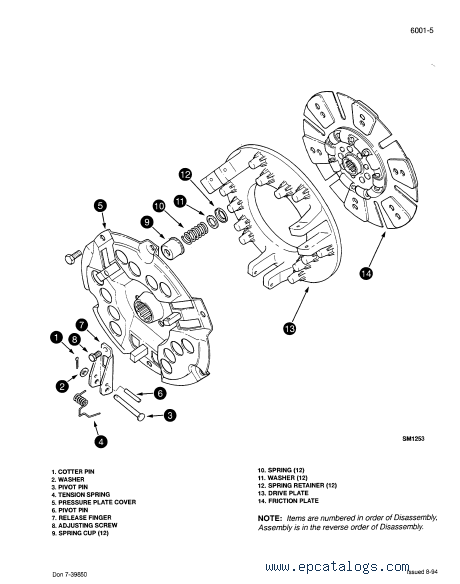

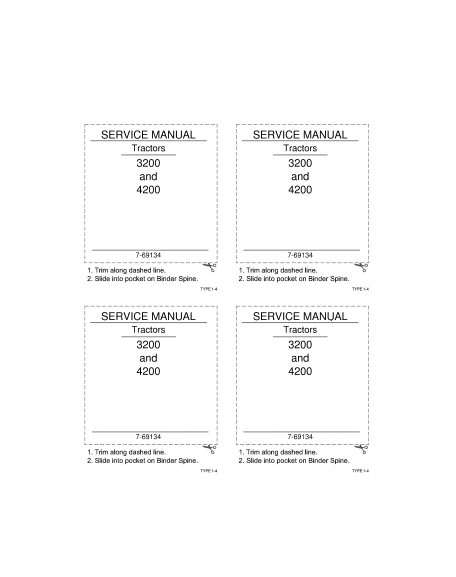

In order to view this service manual and detailed view, you can use the link on the top of this page - 'Case pdf manual instant preview' or see screenshots. It will show you some of the pages of this PDF manual. After buying this service manual, you will receive information about the practical work of the tractors this brand, safety and general methods related to the maintenance and repair of Case equipment.

This manual is a PDF document in English, which greatly simplifies working. We recommend installing any PDF Reader. With the help of the application Adobe PDF Reader, you can read, copy, save or print the information you need. You can also print the entire manual and use it as a book while storing it right next to the equipment.

Models:
3200
4200

CONTENTS:

• 1. General
  • Safety rules, general Information, and torque specifications
  • General specifications and torques
• 2. Engine
  • Engine removal
  • Cylinder head
  • Cylinder block
  • Lubrication system
  • Cooling system
• 3. Fuel System
  • Fuel system and filters
  • Fuel injection and pump
  • Fuel injectors
• 4. Electrical
  • Electrical troubleshooting and schematics
  • Battery servicing and testing
• 5. Steering
  • Steering hand pump
  • 2WD Steering cylinder (for tractors prior to PIN JJ0906096)
  • 2WD Steering Cylinder (for tractors PIN JJE0906096)
  • Front Axle-2WD Tractors
• 6. Transmission
  • Transmission Cross-Sectional Drawings
  • Engine  clutch and flywheel
  • Separating the tractor
  • Range Transmission removal
  • Speed Transmission removal
  • Speed Transmission servicing
  • Powershift transmission
  • Forward and reverse transmission
  • Creep transmission
  • Range transmission (for tractors equipped with MFD)
  • Range transmission (for 2WD Tractors)
  • MFD Transfer Gearbox, driveshaft and parking brake
  • Rear Axles
  • Differential
  • Steering support (for cab tractors)
  • Steering support (for non-cab tractors)
  • PTO
  • MFD Axle
• 7. Brakes
  • Parking brake (for 2WD Tractors)
  • Rear brakes (for transport prior to PIN JJE0908037)
  • Brake master cylinder
• 8. Hydraulics
  • Hydraulic troubleshooting and schematic
  • Hydraulic hitch adjustments
  • Hydraulic housing servicing/removal
  • Differential lock cylinder and solenoid valve
• 9. Chassis and Mounted Equipment
  • Pedal, level, and switch adjustments
  • Air conditioner troubleshooting for systems with HFC-134a refrigerant
  • XL Cab Removal
  • Low Profile cab removal
  • Seat platform and fenders
  • XL cab servicing
  • Hood and Panels
