Case MXU and MAXXUM Series Tractors PDF Manuals

Information for Case tractors MXU and MAXXUM series presented as a repair manual. This factory manual contains important information about safe operation, adjustment, and maintenance tractors, next series and models:

MXU Value and LIMITED Series:
100, 110, 115, 125, 130, 135

MAXXUM Value and PRO Series:
110, 115, 120, 125, 130, 140

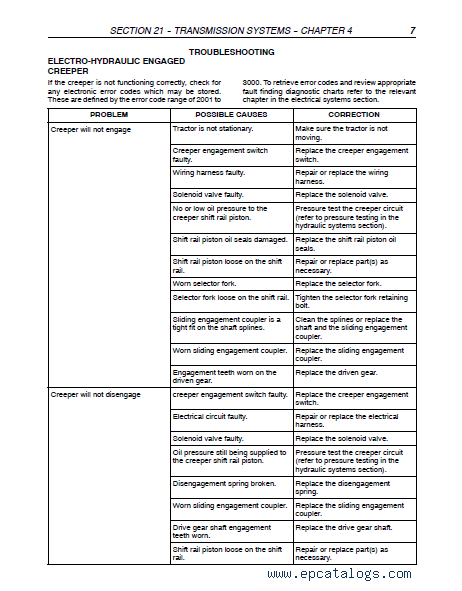

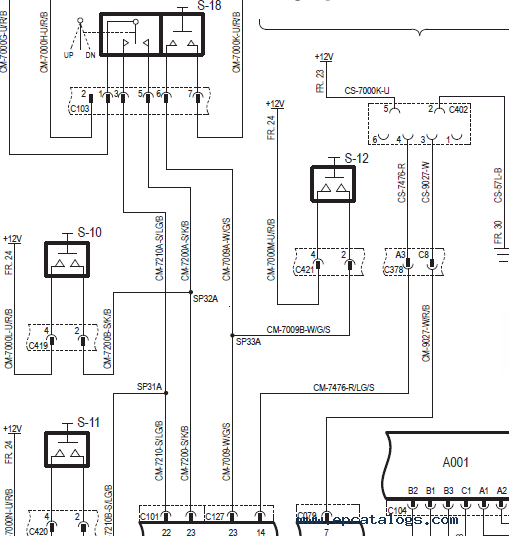

Use only verified technical information to operate and service these tractors correctly and safely. This repair manual is prepared by technicians with special training who know the best methods of repair and maintenance of the Case tractors. In this manual, you find schemes about the electrical and hydraulic system, troubleshooting information and other necessary data (see below the contents and screenshots). Make sure you understand this service manual and use this complete factory information.

This manual is presented in PDF format in English, so you can find the information you need and print all the text or individual pages. For convenience, we recommend using Adobe PDF Reader to ensure the correct display of all graphics. At the top of this page, you can find the link 'Case pdf manual instant preview'. It will help you to preview this PDF workshop manual before purchasing it. Contact us to obtain additional information or assistance with the manual.

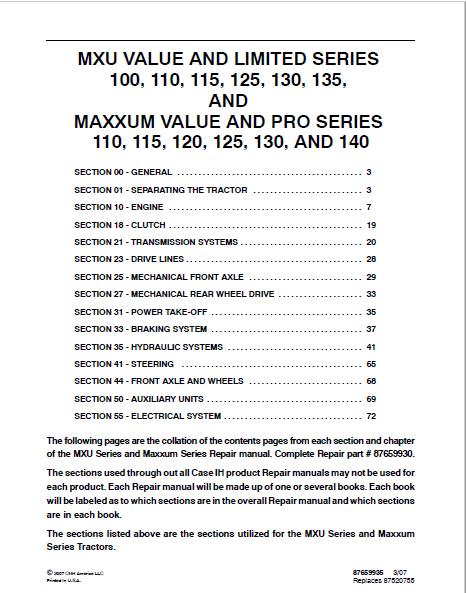

Complete Contents of the Repair Manual # 87661796:
SECTION 00 - GENERAL
SECTION 01 - SEPARATING THE TRACTOR

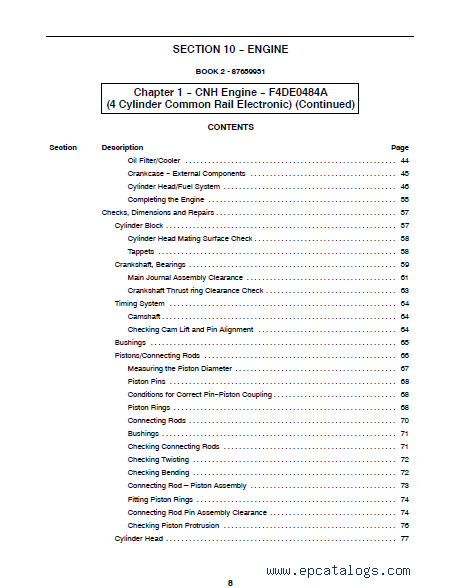

SECTION 10 - ENGINE
SECTION 18 - CLUTCH

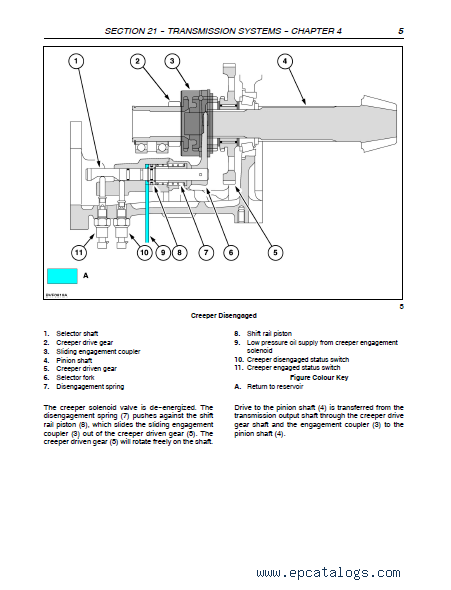

SECTION 21 - TRANSMISSION SYSTEMS
SECTION 23 - DRIVELINES
SECTION 25 - MECHANICAL FRONT AXLE
SECTION 27 - MECHANICAL REAR WHEEL DRIVE
SECTION 31 - POWER TAKE-OFF
SECTION 33 - BRAKING SYSTEM

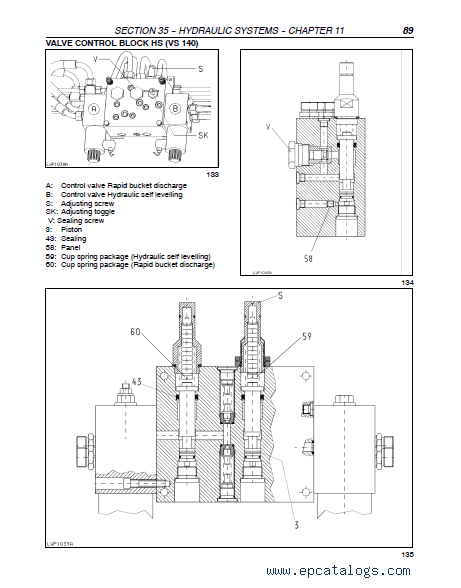

SECTION 35 - HYDRAULIC SYSTEMS
SECTION 41 - STEERING
SECTION 44 - FRONT AXLE AND WHEELS
SECTION 50 - AUXILIARY UNITS

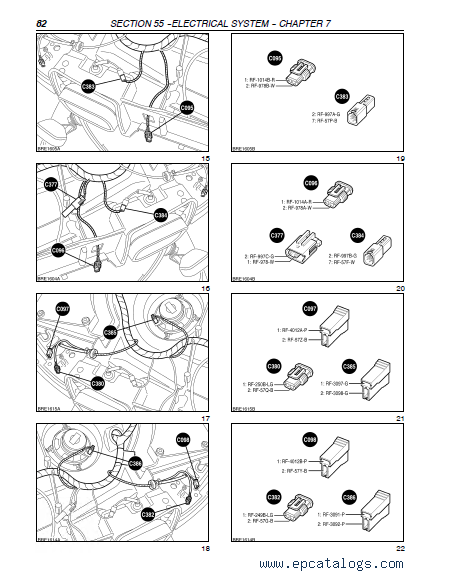

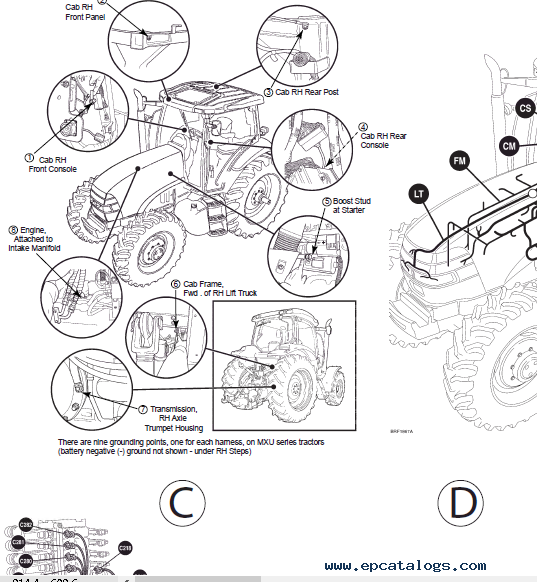

SECTION 55 - ELECTRICAL SYSTEM
