Case Magnum 225 250 280 310 TECHNICAL PDF INSTALLATION MANUAL

These guides contain important information about safe operation, settings, and routine maintenance of your tractor Case, Magnum 215/245/275/305/335 series.

The guides are divided into ten chapters, as indicated in the description of this context, where you can refer to find a solution to the problem.

These e-Manuals save you time searching for assembly and installation, service, and repair manuals. Make sure this manual is in good condition (click the link "Case pdf manual instant preview"). Read this manual and make sure you understand all the information in it. We recommend using it for every repair and service procedure.

Instructions are provided in PDF format that you can print and read. We recommend using Adobe PDF Reader to ensure that all images/graphics display correctly.

Models:
Magnum 225
Magnum 250
Magnum 280
Magnum 310

CONTENTS:
INTRODUCTION
PRE-INSTALLATION
SAFETY PRECAUTIONS

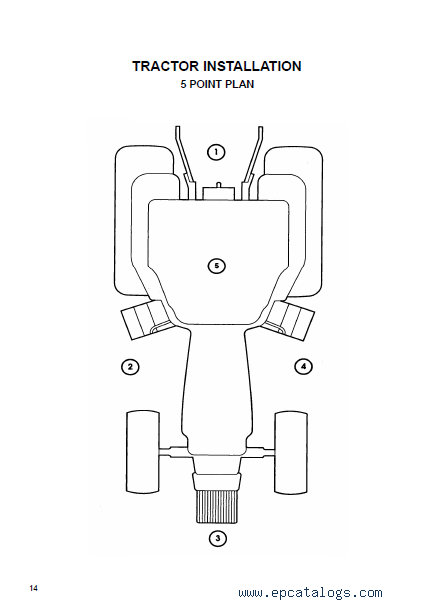

5 POINT PLAN

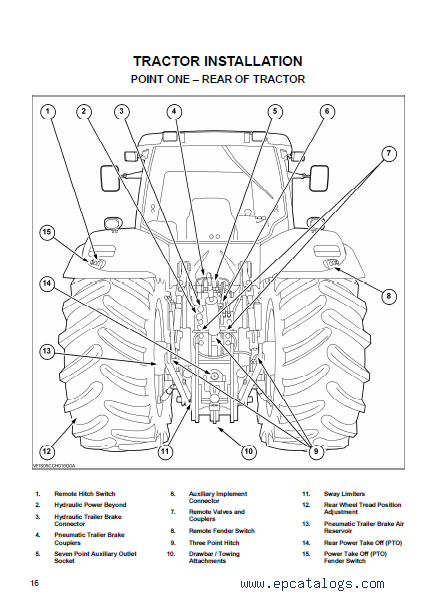

POINT ONE – REAR OF TRACTOR

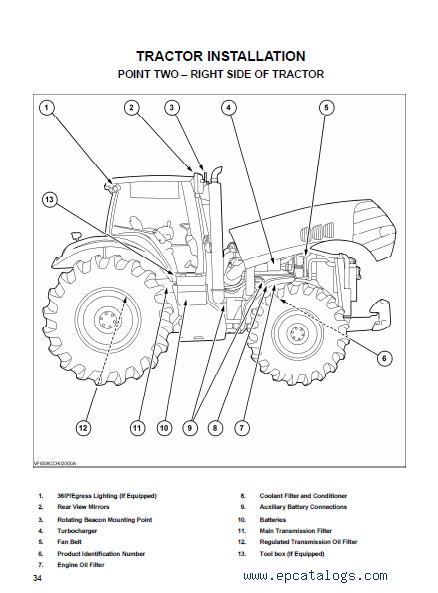

POINT TWO – RIGHT SIDE OF TRACTOR

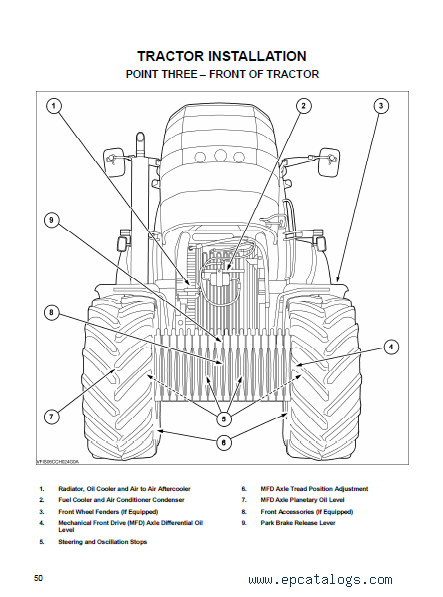

POINT THREE – FRONT OF TRACTOR
POINT FOUR – LEFT SIDE OF TRACTOR
POINT FIVE – CAB

POINT FIVE
– ILLUSTRATION 1 – CAB CONTROLS
– ILLUSTRATION 2 – FRONT CONSOLE CONTROLS
– ILLUSTRATION 3 – INSTRUMENTATION CLUSTER
– ILLUSTRATION 4 – RIGHT HAND CONSOLE CONTROLS
– ILLUSTRATION 5 – ARMREST CONSOLE CONTROLS
– ILLUSTRATION 6 – RIGHT HAND FENDER CONTROLS
– ILLUSTRATION 7 – ROOF MOUNTED CONTROLS
