Case Magnum 215, 245, 275, 305 and 335 tractors pdf Operation manuals

These guides contain important information about safe operation, settings, and routine maintenance of your Magnum 215/245/275/305/335 series tractor

The guides are divided into ten chapters, as indicated in the description of this context, where you can refer to find a solution to the problem.

DO NOT operate or allow anyone to operate or service these machines until you or others have read these operating instructions. Use only trained operators who have demonstrated the ability to properly operate and maintain these machines safely. This operating manual should be stored in the manual compartment equipped on this machine.

Instructions are provided in PDF format that you can print and read.
We recommend using Adobe PDF Reader to ensure that all images/graphics display correctly.

Models:
Magnum 215
Magnum 245
Magnum 275
Magnum 305
Magnum 335

Contents:

• 1 GENERAL INFORMATION
  • Personal safety
  • Proposition 65

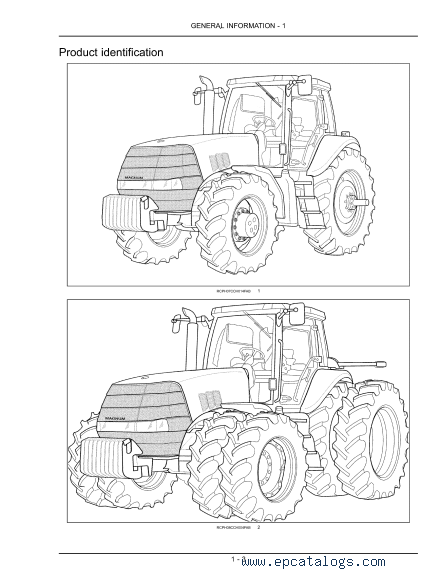

  • Product identification
  • Note to the Owner
  • Tractor intended use
  • Manual storage
  • Product identification

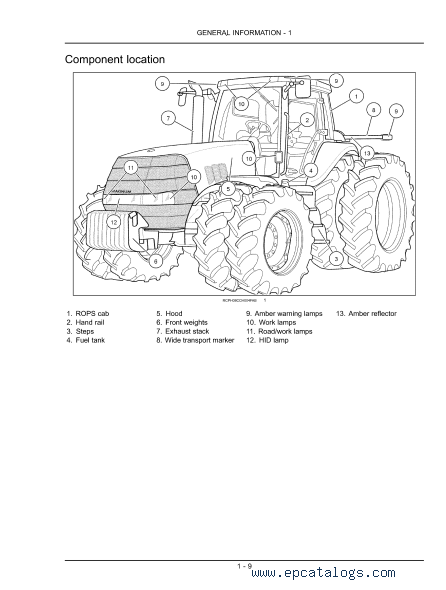

  • Component location
• 2 SAFETY INFORMATION
  • Safety rules
  • ROPS and CSF
  • SAFETY DECALS
• 3 CONTROLS/INSTRUMENTS
  • ACCESS TO OPERATOR’S PLATFORM
  • OPERATOR’S SEAT
  • INSTRUCTOR’S SEAT
  • FORWARD CONTROLS

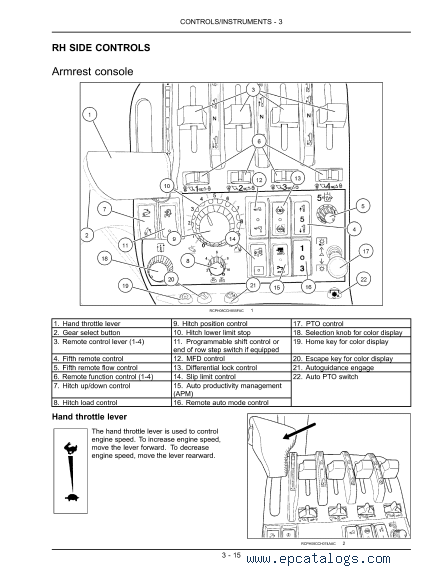

  • RH SIDE CONTROLS
  • REARWARD CONTROLS
  • OVERHEAD CONTROLS
  • EXTERIOR CONTROLS

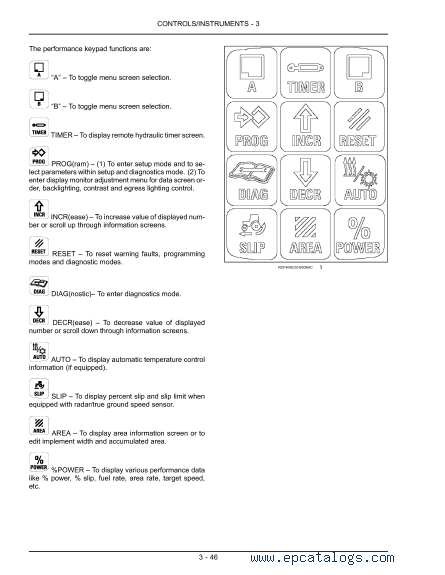

  • INSTRUMENT CLUSTER
• 4 OPERATING INSTRUCTIONS
  • COMMISSIONING THE UNIT
  • STARTING THE UNIT
  • STOPPING THE UNIT
  • MOVING THE UNIT
• 5 TRANSPORT OPERATIONS
  • ROAD TRANSPORT
  • SHIPPING TRANSPORT
  • RECOVERY TRANSPORT
• 6 WORKING OPERATIONS
  • GENERAL INFORMATION
  • REAR PTO
  • THREE POINT HITCH
  • DRAWBARS AND TOWING ATTACHMENTS
  • AUXILIARY POWER CONNECTIONS
  • HYDRAULIC REMOTE CONTROL VALVES
  • BALLASTING THE TRACTOR
  • MECHANICAL FRONT DRIVE (MFD) AXLES
  • REAR AXLE
• 7 MAINTENANCE
  • GENERAL INFORMATION
  • MAINTENANCE CHART
  • At warning message display
  • First 10 to 50 hours
  • Every 10 hours or daily
  • Every 50 hours
  • Every 300 hours
  • Every 600 hours
  • Every 1200 hours or annually
  • Every 1500 hours
  • Every 2100 hours
  • Every 3000 hours
  • As required
  • STORAGE
  • ELECTRICAL SYSTEM
• 8 TROUBLESHOOTING
  • ALARM(S)
• 9 SPECIFICATIONS
  • ENGINE - General specification
  • POWER TRAIN - General specification
  • TRAVELLING - Speeds
  • Vehicle dimensions and shipping weight
  • Maximum operating weight
• 10 ACCESSORIES
  • Front wheel fenders
  • Farming system displays
  • Chemical tank mounting
  • Loader connection and operation
  • Trailer brake connections
  • General accessories
