Case JX80U JX90U JX100U Tractors Operator’s Manual PDF

The manual is presented for the correct operation, quality of repair, and timely maintenance of JXU series tractors Case, namely:

JX80U
JX90U
JX100U

If you have any doubts or questions about the use of the tractor, its operation, read this manual. This manual is an integral part of your tractor. Necessary precautions and recommendations to guarantee the safety of the operator and bystanders are listed and described in the «Working safely» section, at the start of the manual. Read and follow the information provided.

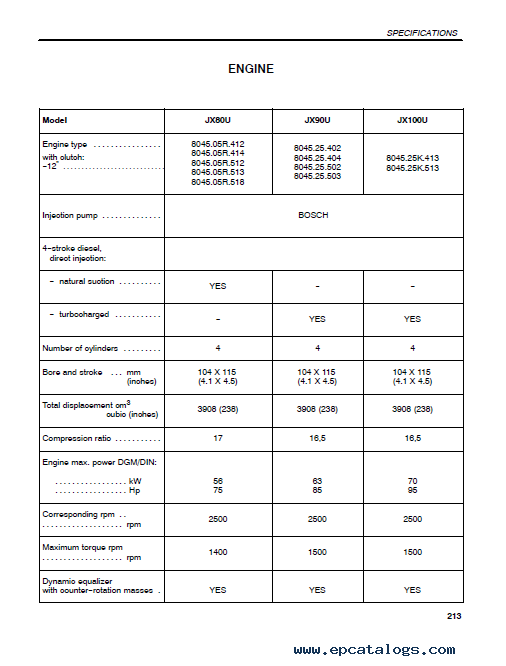

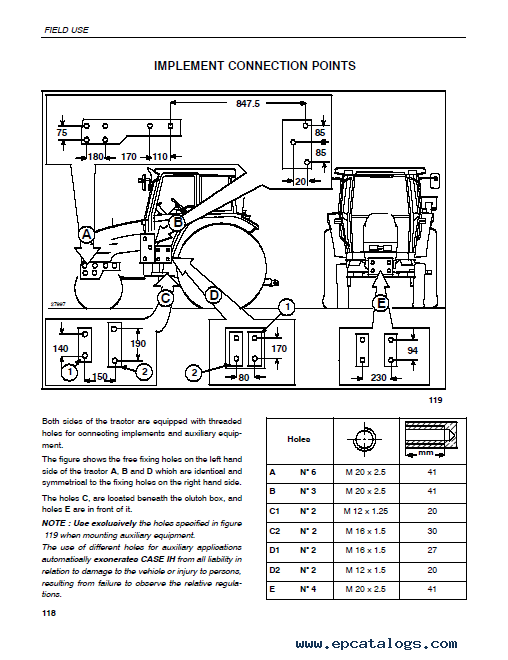

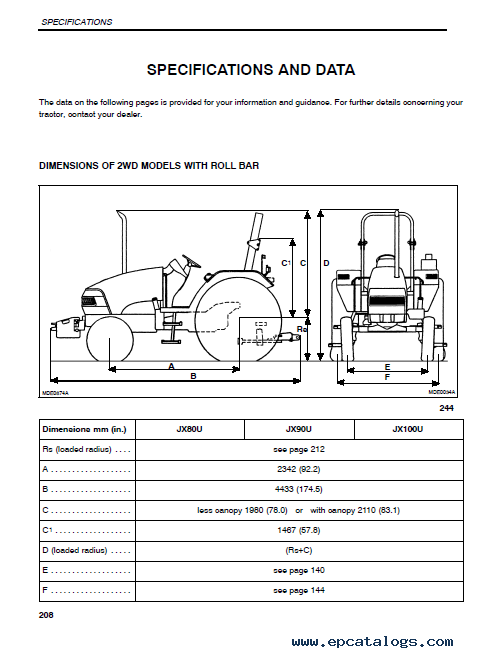

The manual includes step-by-step service instructions, maintenance information, specifications, troubleshooting, and other necessary information, designed to serve and repair the tractor's Case. In a word, in this manual, you will find everything you need for high-quality repair, maintenance, and use - see below on the screenshot and in the contents.

The factory technical information in this manual in PDF format in English. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.

Contents:

• 1. Introduction
  • Using this manual
  • Communication for the user
  • Important ecological considerations
  • Tractor identification
• 2. Safety regulations
  • Guards and safety covers
  • Safety decals
  • Symbols
  • Tractor noise level information sheet
  • Controls and instruments
  • Seat adjustment
  • Instrument Panel
  • Instrument panel controls
  • Operating controls, right--hand side
  • Operating controls, left--hand side
  • Digital display (optional)
  • Cab
  • Cab controls
  • Air conditioned cab
• 3. Operating instructions
  • Before using the tractor
  • Electro-hydraulically controlled four-wheel drive
  • Rear differential lock
  • Front and rear differential lock
  • Transmission with creeper and shuttle - 18.6 mph (30 km/h)
  • (20F+12R - Synchro shuttle)
  • Transmission with creeper and shuttle - 24.8 mph (40 km/h)
  • (20F+12R - Synchro shuttle)
  • 2 Speed Power Shift with Synchronized Shuttle - 18.6 or 24.8 mph (30 or 40 km/h)
  • (24F+12R)
  • 2 Speed Power Shift with Power--Shuttle 18.6 or 24.8 mph (30 or 40 km/h)
  • (24F+24R)
  • Power--Shuttle faults code
  • Cab ventilation
  • Instructions for use - air conditioning system
  • Towing the tractor
  • Loading the tractor onto a transporter
• 4. Field use
  • Power take--off
  • Hydraulic lift
  • Electronically controlled hydraulic lift
  • Three-point linkage
  • Towing equipment
  • Fold--down roll bar
  • Implement connection points
  • Remote control valves (De Luxe)
  • Joystick for auxiliary control valves (optional)
  • Control valve for trailer hydraulic brakes (not available on all markets)
  • Digital display (optional)
• 5. Tyres, wheels, tracks, ballast
  • Tyres
  • Inflation pressures
  • Tyre combinations
  • Track adjustment
  • Steering angle adjustment
  • Ballast
• 6. Lubrication, maintenance
  • Consumables
  • Access for inspection and maintenance
  • Products and quantities for refuelling
  • Lubrication and maintenance table
  • Flexible maintenance
  • Instrument panel warning lights
  • Every 10 hours of work
  • Every 50 hours of work
  • Every 300 hours of work
  • Every 900 hours of work
  • Every 1200 hours or every year
  • Every 1200 hours of work or every 2 years
  • General maintenance
  • How to bleed the fuel system
  • Tractor storage
  • Recommendations for bodywork maintenance
  • Electrical system
• 7. Troubleshooting
• 8. Specifications and data
  • Maximum permitted weights
• Alphabetical Index
