CASE JX55 JX65 JX75 JX85 JX95 Tractors Operator Manuals PDF

For your attention is present the set of Operation manuals for Case tractors JX series. This set is your irreplaceable assistant which helps use, technical maintenance, and repair the tractors next models:

JX55
JX65
JX75
JX85
JX95

Attentively read all sections, pay special attention to the security section and follow all recommendations. It will help you to avoid any problems and breakdowns with your tractors. The manuals contain detailed information about the working device, technical information, safety, controls, instruments and operation technical data, troubleshooting, and others.

Working with this set of manuals is quite simple, as it is presented in PDF format in English. To order this manual, you need to click "Buy Now", enter your details, and within several minutes you will receive an email with a link to download. In order to view, as well as print the necessary information - we recommend installing the Adobe PDF Reader program. Сheck with us if you will have questions or need our help. Our managers will answer all your questions.

CONTENTS:

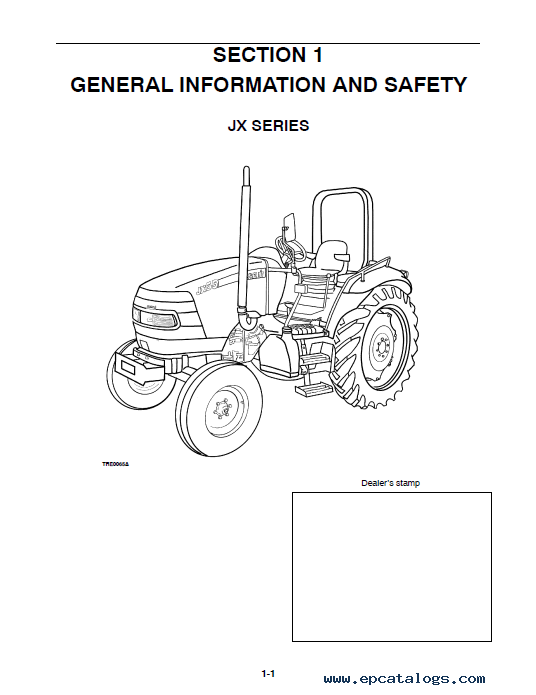

• Section 1 - General Information and Safety
  • To the owner
  • Introduction
  • Using this manual
  • Communication for the user
  • Important ecological considerations
  • Tractor identification data
  • Working safely
  • Safety covers and guards
  • Safety decals
  • Standardized symbols
• Section 2 - Controls, Instruments and Operation
  • Driver's seat
  • Instrument Panel
  • Instrument console controls
  • Operating controls, right--hand side
  • Operating controls, left--hand side
  • Cab controls
  • Cab
  • Cab air conditioning system
  • Operation
  • Before using the tractor
  • Starting the engine
  • 12x4 Transmission with range gear -- 30 km/h (19 mph) (12F+4R -- Synchro Command)
  • 12x12 Synchronized mechanical shuttle -- 30 km/h (19 mph) (12F+12R -- Synchro Shuttle)
  • 20x12 Synchronized mechanical shuttle with creeper -- 30 km/h (19 mph)
  • (20F+12R -- Synchro Shuttle)
  • Mechanical MFD engagement
  • Mechanical controlled differential lock
  • Lim-slip front differential lock
• Section 3 - Field Operation
  • Power take-off
  • Hydraulic lift
  • Three--point linkage
  • Towing equipment
  • Folding ROPS
  • Remote control valves
  • Tires, wheels, tracks, ballast
  • Wheel track adjustment
  • Steering angle adjustment
  • Tire maintenance
  • Tire loading information
  • Data and inflation pressures
  • Tire combinations
  • Ballasting
  • Maximum permitted weight
• Section 4 - Lubrication and maintenance
  • Introduction
  • Tractor Refueling
  • Access for inspection and maintenance

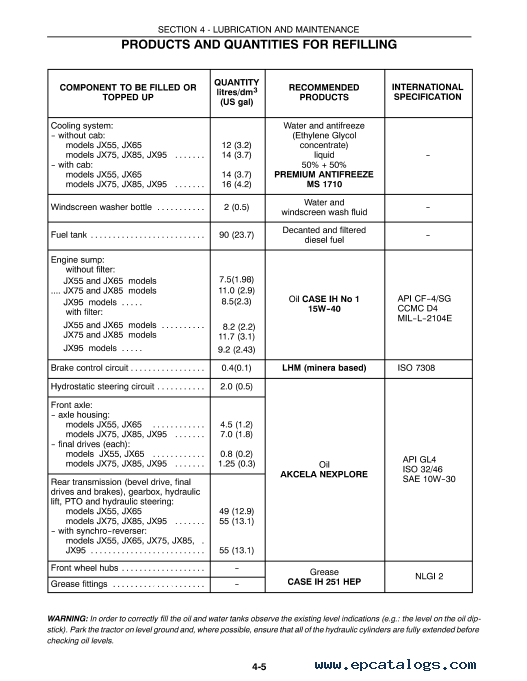

  • Products and quantities for refilling
  • Lubrication and maintenance table
  • Flexible maintenance
  • When the warning light is on
  • Every 10 hours of work
  • Every 50 hours of work
  • Every 300 hours of work
  • Every 600 hours of work
  • Every 900 hours of work
  • Every 1200 hours or every year
  • Every 1200 hours of work or every 2 years

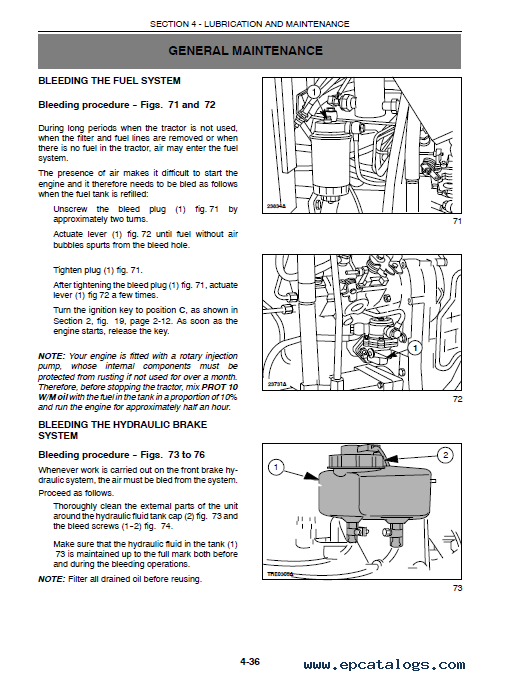

  • General maintenance
  • Recommendations for bodywork maintenance

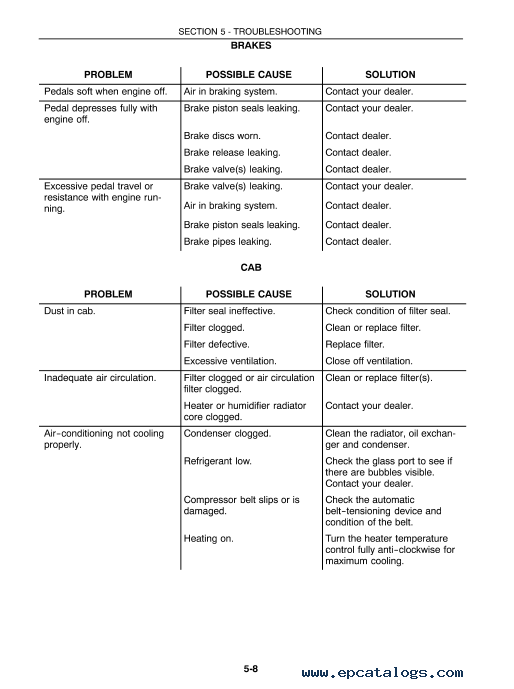

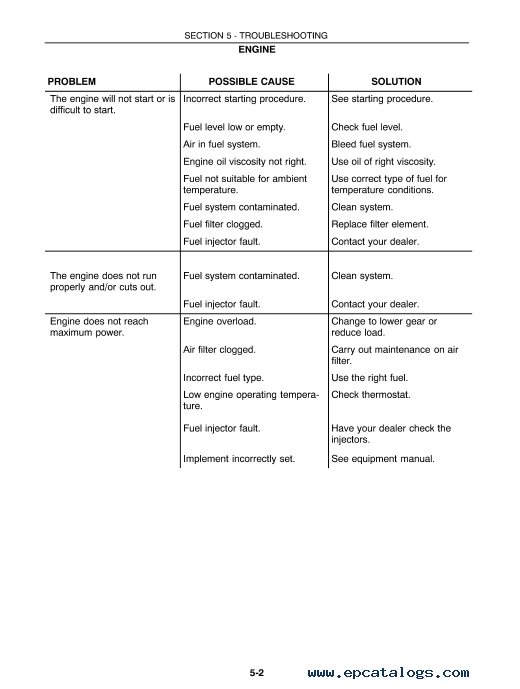

• Section 5 - Troubleshooting
• Section 6 - Tractor storage
• Section 7 - Accessories
  • Electrical system
• Section 8 - Specifications and data
• Index
• Service Sheets
