Case JX1075N JX1095N Tractors Operator’s Manual

This Operation's Manual provides technical information for the user with regard to the use and maintenance of the Case tractors JX1075N and JX1095N.

The tractor is also designed to provide maximum performance, economic running, and easy use over a wide range of operations. To maintain the tractor in this condition and ensure trouble-free operation, the routine maintenance described in Section 3 of this manual must be carried out at the specified intervals. Also in this manual, you will see step-by-step recommendations, technical information, schemes, troubleshooting data, instructions, and illustrations that will help prevent breakages and prolong the quality work of the Case tractors.

A manual comes in PDF format. We recommend you use the application Adobe Acrobat Reader for working with the PDF manual.  For your convenience, we present you with a link 'Case pdf manual instant preview' on the top of this page. This link will help you to preview this PDF manual and understand what this manual contains.

Models:
JX1075N
JX1095N

Contents:
Section 1
General information

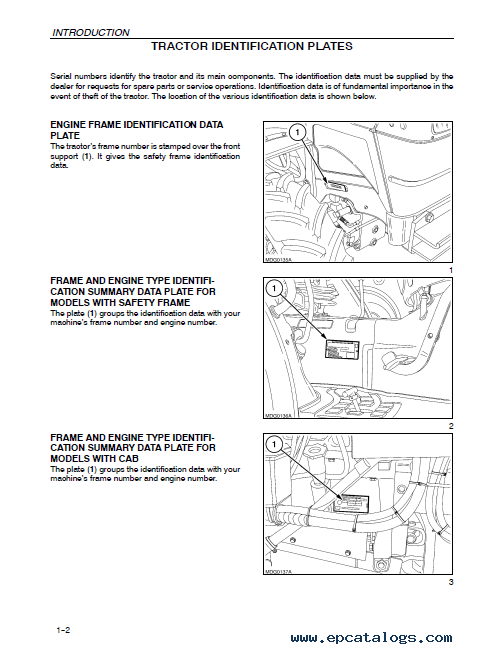

Tractor identification plates
Important ecological considerations
Always work safely
Working safely
Safety decals
Standardized symbols
Section 2
Controls and instruments
Controls
Cab
Cab air conditioning controls
Air conditioning system instructions for use
Seat
Brakes
Digital control instrument panel
Operation indicator light panel
Electronically controlled hydraulic MFD
Differential lock
Mechanically controlled hydraulic lift
Rear remote control valves
Section 3
Field operation
Power take-off (540 rpm)
Power take-off (540/1000 rpm)
Mechanically controlled hydraulic lift
Three-point linkage
Tires
Loading information
Tire dimensions
Tire combinations
Ballasting
Maximum permitted weights
Section 4
Lubrication and maintenance
Running--in period
Tractor refueling
Access for inspection and maintenance
Lubrication and maintenance table

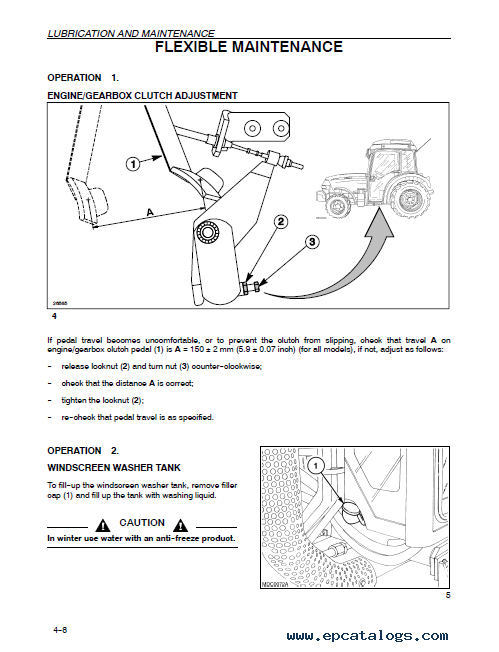

Flexible maintenance
When the indicator light illuminates on the dashboard
Every 10 hours of work
Every 50 hours of work
Every 300 hours of work
Every 900 hours of work
Every 1200 hours of work or every year
Every 1200 hours or every 2 years
General maintenance
Electrical system
Fuses and relays
Main relays
Fuel and lubrication specifications
Recommendations for body work maintenance
Section 5

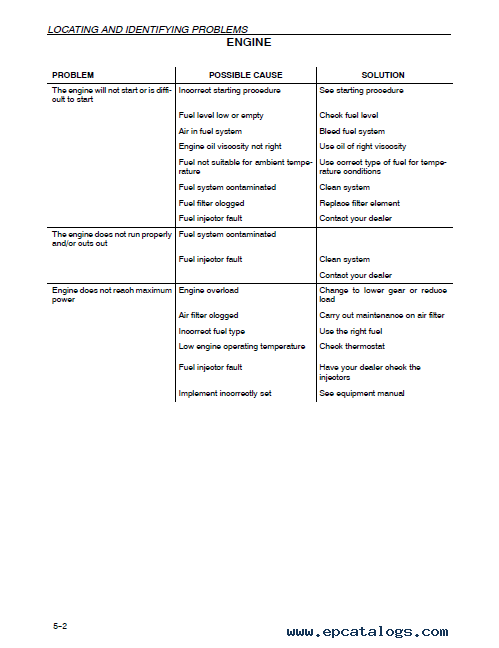

Troubleshooting
Section 6
Prolonged tractor inactivity
Section 7
Accessories
Section 8

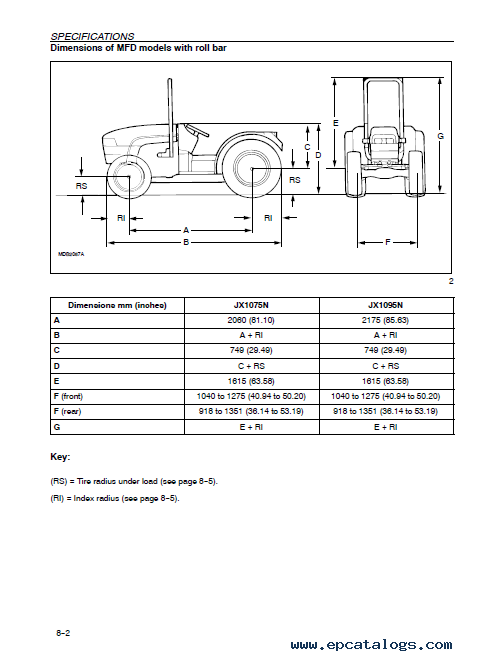

Specifications
Section 9
Inspections and/or operations to be carried out
Section 10
Index
