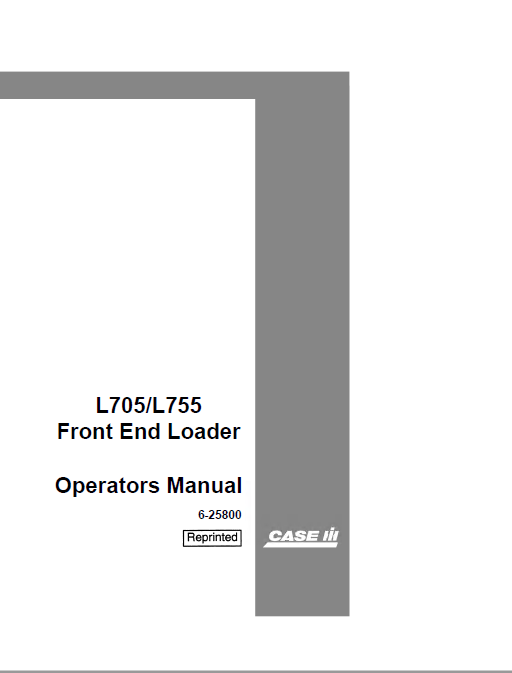

Case IH L705/L755 Front End Loader PDF Operators Manual

You are looking at an original operator's manual especially for Case IH L705/L755 front end loader. Electronic guide to grand information necessary for safe and efficient use, repair procedure, troubleshooting, and solve any problems of the Case front end loader.

This factory tutorial is organized into several groups such as service, special instructions for repair, safety rules, technical specifications, operation and adjustment, troubleshooting, and all additional information that is presented specifically for your front-end loader Case.

Make sure you understand the contents of this tutorial and use it to full effect at every opportunity. Online text is supplied in PDF format and for the correct display of all diagrams and information, we advise you to install the Adobe PDF Reader program. Komatsu product covers 165 pages for reading. You can contact us if you have any questions or need our help. Our managers will be happy to help you.

Models:
L705
L755

Contents:

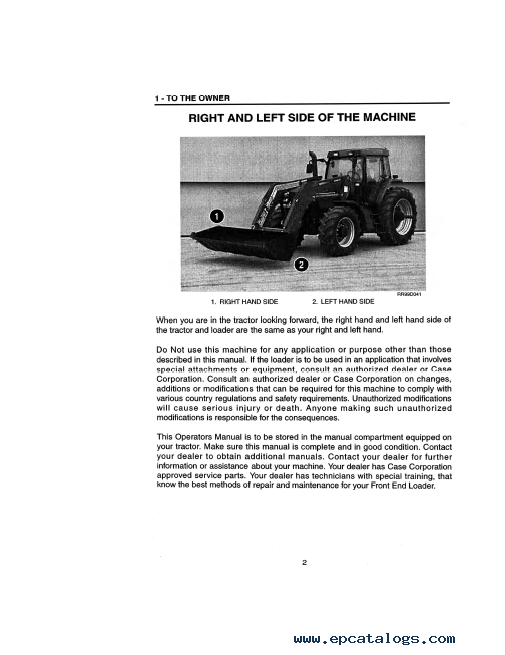

• 1 - TO THE OWNER
• 2 -IDENTIFICATION NUMBERS
  • ATTACHMENT IDENTIFICATION NUMBER
• 3 - SAFETy/DECALS
  • SAFETy
  • DECALS
• 4 - SPECIFICATIONS

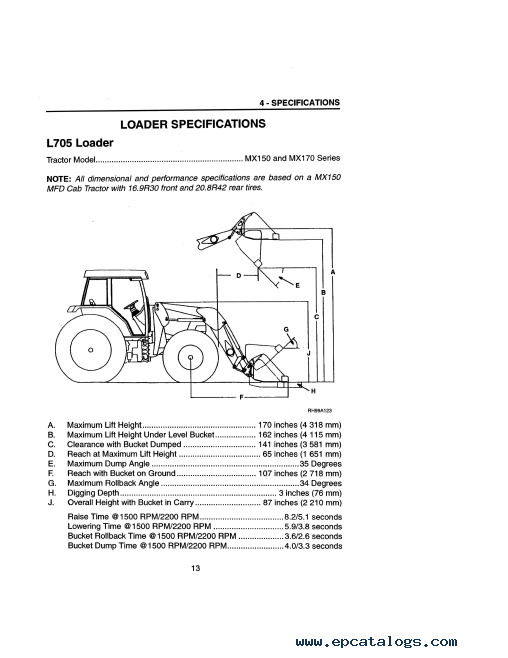

  • LOADER SPECIFICATIONS
  • TRACTOR PREPARATION

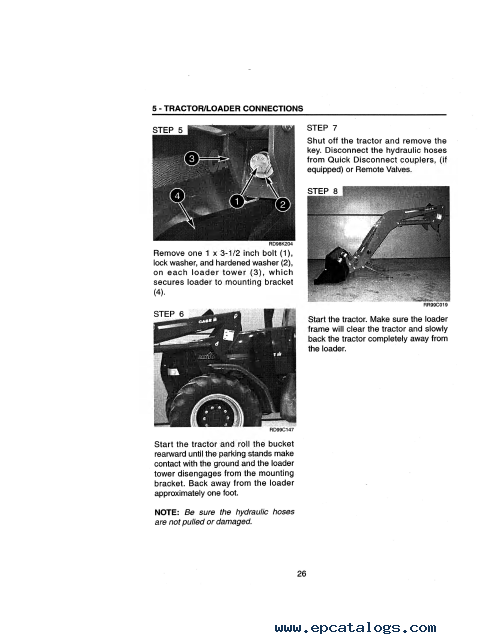

• 5 - TRACTOR/LOADER CONNECTIONS
  • MOUNTING THE LOADER
  • DISMOUNTING THE LOADER
  • HYDRAULIC CONNECTIONS
• 6 - OPERATING INSTRUCTIONS
  • LOADER OPERATION
  • LOADER CONTROLS
• 7 - LOADER/ATTACHMENT CONNECTIONS
  • REMOVING STANDARD ATTACH BUCKET FROM LOADER
  • INSTALLING STANDARD ATTACH BUCKET TO LOADER
  • REMOVING BUCKET OR ATTACHMENT FROM QUICK COUPLER
  • INSTALLING BUCKET OR ATTACHMENT TO QUICK COUPLER
• 8 - LUBRICATION
  • LOADER LUBRiCATION
  • LUBRICATION CHART
• 9 - MAINTENANCE
  • TORQUE SPECIFICATIONS
  • BUCKET LEVEL INDICATOR ADJUSTMENT
  • CONTROL CABLE ADJUSTMENT
  • CONTROL VALVE WITHOUT SELF-LEVELING
  • BUSHING REPLACEMENT
  • HYDRAULIC CYLINDER SEAL REPLACEMENT
  • CONTROL CABLE REPLACEMENT
• 10 - LOADER STORAGE
  • STORAGE PREPARATION
  • REMOVING LOADER FROM STORAGE
• 11 - TROUBLESHOOTING
  • PROBLEMS AND THEIR PROBABLE CAUSES
• 12 - LOADER SETUP INSTRUCTIONS
  • GENERAL INFORMATION
  • REMOVAL FROM SHIPPING CONFIGURATION
  • MOUNTING BRACKET INSTALLATION
  • LOADER FRAME INSTALLATION
  • REAR MOUNT HOSE PACKAGE INSTALLATION

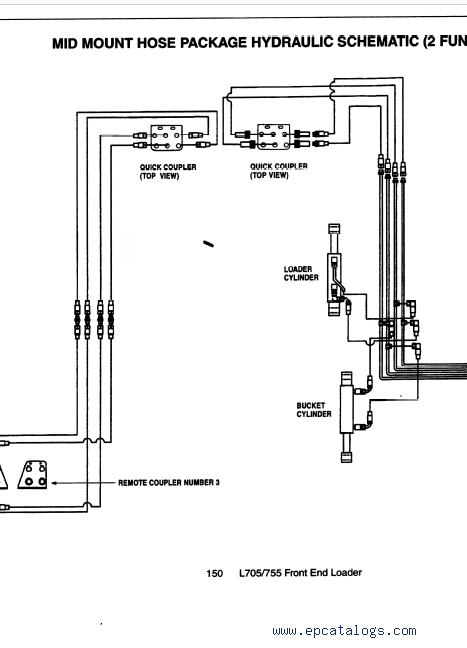

  • MID MOUNT HOSE PACKAGE INSTALLATION - WITHOUT SELF-LEVELING VALVE
  • MID MOUNT HOSE PACKAGE INSTALLATIONWITH SELF-LEVELING VALVE
  • EXTERNAL VALVE HOSE PACKAGE INSTALLATIONWITH SELF-LEVELING VALVE
  • EXTERNAL VALVE HOSE PACKAGE INSTALLATIONWITHOUT SELF-LEVELING VALVE
  • JOYSTICK INSTALLATION - 2 OR 3 FUNCTION
  • CONTROL CABLE INSTALLATION
  • THIRD FUNCTION HOSE PACKAGE INSTALLATION
  • TWO FUNCTION TO THREE FUNCTION JOYSTICK CONVERSION

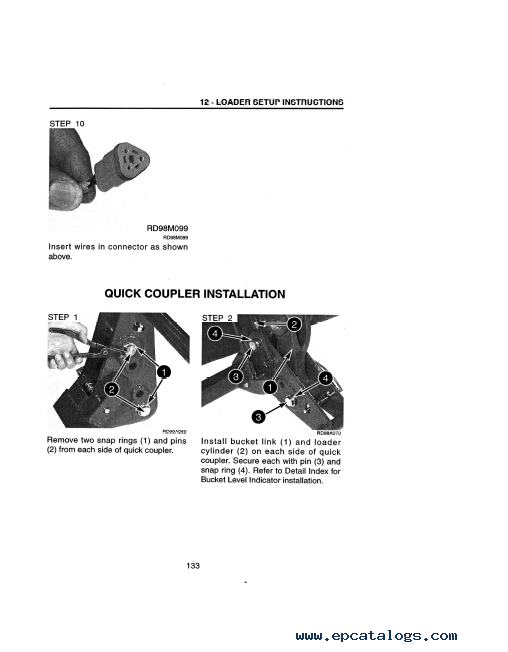

  • QUICK COUPLER INSTALLATION
  • INSTALLATION OF STANDARD ATTACH BUCKET TO LOADER
  • BUCKET LEVEL INDICATOR INSTALLATION
  • INSTALLATION OF CUTTING EDGE (84 AND 96 INCH HEAVY DUTY QC BUCKETS ONLY)
  • INSTALLATION OF TOOTH BAR (84 AND 96 INCH HEAVY DUTY QC BUCKETS ONLY)
  • INSTALLATION OF SPILL GUARD (84 AND 96 INCH HEAVY DUTY BUCKETS ONLY)
  • INSTALLATION OF GRILL GUARD
  • BALE AND SILAGE GRAPPLE INSTALLATION(84 AND 96 INCH BUCKETS) (CASE IH)
  • HAY GRAPPLE INSTALLATION (84 AND 96 INCH HEAVY DUTY QC BUCKETS ONLY) (FFC)
  • THIRD FUNCTION CONTROL VALVE INSTALLATION
  • DETAIL INDEX
