Case Engine 2377, 2388, MX215/245/275/305, STX280/330 Set of Manuals PDF

This set of manuals is intended for service, repair, and troubleshooting of Case Engine 2377, 2388, MX215, MX245, MX275, MX305, STX280, STX330 models. All sections are arranged alphabetically in the tutorial and chapters are arranged numerically within the section. The information in each chapter, and therefore the table of contents, is separated into four broad categories:
• Technical Data
• Functional Data
• Service Data
• Diagnostic Data
Factory guides include detailed recommendations procedures for correct use and maintenance, technical data, safety rules, service instruction, information about special tools, functional data, general specification, dynamic description and other important information which will help you in using the Case Engine 2377, 2388, MX215, MX245, MX275, MX305, STX280, STX330 models. Also, these electronic files contain many screenshots, different diagrams, and schemes, which you can visually inspect and familiarize yourself in detail, as well as provide first aid.

Before using this device, carefully read and thoroughly analyze the procedure so that the work is done correctly. To avoid unexpected malfunctions, we recommend that owners of Case equipment buy the set of information. After an instant click, you acquire this product. The download link will be emailed on specified, email within several minutes of your purchase. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.

Agricultural Products

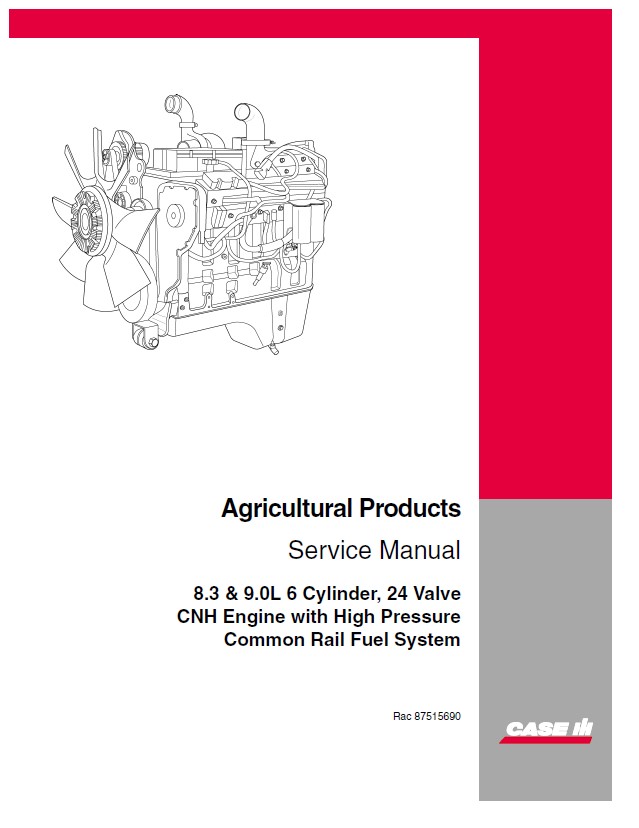

8.3 & 9.0L 6 Cylinder, 24 Valve
CNH Engine with High Pressure
Common Rail Fuel System

12.9L 6 Cylinder, Engine

Models:
2377
2388
MX215
MX245
MX275
MX305
STX280
STX330

General Table of Contents:

INTRODUCTION
POWER PRODUCTION
ENGINE
FUEL AND INJECTION SYSTEM
AIR INTAKE SYSTEM
EXHAUST SYSTEM
ENGINE COOLANT SYSTEM
LUBRICATION SYSTEM
STARTING SYSTEM

Introduction
Engine Identification
Troubleshooting Symptoms
Cylinder Block
Cylinder Head
Rocker Levers
Cam Followers/Tappets
Fuel System
Injectors and Fuel Lines
Lubricating Oil System
Cooling System
Drive Units
Air Intake System
Exhaust System
Miscellaneous
Specifications
