Case CX330 & CX350 Crawler Excavators Repair Manual PDF

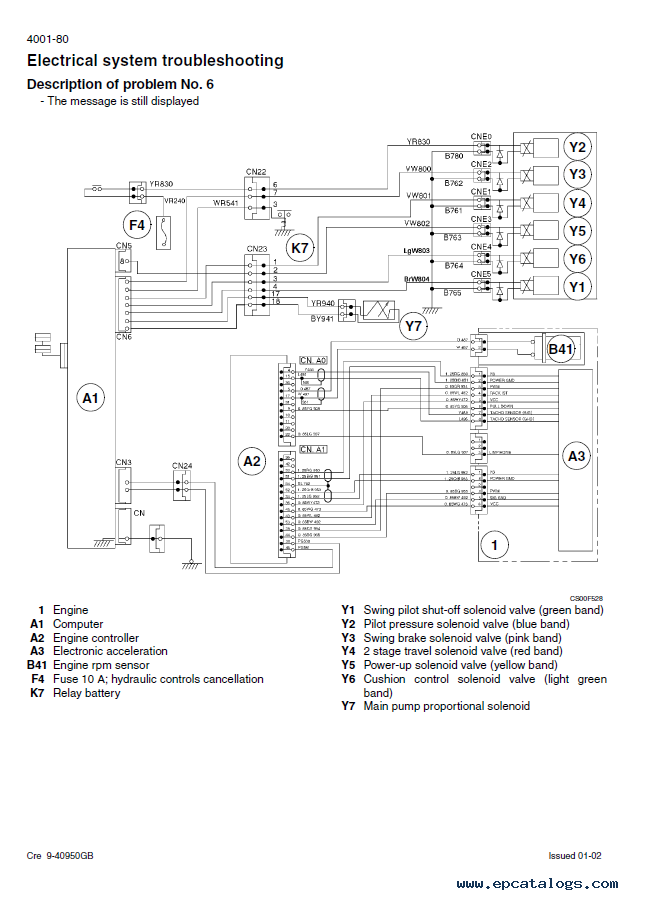

Electronic workshop manual helps you to find lots of pictures (screenshots) and the electrical circuits, which show the location of the necessary components and be able to carry out installation or removal of any details.

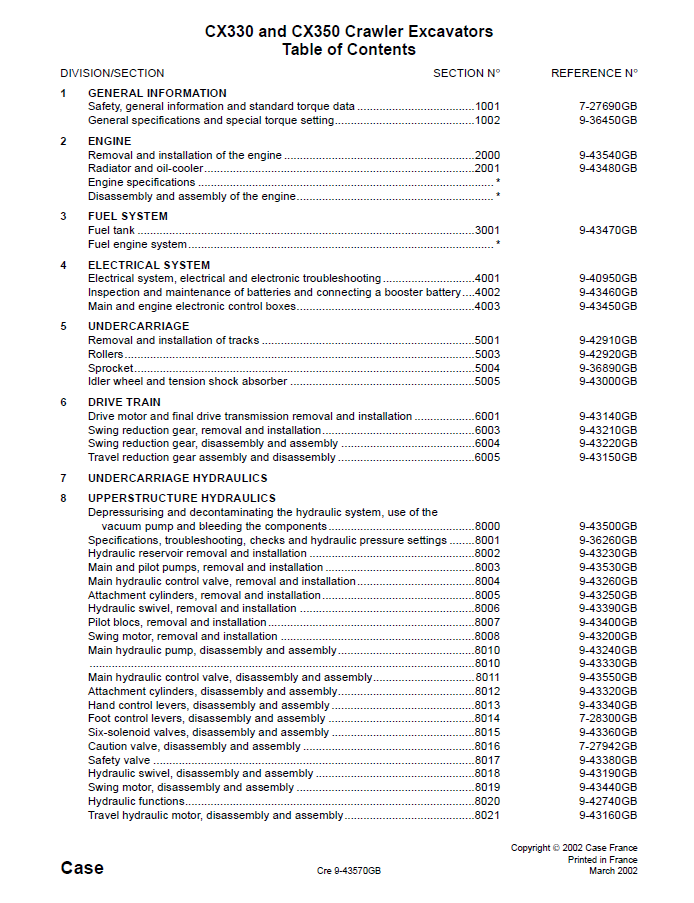

CONTENTS:

• GENERAL INFORMATION
  • SECTION 1001 - Safety, general information and standard torque data
  • SECTION 1002 - General specifications and special torque setting
• ENGINE
  • SECTION 2000 - Removal and installation of the engine
  • SECTION 2001 - Radiator and oil-cooler
  • Engine specifications - Consult the Engine Service Manual
  • Disassembly and assembly of the engine - Consult the Engine Service Manual
• FUEL SYSTEM
  • SECTION 3001 - Fuel tank
  • Fuel engine system - Consult the Engine Service Manual
• ELECTRICAL SYSTEM

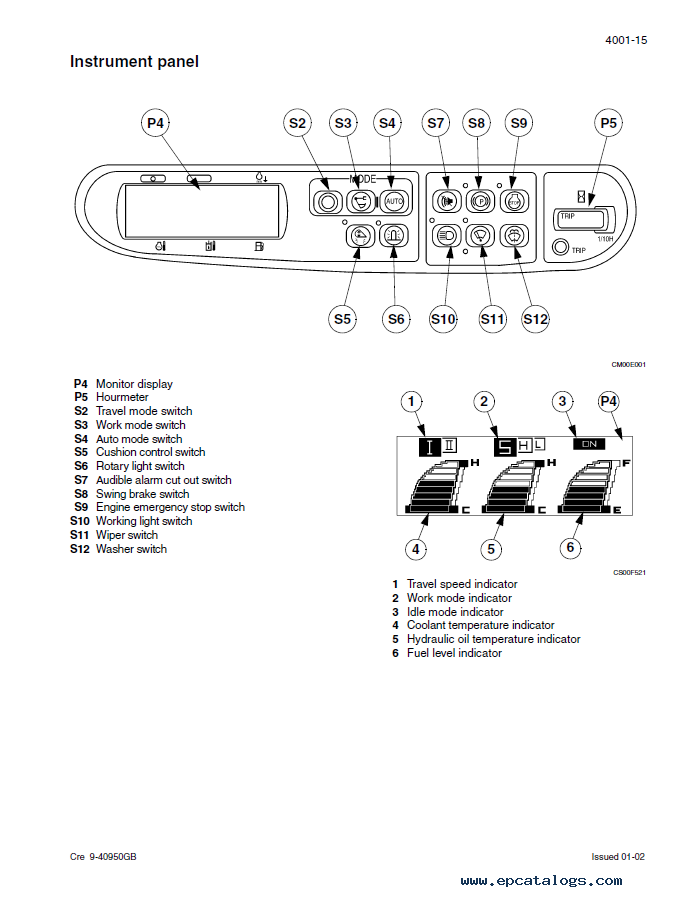

  • SECTION 4001 - Electrical system, electrical and electronic troubleshooting
  • SECTION 4002 - Inspection and maintenance of batteries and connecting a booster battery
  • SECTION 4003 - Main and engine electronic control boxes
• UNDERCARRIAGE
  • SECTION 5001 - Removal and installation of tracks
  • SECTION 5003 - Rollers
  • SECTION 5004 - Sprocket
  • SECTION 5005 - Idler wheel and tension shock absorber
• DRIVE TRAIN
  • SECTION 6001 - Drive motor and final drive transmission removal and installation
  • SECTION 6003 - Drive motor and final drive transmission disassembly and assembly

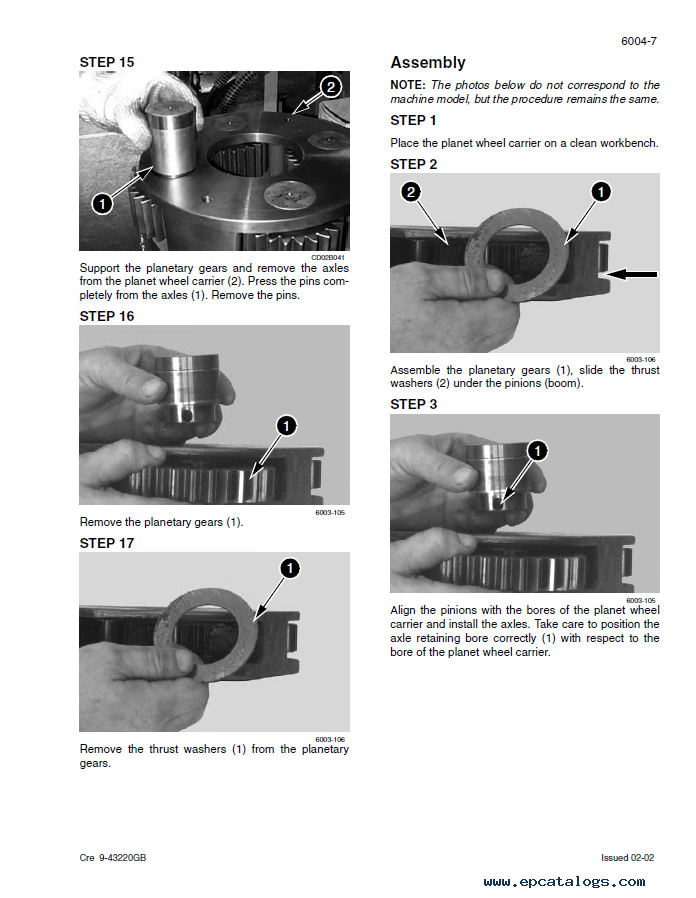

  • SECTION 6004 - Swing reduction gear, removal and installation
  • SECTION 6005 - Swing reduction gear, disassembly and assembly
• UNDERCARRIAGE HYDRAULICS
• UPPERSTRUCTURE HYDRAULICS
  • SECTION 8000 - Depressurising and decontaminating the hydraulic system, use of the vacuum pump and bleeding the components

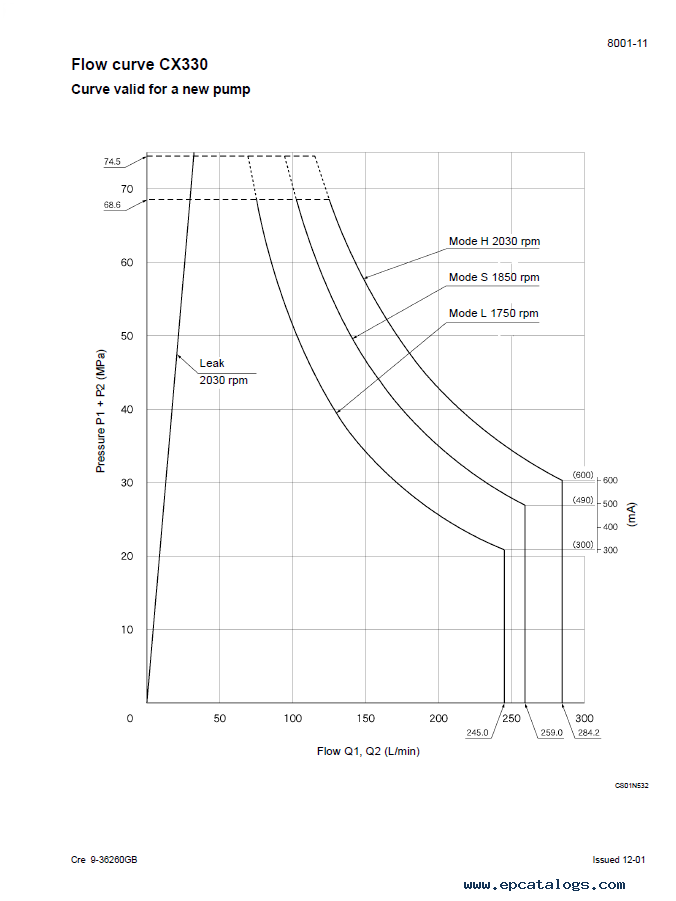

  • SECTION 8001 - Specifications, troubleshooting, checks and hydraulic pressure settings
  • SECTION 8002 - Hydraulic reservoir removal and installation
  • SECTION 8003 - Main and pilot pumps, removal and installation
  • SECTION 8004 - Main hydraulic control valve, removal and installation
  • SECTION 8005 - Attachment cylinders, removal and installation
  • SECTION 8006 - Hydraulic swivel, removal and installation
  • SECTION 8007 - Pilot blocs, removal and installation
  • SECTION 8008 - Swing motor, removal and installation
  • SECTION 8010 - Main hydraulic pump, disassembly and assembly
  • SECTION 8011 - Main hydraulic control valve, disassembly and assembly
  • SECTION 8012 - Attachment cylinders, disassembly and assembly
  • SECTION 8013 - Hand control levers, disassembly and assembly
  • SECTION 8014 - Foot control levers, disassembly and assembly
  • SECTION 8015 - Six-solenoid valves, disassembly and assembly
  • SECTION 8016 - Caution valve, disassembly and assembly
  • SECTION 8017 - Safety vave
  • SECTION 8018 - Hydraulic swivel, disassembly and assembly
  • SECTION 8019 - Swing motor, disassembly and assembly
  • SECTION 8020 - Hydraulic functions
  • SECTION 8021 - Travel hydraulic motor, disasembly and assembly
• UPPERSTRUCTURE
  • SECTION 9002 - Upperstructure, turntable and counterweight
  • SECTION 9003 - Boom, dipper and bucket
  • SECTION 9004 - Seat and seat belt
  • SECTION 9005 - Cab and cab equipment
  • Large format hydraulic and electrical schematics

After install this repair manual, user can find the results of all testing and inspections are interested in machinery Case. This guide helps beginners and experienced professionals.

Features of the Manual
Format: PDF
Language: English
Pages: 623
Compatible with all versions of Windows, Mac, Linux, iPhone, iPad, and Android
Electronic repair manual includes service information, special instructions for repair and maintenance, technical specifications, charts and diagrams, service and troubleshooting information for crawler excavators Case.
