Case Combines 7010 and 8010 Axial-Flow Set of PDF Manuals

You have purchased a dependable machine, but only by proper care and operation can you expect to receive the performance and long service built into this combine. This set of manuals contains information concerning the adjustment, repair, and maintenance of your Case IH combines:

AXIAL-FLOW 7010
AXIAL-FLOW 8010

Please take care of this entire set of manuals and hold it in your glove box for future reference. The Case combines are intended to be used for agricultural purposes on cultivated land to harvest cereal crops, small seed crops, corn, soybeans, etc.

The Case set of the includes several manuals which complete each other, they are will show you every part your combine and it is systems:

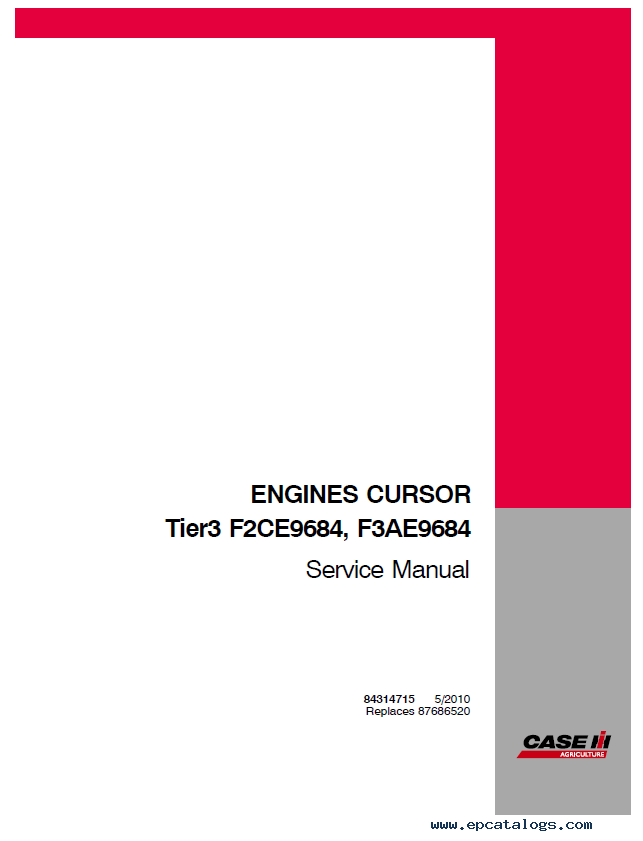

1. Service Manual for combines axial-flow 7010/7020, 8010/8020 with engine cursor Tier3 F2CE9684 and F3AE9684
2. Electrical schematic for combines Axial-Flow 7010 and 8010

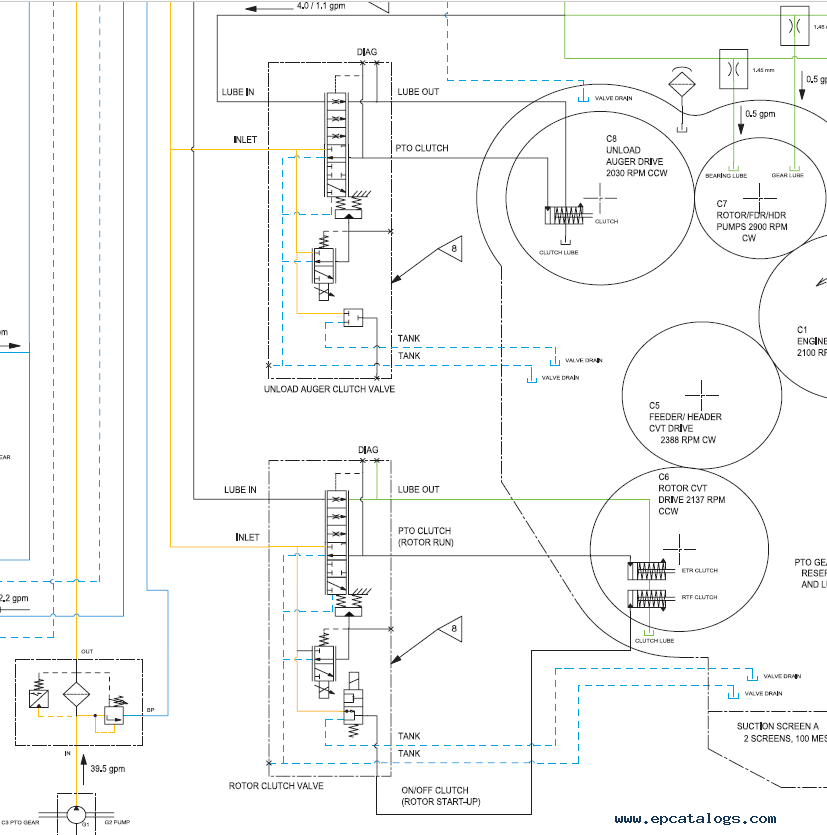

3. Hydraulic / Hydrostatic schematic for combines  Axial-Flow 7010 and 8010

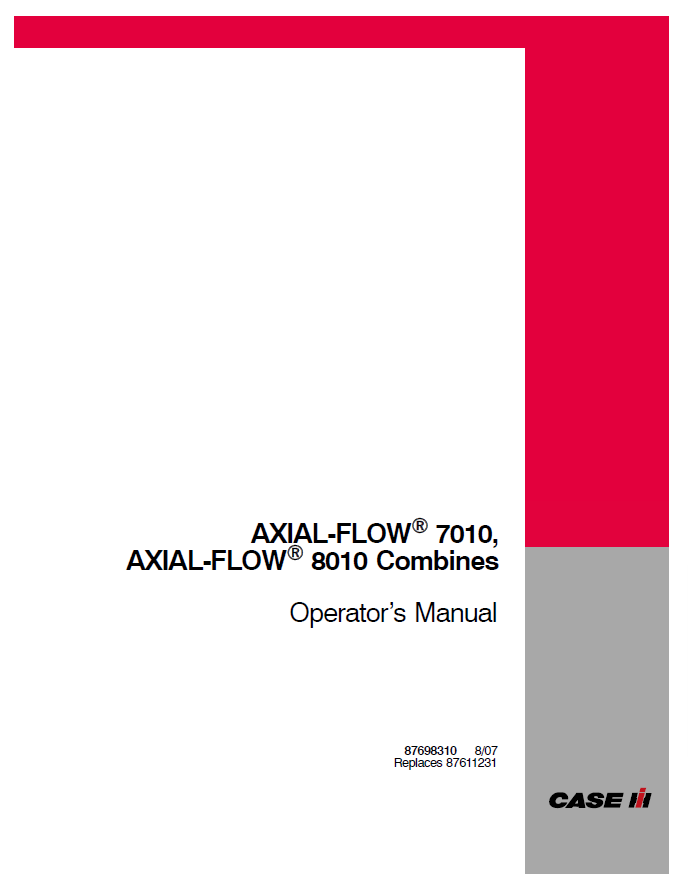

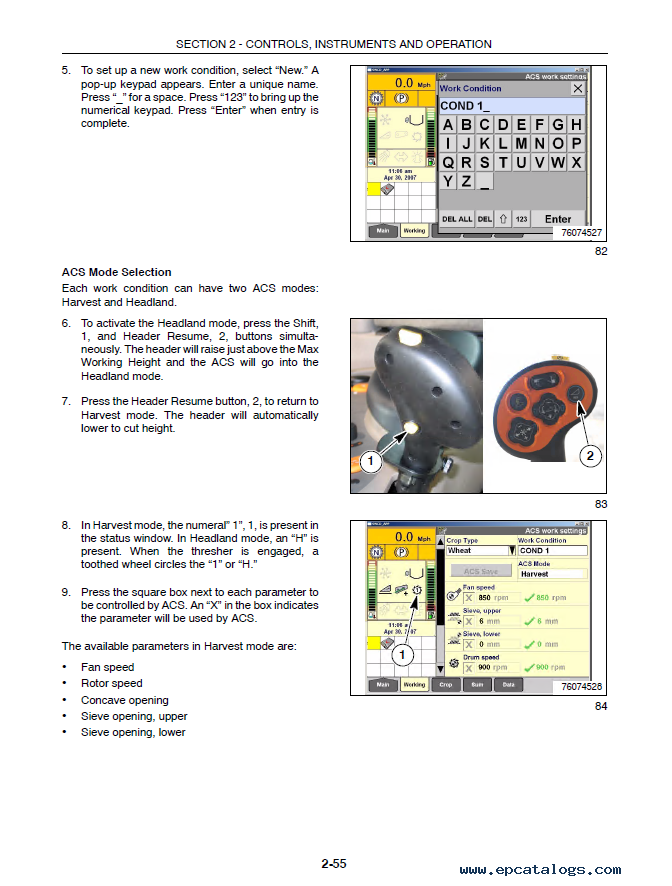

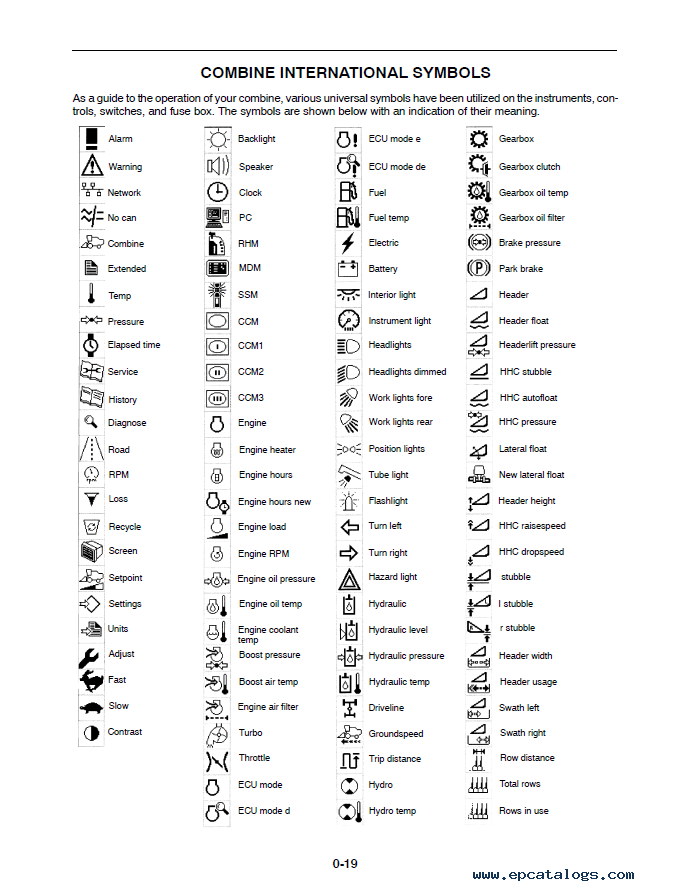

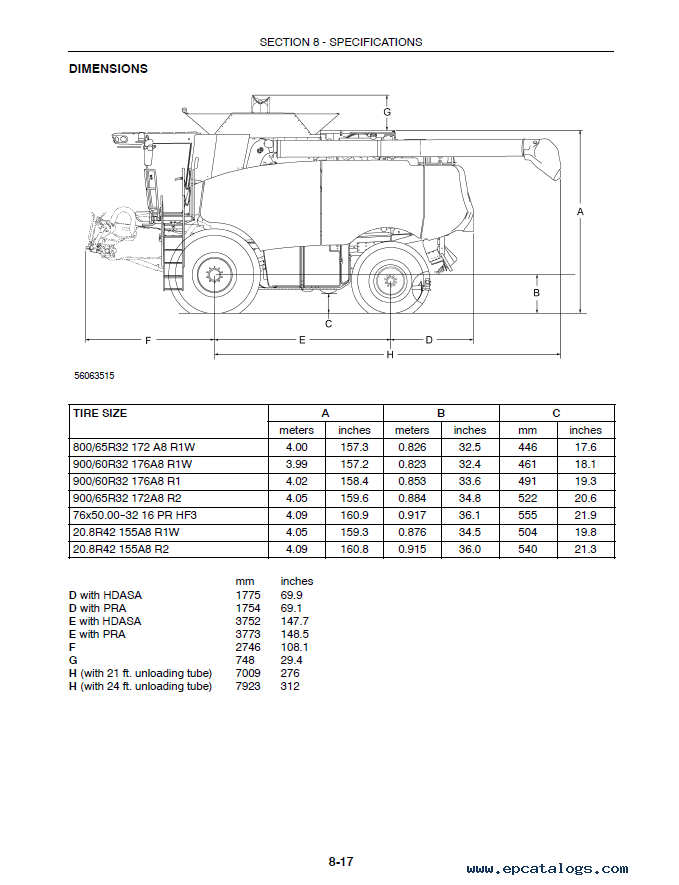

4. Operator's manual for combines Axial-Flow 7010 and 8010
5. Service Manual for combines Axial-Flow 7010 and 8010

In manuals, you will see illustrations, diagrams to aid you during your job and it will be easy for you to navigate through the content in the manuals. Using this information you have all the resources and tools for quality repair and maintenance.

This set in PDF format on English. Thanks to the PDF format you can print the entire instruction or individual diagrams and charts. We recommend working with this guide after installing Adobe PDF Reader.

Complete Contents:

• 1. INTRODUCTION
• 2. DISTRIBUTION SYSTEMS

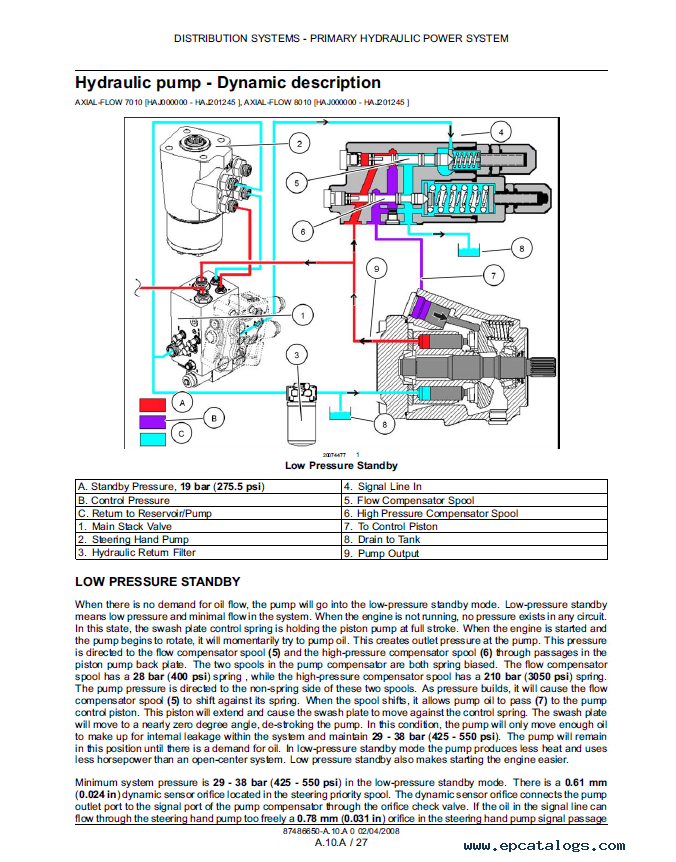

  • PRIMARY HYDRAULIC POWER SYSTEM
  • SECONDARY HYDRAULIC POWER SYSTEM
  • ELECTRICAL POWER SYSTEM
  • LIGHTING SYSTEM
  • ELECTRONIC SYSTEM
  • FAULT CODES
• 3. POWER PRODUCTION
  • ENGINE
  • FUEL AND INJECTION SYSTEM
  • AIR INTAKE SYSTEM
  • EXHAUST SYSTEM
  • ENGINE COOLANT SYSTEM
  • LUBRICATION SYSTEM
  • STARTING SYSTEM
• 4. POWER TRAIN
  • POWER COUPLING Fixed coupling
  • TRANSMISSION Mechanical
  • TRANSMISSION Hydrostatic
  • FRONT PTO Mechanical
  • PROCESS DRIVE Primary process drive
  • TRANSMISSION LUBRICATION SYSTEM
• 5. TRAVELLING
  • FRONT AXLE
  • REAR AXLE
  • 2WD-4WD SYSTEM Hydrostatic
  • STEERING Hydraulic
  • SERVICE BRAKE Hydraulic
  • PARKING BRAKE Hydraulic
  • WHEELS AND TRACKS Wheels
• 6. BODY AND STRUCTURE
  • USER CONTROLS AND SEAT
  • SHIELD
  • USER CONTROLS AND SEAT Operator seat
  • USER CONTROLS AND SEAT Instructor seat
  • USER PLATFORM
  • ENVIRONMENT CONTROL Heating, ventilation and air-conditioning
  • SAFETY SECURITY ACCESSORIES Safety
• 7. TOOL POSITIONING
  • LIFTING
  • TILTING
  • LEVELLING
• 8. CROP PROCESSING
  • FEEDING Reel feeding
  • FEEDING Header feeding
  • FEEDING Feeder housing
  • FEEDING Transition cone
  • THRESHING Axial flow threshing
  • SEPARATING Rotary separator
  • STORING AND HANDLING Grain storing
  • CLEANING Primary cleaning
  • CLEANING Tailings return system
  • CLEANING Self-levelling frame
  • RESIDUE HANDLING Straw chopper
  • RESIDUE HANDLING Spreader
  • RESIDUE HANDLING Straw beater
  • UNLOADING Grain unloading
  • PROTECTION SYSTEMS Stone trapping
