Case 588 Crawler And Wheeled Excavators PDF Manual

[11/1999]
repair manual Case 588 Crawler And Wheeled Excavators PDF Manual
Type of catalogue: repair manual
Make: Case
Region: WorldWide
Inclusive
languages:		 English
Amount of
disks:		 1 CD, PDF file, 240 pages
Availibility Instant Download
OS: Windows XP 32 bit, Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit
Price, USD: 60

This manual includes safety and general information, specifications, electrical and hydraulic schematics, tests, adjustments for Case crawler and wheeled excavators 588.
This manual includes a lots of wiring electrical and hydraulic circuits and schematics, which show the location of the necessary components and be able to carry out installation or removal of any details of Case excavators.
Manual comes in PDF format, includes 240 pages, which are printable and readable. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

Contents:

  • Section 1001 - Safety, general information and torque specifications
    • Safety
    • Twin Wheels
    • General Information
    • Correct Use Of Torque Wrenches
    • Hardware Tightening Order
    • Standard Screw A Torque Specifications
    • Metal Cap References
    • Plastic Plug And Cap Reference Chart
  • Section 1002 - Specifications 588 Crawler Excavators
    • Fluids And Lubricants
    • Machine General Specifications
    • Weights
    • Buckets
    • Clamshells
    • Machine Overall Dimensions
    • Transportation Overall Dimensions
  • Section 1002 - Specifications 588 Wheeled Excavators
    • Fluids And Lubricants
    • Machine General Specifications
    • Weights
    • Buckets
    • Clamshells
    • Machine Overall Dimensions
    • Transportation Overall Dimensions
  • Section 4001 - Electrical Schematics 588 Crawler Excavators
    • Specifications
    • Schematic Symbols
    • Description of Electrical Cabinet Printed Circuit (Standard Equipment)
    • Electrical Cabinet Printed Circuit Wiring (Standard)
    • Description of Electrical Cabinet Printed Circuit (Optional)
    • Electrical Cabinet Printed Circuit Wiring (Optional)
    • Printed Circuit Schematic Guide
    • P10 Instrument Panel Electrical Schematic (Plate 1)
    • Instrument Panel Wiring
    • Instrument Panel (Front Face)
    • Right-Hand Control Arm, Left-Hand Control Arm (Standard Equipment)
    • Right-Hand And Left-Hand Control Arm Wiring (Optional)
    • Electrical Schematic (Plate 2)
    • Electrical Schematic (Plate 3)
    • Electrical Schematic (Plate 4)
    • Electrical Schematic (Plate 5)
    • Electrical Schematic (Plate 6)
    • Cab Floor Wiring (Standard)
    • Engine Module And Upperstructure Wiring (Standard)
    • Cab Floor Wiring (Optional)
    • Engine Module And Upperstructure Wiring (Optional)
    • Cab And Cab Option Wiring
  • Section 4001 - Electrical Schematics Crawler Excavators
    • Schematic Symbols
    • Description of Electrical Cabinet Printed Circuit (Standard)
    • Electrical Cabinet Printed Circuit Wiring (Standard)
    • Description of Electrical Cabinet Printed Circuit (Optional)
    • Electrical Cabinet Printed Circuit Wiring (Optional)
    • Printed Circuit Schematic Guide
    • P10 Instrument Panel Electrical Schematic (Plate 1)
    • Instrument Panel Wiring
    • Instrument Panel (Front Face)
    • Right-Hand Control Arm And Left-Hand Control, Arm Wiring (Standard)
    • Right-Hand And Left-Hand Control Arm Wiring (Optional)
    • Electrical Schematic (Plate 2)
    • Electrical Schematic (Plate 3)
    • Electrical Schematic (Plate 4)
    • Electrical Schematic (Plate 5)
    • Electrical Schematic (Plate 6) (788C/988C/1188C)
    • Electrical Schematic (Plate 7)
    • Electrical Schematic (Plate 8)
    • Cab Floor Wiring (Standard)
    • Engine Module And Upperstructure Wiring (Standard)
    • 788C-988C-1188C Electronic Wiring Circuit
    • Details Of 35 Pins Connector X3 On 788C-988C-1188C Excavators
    • 788C-988C-1188C Electronic Wiring Circuit
    • Cab Floor Wiring (Optional)
    • Engine Module And Upperstructure Wiring (Optional)
    • Cab And Cab Option Wiring
  • Section 4001 - Electrical Schematics 588 Wheeled Excavators
    • Specifications
    • Schematic Symbols
    • Description of Electrical Cabinet Printed Circuit (Standard)
    • Electrical Cabinet Printed Circuit Wiring (Standard)
    • Description of Electrical Cabinet Printed Circuit (Optional)
    • Electrical Cabinet Printed Circuit Wiring (Optional)
    • Printed Circuit Schematic Guide
    • P10 Instrument Panel Electrical Schematic (Plate 1)
    • Instrument Panel Wiring
    • Instrument Panel (Front Face)
    • Right-Hand Control Arm, Left-Hand Control Arm And Commodo Wiring (Standard)
    • Right-Hand And Left-Hand Control Arm Wiring (Optional)
    • Electrical Schematic (Plate 2)
    • Electrical Schematic (Plate 3)
    • Electrical Schematic (Plate 4)
    • Electrical Schematic (Plate 5)
    • Electrical Schematic (Plate 6)
    • Electrical Schematic (Plate 7)
    • Electrical Schematic (Plate 8)
    • Electrical Schematic (Plate 9)
    • Cab Floor Wiring (Standard)
    • Engine Module And Upperstructure Wiring (Standard)
    • Cab Floor Wiring (Optional)
    • Engine Module And Upperstructure Wiring (Optional)
    • Cab And Cab Option Wiring
  • Section 4001 - Electrical Schematics Wheeled Excavators
    • Schematic Symbols
    • Description of Electrical Cabinet Printed Circuit (Standard)
    • Printed Circuit Wiring (Standard)
    • Description of Electrical Cabinet Printed Circuit (Optional)
    • Printed Circuit Wiring (Optional)
    • Printed Circuit Schematic Guide
    • P10 Instrument Panel Electrical Schematic (Plate 1)
    • Instrument Panel Wiring
    • Instrument Panel (Front Side)
    • Right-Hand Control Arm, Left-Hand Control Arm And Commodo Wiring (Standard)
    • Right-Hand And Left-Hand Control Arm Wiring (Optional)
    • Electrical Schematic (Plate 2)
    • Electrical Schematic (Plate 3)
    • Electrical Schematic (Plate 4)
    • Electrical Schematic (Plate 5)
    • Electrical Schematic (Plate 6)
    • Electrical Schematic (Plate 7)
    • Electrical Schematic (Plate 8)
    • Electrical Schematic (Plate 9)
    • Electrical Schematic (Plate 10)
    • Electrical Schematic (Plate 11)
    • Electrical Schematic (Plate 12)
    • Electrical Schematic (Plate 13)
    • Engine Module And Upperstructure Wiring (Standard)
    • Electronic Circuit Wiring (788P/988P/1188P)
    • Details Of 35 Pin Connector X3 Excavators 788P/988P/1188P
    • Cab Floor Wiring (Optional)
    • Engine And Upperstructure Module Wiring (Optional)
    • Cab And Cab Option Wiring
  • Section 8001 - Tests, Adjustments And Hydraulic Schematics 588 Crawler Excavators
    • Tools Required
    • Tools To Be Manufactured
    • Location Of Hydraulic Components
    • 588C General Hydraulic System (Single-Speed Excavators)
    • 588C General Hydraulic Circuit (Two-Speed Excavators)
    • 588C Pressure Settings
  • Section 8001 - Tests, Adjustments And Hydraulic Schematics 588 Wheeled Excavators
    • Tools Required
    • Tools To Be Manufactured
    • Location Of Hydraulic Components
    • 588P General Hydraulic System: List Of Hydraulic Components
    • 588P Pressure Setting

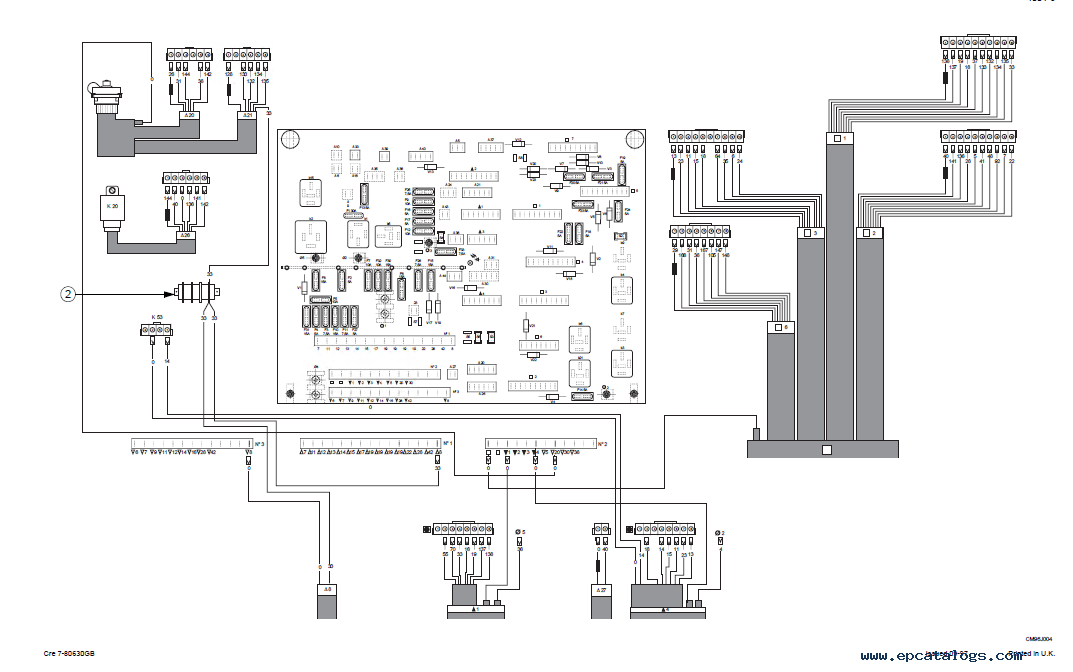

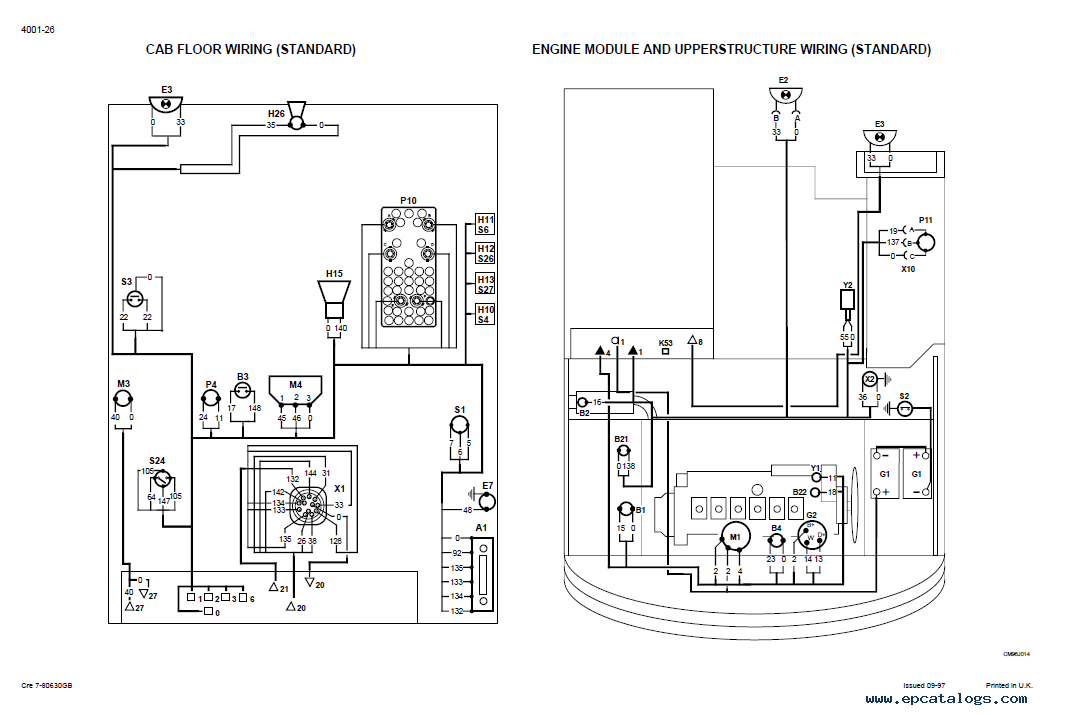

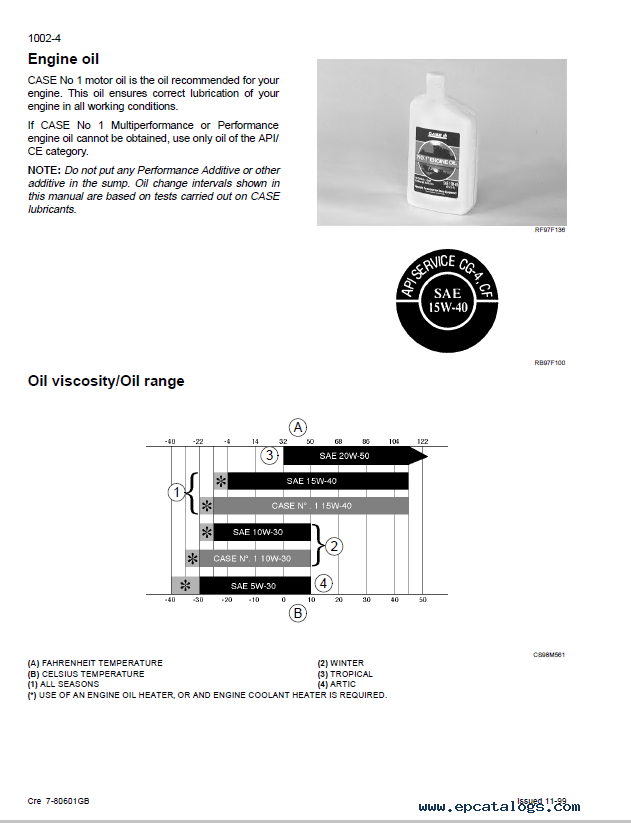

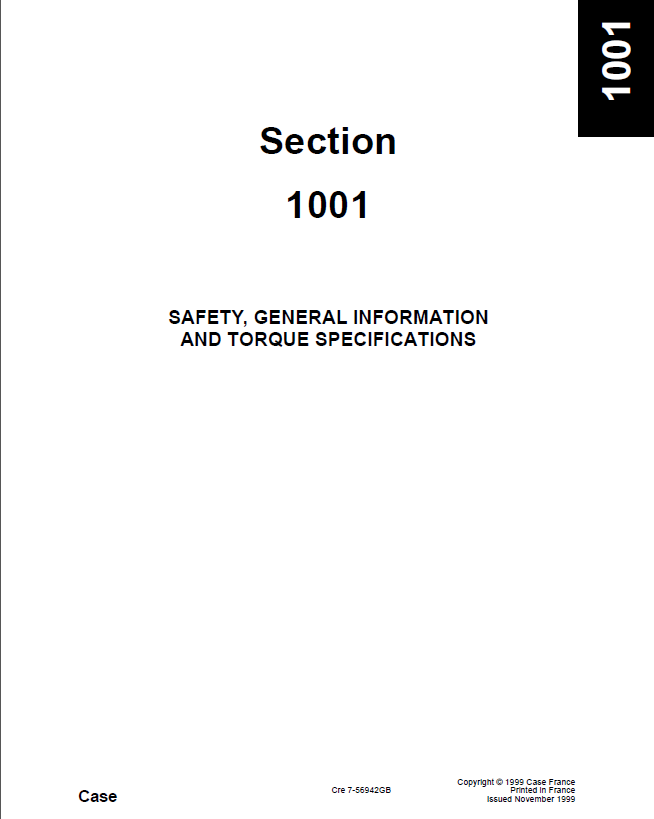

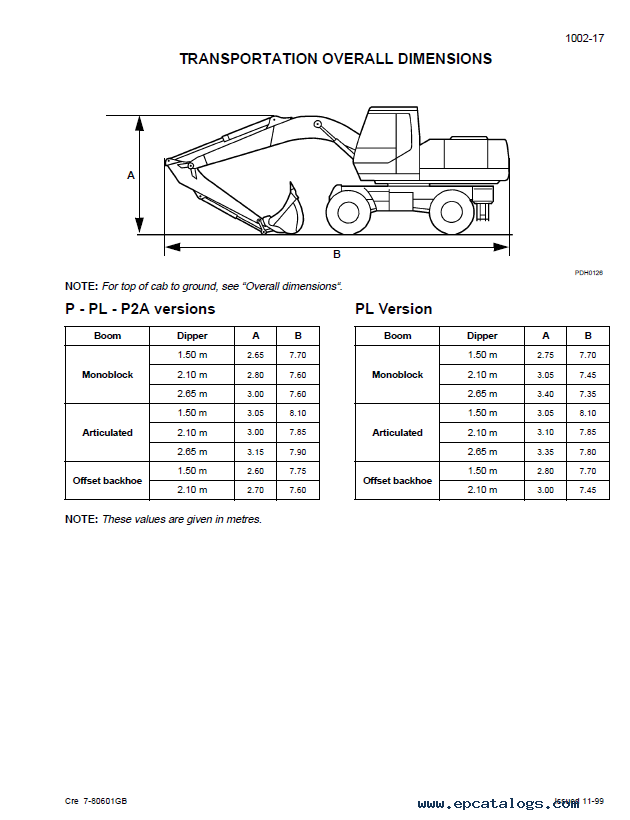

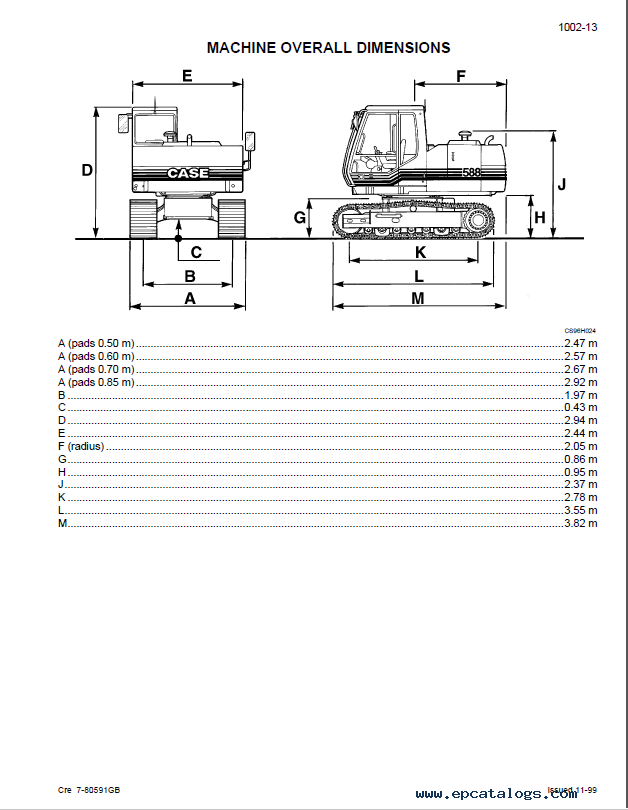

Screenshots for Case 588 Crawler And Wheeled Excavators PDF Manual:
