CASE 4-390, 4T390 & 4TA-390 Engine PDF Service Manual

The service manual contains the necessary technical information for the engines Case, next models:

4-390
4T390
4TA-390

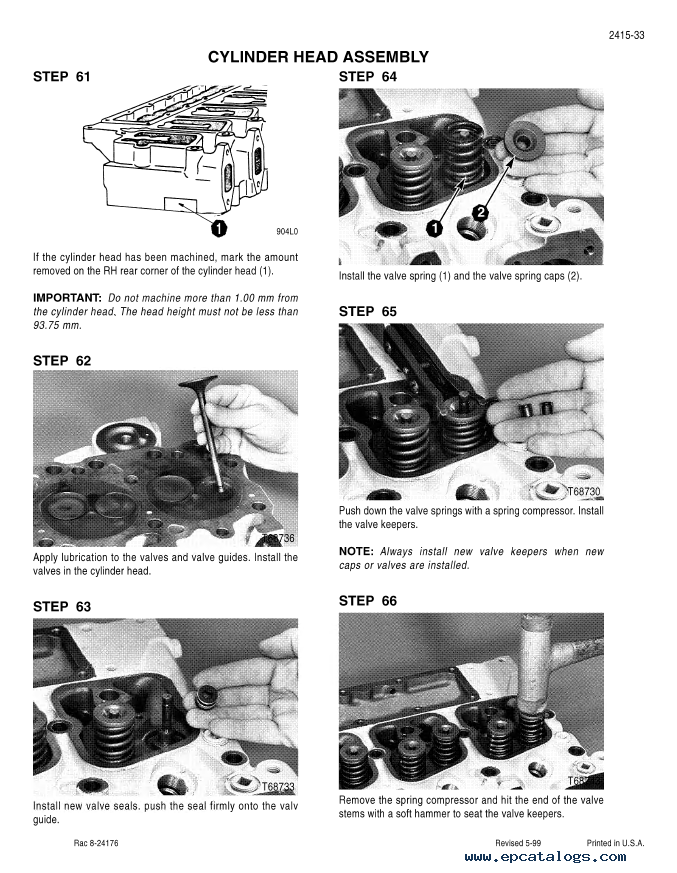

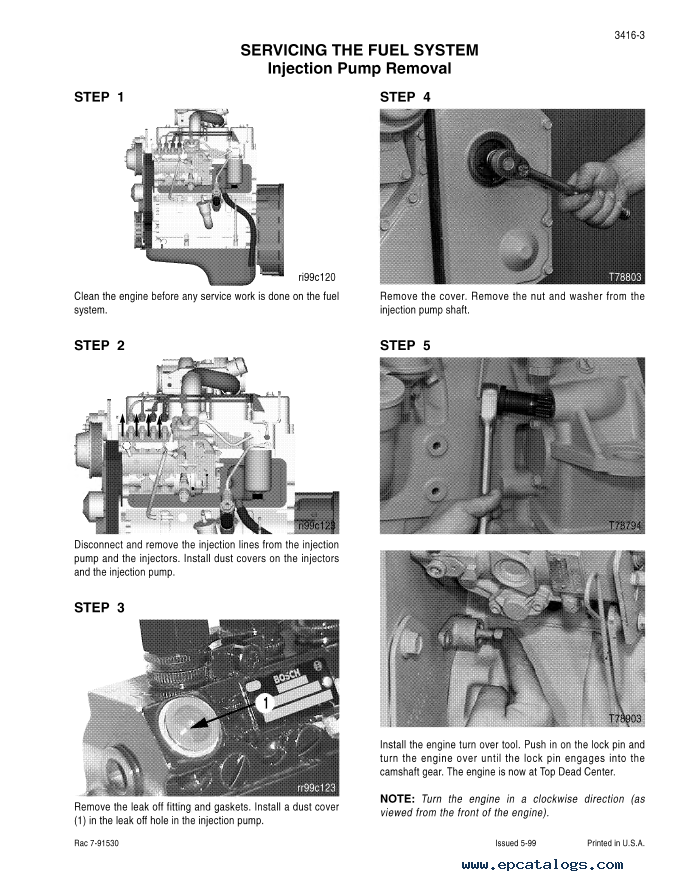

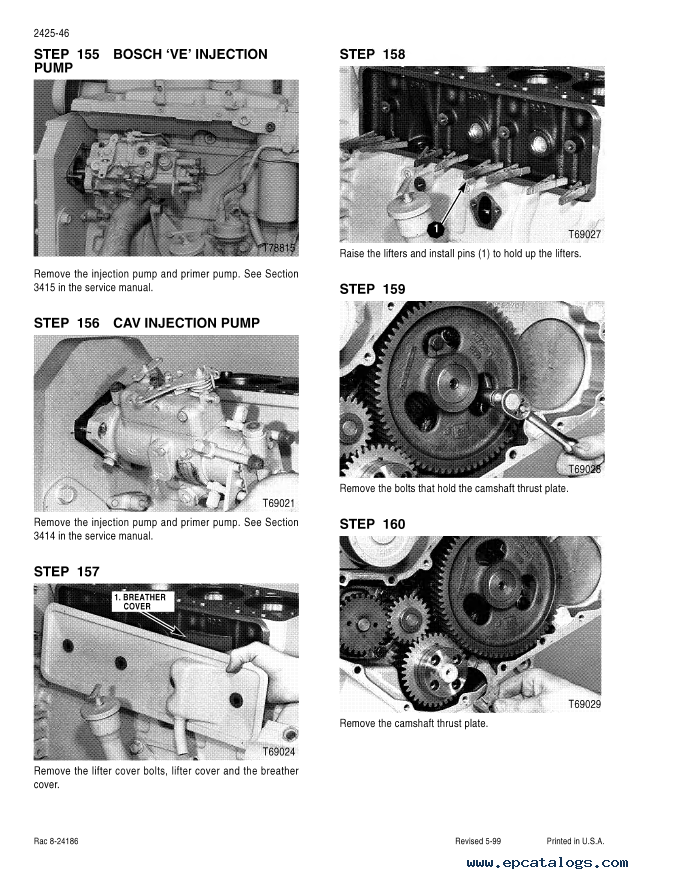

Using this manual you have the resource and tool for quality repair and maintenance. In this manual, you will see illustrations, diagrams to aid you during your job and it will be easy for you to navigate through in the manuals. Just imagine how much you can save by doing simple repairs yourself.  Use this useful information, read the technical data, analyze the diagrams and pictures review the step-by-step recommendations and you will immediately understand how to properly maintain and repair the engines, in order to avoid unforeseen breakdowns and failures.

Before starting the equipment read this manual, this will help to avoid damage and prolong the life of your equipment. The service manual for engines contained in PDF format, on English. Thanks to the PDF format it is possible to print the entire instruction or the individual diagrams and schemes. You can work with this manual after installing Adobe PDF Reader.

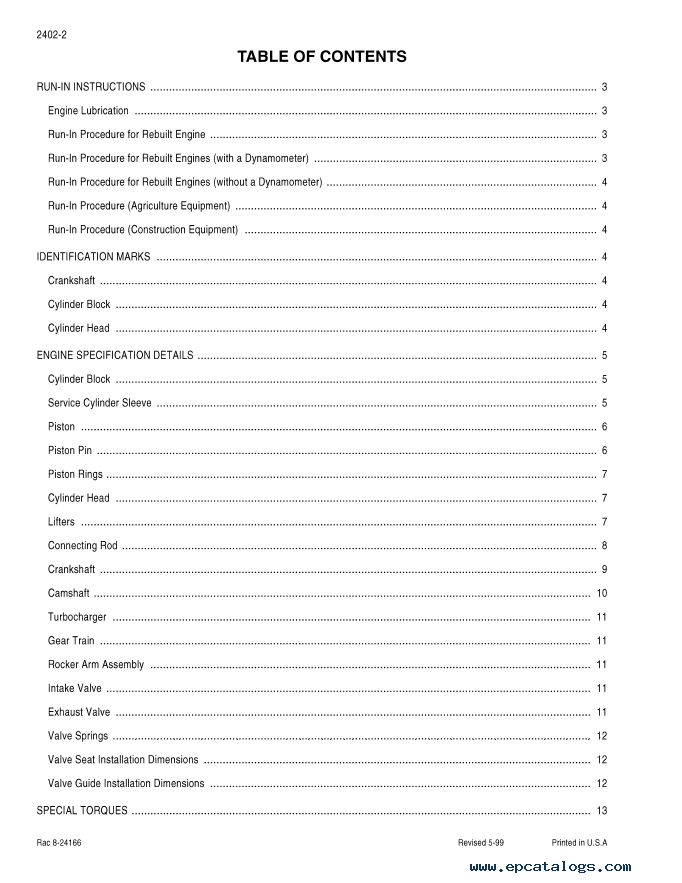

CONTENTS:
Standard torque Specifications
Locate product chart
Specification Details
Aftercooler
Cylinder Head and Valve Train
Cylinder Block
Lubrication System
Balancer
Cooling System
Turbocharger
HX25W and HX30W Turbocharger
Fuel System and Filters
Fuel Injectors
CAV Fuel Injection Pump
Bosch model VE fuel injection pump
Bosch model A fuel injection pump
