Case 361, 407 Diesel Engine and Fuel System Service Manual PDF

Presented for you, the PDF Service Manual which divided into 4 sections( Engine, Fuel System, Turbocharger(Solar), and Turbocharger(Schwitzer). The factory file will help you solve any problems or perform procedures and answer all your questions. The electronic guide includes detailed instructions for troubleshooting, a full section about technical maintenance, efficient service procedures, safety, repair recommendations, installation instructions, the engine section for Case 361, 407 Diesel Engine and Fuel System models.

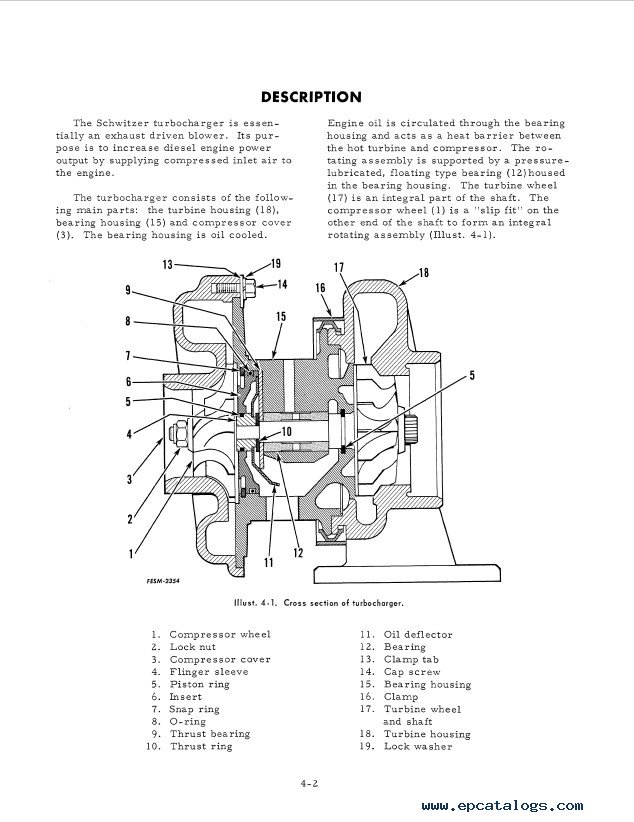

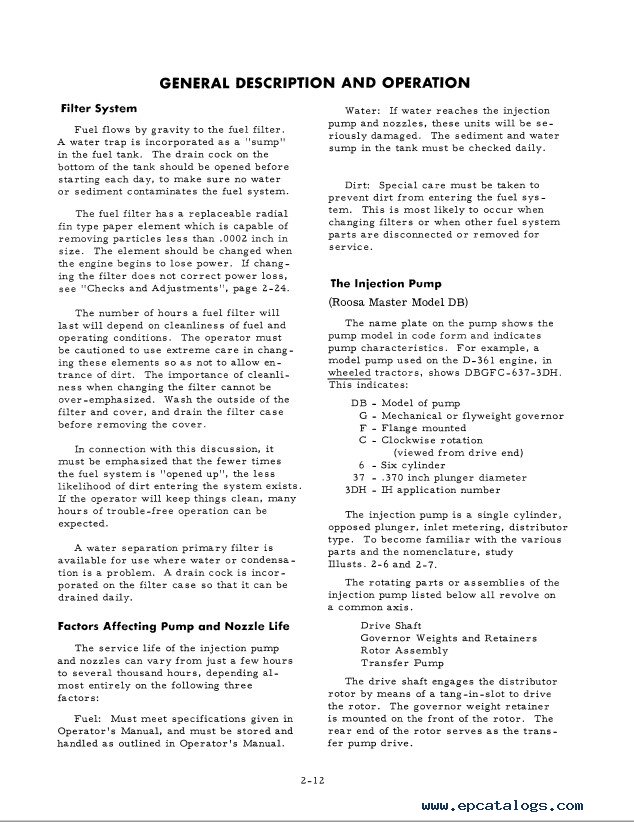

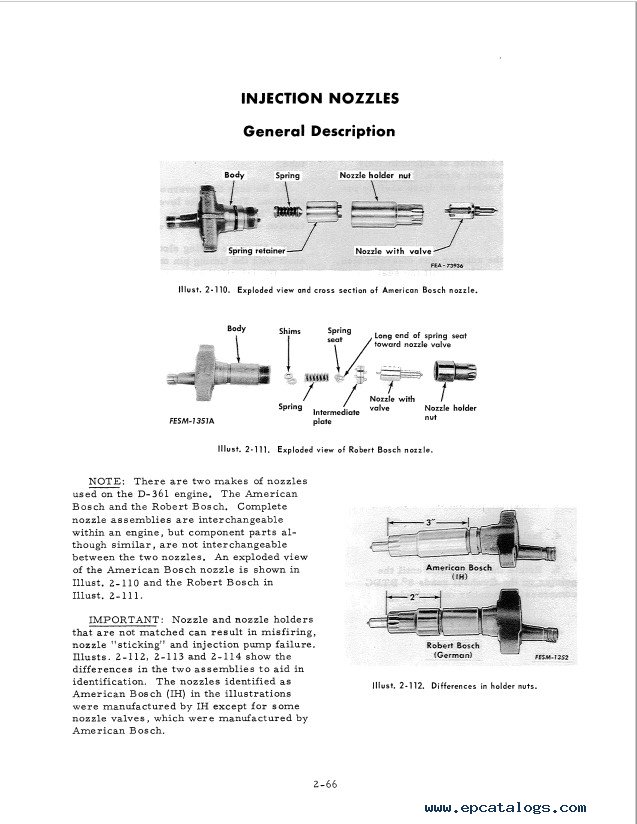

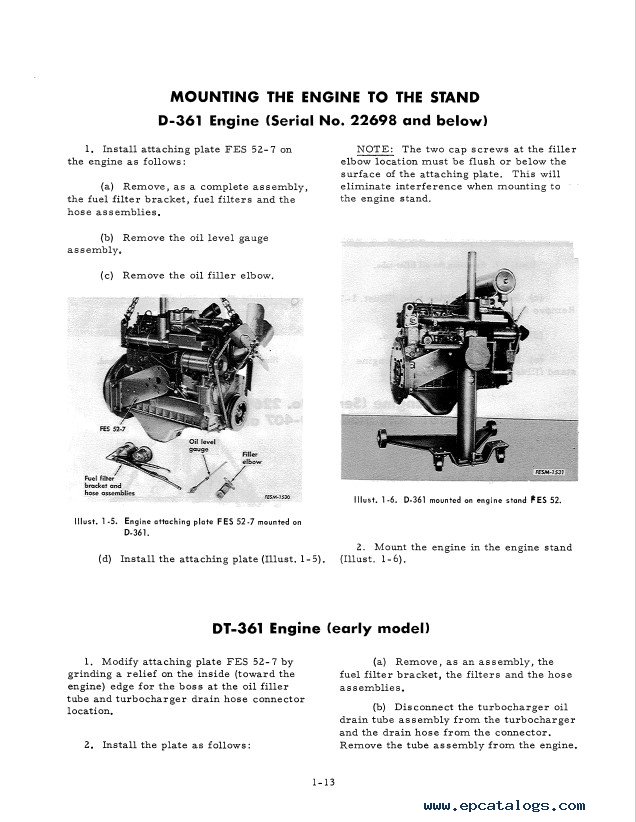

Also, you can find a lot of necessary screenshots and different diagrams, many helpful schemes which help you easily and quickly learn and understand all the text. First of all, you should read all the tutorials about Case 361, 407 Diesel Engine and Fuel System models, it is especially important to review the safety information. This high-quality indexed pages on English with search function. In order to view, as well as print or save the necessary information, we recommend installing the Adobe PDF Reader program. This is an online high-quality file consist of 230 pages. If you still have any questions that concern this service manual, contact us, we provide after-sales support.

Models:  361, 407

Table of Contents:

• 1. ENGINE
  • Cylinder sleeve puller
  • Pulling adapter plate, 361 Series
  • Pulling adapter plate, 407 Series
  • Cylinder sleeve installing plate, 361 Series
  • Cylinder sleeve installing and flange height gauge, 407 Series
  • Expanding adapter
  • Expanding screw
  • Forcing screw adapter
  • Engine stand
  • Engine attaching plate (late model engines)
  • Engine attaching plate
  • Dial indicator
  • Crankshaft rear oil seal installing tool
  • Piston ring ''Drop" fixture
  • Injector nozzle sleeve driver
• 2. Fuel System
  • Compound gauge
  • Hose assembly
  • Roosa master kit
  • Throttle shaft bushing installing ki1
  • Magnifying glass
  • Brass wire brush
  • Fuel tester hand pump
  • Nozzle adapter kit
  • 90°
  • adapter
  • Nozzle tester adapter assembly
• 3. Fuel System-Continued
  • Fuel Rator
  • Fittings for fuel rator
  • Tee
  • Portable tachometer
  • Injection Pump Adapter
• 4. Solar Turbocharger
  • Hose assembly
  • Female connector
  • Gauge 0-60 psi
  • Flare tube connector
  • Seal ring assembly tool
  • Bearing extractor
• 5. Turbocharger(Schwitzer)
  • Hose assembly
  • 3/8" male tube x 1/4" NPT female connector
  • Gauge 0-60 psi
  • Flare tube connector
