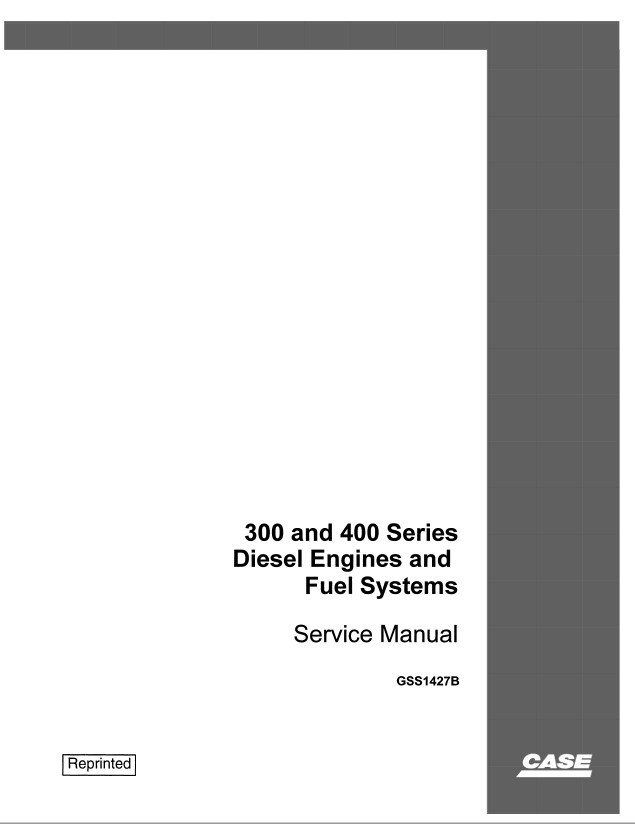

Case 300 and 400 Series Diesel Engine and Fuel Systems Service Manual PDF

The service manual was written for technical maintenance, correct use, step by step repair, and troubleshooting procedures for Case 300 and 400 Series Diesel Engine and Fuel Systems models. Electronic guide will help to identify existing failures and to prevent further malfunctions and also will help in the maintenance and repair procedures. Online file divided into three important sections (engine, fuel system, turbocharger) which include safety rules, information about service tools, system section, specifications, engine information, assembly, installation, service instruction, illustrations, diagrams and schemes for Case 300 and 400 Series Diesel Engine and Fuel Systems models.

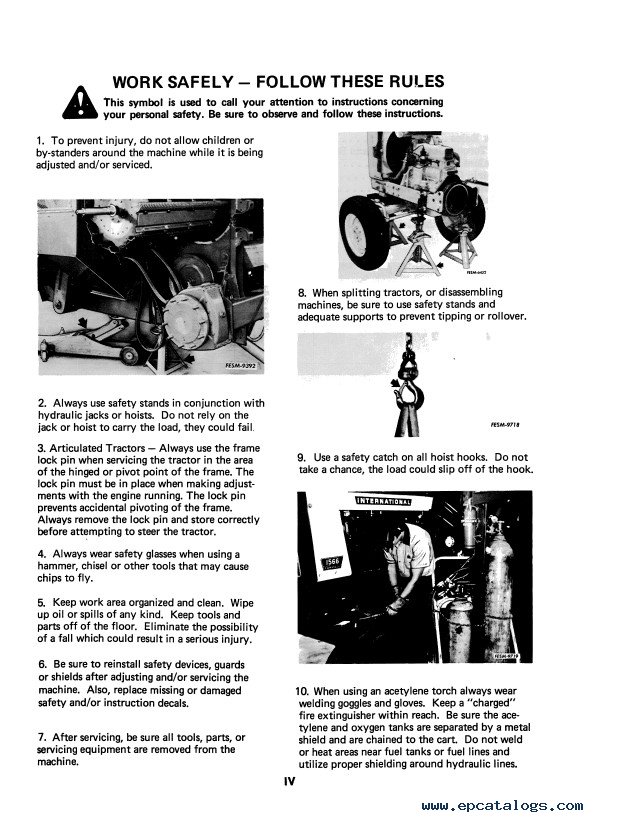

Before using or servicing this Case device, we recommend that you read this tutorial and pay attention to the "safety" section and follow their detailed recommendations and instructions. This factory text in PDF format and has 462 pages for reading. You are buying a product in one click on our site.
After that, we send you this information by email to your email address within 5-10 minutes of your purchase. Thanks to the PDF format, it is possible to print the entire information or the individual diagrams. If you still have any questions that concern this service manual - contact us, we provide the after-sale support.

Models: 300 and 400 Series

Table of Contents:

Section 1 - Engine

Special Nut and Bolt Torque Data
Introduction
Problem and Analysis Guide
Engine Checks Before Disassembly
Checking Engine Assembled
Checks During Engine Disassembly
Checks Prior to Reassembly
Checks During Engine Reassembly
Checks Prior to Engine Startup
Engine Start-Up
Specifications
Mounting Engine on Stand
Manifolds
Cylinder Head and Valves
Valve Train - Camshaft, Tappets and Push Rods
Timing Gear Train and Front Cover
Connecting Rods, Pistons, Rings and Sleeves
Crankshaft, Main Bearings, Flywheel and Crankcase
Lubrication System
Cooling System

Section 2 - FUEL SYSTEM

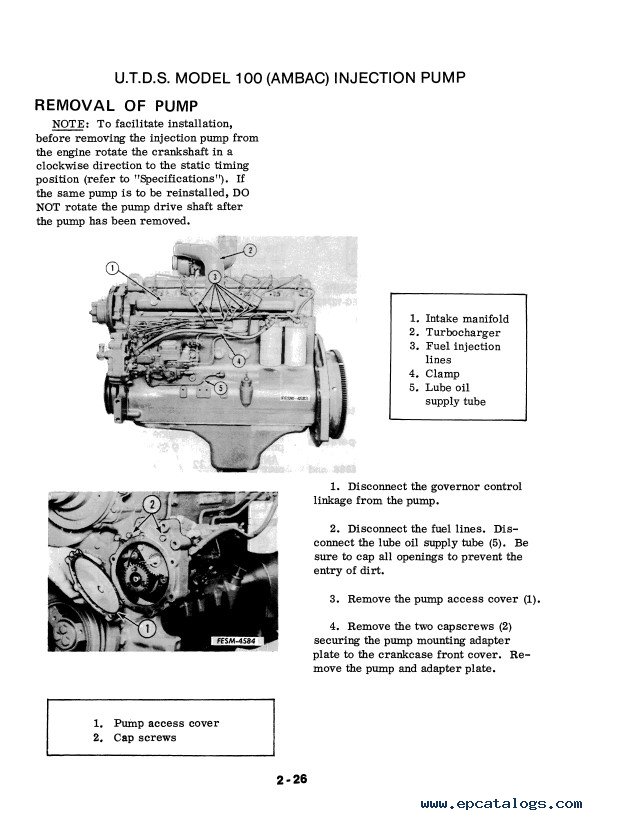

U.T.D.S. MODEL 100 (AMBAC) INJECTION PUMP
ROBERT BOSCH MODEL MW INJECTION PUMP

1. UNITED TECHNOLOGIF.S DIF.SEL SYSTEM (U. T.D.S.) MODEL 100 - formerly American
Boseh (AMBAC) Model 100 INJECTION PUMP
Pages 2 - 2 thru Page 2 - 129
2. ROBERT BOSCH MODEL MW INJECTION PUMP
Pages 2 -131 thru Page 2 -171
3. NOZZLES AND NOZZLE HOLDERS FOR USE WITH MODEL 100 AND MODEL M-W.
Pages 2 -173 thru Page 2 -183

Section 3 - TURBOCHARGER

SPECIFICATIONS
DESCRIPTION
GENERAL MAINTENANCE AND CLEANING PROCEDURE
INSPECTION BEFORE REMOVAL
TURBOCHARGER TESTING
REMOVAL
SERVICING OF AIR INDUCTION SYSTEM
AFTER A TURBOCHARGER COMPRESSOR FAILURE
AIRESEARCH TURBOCHARGER
SCHWITZER TURBOCHARGER
INSTALLATION
