Case 2142, 2152, 2162 CA20 Combine Adapter Draper Header Set of Manuals PDF

A set of service manuals was developed for maintenance, correct use, repair, and troubleshooting material of Case 2142, 2152, 2162 CA20 Combine Adapter Draper Header models. Factory files help to identify existing and potential problems and solve them. This tutorial consists of sections about installation instructions, safety rules, setting, correct use, system section, specifications, many illustrations, different tables, and diagrams.

The main thing is to read and follow all the rules, advice, and recommendations for using this equipment before starting work with it to avoid any breakdowns, malfunctions, and injuries. An online text comes in PDF format in English. You can work with this electronic set after installing Adobe PDF Reader.  All pages are printable and readable. Feel free to contact us if you have any problems with installation or maintenance. We will be happy to assist you and answer all questions.

This information is divided into two files:

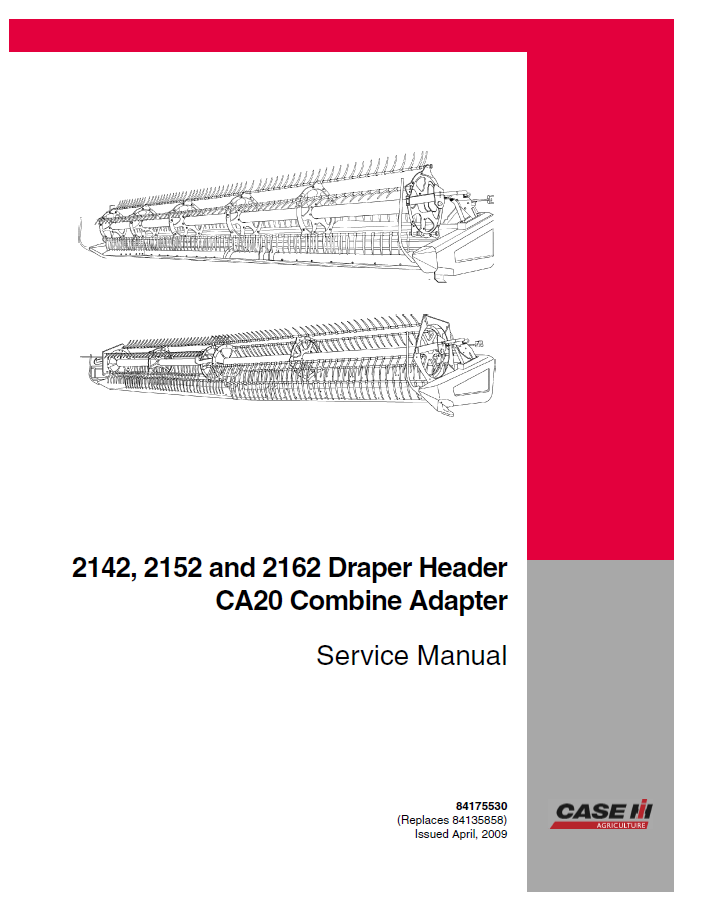

1. Case 2142, 2152, and 2162 Draper Header CA20 Combine Adapter Service Manual
2. 2142, 2152, 2162 CA20 Combine Adapter Draper Header OPERATOR’S MANUAL

Models: 2142, 2152, 2162

General Table of Contents:

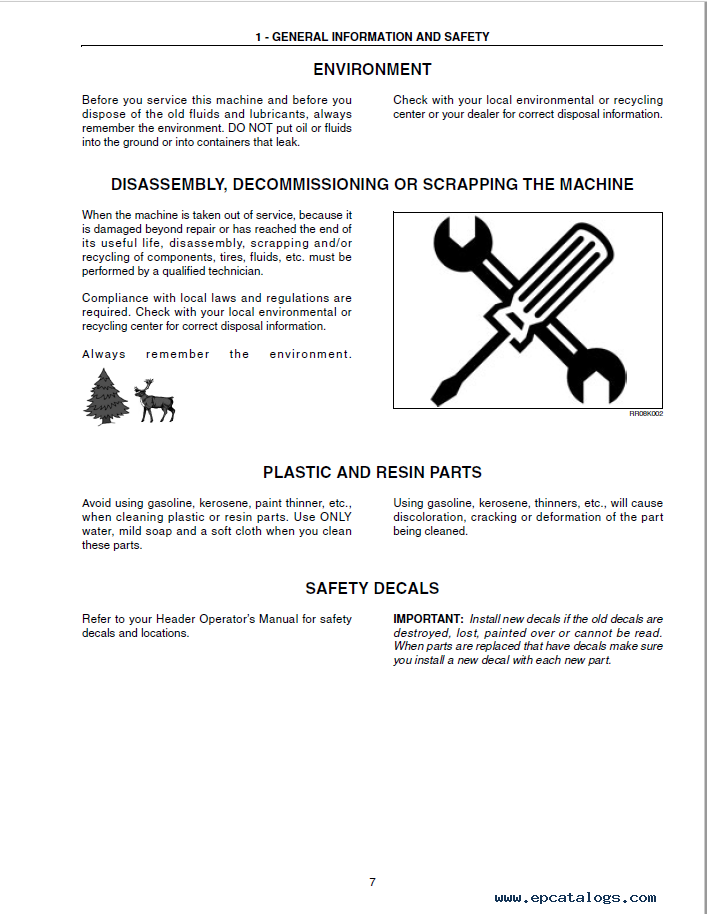

1. GENERAL INFORMATION
2. SAFETY INFORMATION
3. TRANSPORT OPERATIONS
SHIPPING TRANSPORT
4. WORKING OPERATIONS
GENERAL INFORMATION
FEEDING Header feeding
5. MAINTENANCE
GENERAL INFORMATION
MAINTENANCE CHART
STORAGE
6. SPECIFICATIONS
7. ACCESSORIES
8. FORMS AND DECLARATIONS
9. TROUBLESHOOTING
10. GENERAL PROCEDURES
11. KNIFE DRIVE

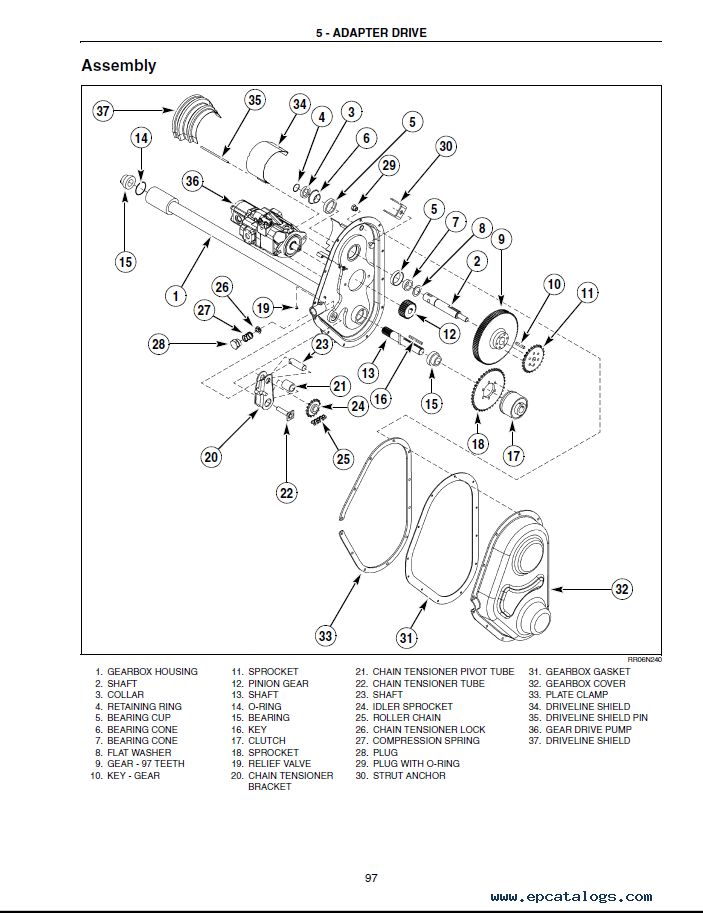

12. ADAPTER DRIVE
13. DRAPER DRIVE
14. REEL DRIVE

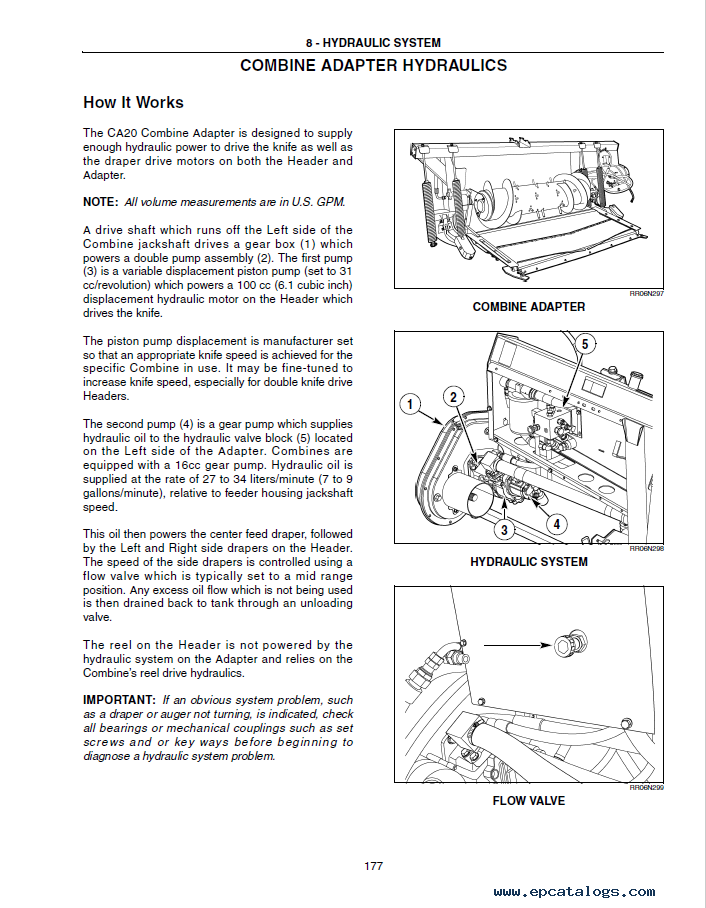

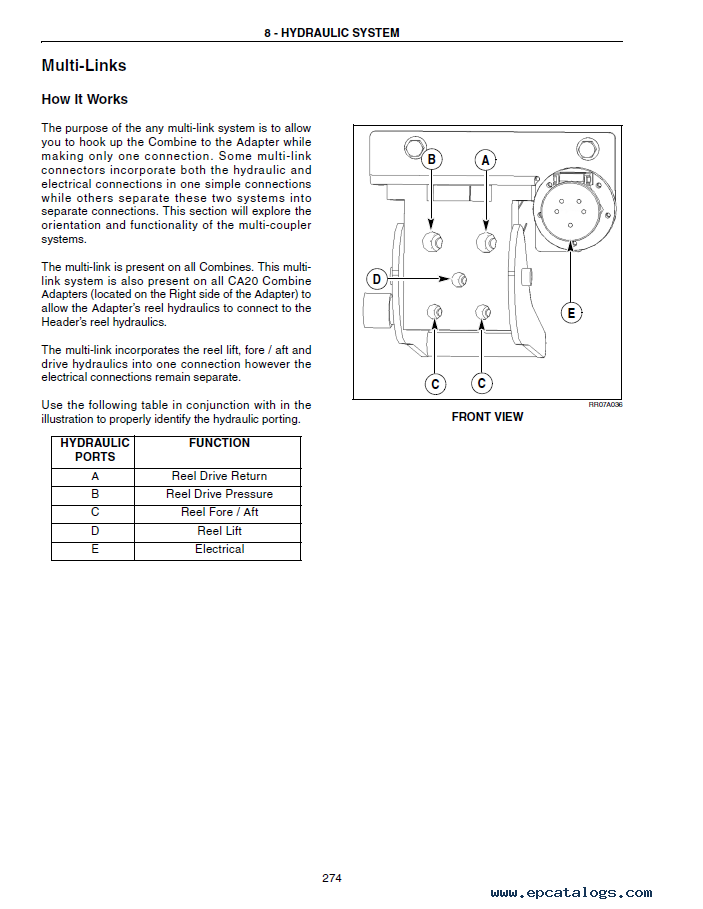

15. HYDRAULIC SYSTEM
16. ELECTRICAL SYSTEM
17. FLEX LINKAGE
18. STRUCTURE
