Bobcat 60, 72, 84, 96, 108 Inch V - Blade Service Manual PDF

This service manual provides detailed service information, special instructions for repair and maintenance, troubleshoot and other additional service information for Bobcat V-Blade 60, 72, 84, 96, 108 Inch.
Service manual allows you to identify and solve problems and inaccuracies.
This manual comes in PDF format. All pages are printable and readable. We recommend to use Adobe PDF Reader, to be sure all images / graphics will display correctly.

Note: this product covers 2 PDF files for Bobcat V-Blade 60, 72, 84, 96, 108 Inch models.

Models covered:
60 Inch-14 Pin
60 Inch-7 Pin
72 Inch
84 Inch
96 Inch
108 Inch

Serial numbers:
(60 In.-14 Pin) S/N 083800101 & Above
(60 In.-7 Pin) S/N 084300101 & Above
(72 In.) S/N 083900101 & Above
(84 In.) S/N 084000101 & Above
(96 In.) S/N 084100101 & Above
(108 In.) S/N 084200101 & Above

(V-Blade 60 Man) S/N A01800101 & Above
(V-Blade 60) S/N 083800101 & Above
(V-Blade 60 7-Pin) S/N 084300101 & Above
(V-Blade 72) S/N 083900101 & Above
(V-Blade 72 Man) S/N A00900101 & Above
(V-Blade 84) S/N 084000101 & Above
(V-Blade 96) S/N 084100101 & Above
(V-Blade 108) S/N 084200101 & Above

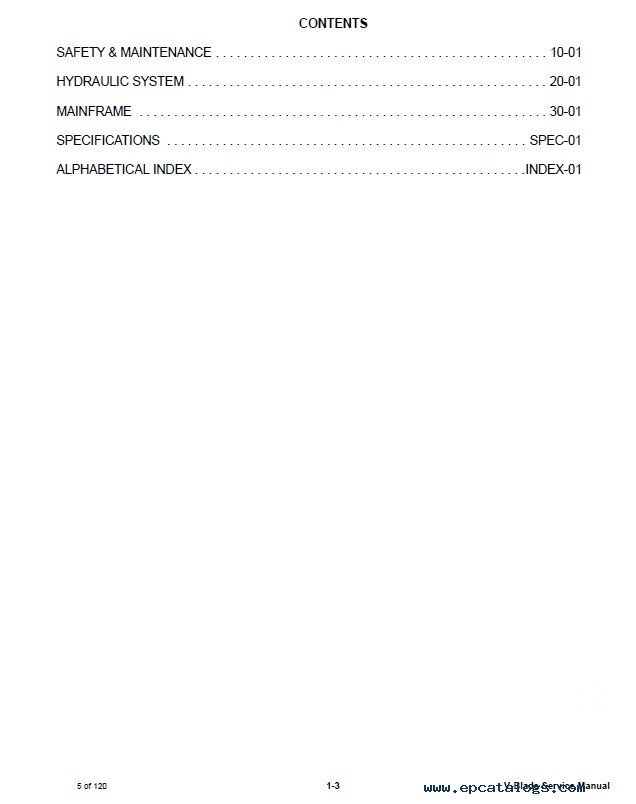

CONTENTS:

• SAFETY & MAINTENANCE
  •     TROUBLESHOOTING
  •     DAILY INSPECTION
  •     LUBRICATING THE ATTACHMENT
  •     CUTTING EDGE
  •     SKID SHOE
  •     TRIP SPRINGS
• HYDRAULIC SYSTEM

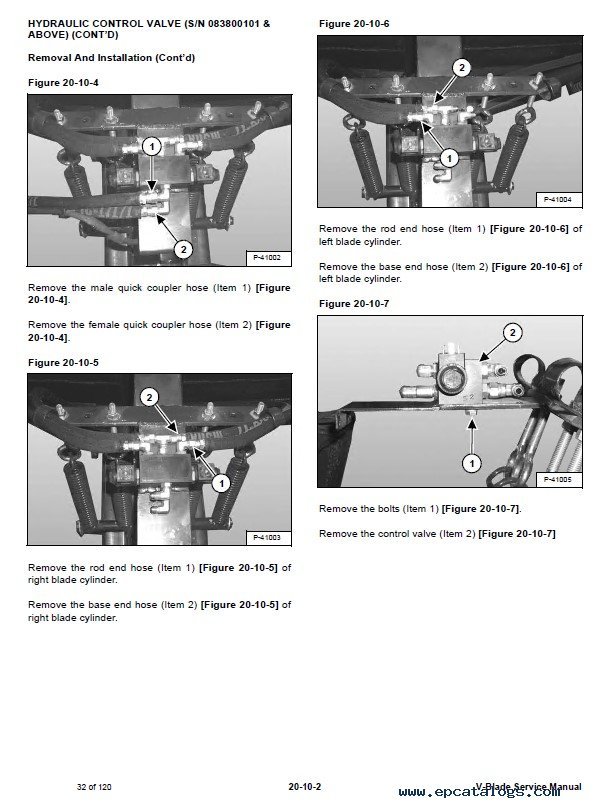

  •     HYDRAULIC CONTROL VALVE (S/N 083800101 & ABOVE)
  •     HYDRAULIC CONTROL VALVE (S/N 083900625 & BELOW, S/N 084000684 & BELOW, S/N 084100822 & BELOW, S/N 084200563 & BELOW, S/N 084300230 & BELOW)

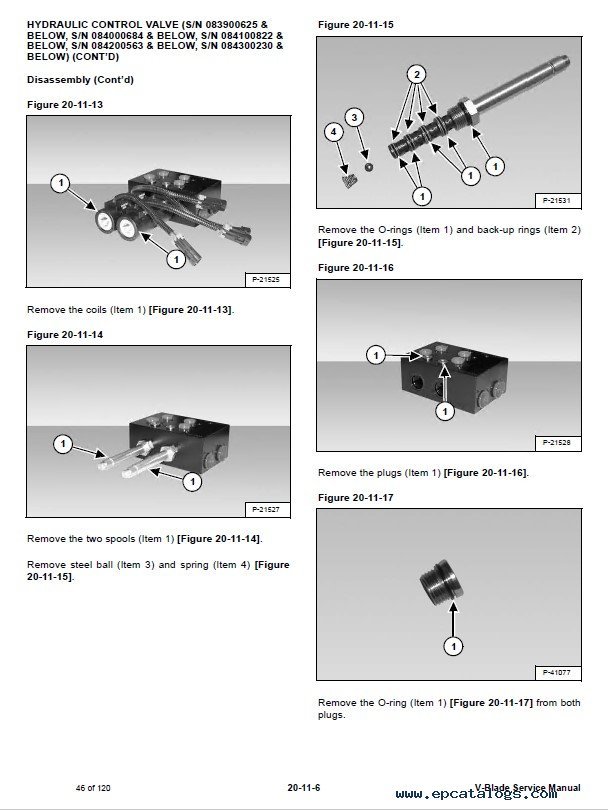

  •     HYDRAULIC CONTROL VALVE (S/N 083900626 & ABOVE, S/N 084000685 & ABOVE, S/N 084100823 & ABOVE, S/N 084200564 & ABOVE, S/N 084300231 & ABOVE)
  •     HYDRAULIC CYLINDER (S/N 083800101 & ABOVE & S/N 084300101 & ABOVE)
  •     HYDRAULIC CYLINDER (S/N 083900101 & ABOVE, S/N 084000101 & ABOVE, S/N 084100101 & ABOVE, S/N 084200101 & ABOVE)
• MAIN FRAME
  •     BLADE ASSEMBLY
  •     BLADE EXTENTIONS
  •     CENTER SECTION
  •     FLOATING CENTER SECTION
• SPECIFICATIONS
  •     ELECTRICAL SCHEMATIC (14-PIN)
  •     ELECTRICAL SCHEMATIC (7-PIN CONNECTOR)
  •     ELECTRICAL SCHEMATIC (7-PIN CONNECTOR WITH 14-PIN ADAPTER HARNESS)
  •     HYDRAULIC SCHEMATIC
  •     V-BLADE SPECIFICATIONS (V-BLADE 60, V-BLADE 60 MAN, V-BLADE 60 7-PIN)
  •     V-BLADE SPECIFICATIONS (V-BLADE 72, V-BLADE 72 MAN, V-BLADE 84)
  •     V-BLADE SPECIFICATIONS (V-BLADE 96, V-BLADE 108)
  •     TORQUE SPECIFICATIONS FOR BOLTS
  •     HYDRAULIC CONNECTION SPECIFICATIONS
