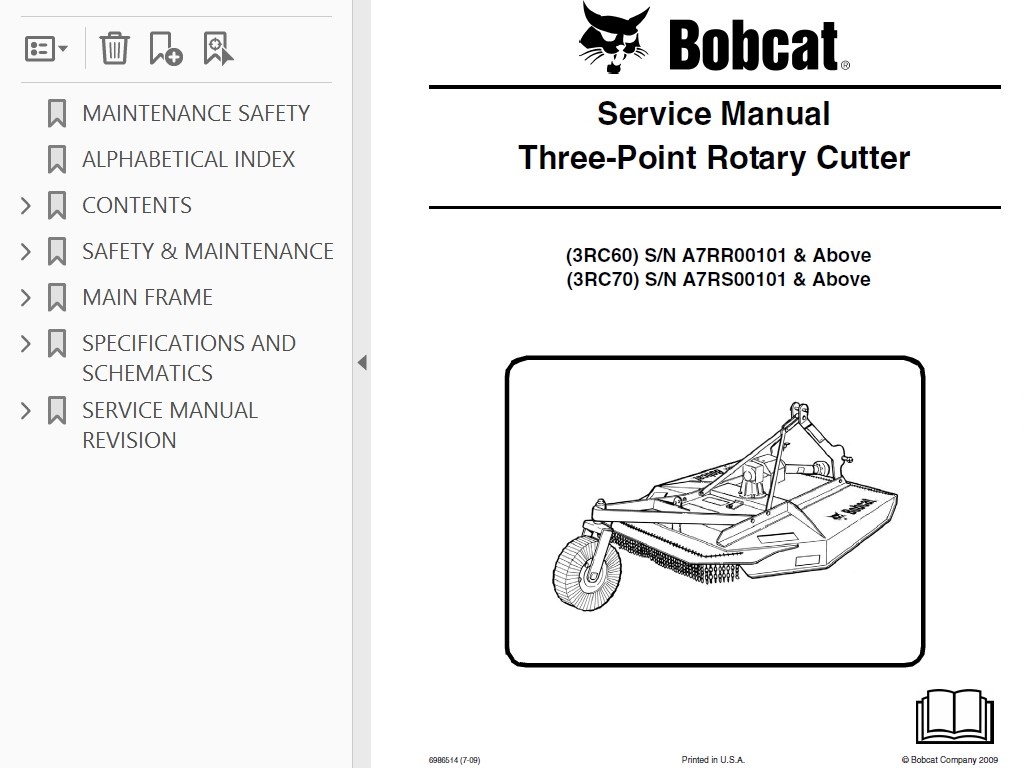

Bobcat 3RC60/SB/SC, 3RC70, 3RC72SB/SC Three-Point Rotary Cutter Service Manual PDF

This Service manual is all important information and helpful instruction for the correct use of Bobcat 3RC60/SB/SC, 3RC70, 3RC72SB/SC Three-Point Rotary Cutter. Electronic guide provides technical service information, instructions for repair and maintenance, troubleshooting, safety rules, removal, and installation, specifications, many diagrams and schemes, illustrations, and tables. Factory file allows to detection and elimination of problems encountered and inaccuracies.

We advise you to read the operating and safety instructions. Strictly follow all safety instructions in order to avoid any technical breakdowns or serious injuries. This tutorial in PDF format in English. In order to view, as well as print the necessary information - we recommend installing the Adobe PDF Reader program. If you have any questions - write to us about them and we will help you.

Note: this product covers 2 PDF files for Bobcat Three-Point Rotary Cutters of 2009 and 2010 years.

Models covered:
3RC60,
3RC70,
3RC60SB,
3RC60SC,
3RC72SB,
3RC72SC.

Serial numbers:
(3RC60) S/N A7RR00101 & Above
(3RC70) S/N A7RS00101 & Above

(3RC60SB) S/N AL1M00101 & Above
(3RC60SC) S/N AL1K00101 & Above
(3RC72SB) S/N AL1N00101 & Above
(3RC72SC) S/N AL1L00101 & Above

CONTENTS:

• SERIAL NUMBER LOCATION
• MANUAL STORAGE
• DELIVERY REPORT
• IDENTIFICATION AND MACHINE SIGNS (DECALS)
• SAFETY & MAINTENANCE
  •     ATTACHMENT STORAGE AND RETURN TO SERVICE
  •     LUBRICATING THE ATTACHMENT
  •     REGULAR MAINTENANCE ITEMS
  •     REMOVAL AND INSTALLATION OF CHAIN GUARDS
  •     REMOVAL AND INSTALLATION OF SHEAR BOLT (GRADE 2)
  •     SERVICE SCHEDULE
  •     TROUBLESHOOTING
• MAINFRAME
  •     CASTER WHEEL
  •     CUTTING BLADES

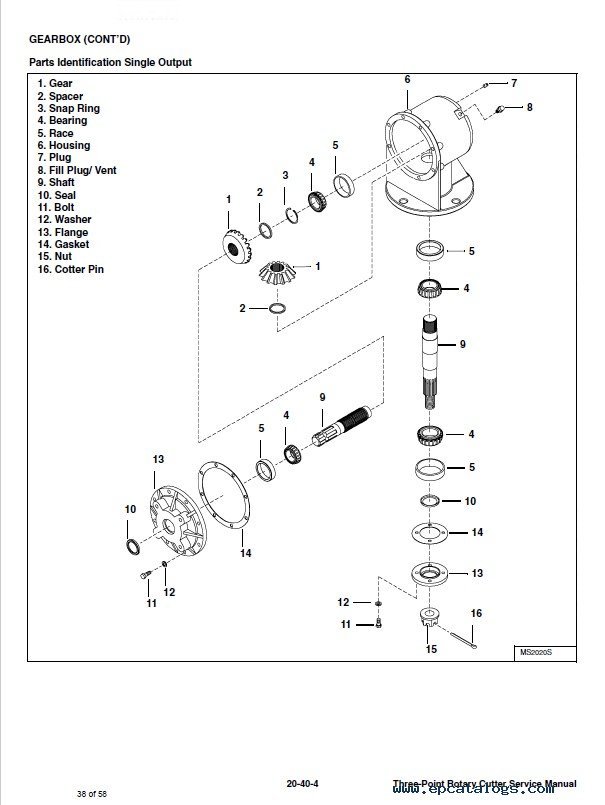

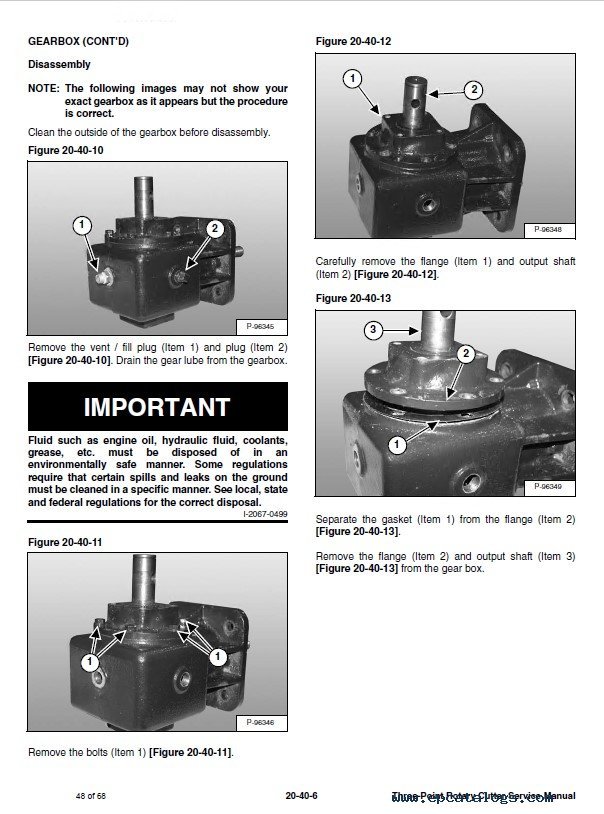

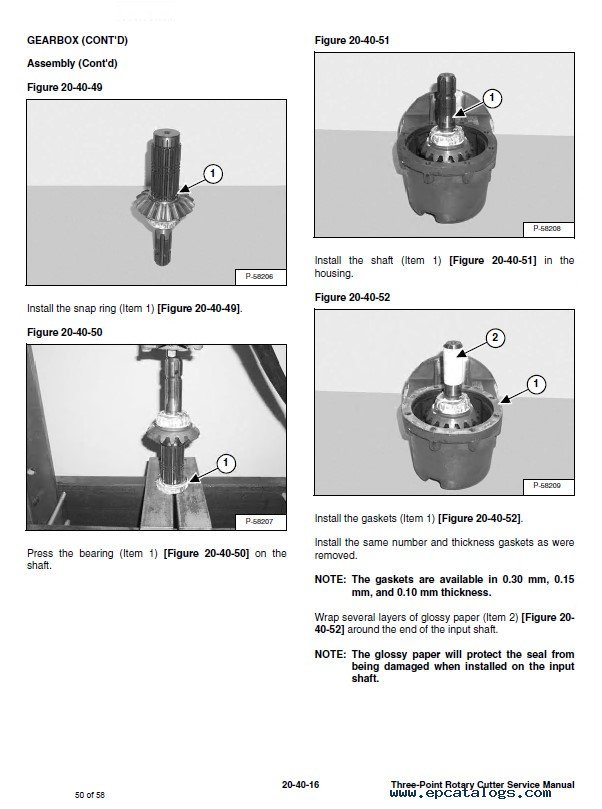

  •     GEARBOX
  •     PTO DRIVELINE
• SPECIFICATIONS AND SCHEMATICS
  •     (3RC60, 3RC70) SPECIFICATIONS
