Bobcat 3FM60, 3FM72, 3FM84 Three-Point Finish Mower Service Manual PDF

This service manual includes instructions for repair and technical maintenance, safety rules and service instruction, specifications, many schematics, and diagrams, and screenshots for Bobcat Three-Point Finish 3FM60, 3FM72, 3FM84. The electronic tutorial allows detecting and elimination of problems encountered and inaccuracies.

But important to read the safety rule before using your device to avoid various technical breakdowns, damage, malfunction, and injuries. An online text comes in PDF format, all pages are printable. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly.  If you have questions, please write to us on our email - we will provide you after-sales service support.

Note: this product covers 2 PDF files for Bobcat Three-Point Finish 3FM60, 3FM72, 3FM84 models of 2009 and 2010 years.

Models covered:
3FM60,
3FM72,
3FM84.

Serial numbers:
(3FM60) S/N AL1C00101 & Above
(3FM72) S/N AL1D00101 & Above
(3FM84) S/N AL1E00101 & Above

(3FM84) S/N AF4500101 & Above

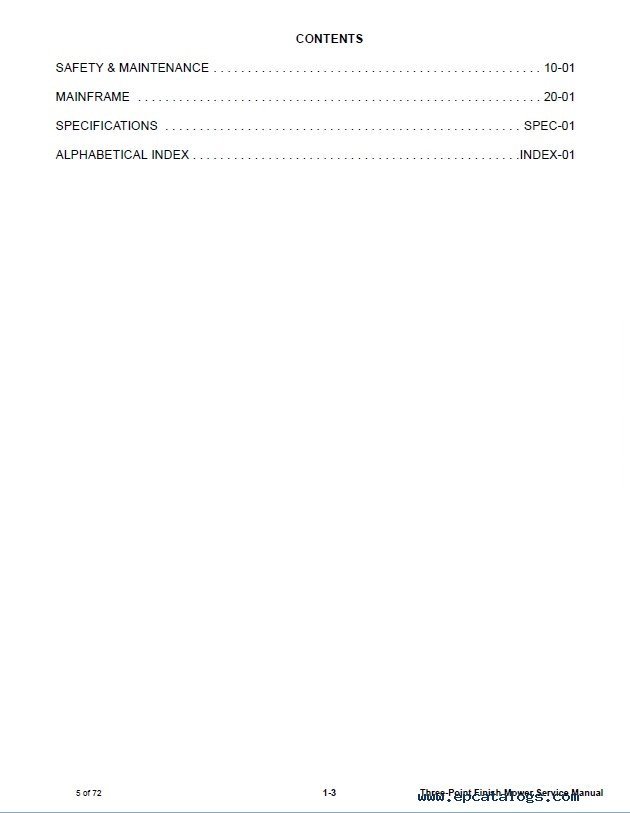

CONTENTS:

• FOREWORD
  •     SERIAL NUMBER LOCATION
  •     DELIVERY REPORT
  •     MANUAL STORAGE LOCATION

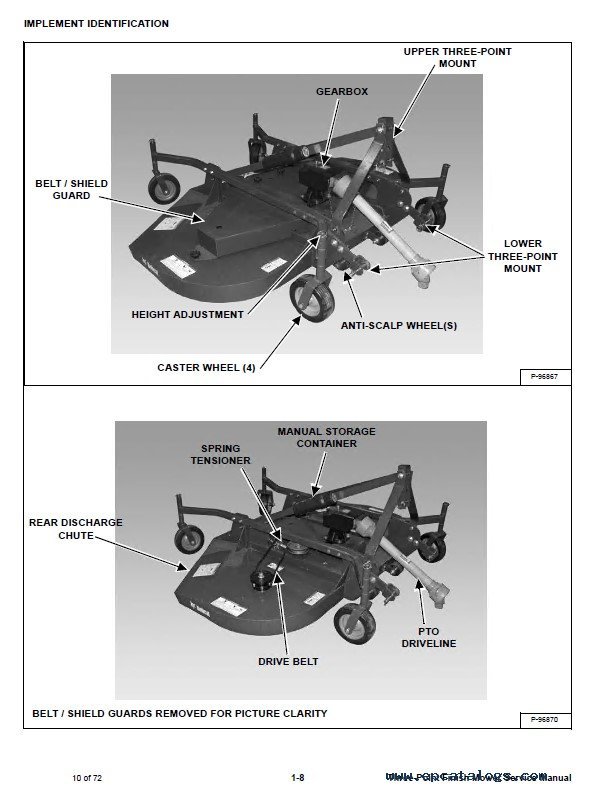

  •     IMPLEMENT IDENTIFICATION
  •     IMPLEMENT SIGNS (DECALS)
• SAFETY & MAINTENANCE
  •     TROUBLESHOOTING
  •     SERVICE SCHEDULE
  •     INSPECTION
  •     REMOVAL AND INSTALLATION OF CUTTING BLADES
  •     REMOVAL AND INSTALLATION OF BELT
  •     REGULAR MAINTENANCE ITEMS
  •     IMPLEMENT STORAGE AND RETURN TO SERVICE
  •     LUBRICATING THE IMPLEMENT
• MAINFRAME
  •     CASTER WHEEL
  •     PTO DRIVELINE

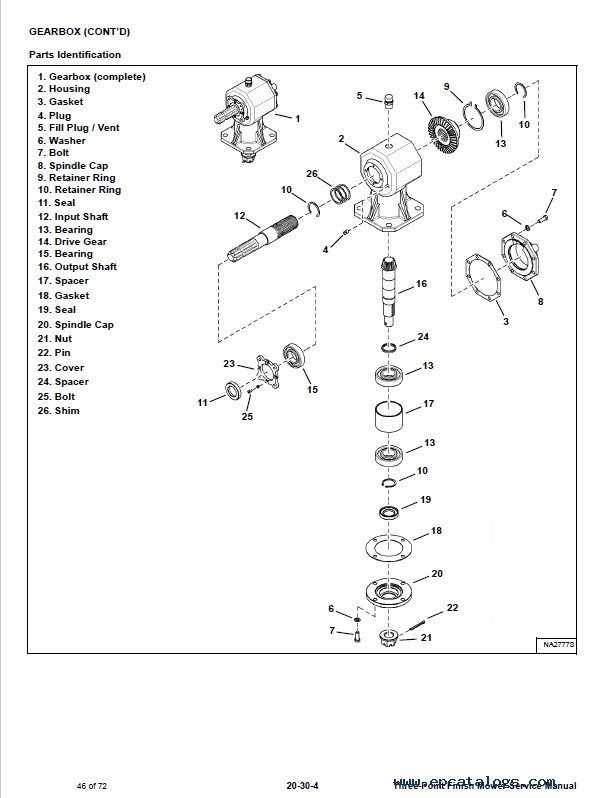

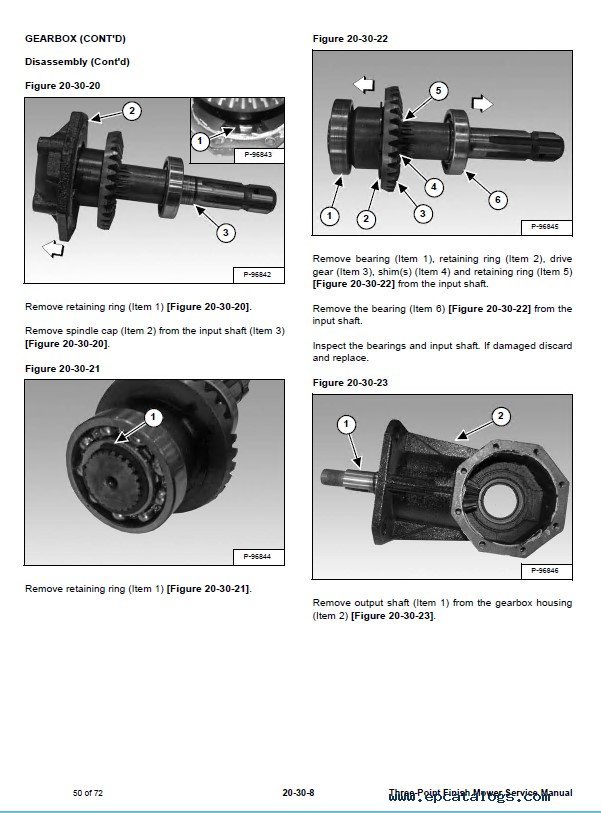

  •     GEARBOX
  •     BLADE SPINDLE
  •     ANTI-SCALP WHEEL
  •     SUPPORT ARM BUSHING
• SPECIFICATIONS
  •     THREE-POINT FINISH MOWER SPECIFICATIONS
  •     TORQUE SPECIFICATIONS FOR BOLTS
• ALPHABETICAL INDEX
