Bobcat 14, 18 Hyd, 24 Hyd, Surface, 40 Hyd, Curb Planers Service Manual PDF

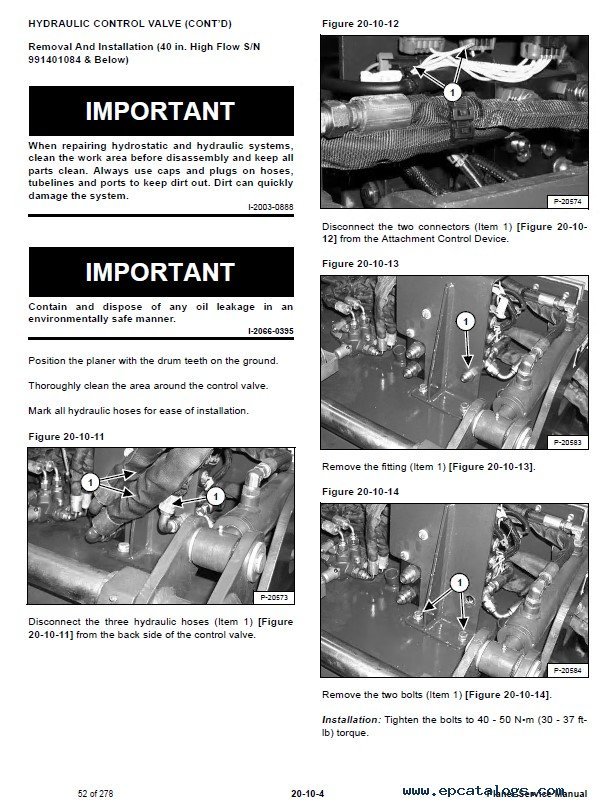

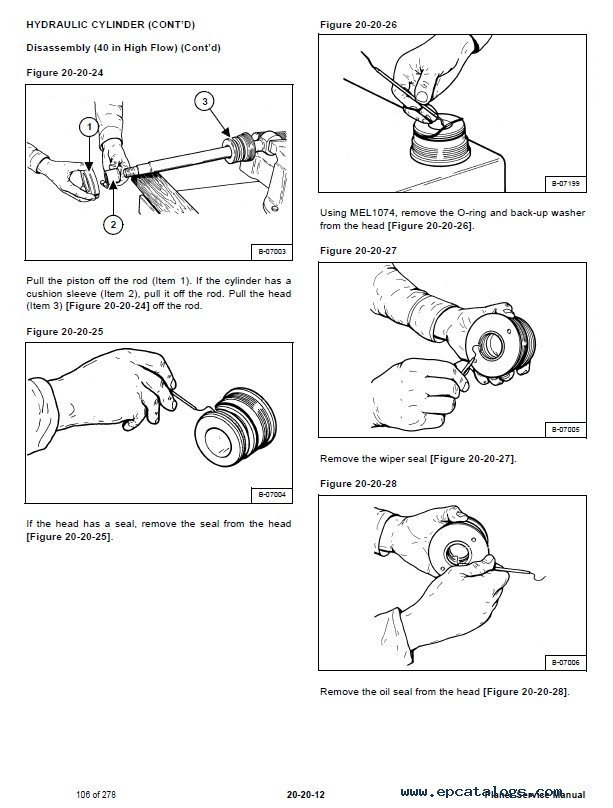

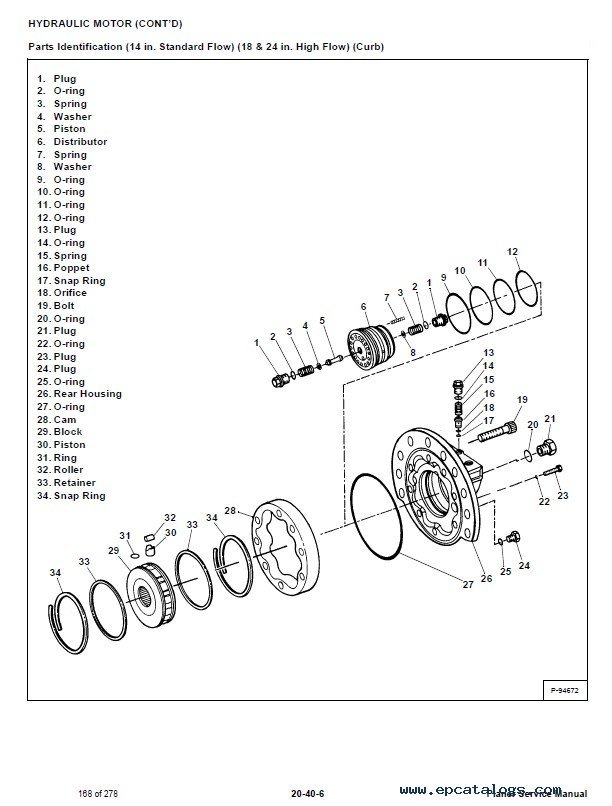

The service manual contains technical service information, description of repair and troubleshoots procedures, installation instructions, safety rules, and other service material for Bobcat Planers. Electronic instruction contains a lot of pictures, diagrams, and schemes that help you to get a detailed description with pictures of Bobcat planers, using which you can determine the installation location details, etc.

Factory file helps to quickly and easily serve and troubleshoot equipment, solve any problems and faults. This online text is presented in PDF format. We recommend using Adobe PDF Reader, to be sure all images/graphics will display correctly. Note: this product covers 3 PDF files for Bobcat 14 Planer, 18 Hyd Planer, 24 Hyd Planer, Surface Planer, 40 Hyd Planer, Curb Planer of 2011 and 2015 years.

Models:
14 Planer,
18 Hyd Planer,
24 Hyd Planer,
Surface Planer,
40 Hyd Planer,
Curb Planer.

Serial numbers:
(14 Planer) S/N 231200101 & Above
(18 Hyd Planer) S/N 231611101 & Above
(24 Hyd Planer) S/N 231711101 & Above
(Surface Planer) S/N 231100101 & Above
(40 Hyd Planer) S/N 991400101 & Above
(Curb Planer) S/N 234000101 & Above

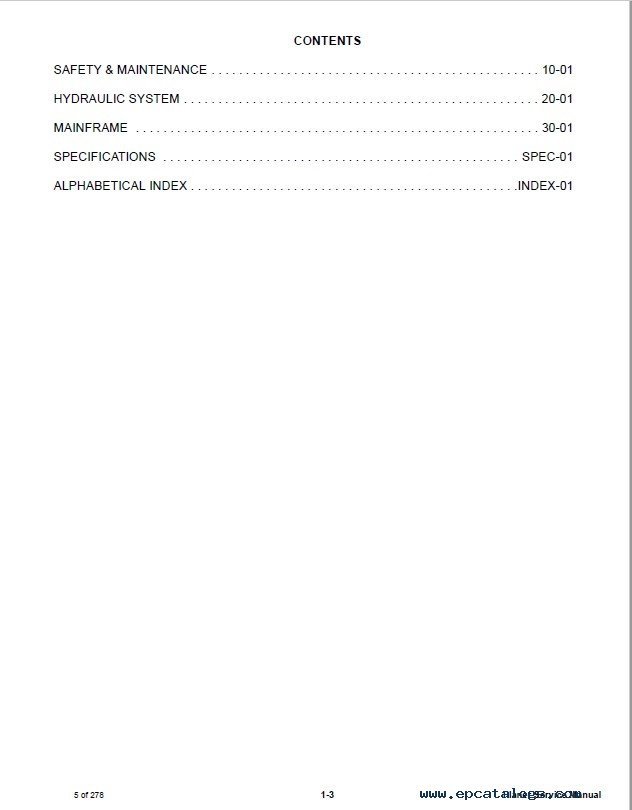

CONTENTS:

• FOREWORD
  •     SERIAL NUMBER LOCATION
  •     DELIVERY REPORT
  •     IDENTIFICATION AND MACHINE SIGNS (DECALS)
• SAFETY & MAINTENANCE
  •     TROUBLESHOOTING
  •     INSPECTION
  •     LUBRICATING THE ATTACHMENT
  •     DRUM
  •     RUBBER SKIRT
  •     DRIVE CARRIER
• HYDRAULIC SYSTEM
  •     HYDRAULIC CONTROL VALVE
  •     HYDRAULIC CONTROL VALVE (40 IN. HIGH FLOW S/N 991401085 & ABOVE)
• MAINFRAME
  •     MOUNTING BARS
  •     WHEELS
  •     SKI(S)
  •     DRUM HOUSING
  •     DRUM
  •     ACD (ATTACHMENT CONTROL DEVICE)
  •     ADJUSTMENT SCREW
  •     ANGLE LOCK PIN
  •     DEPTH ADJUST
• SPECIFICATIONS
  •     SPECIFICATIONS
  •     HYDRAULIC SYSTEM INFORMATION
  •     SCHEMATICS (14 IN. STANDARD FLOW)
  •     SCHEMATICS (18 & 24 IN. HIGH FLOW) (16 IN. SURFACE)
  •     SCHEMATICS (40 IN. HIGH FLOW)
  •     SCHEMATICS (CURB)
• ALPHABETICAL INDEX
