Bobcat 1213 Loader Service Manual PDF

Service manual gives the owner/operator necessary operating, servicng and adjustment of the Feller Buncher and overhaul instructions of the drive system, loader hydraulic/hydrostatic system and general main frame parts.

CONTENTS:

• FOREWORD
• MAINTENANCE SAFETY
• PREVENTIVE MAINTENANCE
  •     AIR CLEANER SERVICE
  •     COLD TEMPERATURE STARTING
  •     COOLING SYSTEM
  •     ELECTRICAL SYSTEM
  •     ENGINE OIL AND FILTER
  •     FELLER DRIVE TRANSMISSION
  •     FOOT PEDAL AREA
  •     FUEL SYSTEM
  •     HYDRAULIC AND HYDROSTATIC SYSTEM
  •     LIFT ARM STOP
  •     LIFTING AND BLOCKING THE FELLER BUNCHER
  •     OPERATOR CAB
  •     PARKING BRAKE ADJUSTMENT
  •     PIVOT PINS
  •     REAR DOOR
  •     REMOTE START SWITCH
  •     SERVICE SCHEDULE
  •     SPARK ARRESTOR MUFFLER
  •     TIRE MAINTENANCE
  •     TRACKS
  •     TRANSPORTING THE FELLER BUNCHER
• HYDRAULIC SYSTEM
  •     FRONT HYDRAULIC VALVE
  •     HYDRAULIC CONTROL PEDALS
  •     HYDRAULIC CYLINDER REPAIR
  •     HYDRAULIC FLUID FILTER HOUSING
  •     HYDRAULIC PUMP
  •     HYDRAULIC RESERVOIR & PORT BLOCK
  •     HYDRAULIC SYSTEM INFORMATION
  •     HYDRAULIC VALVE MAIN RELIEF
  •     LIFT CYLINDER
  •     PEDAL LOCK LINKAGE
  •     REAR CYLINDER LOCK VALVE
  •     REAR HYDRAULIC VALVE
  •     REAR LEVELING CYLINDER
  •     TILT CYLINDER
  •     TROUBLESHOOTING
• HYDROSTATIC SYSTEM
  •     FRONT AND SIDE PANELS
  •     HYDROSTATIC FLUID FILTER
  •     HYDROSTATIC MOTOR
  •     HYDROSTATIC PUMPS
  •     HYDROSTATIC SYSTEM INFORMATION
  •     PINTLE LEVER ARMS
  •     SERVO CONTROL
  •     STEERING LEVERS
  •     OIL COOLER
  •     STEERING CONTROLS
  •     TROUBLESHOOTING
• DRIVE SYSTEM
  •     CHAINCASE AXLE SEAL & WEAR RING
  •     FINAL DRIVE AXLES
  •     FINAL DRIVE AXLE SEAL & WEAR RING
  •     FINAL DRIVE CHAINCASE
  •     FRONT & REAR FINAL DRIVE CHAINS
  •     MAIN FRAME CHAINCASE
  •     PARKING BRAKE
  •     REDUCTION GEARCASE
• MAIN FRAME
  •     FRONT DOOR GAS CYLINDER
  •     FUEL TANK
  •     LIFT ARMS
  •     OPERATOR CAB
  •     OPERATOR CAB GAS CYLINDER
  •     REAR DOOR
  •     SEAT BAR
  •     SEAT BAR SYSTEM
  •     SHEAR BLADES
  •     TREE SHEAR
  •     TREE SHEAR HYDRAULIC CYLINDERS
• ELECTRICAL SYSTEM
  •     ALTERNATOR
  •     BATTERY
  •     CHASSIS HARNESS
  •     ELECTRICAL SYSTEM INFORMATION
  •     ENGINE HARNESS
  •     OPERATOR CAB HARNESS
  •     SEALED ELECTRICAL TERMINAL
  •     STARTER
  •     STEERING LEVERS ELECTRICAL SWITCHES
  •     TROUBLESHOOTING
• ENGINE SERVICE
  •     CAMSHAFT
  •     CAMSHAFT GEAR
  •     CRANKSHAFT
  •     CYLINDER HEAD
  •     CYLINDER LINERS
  •     ENGINE
  •     ENGINE BLOWER HOUSING
  •     ENGNE COMPRESSION
  •     ENGINE FLYWHEEL & U-JOINT
  •     ENGINE MOUNTS
  •     ENGINE MUFFLER
  •     ENGINE TIMING TO INJECTION PUMP
  •     FUEL FILTER
  •     FUEL INJECTOR NOZZLES
  •     FUEL INJECTION PUMP
  •     FUEL INJECTION PUMP IDLER GEAR
  •     GLOW PLUGS
  •     IDLER GEAR & HUB
  •     MAIN BEARINGS
  •     OIL COOLER
  •     OIL PAN
  •     OIL PUMP
  •     PISTON & CONNECTING ROD
  •     RADIATOR
  •     REMOVING AIR FROM THE FUEL SYSTEM
  •     ROCKER ARMS
  •     THERMOSTAT
  •     TIMING CASE
  •     TIMING CASE COVER
  •     TIMING CASE COVER SEAL
  •     TROUBLESHOOTING
  •     VALVES
  •     VALVE CLEARANCE
  •     WATER PUMP
  •     WATER JACKET TUBE
• TECHNICAL DATA
  •     DECIMAL & MILLIMETER EQUIVALENTS
  •     ENGINE SPECIFICATIONS
  •     HYDRAULIC/HYDROSTATIC FLUID SPECIFICAITIONS
  •     FELLER BUNCHER
  •     STANDARD TORQUE SPECIFICATIONS FOR BOLTS
  •     U.S. TO METRIC CONVERSION

Please, pay attention to the note section and warning. The Manual is an assistant to you for self-service, overhaul, all maintenance procedures, that can help you quickly find the faults and repair them. This guide helps beginners and experienced professionals.

Features of the Manual
Format: PDF
Language: English
Pages: 282
Compatible with all versions of Windows, Mac, Linux, iPhone, iPad, and Android

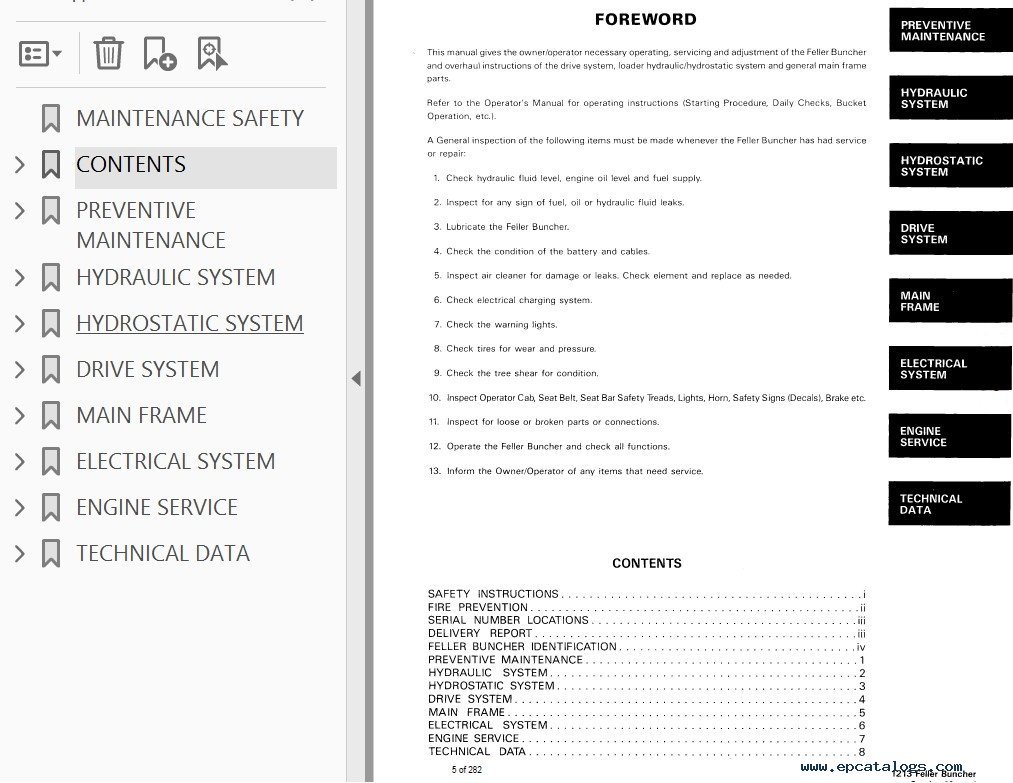

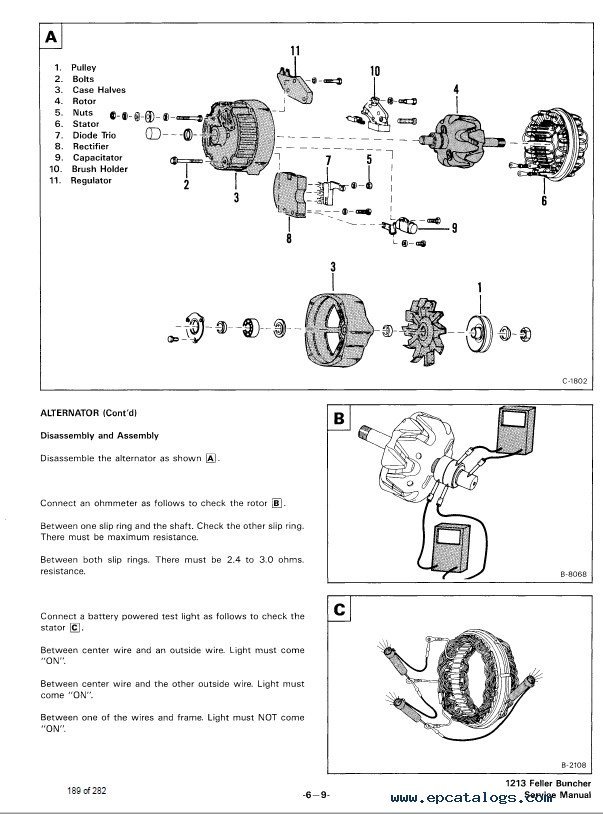

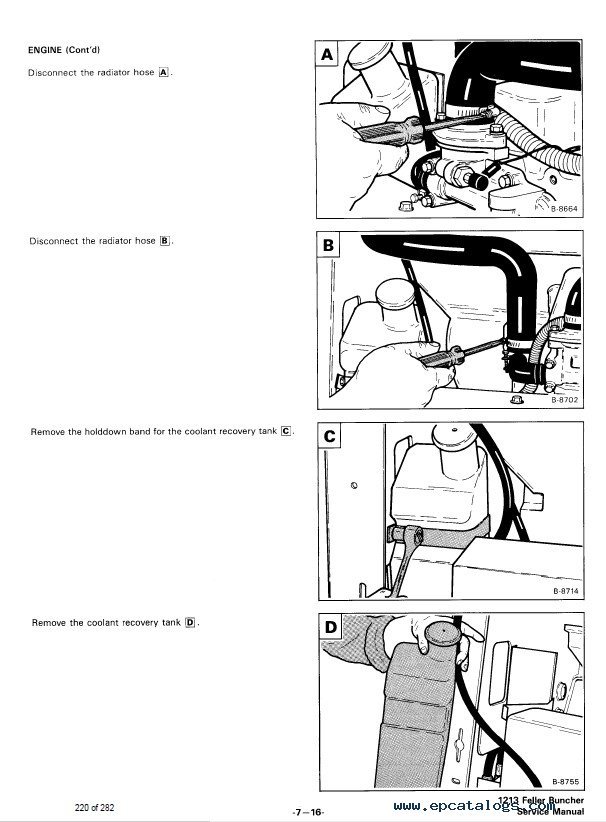

This service manual provides detailed service information, special instructions for repair and maintenance, troubleshoot and other additional information for Bobcat loader 1213. Service manual provides detailed diagrams and charts that help to carry out installation or removal of any parts loaders.
