Bendix Acom Pro 2024 v2 (replaces 2023 v3) Diagnostics Software

What is BENDIX Acom PRO Diagnostic Software?

Bendix ACom PRO Diagnostic Software is a diagnostic tool used in the commercial trucking industry for diagnosing and troubleshooting issues with Bendix anti-lock braking systems (ABS), stability control systems, and other related components. Bendix Commercial Vehicle Systems is a leading manufacturer of safety and braking systems for commercial vehicles.

Bendix ACom PRO Diagnostic Software allows technicians and mechanics to connect to the vehicle's onboard electronic control modules and retrieve diagnostic information, fault codes, and real-time data to help identify and resolve problems. This software is typically used with Bendix diagnostic hardware and equipment, such as adapters and connectors, to establish a connection between the computer and the vehicle's systems.

Key features of Bendix ACom PRO Diagnostic Software:

- Reading and clearing fault codes.
Technicians can use the software to read fault codes stored in the vehicle's electronic control modules, helping them pinpoint braking and stability control system issues.

- Real-time data monitoring.
The software can display real-time data from various sensors and components, allowing technicians to assess the performance of the vehicle's braking system.

- Configuration and calibration.
Some software versions may offer the ability to configure and calibrate Bendix ABS and stability control systems.

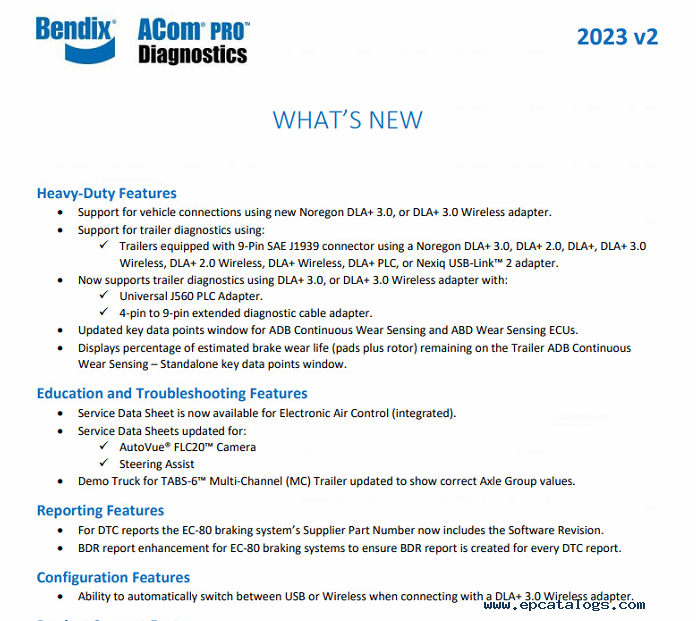

Heavy-Duty Features:

• Support for vehicle connections using new Noregon DLA+ 3.0, or DLA+ 3.0 Wireless adapter.

• Support for trailer diagnostics using:
- Trailers equipped with 9-Pin SAE J1939 connector using a Noregon DLA+ 3.0, DLA+ 2.0, DLA+, DLA+ 3.0
Wireless, DLA+ 2.0 Wireless, DLA+ Wireless, DLA+ PLC, or Nexiq USB-Link™ 2 adapter.

• Now supports trailer diagnostics using DLA+ 3.0, or DLA+ 3.0 Wireless adapter with:
- Universal J560 PLC Adapter.
- 4-pin to 9-pin extended diagnostic cable adapter.

• Updated key data points window for ADB Continuous Wear Sensing and ABD Wear Sensing ECUs.

• Displays percentage of estimated brake wear life (pads plus rotor) remaining on the Trailer ADB Continuous.

• Service Data Sheet is now available for Electronic Air Control (integrated).

• Service Data Sheets updated for:
- AutoVue® FLC20™ Camera
- Steering Assist

• Demo Truck for TABS-6™ Multi-Channel (MC) Trailer updated to show correct Axle Group values.

Reporting Features:

• For DTC reports the EC-80 braking system’s Supplier Part Number now includes the Software Revision.
• BDR report enhancement for EC-80 braking systems ensures BDR report is created for every DTC report.

Configuration Features

• Ability to automatically switch between USB or Wireless when connecting with a DLA+ 3.0 Wireless adapter.

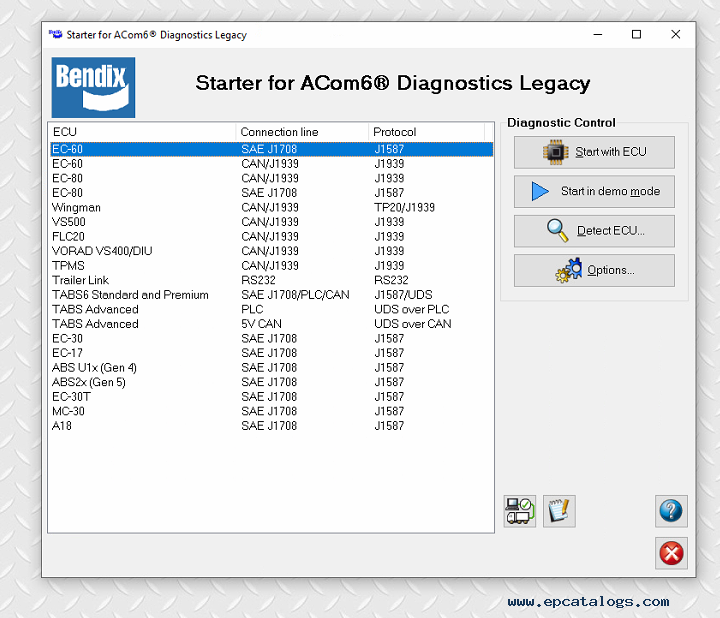

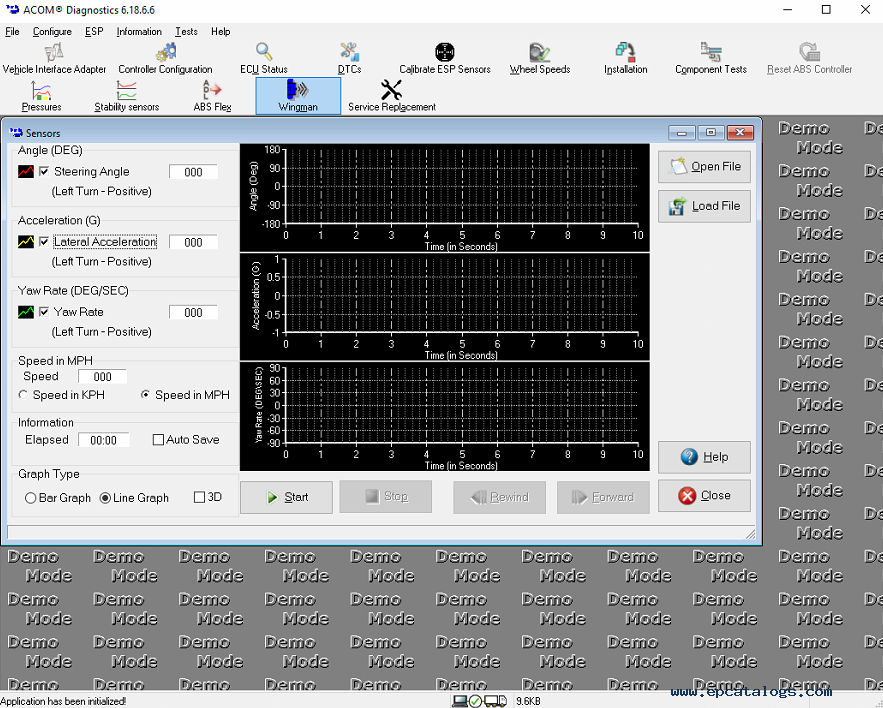

Along with the program comes a version for older systems Acom Diagnostics 6.18.6.6.
The manufacturer is Noregon, the same as JPRO.

Notes
1) Registration is required before the Bendix® ACom® PRO™ Diagnostics application can be used. A valid license key will be required to register the application. Please ensure you have license key information available before you install. Registration over the Internet is required; offline registration is not supported. Periodic internet access is required.
2) The appropriate vehicle adapter driver must be installed to connect to a vehicle adapter device. This installation is separate and independent of the Bendix® ACom® PRO™ Diagnostics installation.
3) The vehicle adapter driver must be RP1210C compliant and support a minimum of 2 CAN Channels to be used with the Bendix® ACom® PRO™ Diagnostics application
