Atlas Copco DH60/L8 Drill Rig Set of Training & Service Manuals

This set of manuals and instructions intended for the maintenance of the drill rig Atlas Copco and its peripheral equipment.

The maintenance instructions are intended for mechanics and personnel for maintenance and repair. We recommend to the user should have undergone Atlas Copco's training courses for the equipment concerned, but if it’s not possible, these instructions will help you. This set of information will help to use all the information, without passing training courses.

The objective of these maintenance instructions is to detect and rectify faults at an early stage so that breakdowns, costly secondary damage and accidents can be prevented.

Regular maintenance is a precondition for planning necessary interruptions in operation such as reconditioning and repairs. This allows maintenance to be carried out when most suitable with regard to production instead of causing a complete breakdown.

You can read the needed information in the following manuals:
Operator's instructions

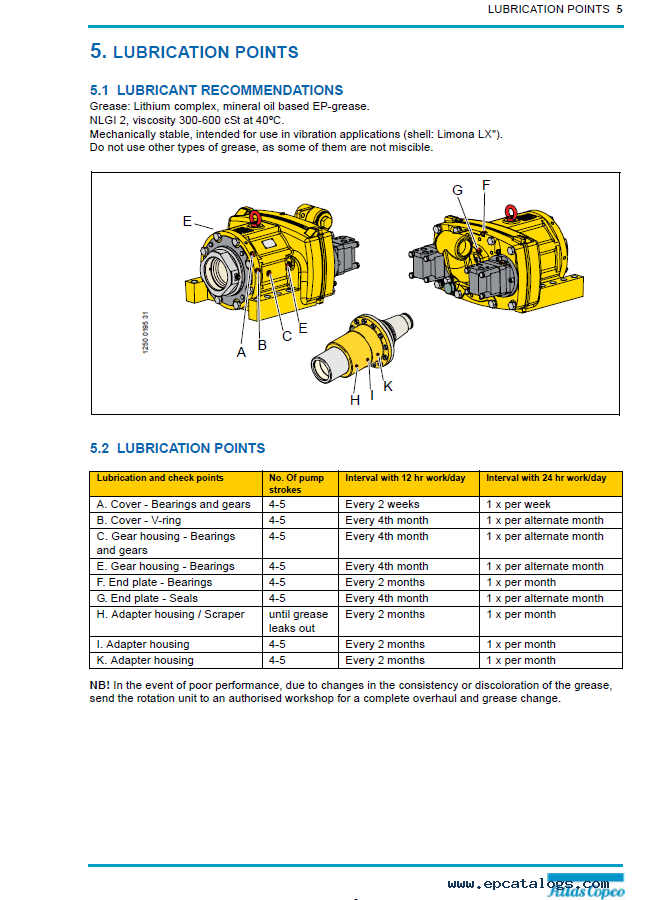

Maintenance instruction

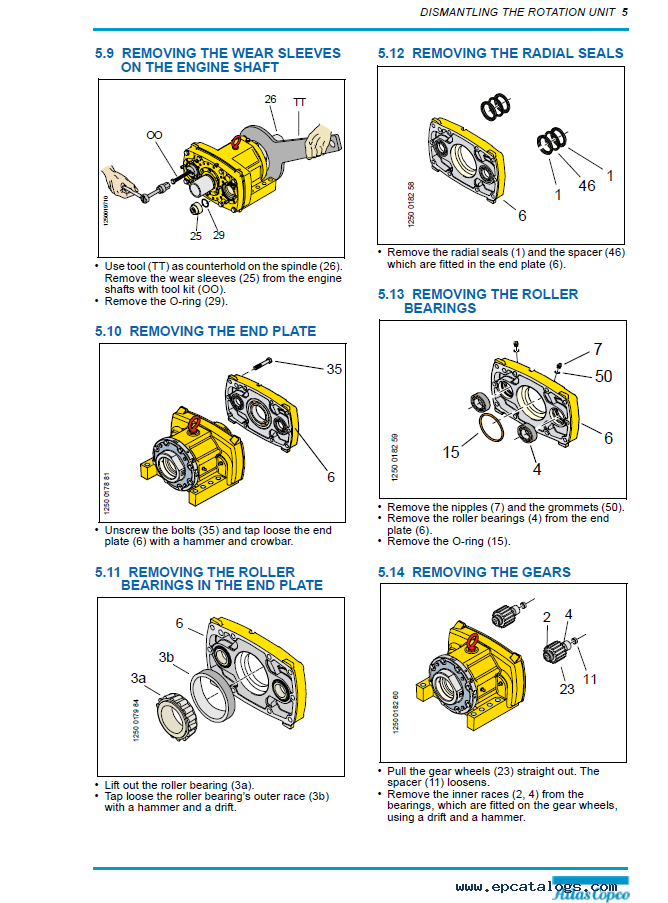

Repair instructions
Spare parts catalog
Maintenance Schedule
Schemes for air/pneumatic system/electrical system/hydraulic
Technical description

Set of manuals in Zip-archive with PDF files. Thanks to this format, it is possible to print the entire instruction or the individual diagrams and schemes. You can work with this set after installing Adobe PDF Reader. If necessary, you can print the desired page manual.

When purchasing this set of manuals - we provide after-sales support and assistance. If you still have questions, please contact us, we will be happy to help you.

Approximate Content:
Hydraulics, general
Electrics, general
Operating
CAN general
Diesel engine
Pumps & pilot pressure; Cooling fans
Tramming; Positioning
Compressor
Pre-heating
Feed
Rotation
Rapid feed; Rod coupling
Impact & Flushing air; ECL/HECL
Damper
DCT
Protective functions
Length measurement
RHS 102; RHS 140
Options; Adjustments/calibration; Emergency message decoding; Uploading software
PLC descriptions

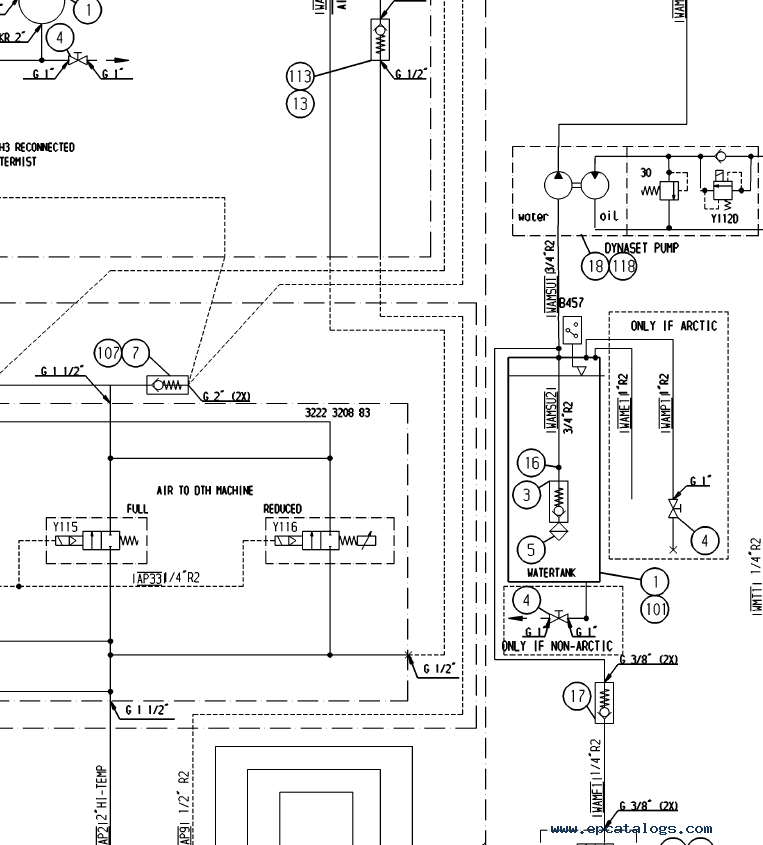

Hydraulic diagrams with number indication

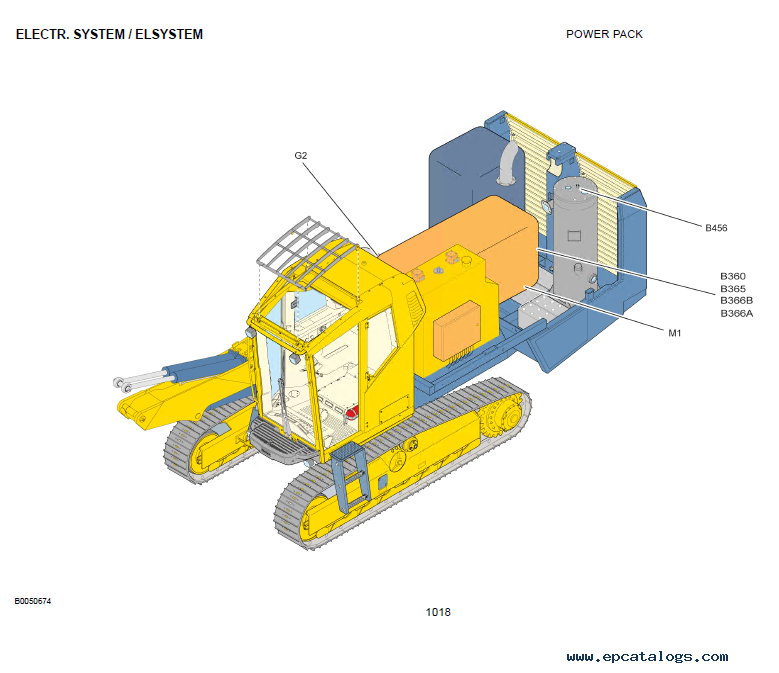

Electrial & pneumatical diagrams
