Volvo Vcads Diagnostic Kit 88890020

WE ARE LOOKING FOR SUPPLIER OF ORIGINAL DIAGNOSTIC ADAPTERS for the following brands

caterpillar, JOHN DEERE , JCB, PERKINS , CNH , KOMATSU, HITACHI, HYUNDAI, LINDE, JUNGHEINRICH, VOLVO , etc.

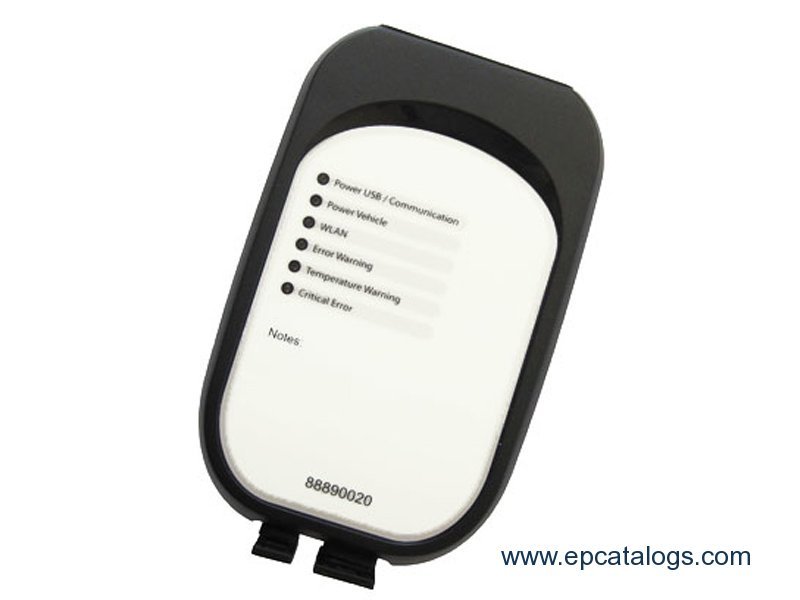

Interface Volvo Vcads Diagnostic Kit 88890020 is developed for commercial vehicles (trucks, buses, trailers) and engines of company Volvo and Mack.
Unit Volvo Vcads 88890020 connects to the PC via USB cable or using WLAN 802.11 B / G communications standards. This is a great tool for all workshops that work with heavy vehicles and Volvo Mack, this tool is also used Volvo dealers and Mack.
Diagnostic interface 88890020 allows customers to diagnostic operations quickly thanks to high quality software, Volvo-Mack.
Before using a communication device driver must be installed on the PC. In addition, the utility applications (Admin0020) can be used to check the status of the device and update the firmware when necessary.

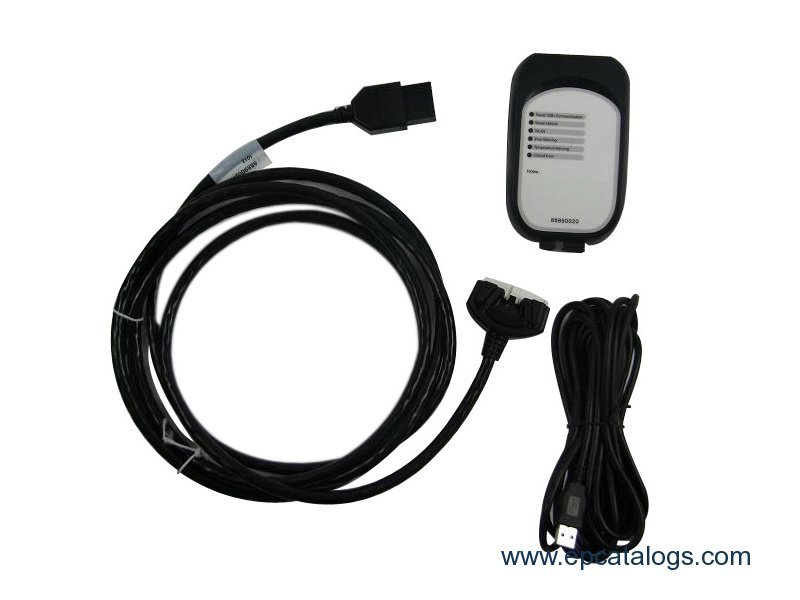

The complete diagnostic adapter Volvo Vcads 88890020 includes:
• 88890020 interface;
• 88890026 OBD2 cable;
• USB-cable.

Additional cable:
88890026 296 $
88890018 315 $
88890027 $ 230

Software:
• Volvo Premium Tech Tool (PTT) 1,12 / 2,40 VCADS Pro

List of models:
VOLVO TRUCKS: AC, FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12,
FL6, FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM,
VM, FM9, F10, F12, F16, NL10, NL12,
Buses VOLVO: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY
RENAULT TRUCKS (with engines DXi): CESAR, KERAX, KERAXMIL, MAGNUM, MIDLUM, PREMIUM, SH 23, SH 510
Mack Trucks
Volvo Construction Equipment (CE):
Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Dump Truck: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D,
Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960, G970, G976, G990
Compact Excavator: ECR88

Operating temperature range: -40 to +85 ° C (-40 to +185 ° F).
Storage temperature range: -40 to +125 ° C (-40 to 257 ° F).

Note: Your PC must have Wireless LAN 802.11b / g and support for 128-bit WEP (encryption), if it will be used for direct communication with the communication device. Panasonic CF29 built into the motherboard. Additional Wireless LAN cards will be recommended in the future.

Communication is performed using 128 bit WEP, Wired Equivalent Privacy. WEP-key is generated automatically and is not seen during the configuration.

Note: Refer to the technique of IT-support or network before installation.

There are three variants of security through an access point to:
1) WEP and MAC-address. Communication is performed using 128 bit WEP, Wired Equivalent Privacy. WEP-key is written in the configuration process. MAC-address must be entered in the access point for additional security.
2) WPA and PSK. Communication is performed via WPA, Wi-Fi Protected Access.
3) Communication is performed using standard EAP_MSCHAP v2.
