Volvo PTT 2.8.350 (replaces v2.7.116) (PTT / VCADS Pro) (incl. Dev Tool) Diagnostic Program

[10/2025]

Type of catalogue:

Diagnostic Software

Make:

Volvo

Region:

WorldWide

Inclusive
languages:

English

Amount of
disks:

Online Installer

OS:

Windows 10 64 bit, Windows 11 64 bit, Windows 11 Pro 64 bit

Price, USD:

400

Description

Volvo Premium Tech Tool v 2.8.350 (replaces v2.7.116) is the OEM software. It's a part of the dealer diagnostic kit. Premium Tech Tool allows performing all the tests the dealerships can. Such as fault code checks, DPF regen, Injector Cut-out tests, etc. Works for both Volvo and Mack trucks.

Important Notice

Important Notice. Installation and activation are possible only with remote assistance using TeamViewer.

Installation & Connectivity

The PTT software comes as a set of installation files/components. You can download the files from our server. The installation is only online. You cannot install the PTT without an internet connection.

Pre Requirements

Note: Tech Tool does NOT support Windows Home Edition. If you had a previous Volvo Techtool installed, we highly recommend reinstalling Windows. Hardware & Software Requirements available below.

Please consider that the connection to the central systems is not available.

Recommended Adapters

Volvo VOCOM II 88894000 and VOCOM/88890300 are the recommended devices.

Both Adapters work with Windows 10, 11 (Pro) versions. Moreover, all vehicle electrical systems and vehicle production dates are covered.

The latest version of the Nexiq USB Link adapters (USB-Link, USB-Link 2, USB-Link 3) is also compatible with the PTT 2.8.350, but with some limitations—there is no high-speed programming for electrical systems v2 and 3.

The same information is valid for Mack Trucks.

Capabilities

With this tool, you can diagnose, test, calibrate, and program - in one word - the reliable and high-quality service of your truck. The program also provides features for updating the tool, communication with the product and other external applications. A set of plug-ins, user authorization, and languages are configured to provide each user with what they need.

Workflow

To work with the diagnostic tool, users need to install the software ECU, and then, with this tool, you can make it usable for any dealer ID and customer ID. The basic workflow in this tool is the same for all products: identify a product, to history information, diagnose a selected product, a select product, program a selected item, and calibrate a chosen product.

Service

We offer a Full Online Installation Service via TeamViewer. Please make sure your Windows has all the recent recommended updates installed.

Volvo PTT Software Download Package Contains:

Single Laptop or PC License
PTT 2.8 Online Installer (stable Internet connection is required)
TeamViewer remote assistance with setup & activation
Latest APCI Database 10.2025
Devtool Professional
Devtool standart

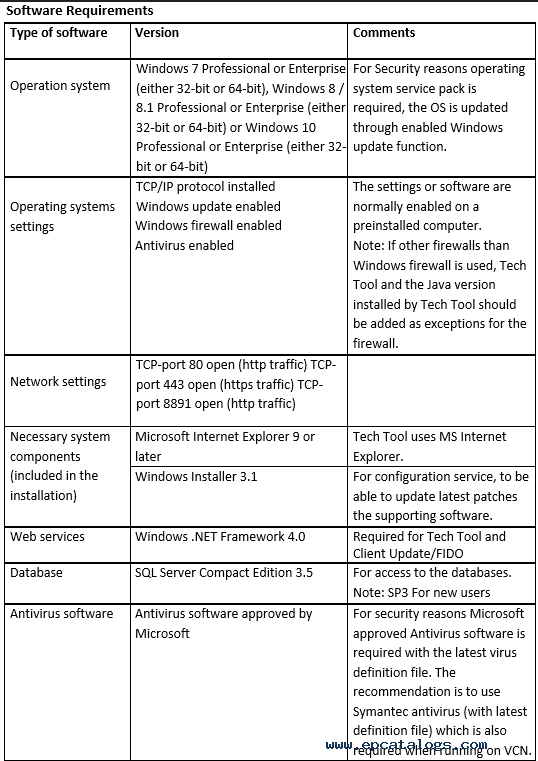

Hardware & Software Requirements

Category	Requirement	Comments
Computer/Processor	Intel® Core i5, 4 cores+ manufactured in the last 5 years
Memory (RAM)	8 GB	More memory improves performance
Hard Disk	160 GB SSD	Free hard disk space required
USB Port	2.0 / 3.0 USB Port
Display	XGA (1024 x 768) or higher	32-bit color settings
Input Device	Keyboard and mouse	Or a compatible pointing device
Network Adapter	100 Mbps or higher / WLAN
Vehicle Communication	Approved USB or wireless interface
Miscellaneous	Battery pack providing 500 mA via USB
Operating System	Windows 11 Pro/Enterprise (64-bit) Windows 10 Pro (64-bit)	Latest service pack & Windows update required
Operating System Settings	TCP/IP protocol installed Windows update enabled Windows firewall enabled Antivirus enabled	If using another firewall, add Tech Tool and installed Java as exceptions
Network Settings	TCP-port 2010 (HTTP) TCP-port 80 (HTTP) TCP-port 443 (HTTPS) TCP-port 8891 (HTTP) *.volvo.com
System Components	Microsoft Edge Windows Installer 3.1	Edge required for Tech Tool patches & updates
Web Services	Windows .NET Framework 4.8	Required for Tech Tool and Client Update/FIDO
Database	SQL Server Compact Edition 3.5	For Tech Tool v2.8.175 or below (SP3 for new users)
Antivirus Software	Microsoft-approved antivirus (Symantec recommended)	Latest virus definition file required; Symantec is mandatory for VCN

Electrical systems and compatible brands

Volvo Trucks (the older system, the vehicle \ 98, Version parameter programming)
Volvo Truck (Version 4-FH4/FM4)
Volvo buses (conventional multiplexed v2 ... v3)
Volvo construction equipment (v2 .. v3)
Volvo Penta (v2 ... v3)
Volvo OEM client component (v2 ... v3)
Trucks MAC (v-MAC I\ II\ III, ITC, IV)
Renault Trucks (v2 v3 v4)
UD Trucks (v2 v3)

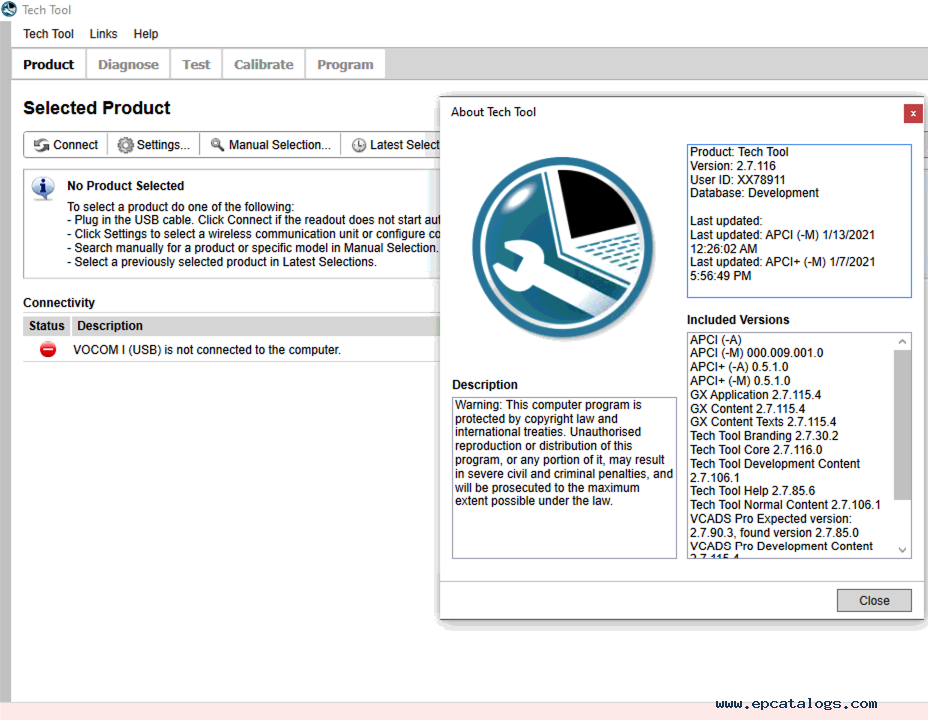

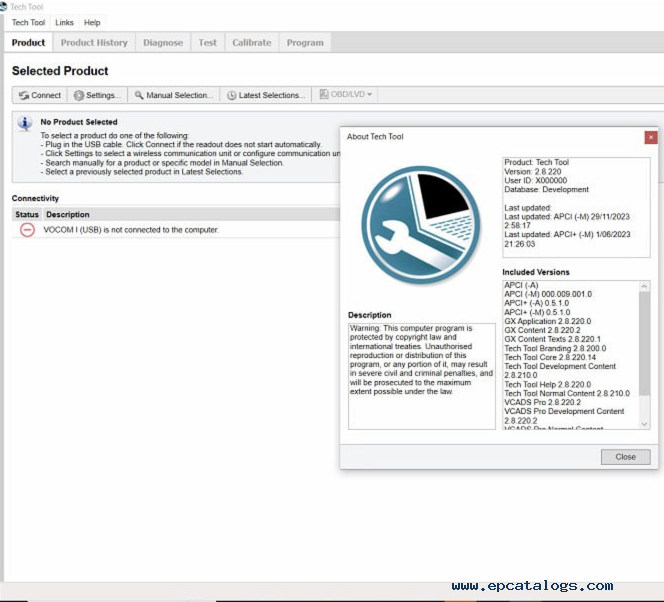

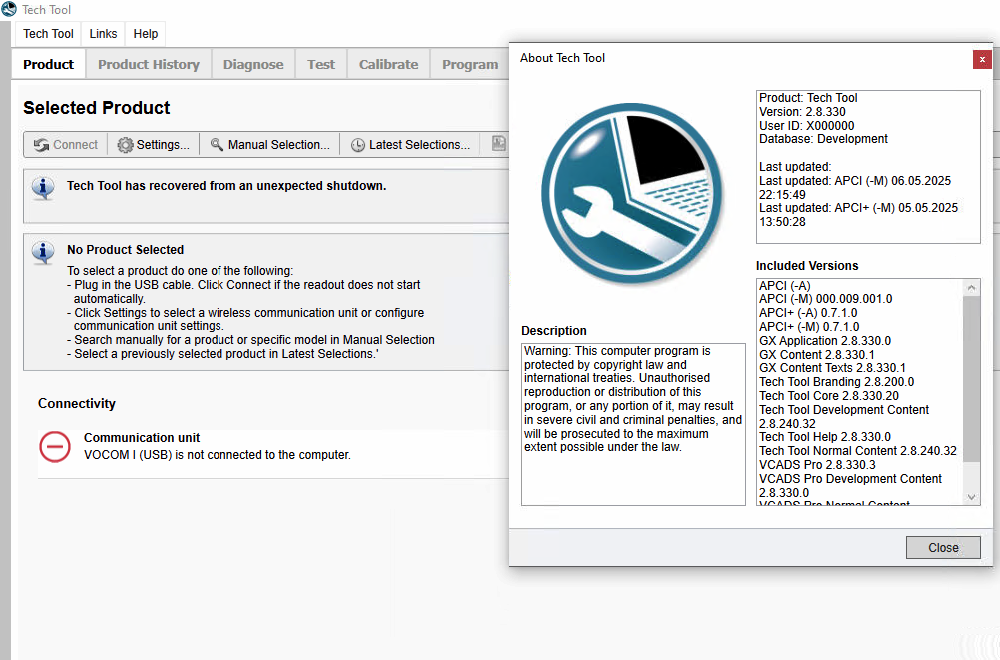

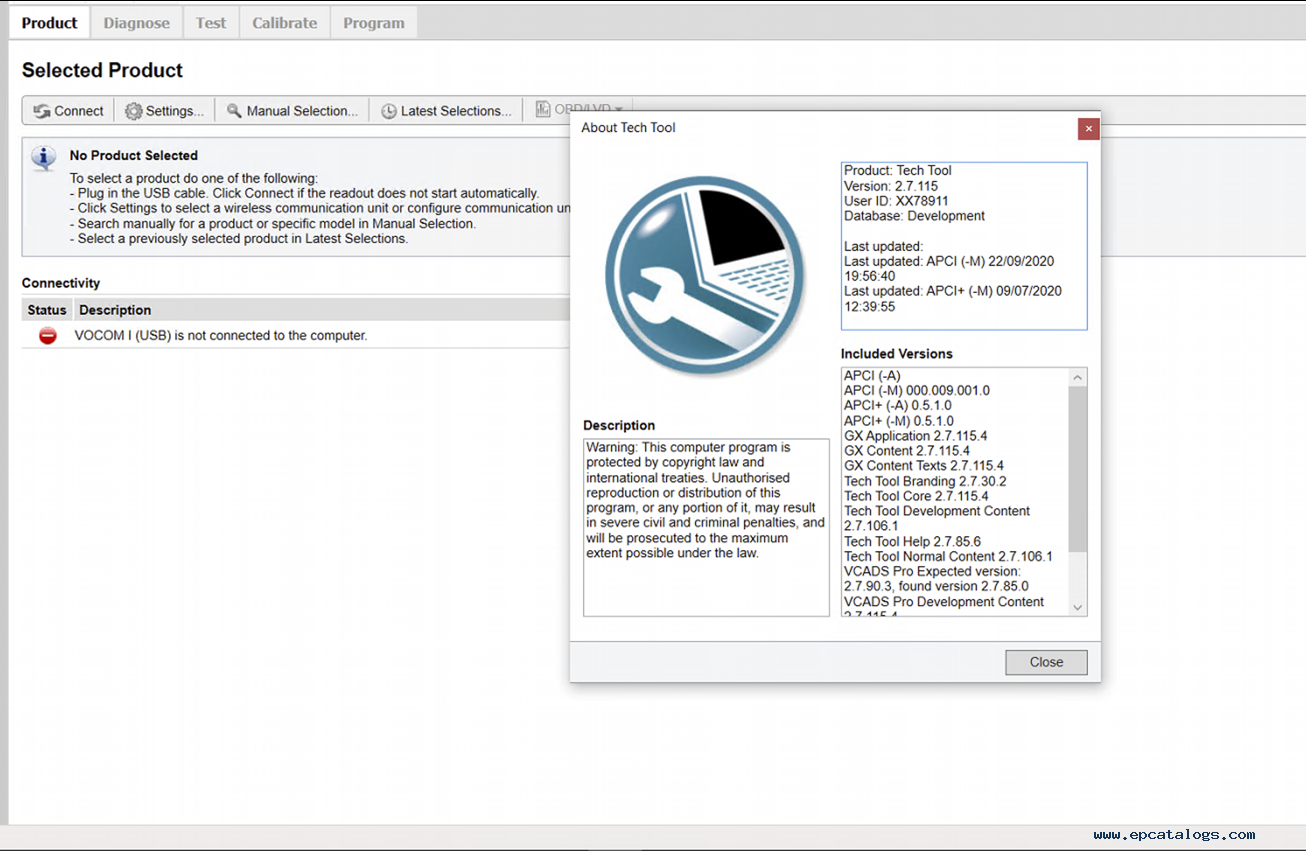

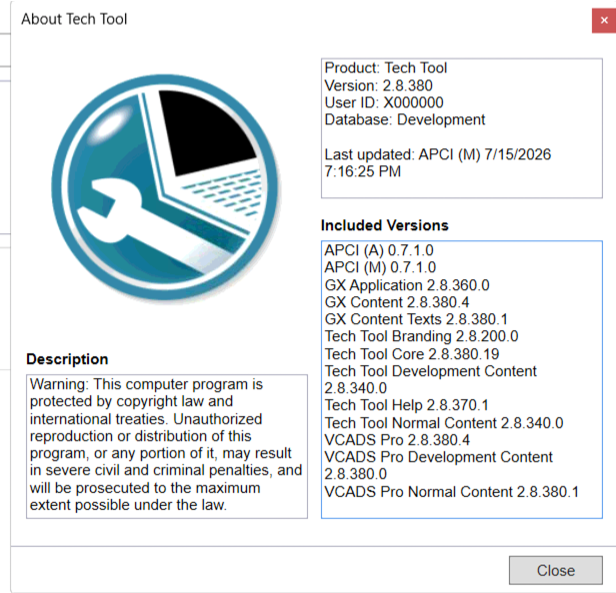

Screenshots for Volvo PTT 2.8.350 (replaces v2.7.116) (PTT / VCADS Pro) (incl. Dev Tool) Diagnostic Program:
